INT.AUT LEGRAND TX3 2P 40A C 6000A ACC

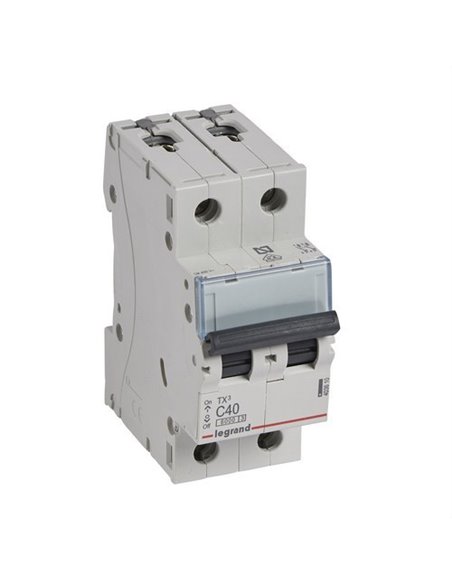

Circuit breaker TX3 6kA-C 2P 40A

INT.AUT LEGRAND TX3 2P 40A C 6000A ACC

Circuit breaker TX3 6kA-C 2P 40A

Circuit breaker TX3 6kA-C 2P 40A

Available In stock 44 Items

Reference LEGRAND 403610

€32.56

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Protection IP20

This is a 2-pole TX3 circuit breaker with a nominal intensity of 40A and a C curve. It complies with the UNE EN-60898-1 standard and has a connection capacity of 25 mm² flexible/35 mm² rigid.

Technical characteristics:

Switch type: Bipolar
Nominal voltage: 230/400 V~
Tripping curve: C
Nominal current: 40A
Number of modules: 2
Breaking capacity: 6000A
Connection with terminals protected against direct contact ( IP20)
Captive screws
Incorporated label holder
Termination capacity: 25 mm² flexible/35 mm² rigid
They can be equipped with controls motorized and auxiliary control and signaling DX³.

Product Details

Dimensiones

High	77,8
Width	35,4
Weight (kg)	0

Eléctrico

Rated current (A)	40

Protección

Protection	IP20

Otras

EAN	3245064036108
Manufacturer	Legrand
No. of poles	2P
Reference	LEGRAND 403610

Información legal

Fabricante	LEGRAND GROUP ESPAÑA, S.L.
Dirección	C, ES
Email	[email protected]
Teléfono	+34 916561812
Referencia	LEGRAND 403610
EAN	3245064036108

In stock 44 Items

Downloads

Product sheet Store PDF Download
