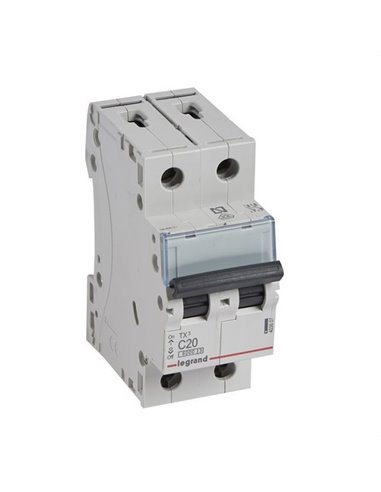

INT.AUT LEGRAND TX3 2P 20A C 6000A ACC

Circuit breaker TX3 6kA-C 2P 20A

INT.AUT LEGRAND TX3 2P 20A C 6000A ACC

Circuit breaker TX3 6kA-C 2P 20A

Circuit breaker TX3 6kA-C 2P 20A

Protection IP20

Reference LEGRAND 403607

Available

€12.47

VAT included

The TX3 6KA-C 2-pole 20A circuit breaker is a bipolar circuit breaker designed to protect and control electrical current in residential or industrial installations. With its C cutting curve and flexible/rigid connection capacity, it offers a high level of safety and efficiency in the management of electrical energy.

Technical characteristics:

Switch circuit breaker TX³ Bipolar 230/400 V~
Curve C
Nominal current: 20A
Number of modules: 2
Power breaking: 6000A
According to UNE EN-60898-1
Connection with terminals protected against direct contact (IP20)
Captive screws
Incorporated label holder
Terminalization capacity: 25 mm² flexible/35 mm² rigid
They can be equipped with motorized controls and auxiliary control and signaling DX³

In stock 27 Items

Email address

Product Details

Curve	C
EAN	3245064036078
Manufacturer	LEGRAND
Intensity	20
# Elements	2
No. of poles	2P
Reference	LEGRAND 403607
Protection	IP20
High	77,8
Rated current (A)	20
Width	35,4
Weight (kg)	0

Curve	C
EAN	3245064036078
Manufacturer	LEGRAND
Intensity	20
# Elements	2
No. of poles	2P
Reference	LEGRAND 403607
Protection	IP20
High	77,8
Rated current (A)	20
Width	35,4
Weight (kg)	0
