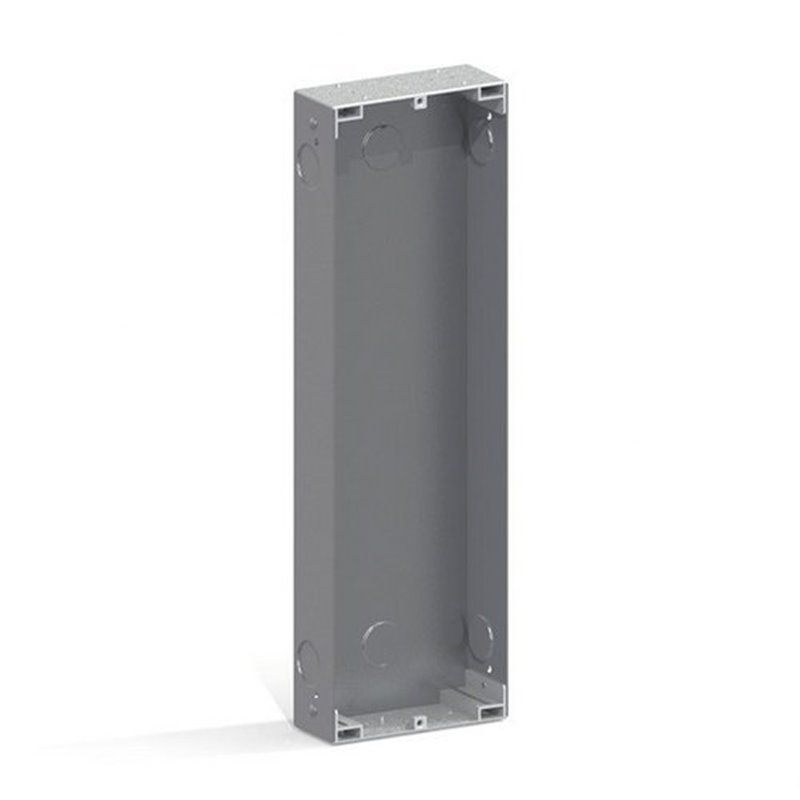

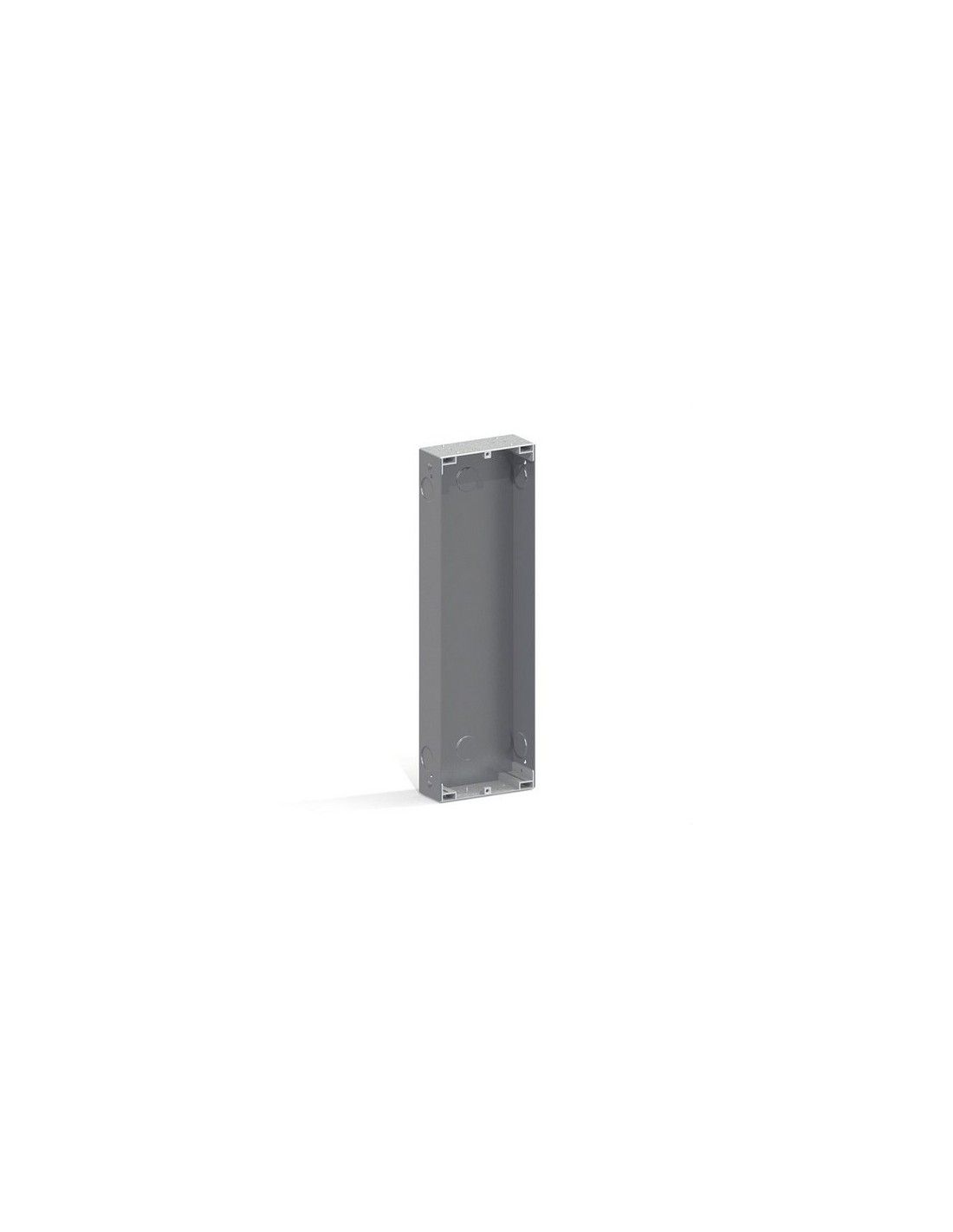

FERMAX 8858 | CITY-8 flush mount box

CITY S8 flush mount box. To install a plate it is necessary to first place a flush-mounted box on the wall where we will later fix the plate. Available for all series, they are made of aluminum and zamak. They have hinges that can be folded in any direction, as shown in the image, which allow the panel to be held while the wiring is being carried out, facilitating the work of the installer. They have circular marks cut into the bottom of the box, which are pierced with a garter belt, blow or pressure, thus allowing the passage of the cables. In the event that several plates are combined, always from the same series, it is necessary to use spacers for a perfect coupling between them, as shown in the figure. One kit is required for each additional plate installed between wallboxes.
