FEEDER 12VCA/1A DIN4. FERMAX 4802
FEEDER 12VCA/1A DIN4. FERMAX 4802

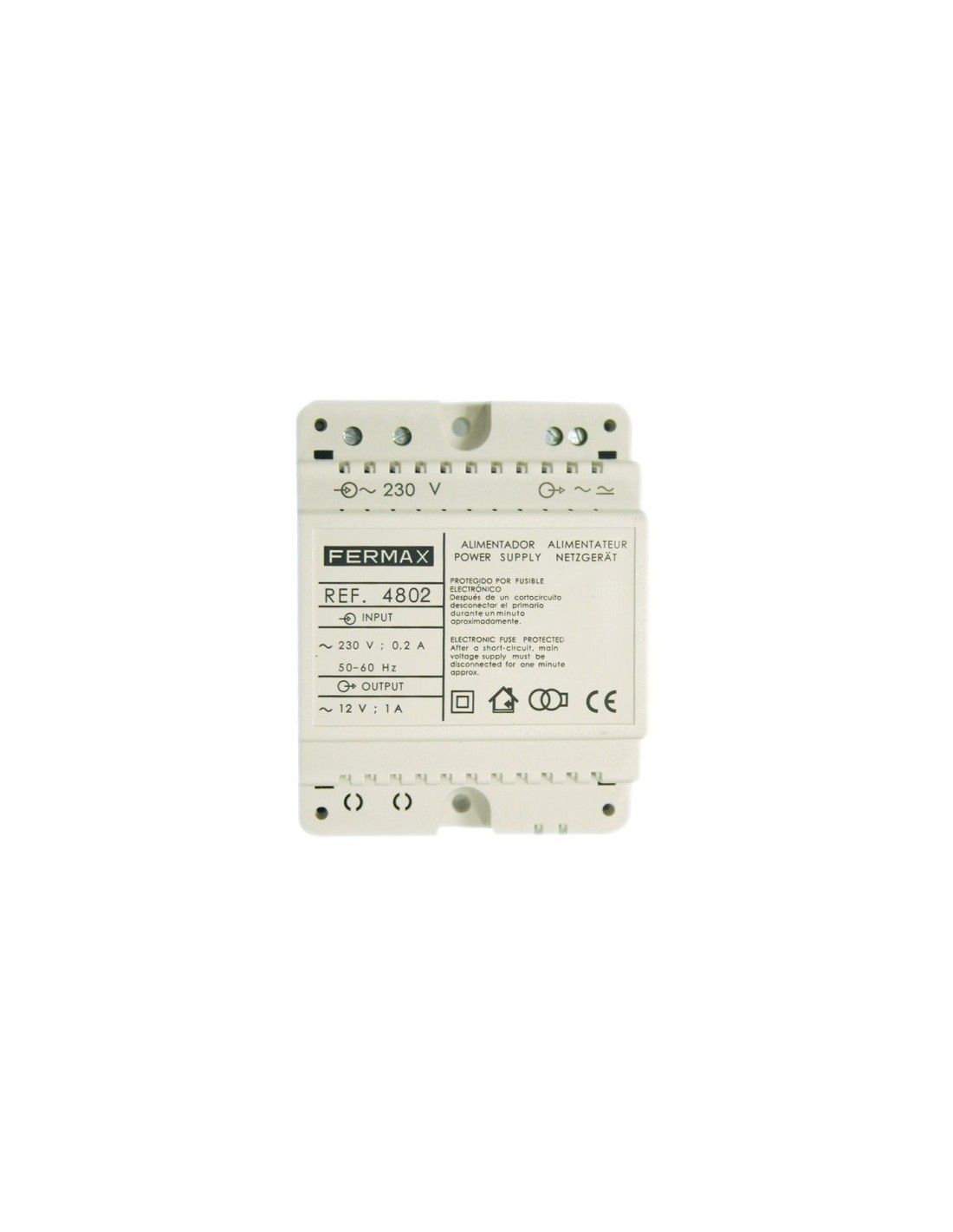

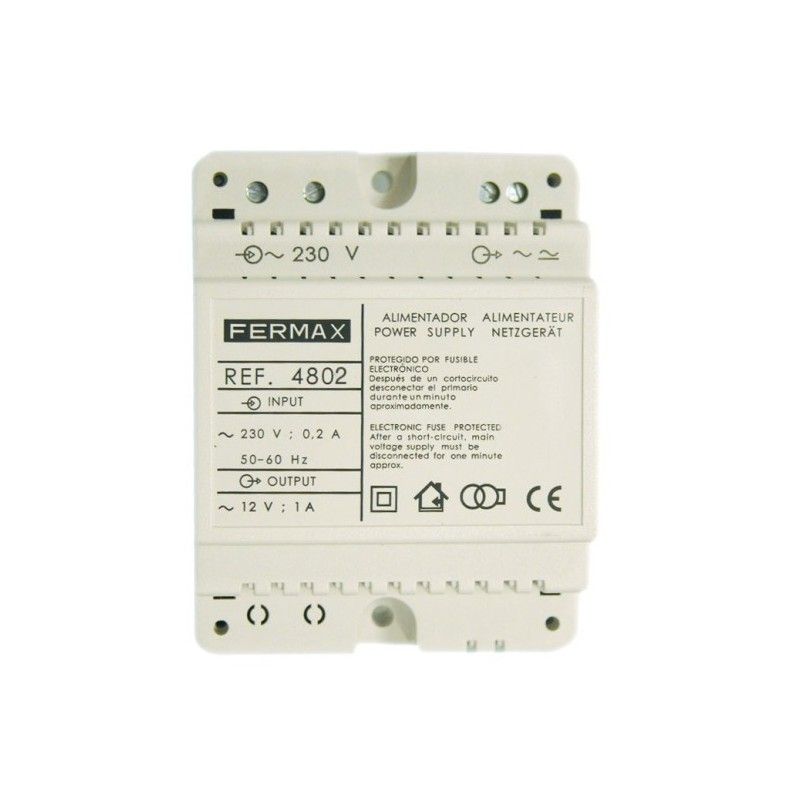

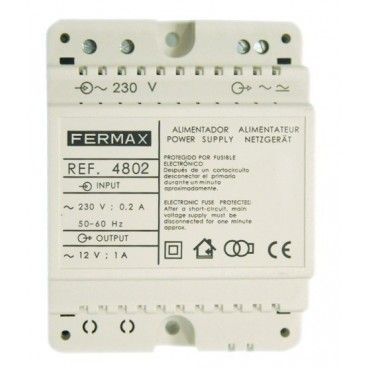

12VAC / 1A DIN4 FERMAX 4802 power supply

FERMAX 4802
Available
€65.29
VAT included

Feeder 12VCA-1A

Manufacturer: Fermax

21 Items

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

Description

It is used to power the different equipment of an installation of Fermax.
Built in material self-extinguishing VO.
Include a set of caps to protect the connection terminals.

Format DIN rail-4 to facilitate its installation in the interior of an enclosure of electrical equipment, or it can be screwed directly on the wall.

Specifications

Dimensions DIN 4: 70x 90x60 mm

Input voltage: 230 Vac

Output voltage: 12 Vac

Output current: 1A

Protection input: PTC and fuse from 2.3 To

Protection outputs: Limitation electronics for overload and short-circuit

Input frequency: 50-60 Hz

Weight: 0,4753 kg

Product dimensions packed: 11,5x7,5x6,5 cm

EAN 13: 8424299048024
