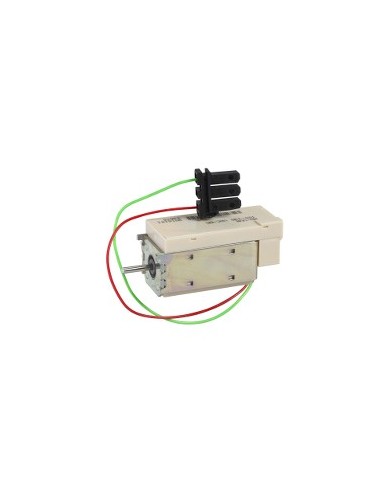

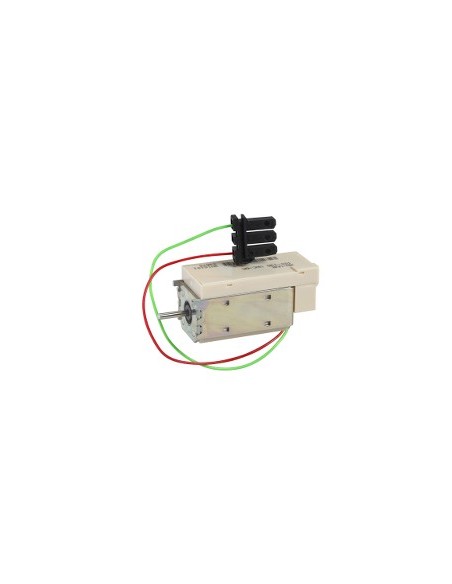

Minimum voltage trip coil MN fixed 200/250 VAC/DC
Minimum voltage trip coil MN fixed 200/250 VAC/DC

Minimum voltage trip coil MN fixed 200/250 VAC/DC

Available In stock 10 Items Reference IMPO 33671
€181.52
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía

Standard minimum voltage firing coil for Masterpact NT, NW and Compact NS630b/NS1600b/NS3200 automatic switches. Works with control voltages 200–250 V AC/CC, opening threshold 0.35–7 x One and closing 0.85 x One. Maintenance power of 4.5 VA, response time of 40 ms (Masterpact NT) to 90 ms (other types).

Description

Standard MN minimum voltage firing coil, designed for use in automatic switches of the range Masterpact NT, NW and Compact NS630b...3200. It is used in control applications to activate the shot under reduced voltage conditions, ensuring safe operation of network failures.

Technical characteristics

  • Type of shot coil: Minimum voltage coil
  • Control circuit voltage: 200...250 V AC 50/60 Hz, 200...250 V DC
  • Shot voltage threshold: 0.35..7 x Un (opening), 0.85 x Un (closing)
  • Maintenance power supply: 4.5 VA
  • Type of assembly: Fixed
  • Response time: 40 ms (Masterpact NT), 90 ms (Masterpact NW, Compact NS630b...1600, Compact NS1600b...3200)
  • Compatibility: Masterpact NT, Compact NS630b...1600, Compact NS1600b...3200, Masterpact NT UL 489, Masterpact NW, Masterpact NW RXDC
  • Category: Spare parts for Masterpact NT, Masterpact NW, Compact NS1600b...3200, Compact NS630b...1600
  • SVHC content: Yes (REACh Regulation)
  • RoHS EU: Proactive (out-of-scope) compliance
  • RoHS China: Outside the scope
  • No mercury: Yes
  • RoHS exemptions: Yes

Product Details

Eléctrico

Nominal voltage (V) 200...250 V
Rated voltage 250

Otras

Frequency 50/60 Hz
EAN 3303430336716
Manufacturer SCHNEIDER
Reference IMPO 33671
