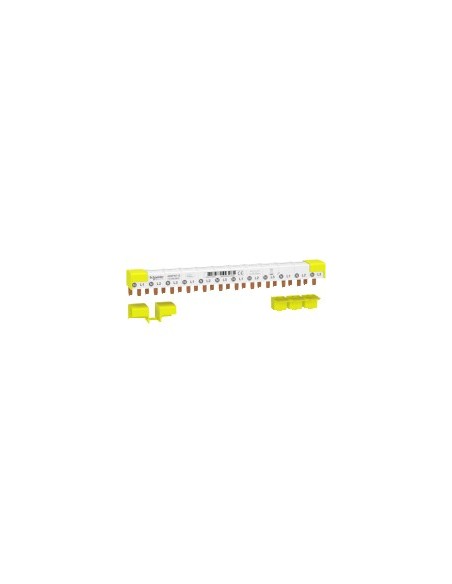

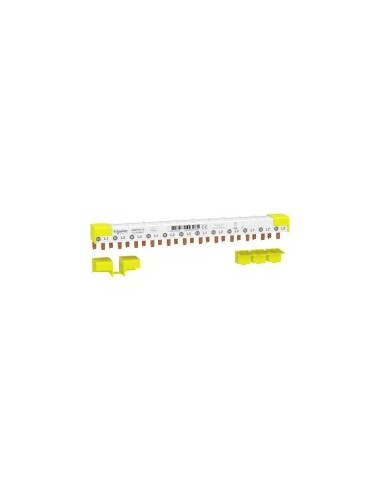

Acti9 3PN 12-module 18 mm connection comb

3P+N connection comb of 12 18 mm modules, designed for horizontal installation in tunnel-type terminals. It is used in industrial and commercial electrical installations as a connecting element in distribution bars, allowing the secure and efficient connection of multiple circuits. Compatible with a wide range of Acti9 series automatic and differential switches.

Technical characteristics

• Total number of 18 mm modules: 12
• Number of addresses: 4 N + 3 L (balanced)
• Pole configuration for 1 track: 1 3P + N 1 3P 3 1P + N
• Connection step: 9 mm between phase and neutral, 18 mm between phases
• Connector type: Tooth
• Distance between tracks: 54 mm
• Marked: N L1 N L2 N L3
• Insulation: Isolated
• Presentation of the device: Trimmed
• Nominal current of employment [Ye]: 80 A at 40 °C
• Nominal use voltage [Ue]: 230 V AC Phase/N, 400 V AC Phase/Phase
• Isolation rated voltage [Ui]: 440 V AC according to IEC 61439-1
• Voltage peak resistance [Uimp]: 4 kV
• Type of assembly: Horizontal
• Mounting location: Upper at tunnel-type terminals
• 9 mm steps: 24
• Height: 32 mm
• Width: 218 mm
• Depth: 28 mm
• Product weight: 334 g
• Colour: White (RAL 9003)
• Range compatibility: Acti9 DT40 Vigi, Acti9 DT60 Vigi, TG40 Vigi, TG60 Multi 9 N40 Vigi, Multi 9 NC100, Acti9 iDT40, Acti9 iDD40, Acti9 iDD40 TG Vigi, iTG40, Acti9 iIG40, Acti9 iDT40K, Acti9 iDD40K, Acti9 iIG40K
• Standards: EN/IEC 60439-1
• Fire resistance: 960 °C (30 s) according to IEC 60695-2-1
• Degree of contamination: 3 according to EN/IEC 60439-1
• Degree of IP protection: IP20 with terminal parts and tooth covers
• Sustainable supply status: Product Green Premium
• REACh Regulation: Reference does not contain SVHC
• According to REACh without SVCC: Yes
• EU RoHS Directive: As per
• Without toxic heavy metals: Yes
• No mercury: Yes
• Information on RoHS exemptions: Yes
• RoHS China Regulations: Proactive statement by RoHS China (out of the legal reach of RoHS China)
• WEEE: On the European Union market, the product must be disposed of in accordance with a specific waste collection system and never end up in a waste container
