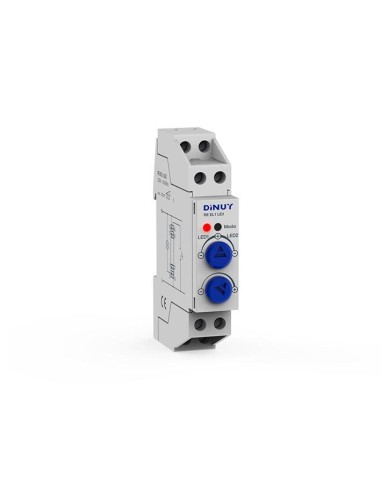

Modular dimmer for LED lamps with rotary switch

The modular dimmer for LED lamps with rotary switch is an electronic control device designed to manage light intensity in modern electrical installations. It uses leading-edge or trailing-edge phase-cutting technology, allowing precise and smooth attenuation. This equipment is essential for optimizing energy consumption and creating adaptive environments, widely used in offices, commercial spaces, homes, and public areas requiring lighting flexibility.

Technical Features

• Regulation technology: Leading-edge or Trailing-edge phase.
• Rated power resistive load: 300 W.
• Input nominal voltage: 230 V (50...60 Hz).

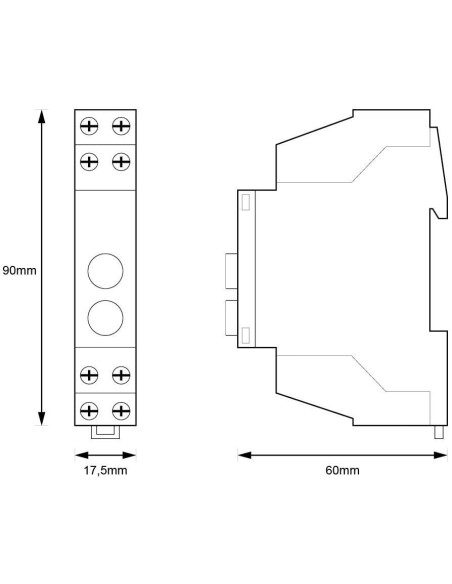

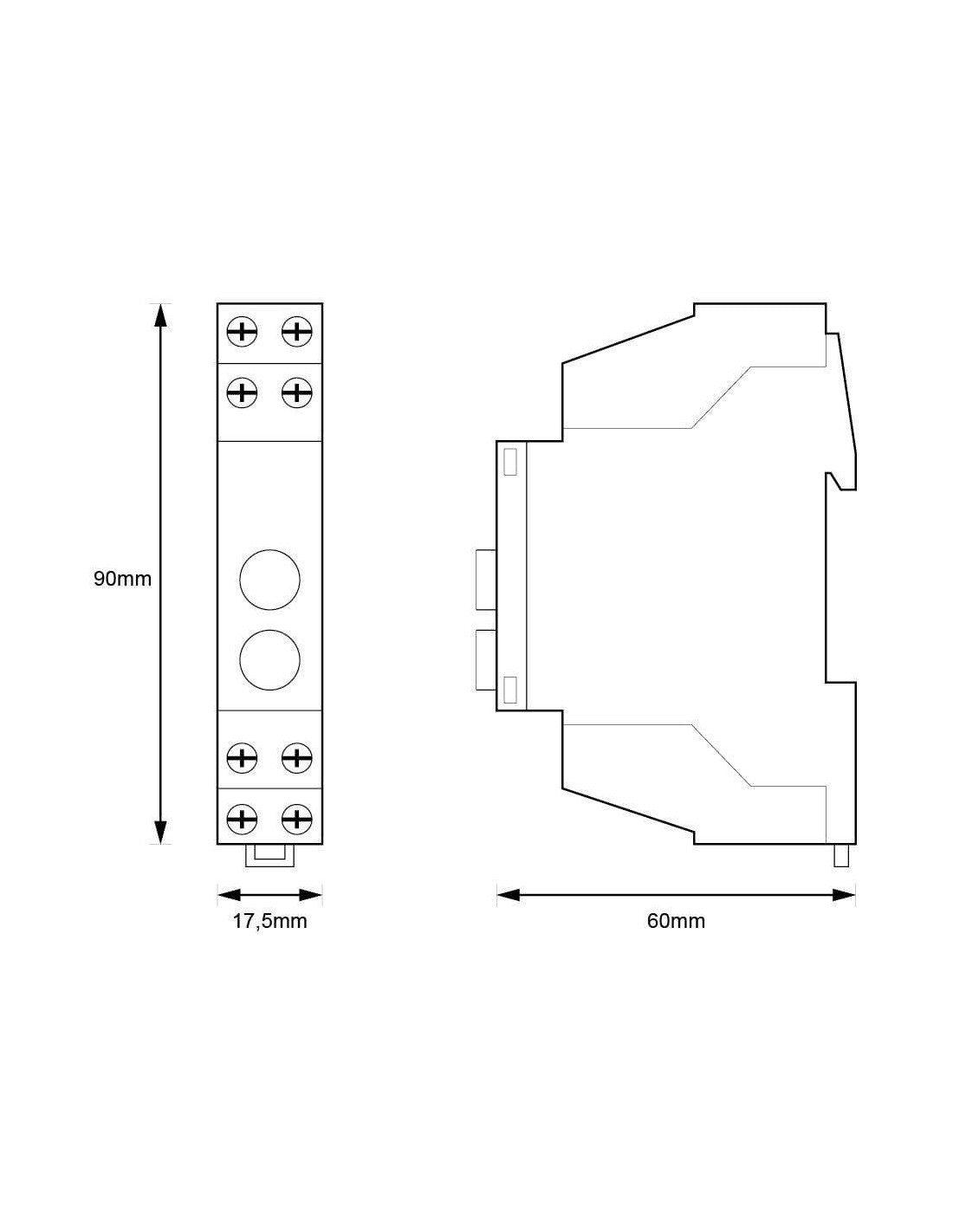

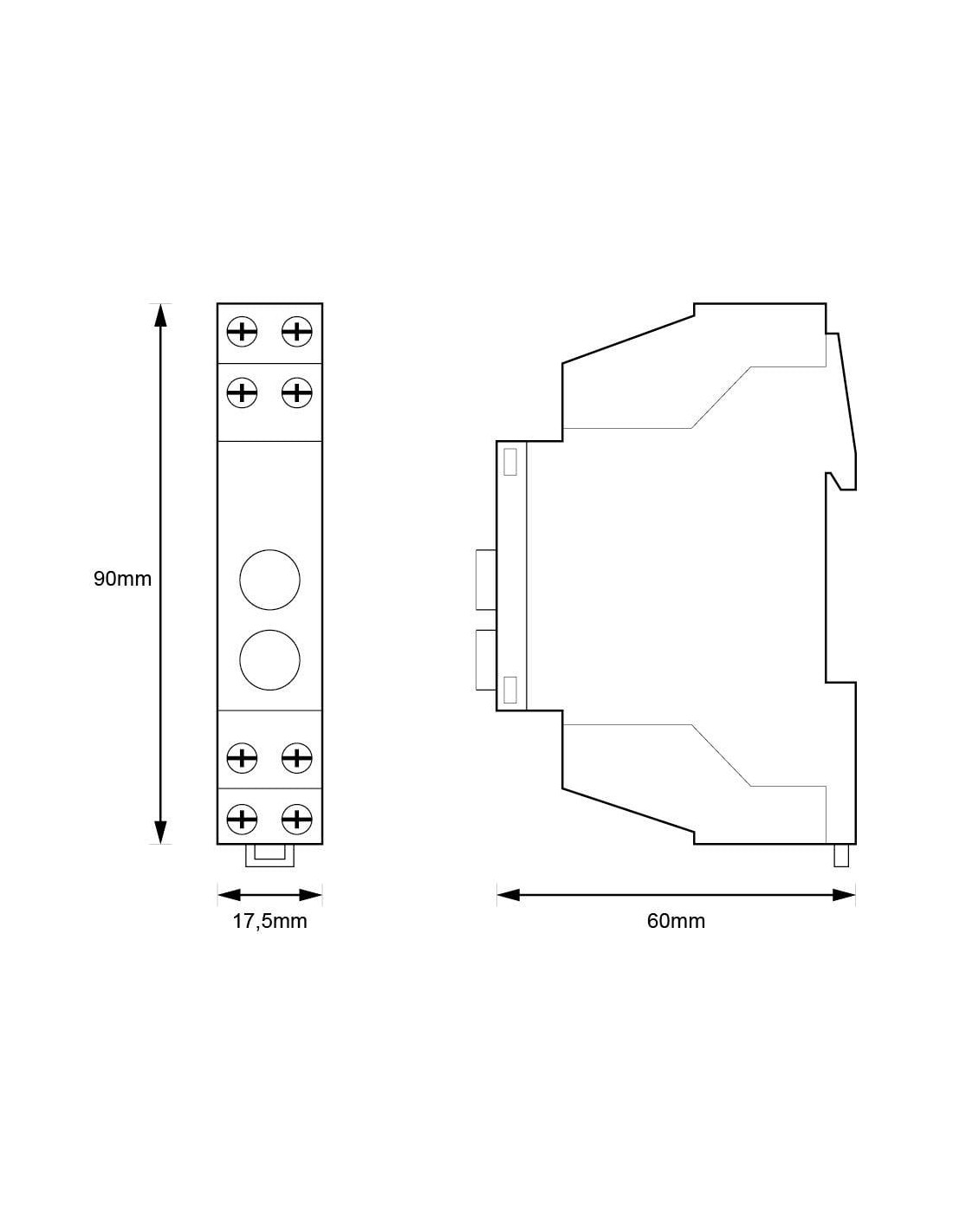

• Device dimensions: 17.5 mm width, 90 mm height, and 60 mm depth.
• Compatible core cross-section: 4 mm².
• Construction material: Matte grey thermoplastic (RAL 9003).
• Mounting system: DIN rail via DRA adapter with click fixation.
• Integrated protections: Short circuits, overloads, and thermal protection against overheating.
• Additional functionality: Light value memory and minimum regulation level adjustment.

Thanks to its versatility, this dimmer supports both 230V and 12V LED lamps with electronic transformer, as well as incandescent and halogen loads. The ability to configure Master/Slave modes allows scaling regulated power in large installations, while the minimum level adjustment prevents flicker or perceived off-state at low intensities, ensuring stable and comfortable operation for the end user.

Installation is simple and fast thanks to the click fixation system on DIN rail, facilitating integration into existing electrical panels without the need for specialized tools.
