Available In stock 406 Items Brand Lifud Reference LEDME LF-ADD040-1050-42

€23.44

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Power (W) 42W
Protection IP20
Adjustable Yes

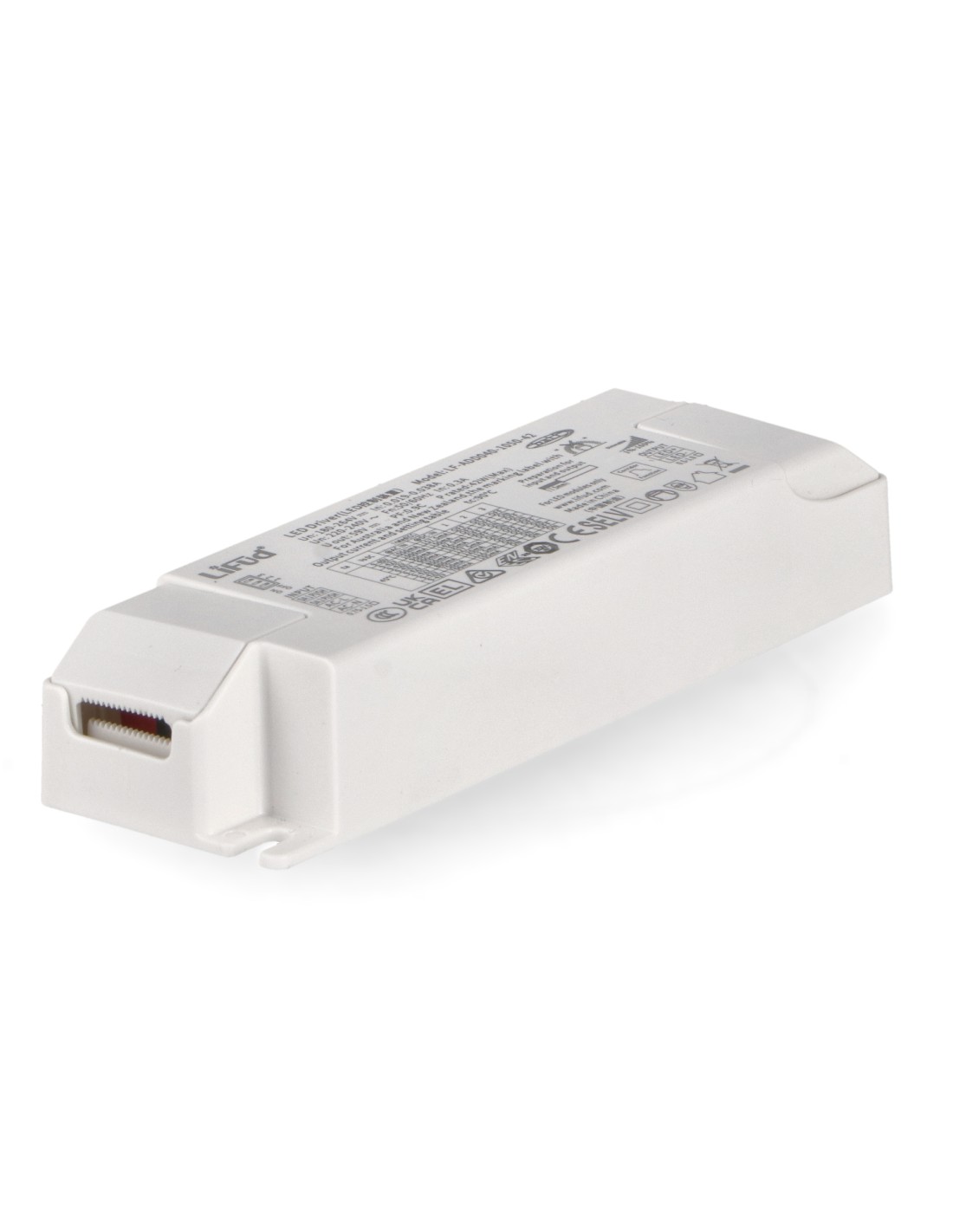

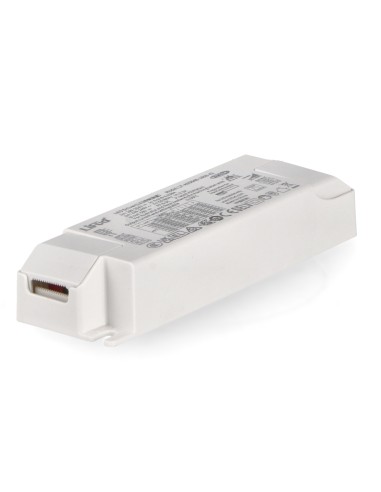

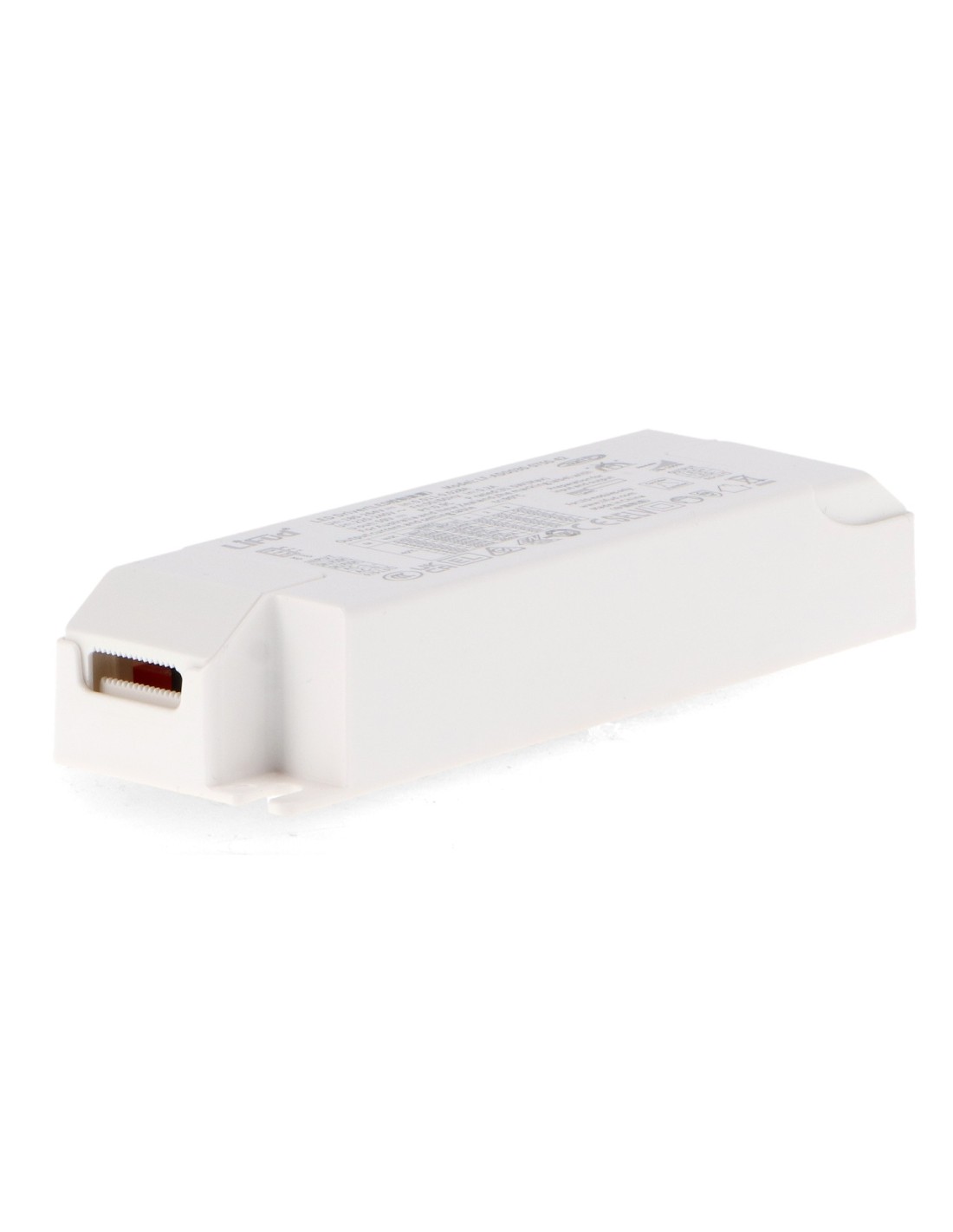

Driver Lifud Dali/ Push with adjustable 9-42V DC output, maximum power of 40W, power factor 0.9. Compatible with Dali systems for lighting control. Power supply 220-240V AC, electric insulation class II, IP20 protection. Operating temperature from -30°C to +50°C. Includes protection against overload and short circuit.

Description

Driver Lifud Dali / Push with adjustable 9-42V DC output, maximum power 42W, designed to control LED lighting with DALI protocol. Compatible with intelligent lighting management systems, it allows precise regulation and operation without blinking. Ideal for commercial and residential applications where remote control and energy efficiency are required.

Technical characteristics

Maximum power: 42W
Power supply: 220-240V AC
Exit: 9-42V DC
Current Intensity: 700-1050 mA
Regulatory: Dali
Working temperature: -30°C ~ +50°C
Protection: IP20
Class Electrical insulation: II
Overvoltage protection: 4 kV
Overload protection: Yes
Short circuit protection: Yes
Power Factor: 0.9
Material: PC

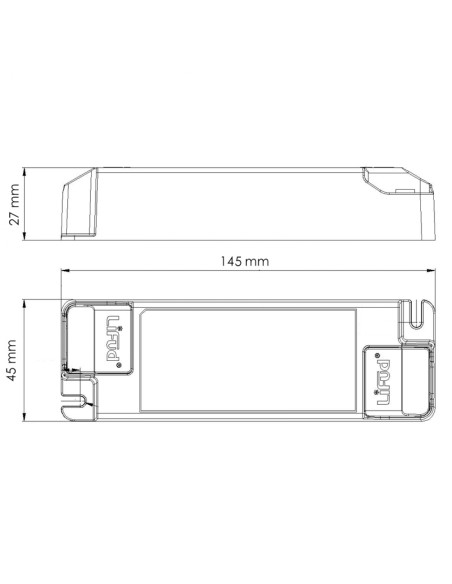

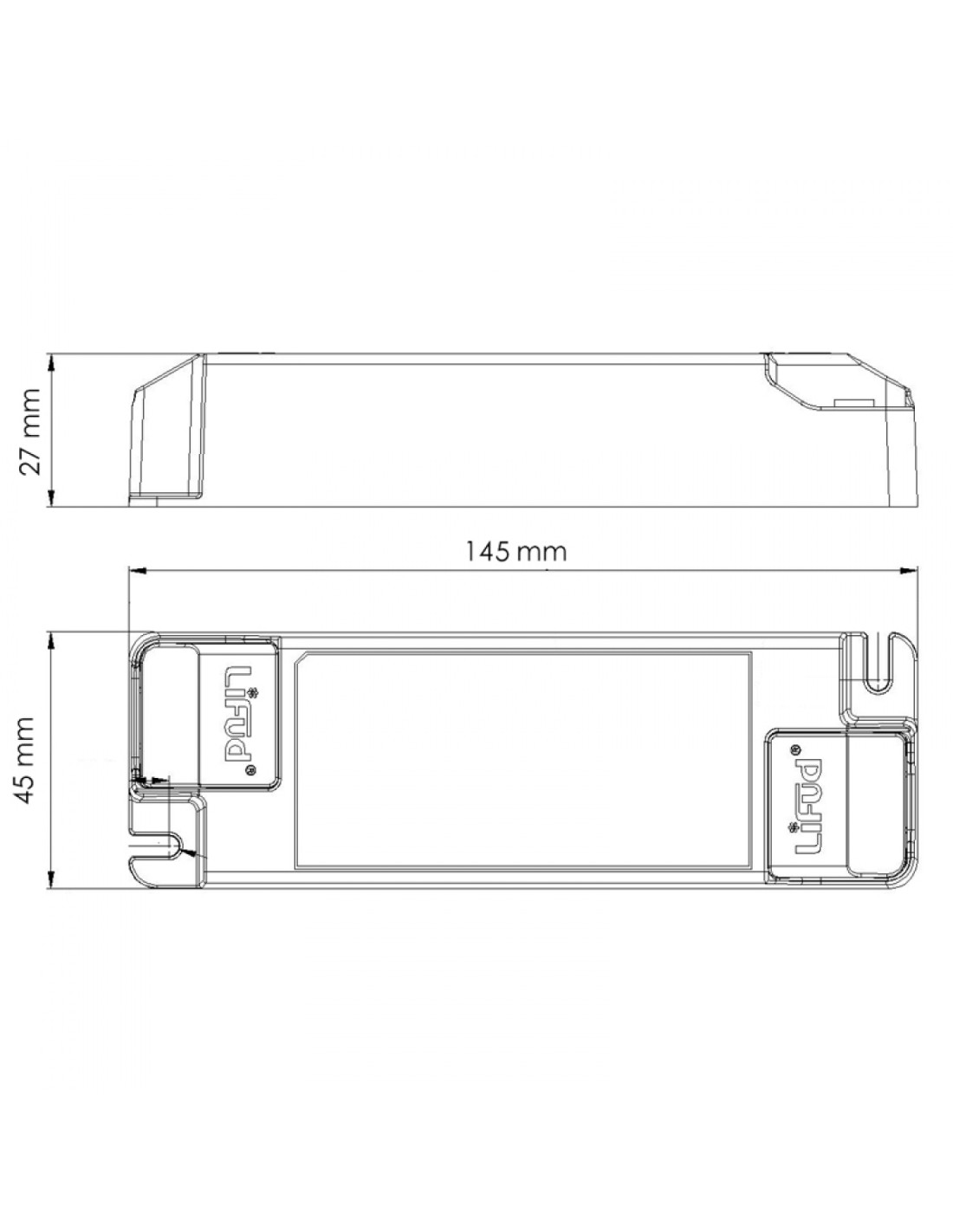

Dimensions: 142 x 46 x 28 mm
Guarantee: 5 years

Product Details

Eléctrico

Nominal voltage (V)	9-42V

Iluminación

Power (W)	42W
Adjustable	Yes

Protección

Protection	IP20

Otras

Appliance class	Class II
Manufacturer	Lifud
Halogen-free	Yes
Reference	LEDME LF-ADD040-1050-42
Usage	Indoor

Información legal

Fabricante	Lifud
Dirección	C/ Barenys, 21 Pol. Ind. Alba, 43480 Vila-Seca, ES
Email	[email protected]
Teléfono	+34 977947947
Referencia	LEDME LF-ADD040-1050-42

Advertencias de seguridad

No

In stock 406 Items

Downloads

Product sheet Store PDF Download
