Available In stock 44 Items Brand Lifud Reference LEDME LF-GDE075YV024

€37.32

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Power (W) 75W
Protection IP20
Adjustable Yes

Power supply led Lifud, 75W, 24Vdc, with regulation 0-10V, PWM and Rx. Power supply 220-240V AC, 50/60 Hz. Electrical insulation class II, power factor > 0.9. IP20 protection, mechanical resistance IK4. It works in temperature ranges from -20°C to +50°C. Surface installation, polymer material PC. Includes protection against overload and short circuit.

Description

Power supply led Lifud dimmable 0-10V with 24V DC output, designed to power LED systems with precise regulation. Compatible with 0-10V, PWM and Rx control signals, allowing continuous brightness adjustment. Ideal for controlled lighting applications in commercial or residential environments.

Technical characteristics

Maximum power: 75W
Output: 24V DC
Power supply: 220-240V AC
Frequency: 50/60 Hz
Working temperature: -20°C ~ +50°C
Protection: IP20
Ik: 4 Kv
Class Electrical insulation: II
Overload Protection: Yes
Short circuit protection: Yes
Power Factor: >0.9
Flicker Free: Yes
Regulatory: 0-10V/PWM/Rx
Installation: Area

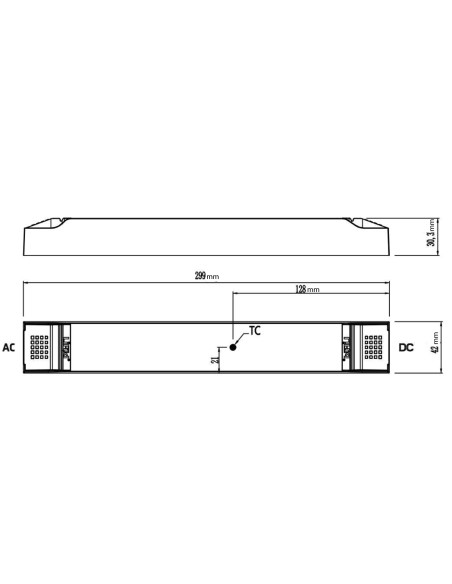

Dimension: 299.5 x 42 x 30.3 mm
Material: PC
Driver: Lifud
Guarantee: 5 years

Product Details

Eléctrico

Nominal voltage (V)	24V

Iluminación

Power (W)	75W
Adjustable	Yes

Protección

Protection	IP20

Otras

Appliance class	Class II
Manufacturer	Lifud
Reference	LEDME LF-GDE075YV024

Información legal

Fabricante	Lifud
Dirección	C/ Barenys, 21 Pol. Ind. Alba, 43480 Vila-Seca, ES
Email	[email protected]
Teléfono	+34 977947947
Referencia	LEDME LF-GDE075YV024

Advertencias de seguridad

No

In stock 44 Items

Downloads

Product sheet Store PDF Download

Reviews (0)

No reviews
