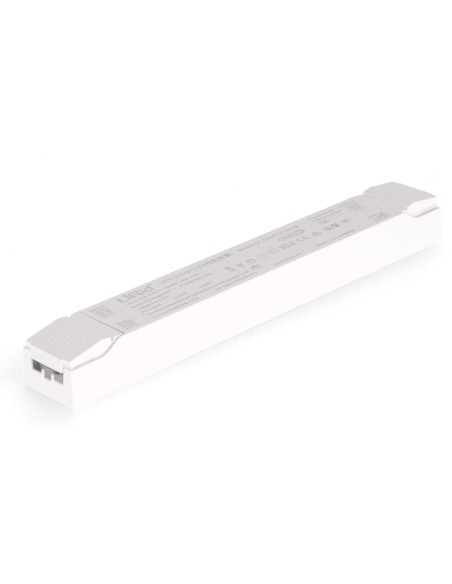

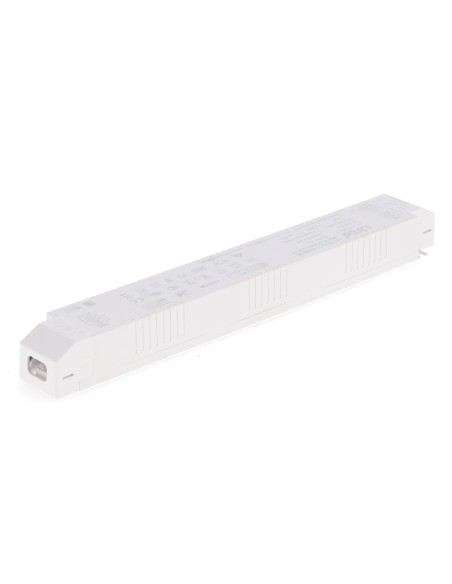

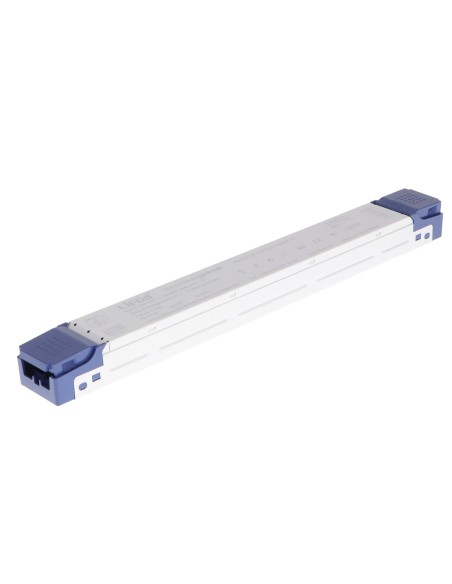

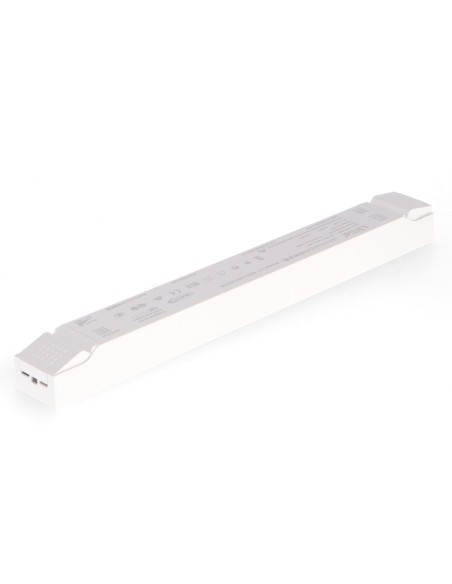

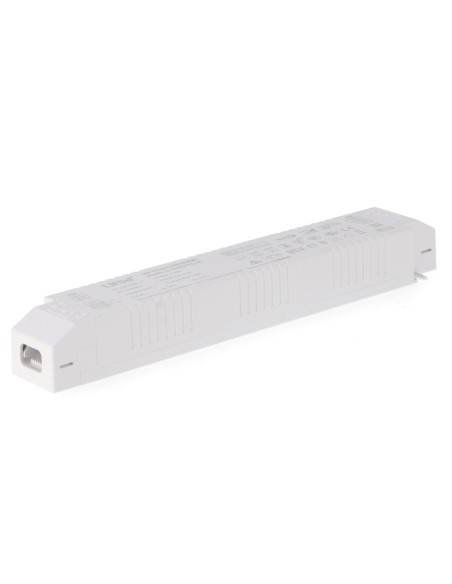

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Led Power Supply Lifud 150W 24Vdc Dimmable 0-10V

Available In stock 99 Items Brand Lifud Reference LEDME LF-GAA150-625-24

€52.73

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Power (W) 150 W
Protection IP20
Adjustable Yes

Power supply led Lifud, 150W, 24Vdc, with regulation 0-10V, PWM and Rx. Stable output with power factor >0.9, overload and short circuit protection. Electrical insulation class II, IP20, impact resistant IK4. It works in temperature ranges from -20°C to +50°C. Design in PC material, surface installation.

Description

150W LED Lifud dimmable 0-10V CCT power supply with 24V DC output, designed to power LED systems with precise regulation. Compatible with 0-10V, PWM and Rx control signals, allowing continuous brightness adjustment. Ideal for controlled lighting applications in commercial or industrial environments.

Technical characteristics

Maximum power: 150 W
Power supply: 220-240 V AC
Frequency: 50/60 Hz
Output: 24 V DC
Working temperature: -20°C ~ +50°C
Protection: IP20
Ik: 4 Kv
Class Electrical insulation: II
Overload Protection: Yes
Short circuit protection: Yes
Power Factor: >0.9
Flicker Free: Yes
Regulatory: 0-10V / PWM / Rx
Material: PC
Driver: Lifud

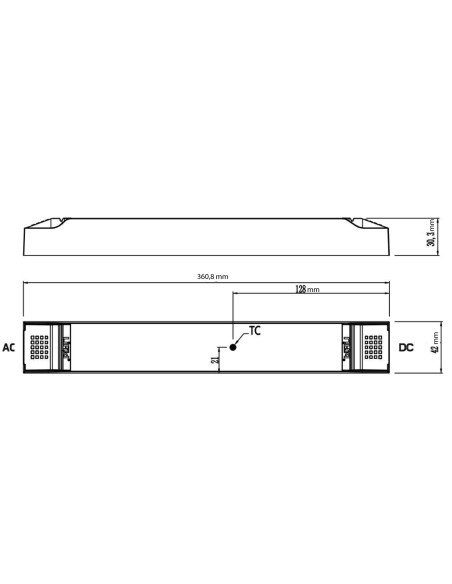

Dimension: 360.8 x 42 x 30.3 mm
Installation: Area
Guarantee: 5 years

Product Details

Dimensiones

Weight (kg)	0,1 kg

Eléctrico

Nominal voltage (V)	220-240 V AC

Iluminación

Power (W)	150 W
Adjustable	Yes
Driver included	No

Instalación

Type of installation	Surface

Protección

Protection	IP20

Otras

Appliance class	Class II
Manufacturer	Lifud
Reference	LEDME LF-GAA150-625-24
Suitable for sloped ceiling	No

Información legal

Fabricante	Lifud
Dirección	C/ Barenys, 21 Pol. Ind. Alba, 43480 Vila-Seca, ES
Email	[email protected]
Teléfono	+34 977947947
Referencia	LEDME LF-GAA150-625-24

Advertencias de seguridad

No

In stock 99 Items

Downloads

Product sheet Store PDF Download

Reviews (0)

No reviews
