Available In stock 387 Items Brand Lifud Reference LEDME LF-ADD030-0750-42

€22.55

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Power (W) 32W
Protection IP20
Adjustable Yes

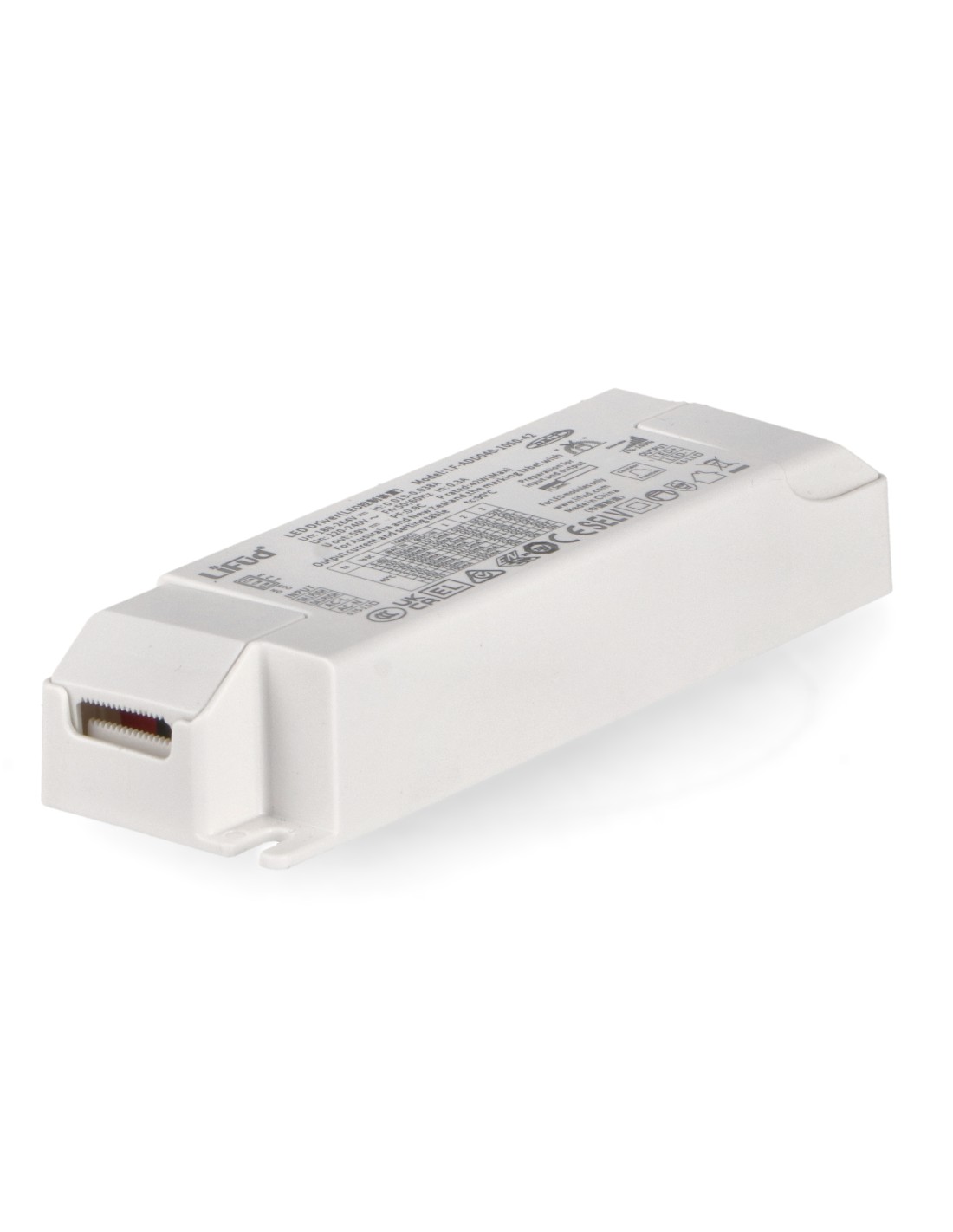

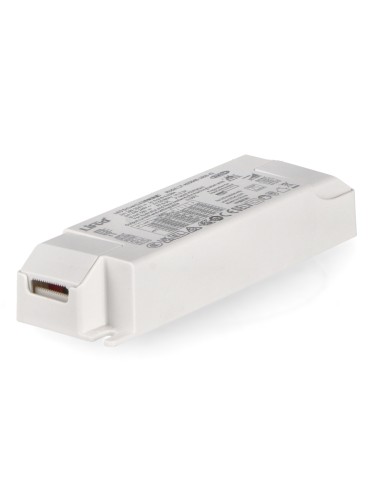

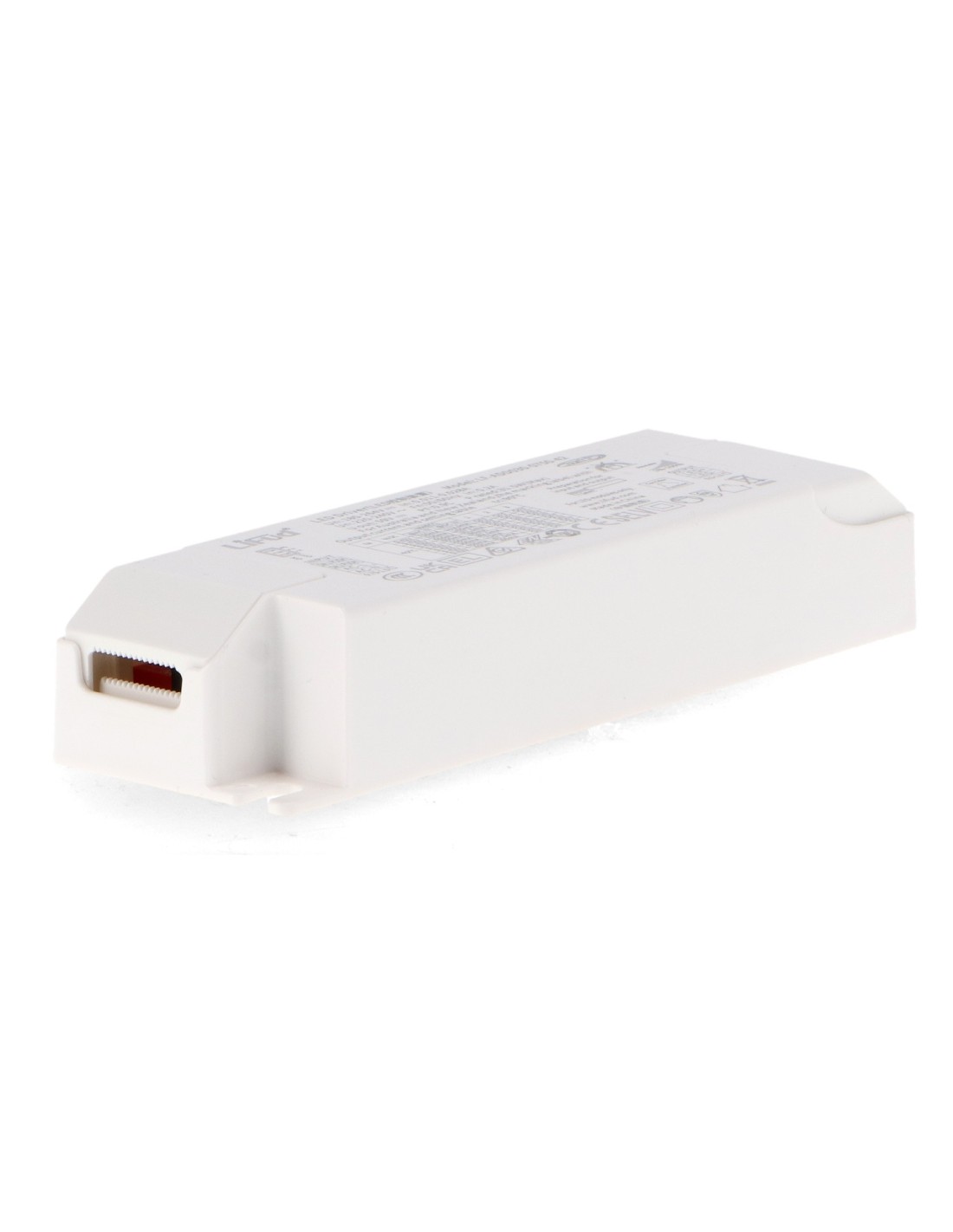

Lifud adjustable driver with DALI control and push, DC 9-42V continuous output, adjustable current between 400-750 mA, maximum power of 32 W, power factor 0.9, AC 100-277 V power supply, operating temperature -30°C to +50°C, IP20 protection, made of polycarbonate (PC), dimensions 144x46x28 mm, 5-year warranty.

Description

Lifud adjustable driver with Dali and Push control, designed to power LED luminaires with 9-42V DC output. Compatible with DALI control systems and push-button, it offers an output up to 30W with an adjustable current intensity between 400-750 mA. Its wide power range (100-277V AC) allows use in multiple electrical environments. It works in temperatures from -30°C to +50°C, with IP20 protection, ideal for indoor installations. Made of PC material, it presents a power factor of 0.9 for energy efficiency. Includes 5 year warranty.

Technical characteristics

Maximum power: 32 W
Working temperature: -30°C ~ +50°C
Protection: IP20
Power supply: 100-277 V AC
Exit: 9-42 V DC
Current Intensity: 400-750 mA
Dimension: 144 x 46 x 28 mm
Material: PC
Power Factor: 0.9
Regulatory: Dali
Guarantee: 5 years

Product Details

Dimensiones

Measures	144x46x28H mm

Eléctrico

Nominal voltage (V)	100-277V
Current type	AC
Rated current (A)	0.75

Iluminación

Adjustable	Yes

Protección

Protection	IP20

Otras

Manufacturer	Lifud
Maximum power (W)	32W
Reference	LEDME LF-ADD030-0750-42
Material	PC

Información legal

Fabricante	Lifud
Dirección	C/ Barenys, 21 Pol. Ind. Alba, 43480 Vila-Seca, ES
Email	[email protected]
Teléfono	+34 977947947
Referencia	LEDME LF-ADD030-0750-42

Advertencias de seguridad

No

In stock 387 Items

Downloads

Product sheet Store PDF Download

Reviews (0)

No reviews
