Available In stock 406 Items Brand Lifud Reference LEDME LF-ADD020-0500-42

€14.21

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Power (W) 21 W
Protection IP20
Adjustable Yes

Driver LED Lifud LF-ADD020-0500-42 with maximum 21W power and controlled output from 20 to 42V DC. It incorporates DALI/PUSH control and protection against overload and short circuit. It works with 100-277V AC power supply, maintaining a power factor of 0.9 and compact dimensions of 121.9x39.9x25 mm.

Description

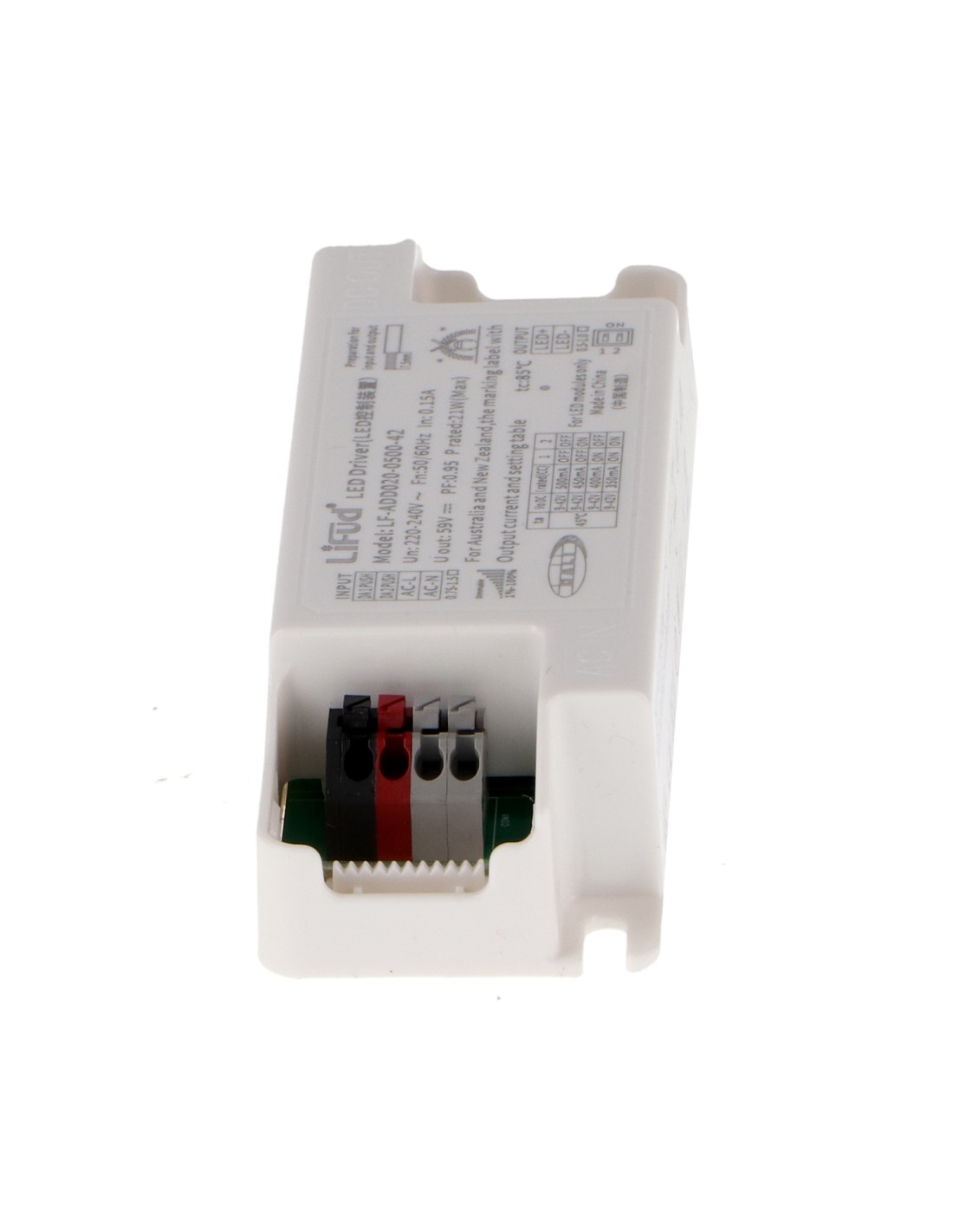

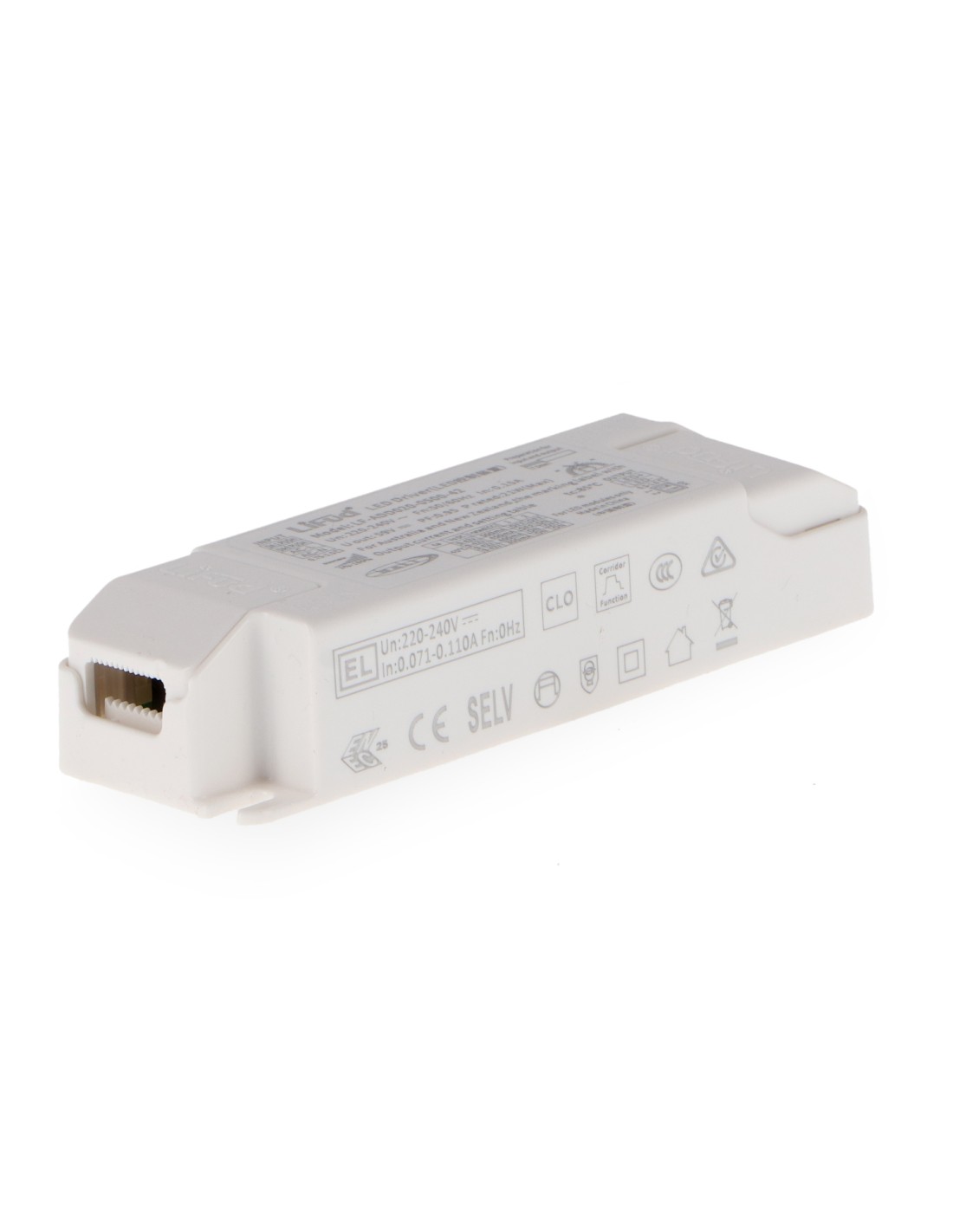

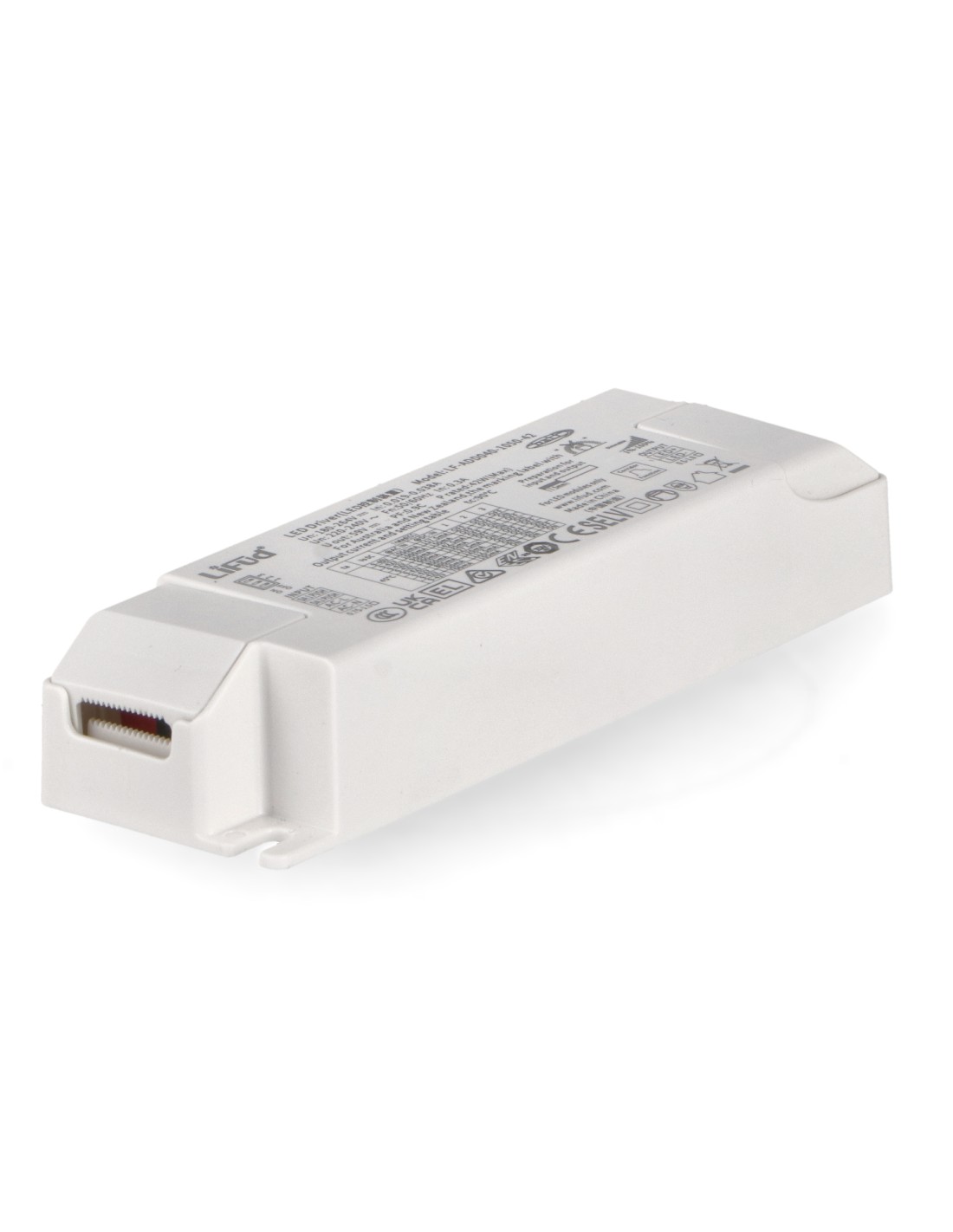

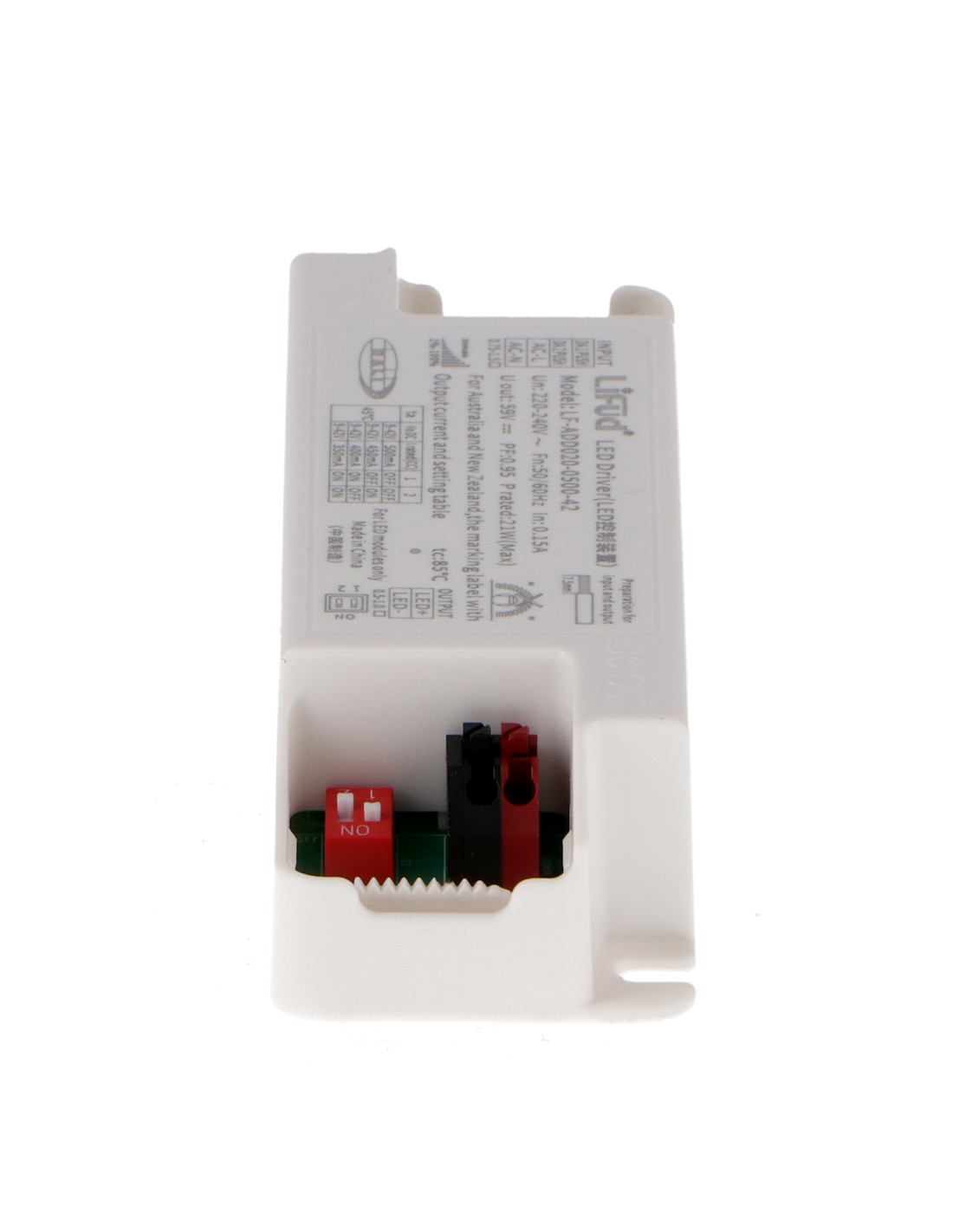

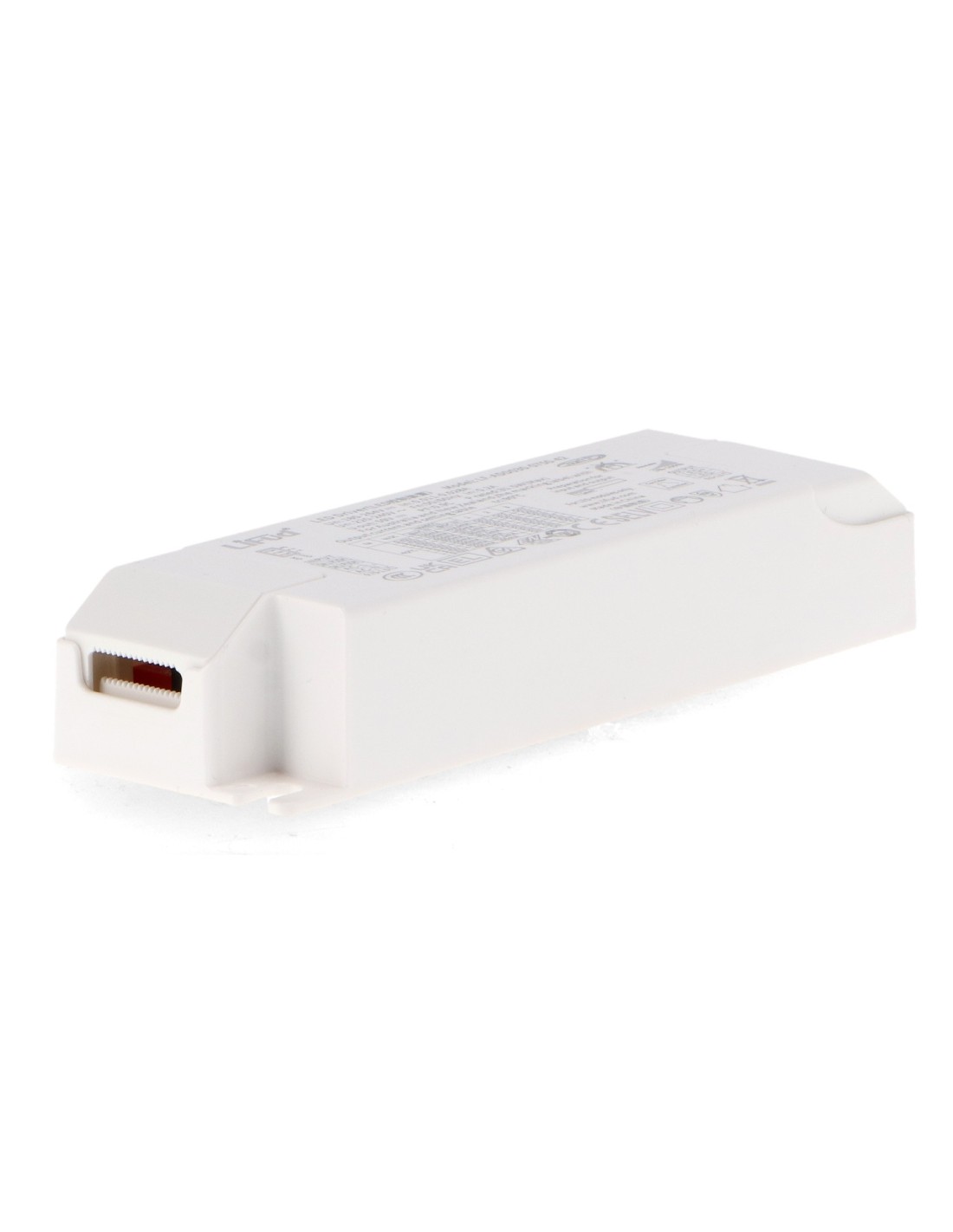

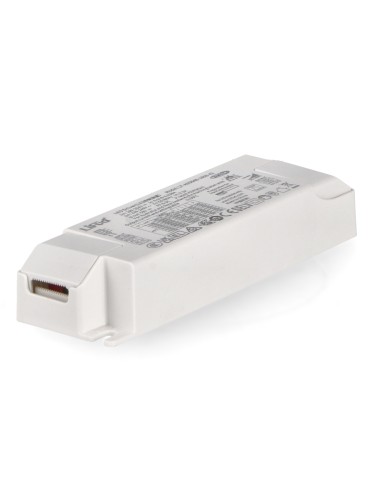

Lifud power driver model LF-ADD020-0500-42, designed to supply stable power to LED lighting systems. This device offers an intensity regulation using DALI protocol or PUSH button, ensuring non-flicker operation (No Flicker) and a maximum power of 21 W.

Technical characteristics

Mark: Lifud
Model: LF-ADD020-0500-42
Maximum power: 21 W
Power supply: 100-277 V AC
Departure: 20-42 V DC
Current Intensity: 350-500 mA
Regulation: DALI / PUSH
Power Factor: 0.9
Material: PC
Dimensions: 121.9 x 39.9 x 25 H mm
Working temperature: -30°C ~ +50°C
Protection: IP20
Overvoltage protection: 4 kV
Overload Protection: Yes
Short circuit protection: Yes
Guarantee: 5 years

This driver is optimized for applications that require precise brightness control and energy efficiency. Its compact design and integrated protections ensure circuit safety and stability of light flow in indoor installations.

Product Details

Eléctrico

Nominal voltage (V)	100-277 V
Current type	AC

Iluminación

Power (W)	21 W
Adjustable	Yes

Protección

Protection	IP20

Otras

Manufacturer	Lifud
Reference	LEDME LF-ADD020-0500-42
Material	PC

Información legal

Fabricante	Lifud
Dirección	C/ Barenys, 21 Pol. Ind. Alba, 43480 Vila-Seca, ES
Email	[email protected]
Teléfono	+34 977947947
Referencia	LEDME LF-ADD020-0500-42

Advertencias de seguridad

No

In stock 406 Items

Downloads

Product sheet Store PDF Download

Reviews (0)

No reviews
