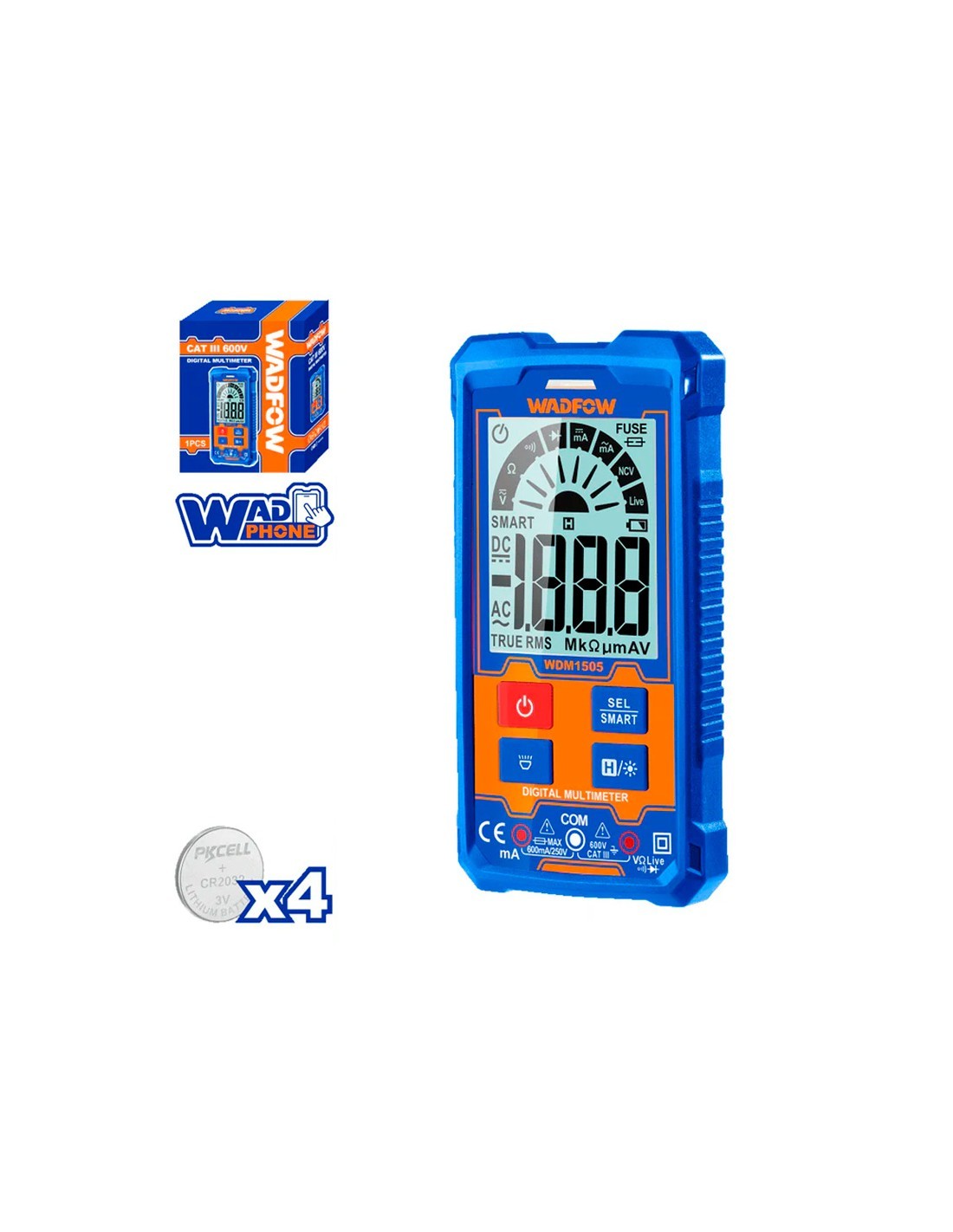

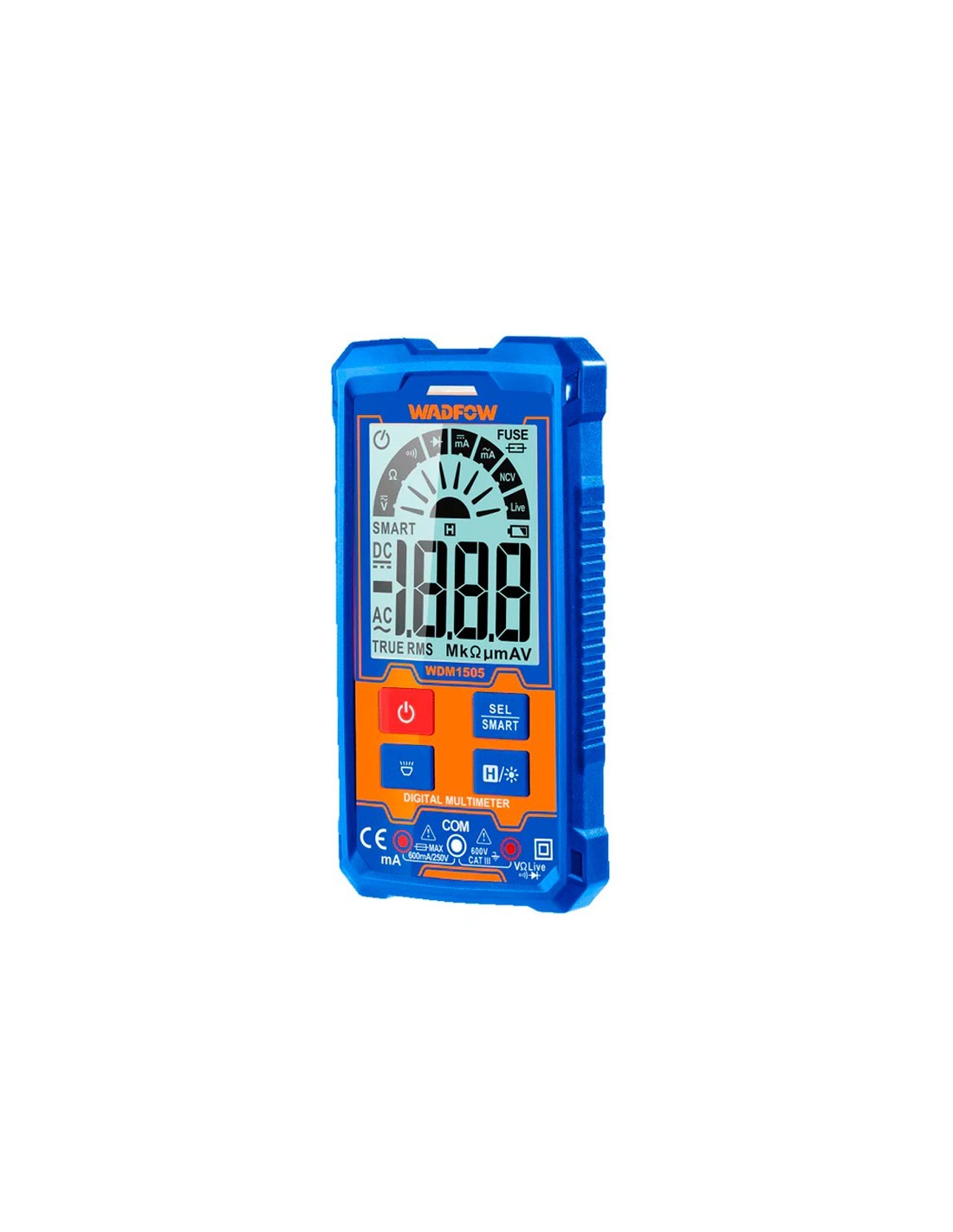

The WADFOW CAT III 600V automatic digital multimeter, model WDM1505, is a precision instrument designed for safe and efficient electrical measurements in environments up to 600 volts.
Technical characteristics
- Real RMS display with 2000 accounts
- Intelligent operation with automatic shutdown
- DC voltage measurement: 2V, 20V, 200V, 600V
- AC voltage measurement: 2V, 20V, 200V, 600V
- DC current measurement: 20mA, 200mA, 600mA
- AC current measurement: 20mA, 200mA, 600mA
- Resistance measurement: 200- to 20M-
- Non-contact voltage detection
- Diode Test and Live Test Functions
- Automatic data retention by range
- Low battery visual indicator
- Integrated backlight and flashlight
- Feeding with 4 CR2032 batteries
Its ability to detect without contact and live testing allows to quickly identify electrical faults or presence of tension, facilitating the diagnosis in complex installations.
