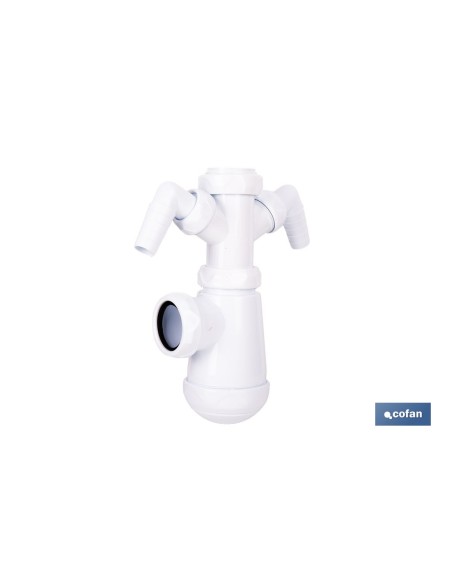

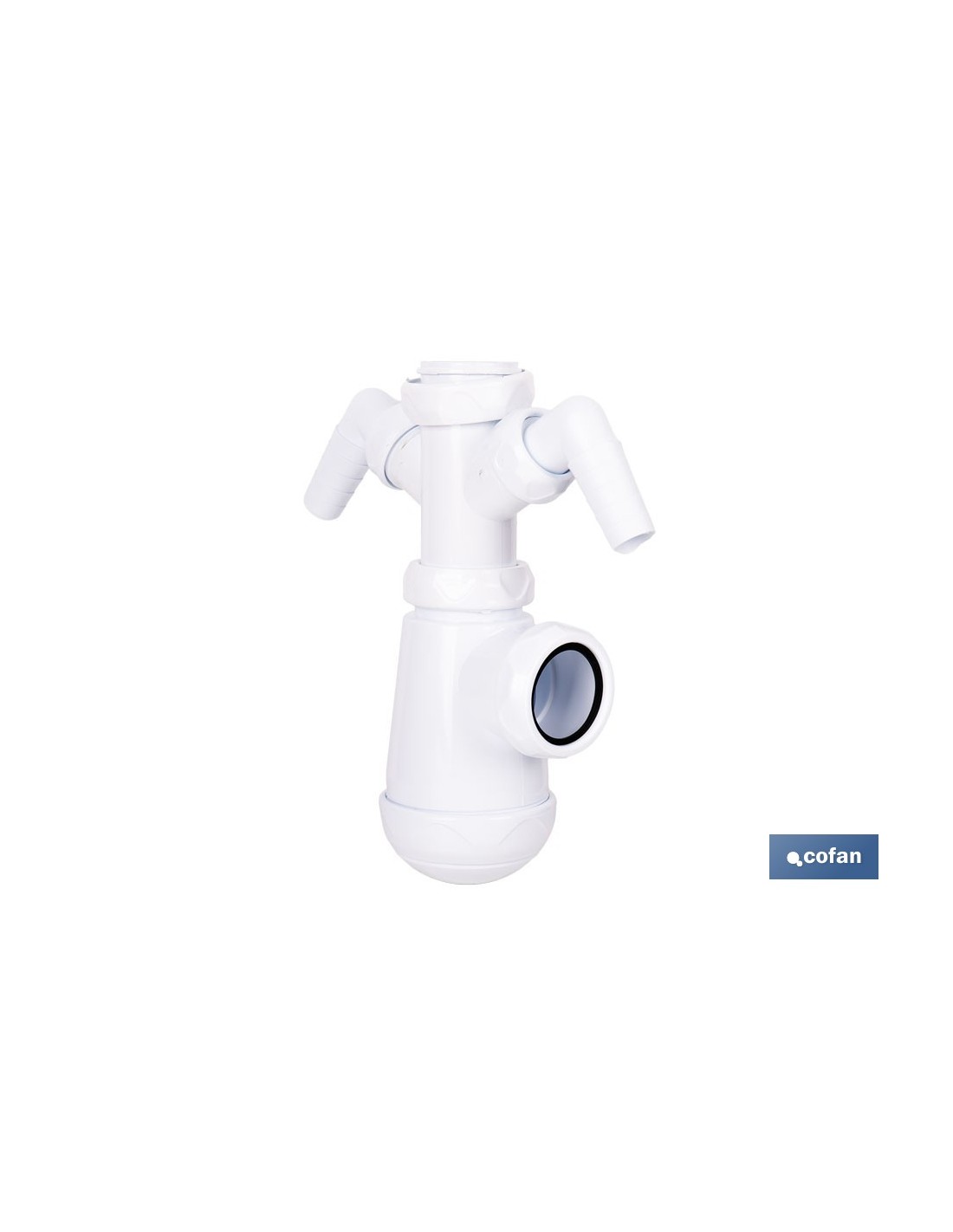

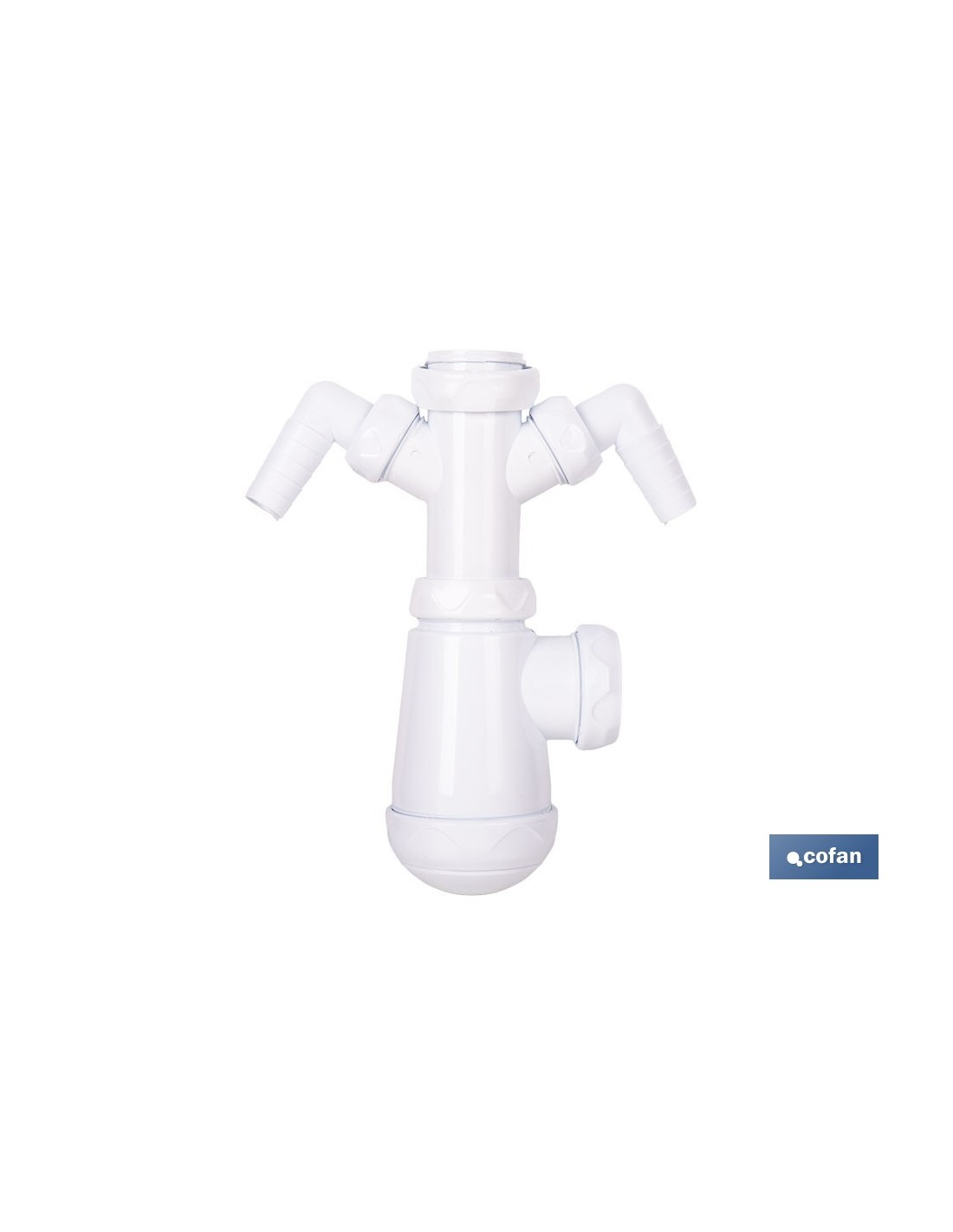

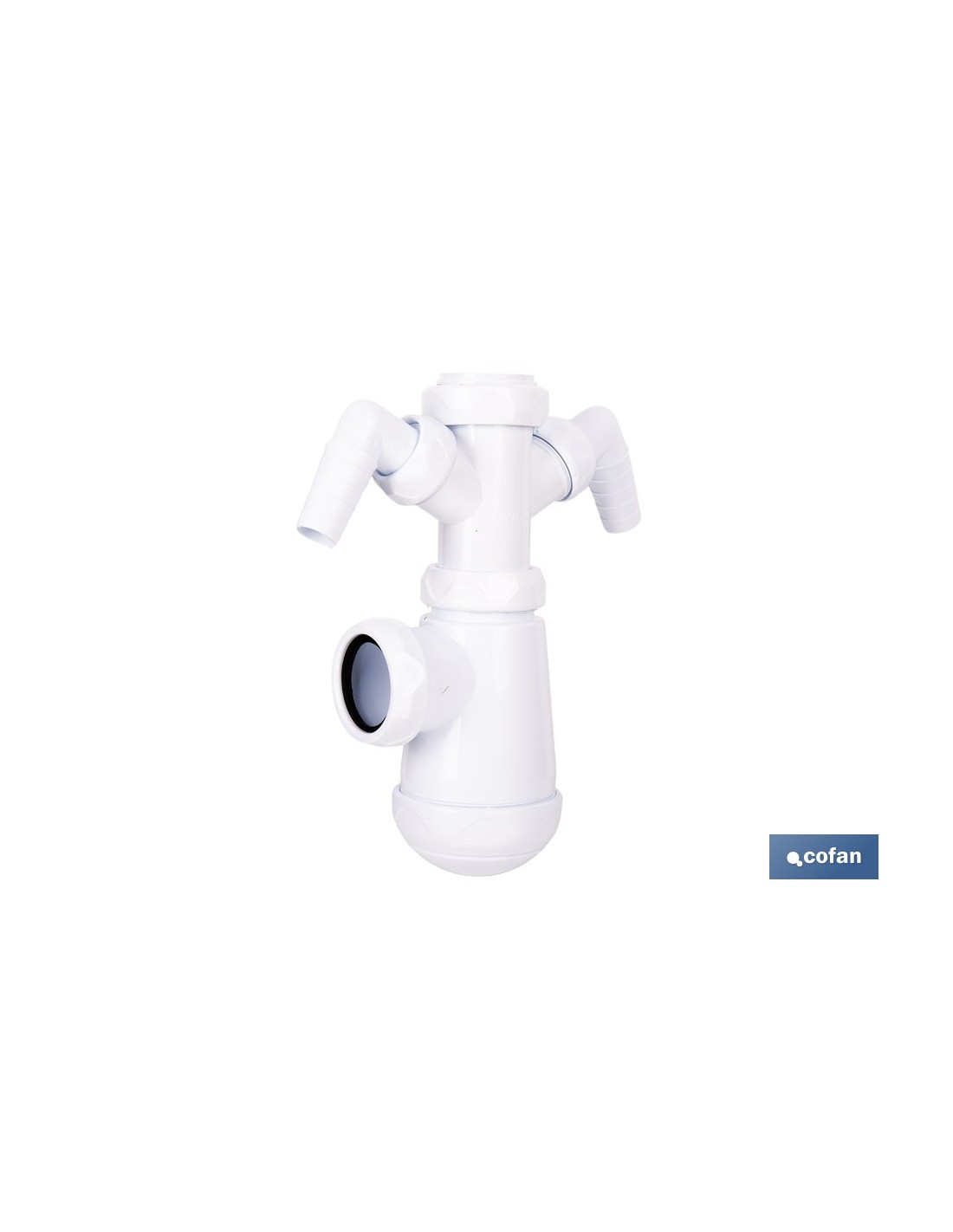

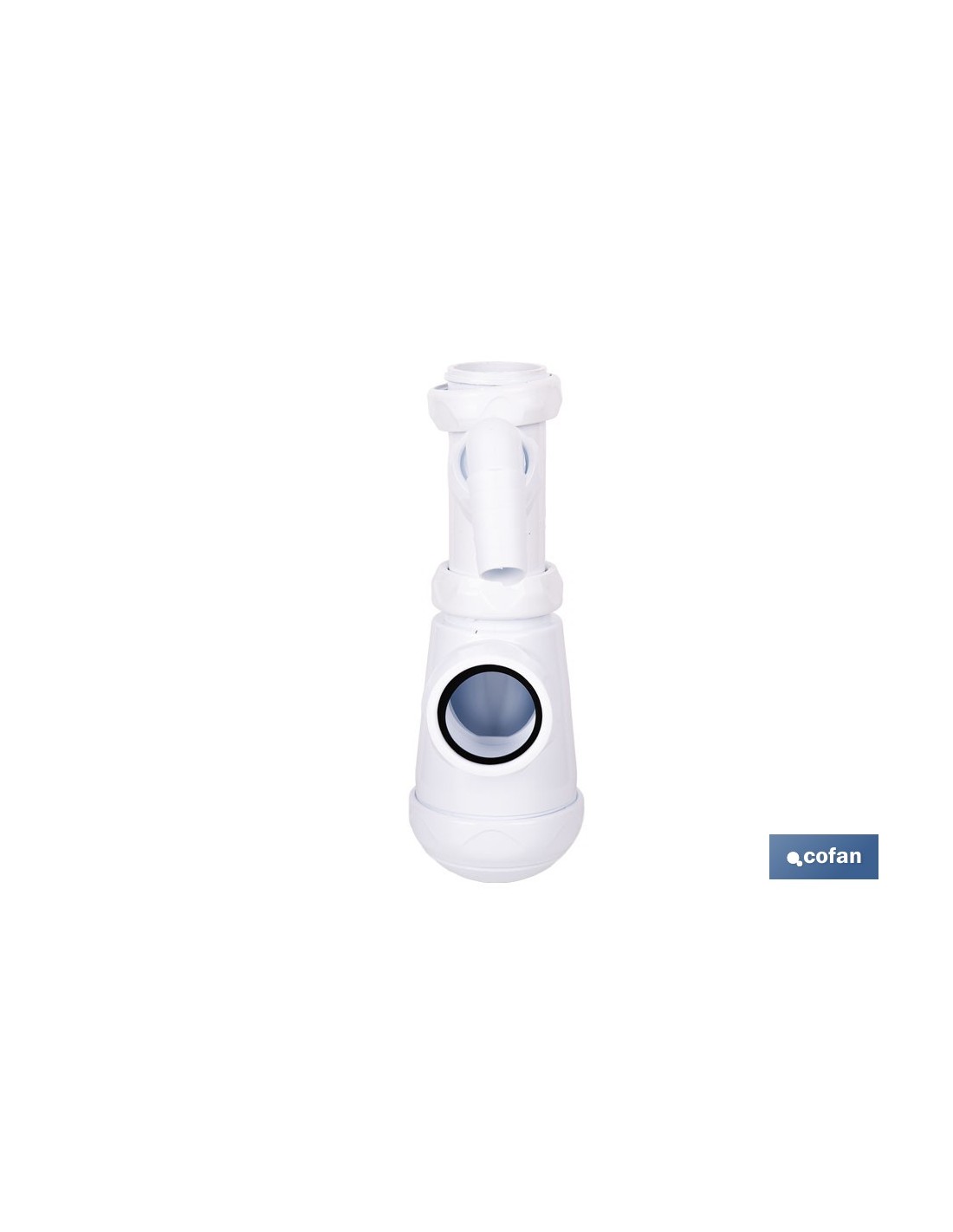

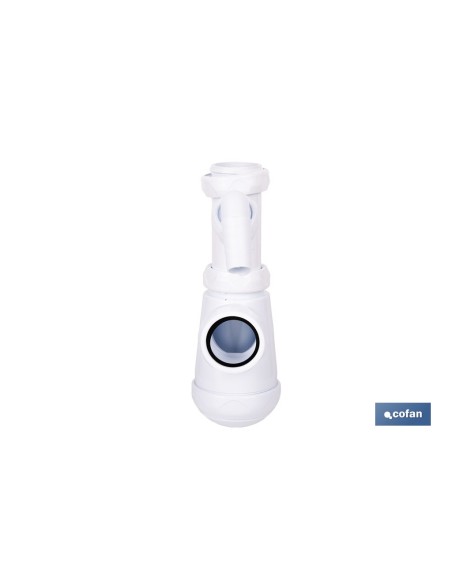

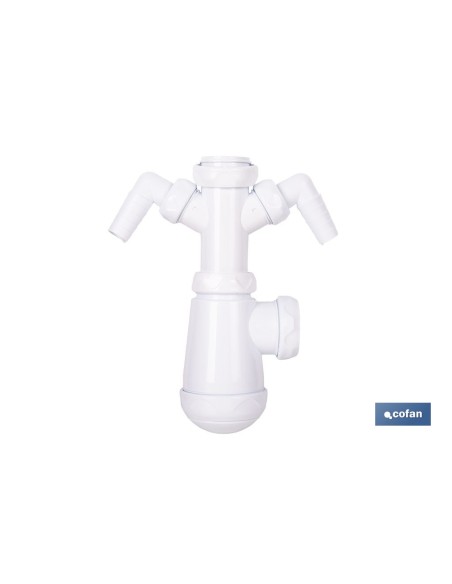

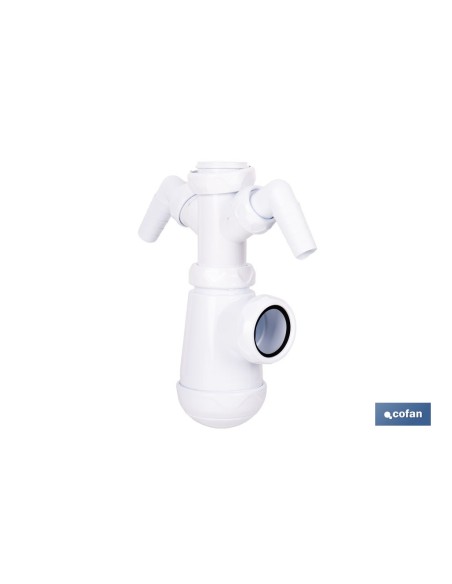

Bottle Siphon with Ø40 mm Outlet and 2 Auxiliary Connections

Bottle siphon with Ø40 mm outlet and two auxiliary connections designed for single basin sinks where simultaneous connection of appliances such as dishwashers and washing machines is required. Manufactured in high-resistance PVC, it allows efficient water evacuation with a hydraulic closure system that prevents odor return. Its extendable design offers flexibility in both domestic and professional installations.

Technical Specifications

• Material: PVC
• Outlet Diameter: Ø40 mm
• Auxiliary Outlet: Ø32 mm with reducer fitting
• Input Connection: 1 1/2 Push-fit
• Number of Auxiliary Connections: 2
• Dimensions (H x W x D): 8.00 x 15.00 x 24.00 cm
• Weight: 0.197 kg

Installation is simple and quick without the need for additional accessories for auxiliary connections. It is especially useful in renovations or new sanitary installations where efficient and clean drainage is required.

This siphon ensures optimal performance in domestic kitchens, offering a compact and functional solution for drain systems with multiple simultaneous connections. Ideal for installations requiring two appliances to be connected at the same time.
