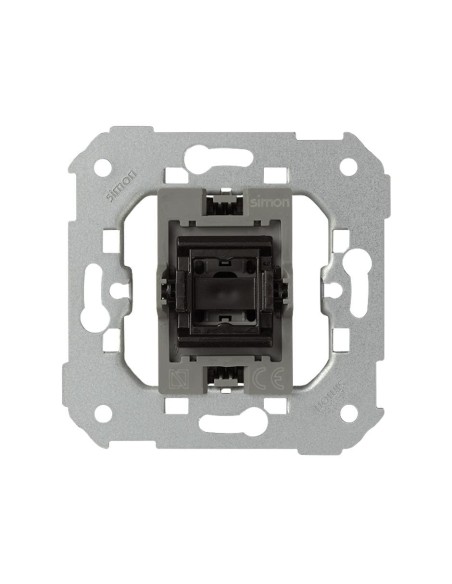

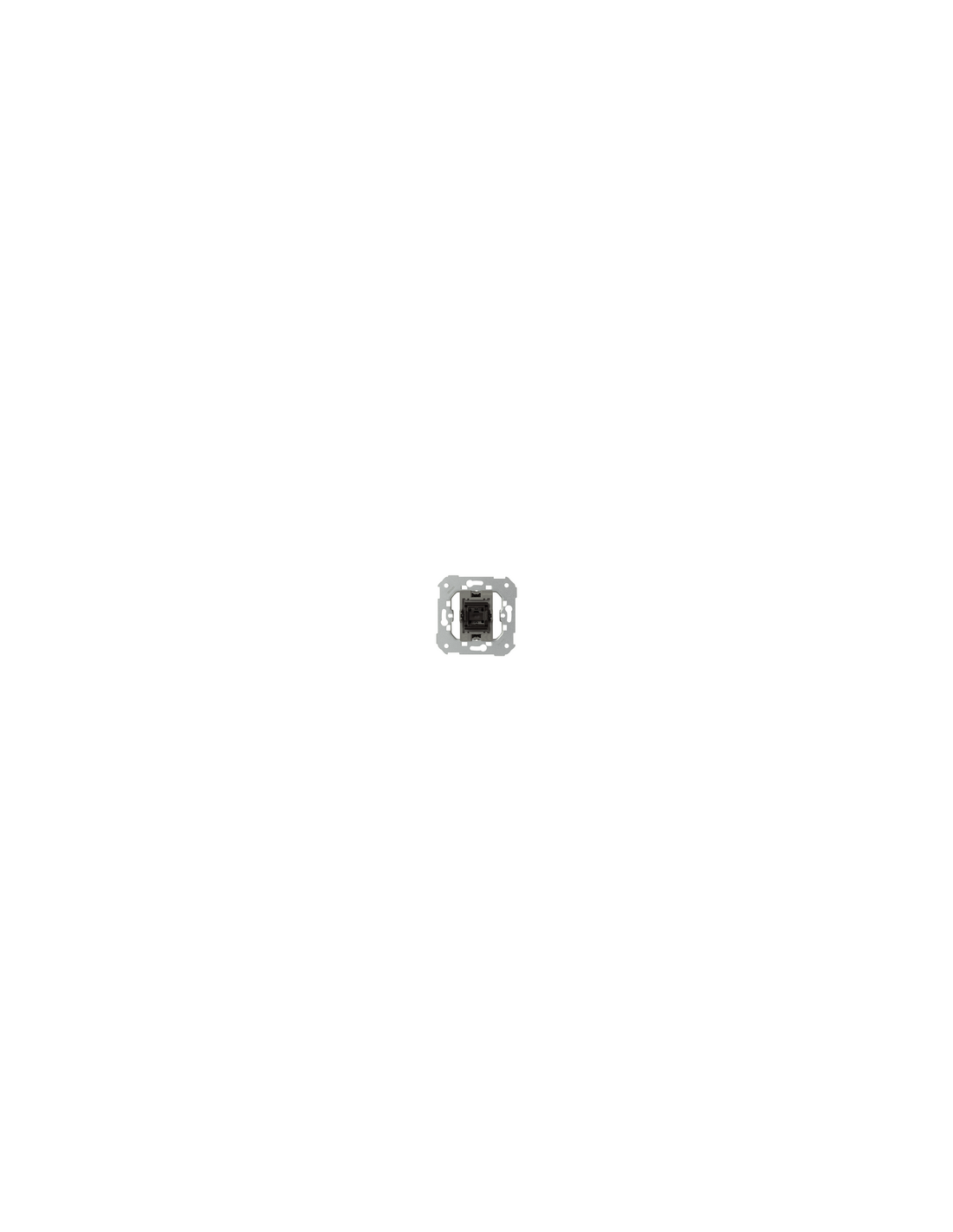

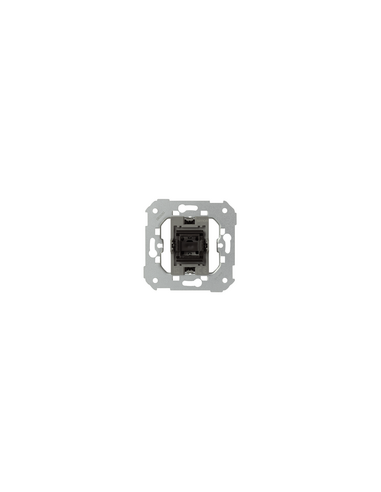

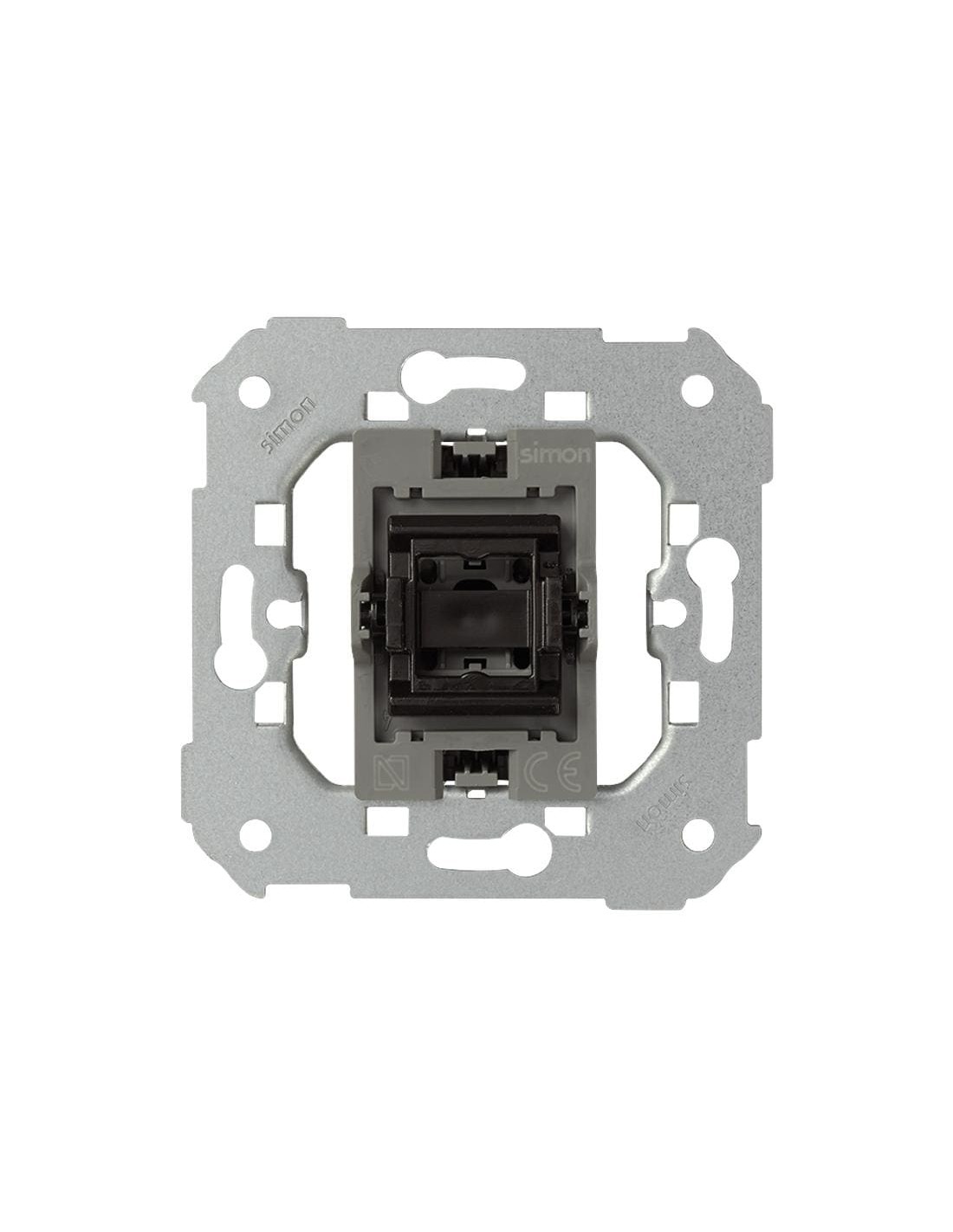

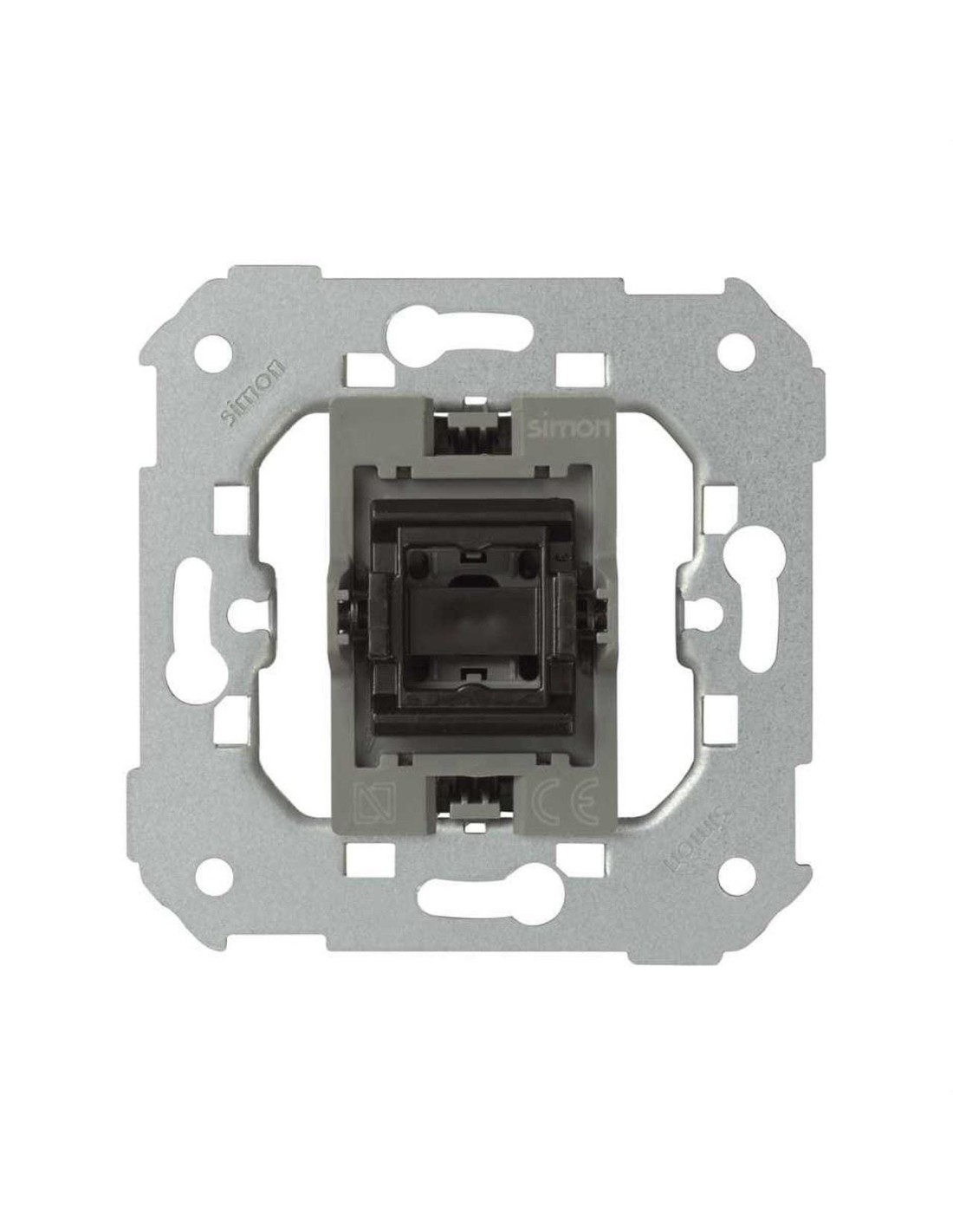

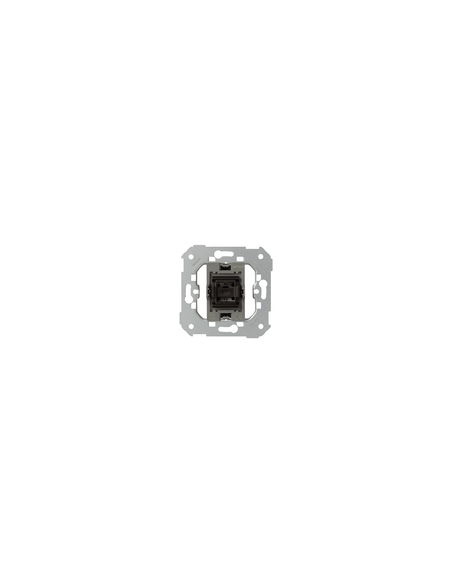

Unipolar switch 10 AX 250V~ with cable connection 1click Simon 77

The Simon 77 series unipolar switch is a 1 pole disconnection device designed to control electrical circuits in homes, offering an innovative solution that simplifies the installation process.

Technical characteristics

• Series: Simon 77
• Intensity: 10 AX
• Nominal voltage: 250 V~
• Cable section: 1.5 to 2.5 mm
• Type of installation: Suitable for surface and recess
• Assembly: Universal with 1click® bottling system
• Material: Halogen-free thermoplastic
• Method of operation: Balncín/button
• Regulations: Directive 2014/35/EU LVD, RoHS and EN IEC 63000 among others
• Compatibility: Mark Simon 75, 82 Details, 82 Nature, 82 and 88
• Range: SERIE 77 - EMPOTER

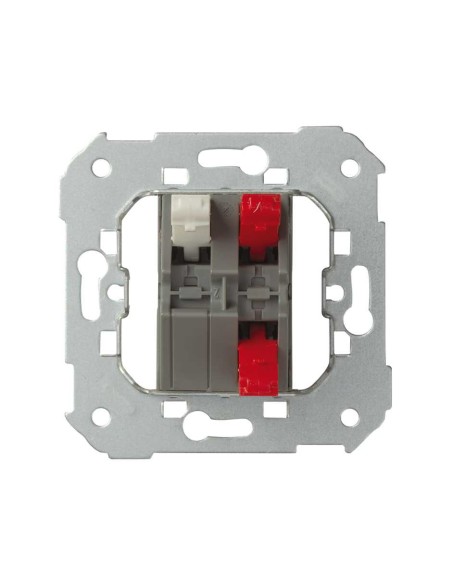

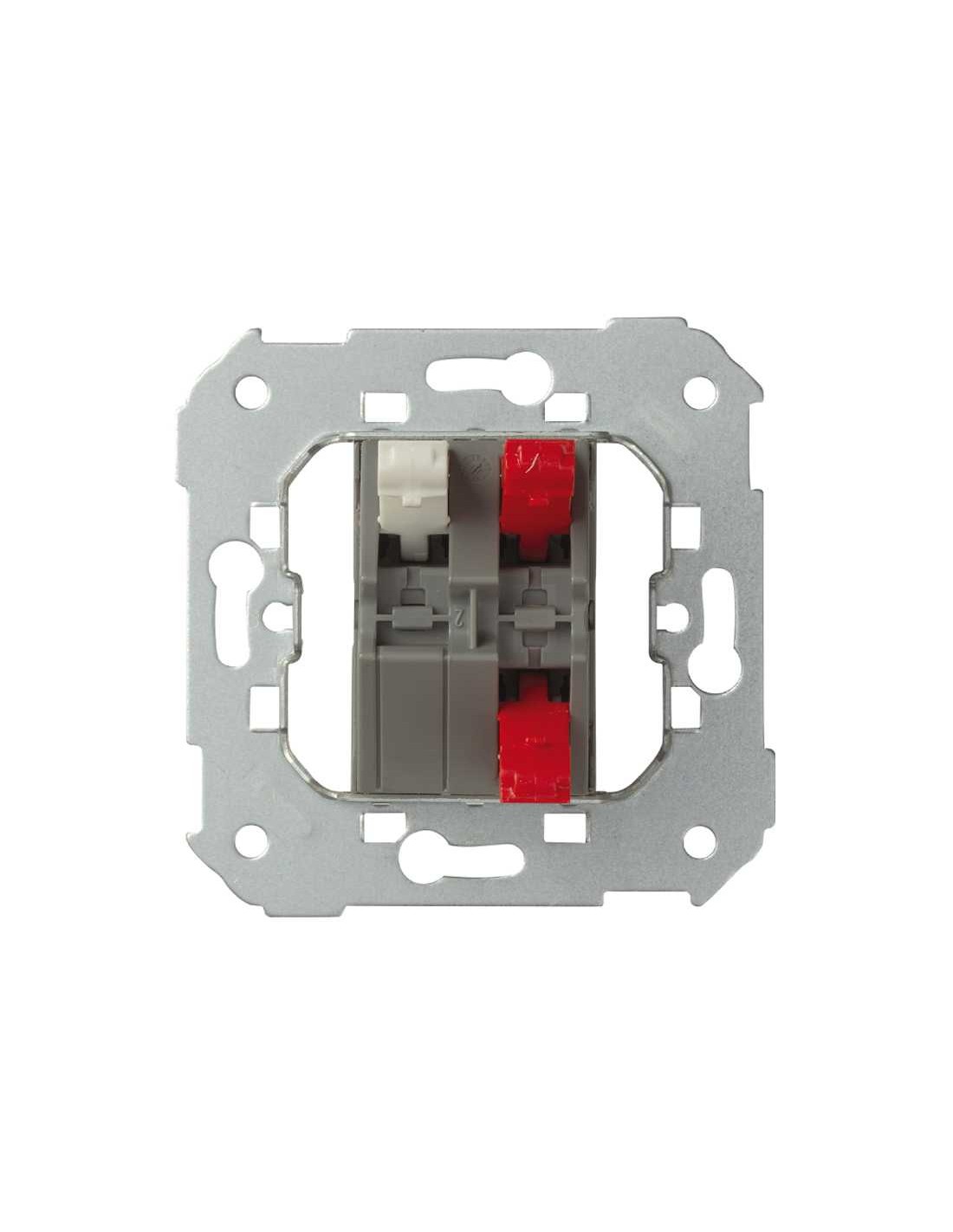

Its mechanism allows connecting cables without needing to peel or braid them, reducing assembly time and eliminating the need for additional tools. The construction with metal materials and safe insulation ensures reliable operation within the working temperature range of 5 to 40 °C.

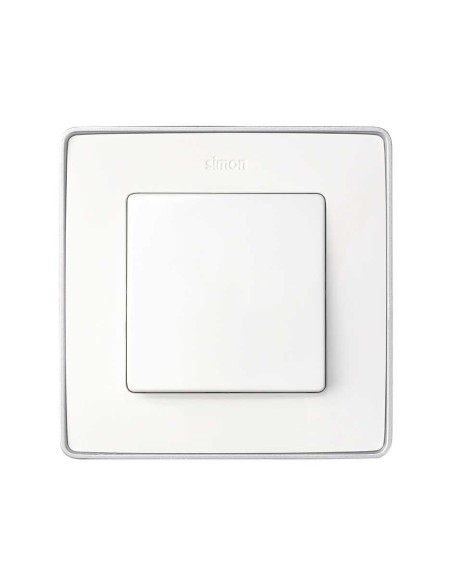

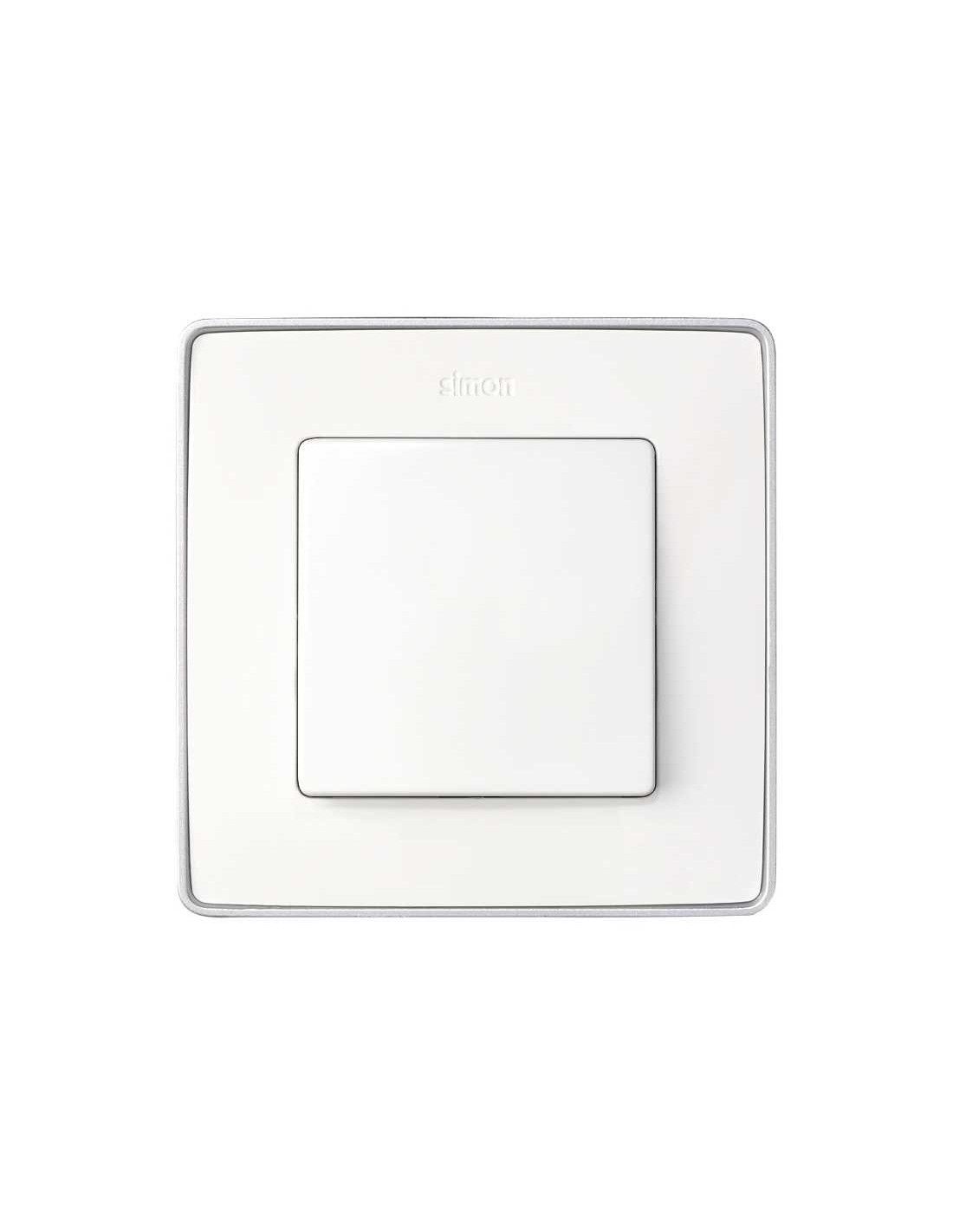

The product includes support to add signaling function using a viewfinder key, facilitating visual identification of the circuit state without altering its aesthetics integrated into the compatible frame.
