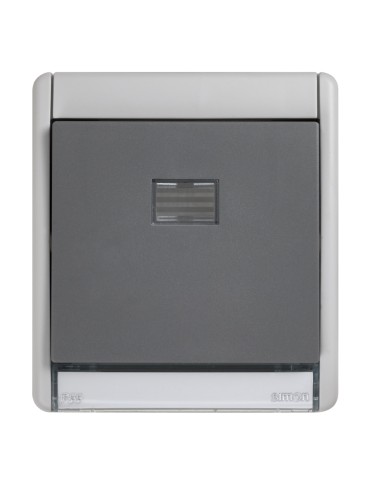

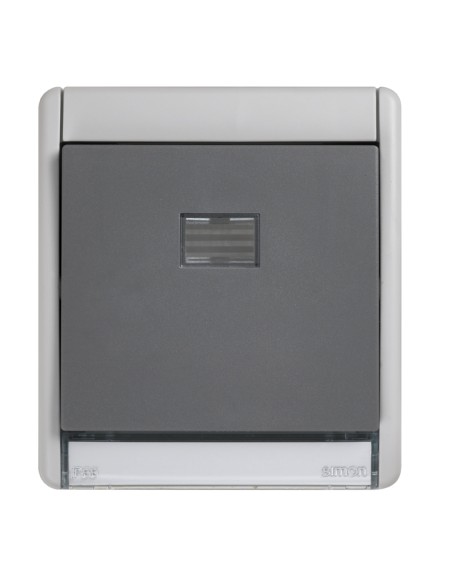

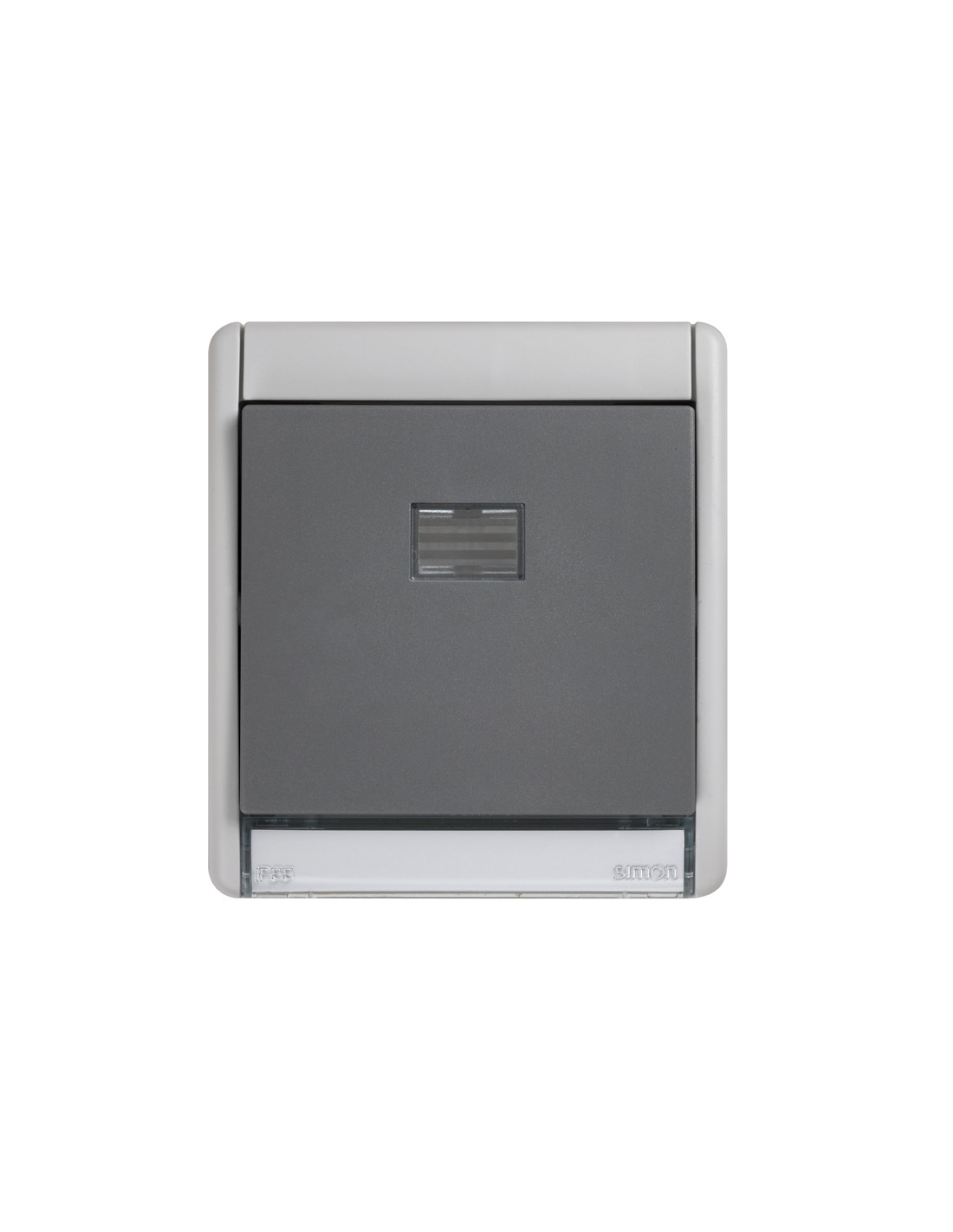

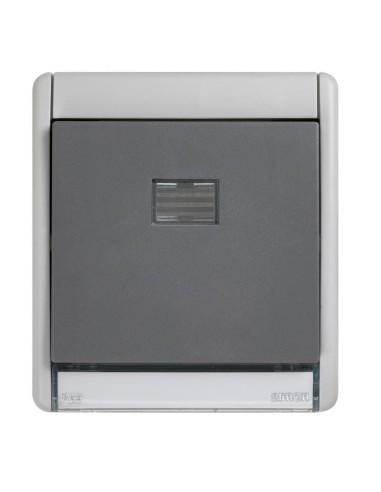

Simon Aqua 10AX Illuminated Push Button IP55 Grey

Simon Aqua 10AX Illuminated Push Button IP55 Grey

Simon Aqua 10AX Illuminated Push Button IP55 Grey

Simon Aqua 10AX Illuminated Push Button IP55 Grey

Simon Aqua 10AX Illuminated Push Button IP55 Grey

Out of stock

Reference SIMON 4400160-035

€18.28

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Protection IP55
Colour Grey

The SIMON AQUA 10AX push-button is a pilot-illuminated swing switch designed for superficial cast mounting. It has IP55 protection grade and IK07 impact resistance, operating at 250 V and 10 A via plug clamp. Its RAL 7035 grey housing guarantees durability in demanding humid or outdoor environments.

Description

The SIMON AQUA 10AX luminous pushbutton is a swing switch designed for electrical installations that require robustness and water protection. Its full grey housing (RAL 7035) integrates a base element with plug clamp system, allowing a surface assembly on cast without the need for additional boxes.

Technical characteristics

Series: AQUA - ESTANCA
Nominal voltage: 250 V
Assigned current: 10 A
Number of oscillators: 1
Degree of protection: IP55
Impact force: IK07
Device depth: 57.5 mm
With light/light pilot: yes
Method of operation: Balncín
Connection type: Plug Clamp
Mounting systems: Base element with complete housing

The inclusion of an integrated light source facilitates the location of the switch in low visibility conditions, improving operational safety. Its aesthetic design and resistance guarantee a constant performance in environments where protection against splashes of water is required.

Product Details

Eléctrico

Nominal voltage (V)	250V

Protección

Protection	IP55

Otras

EAN	8421053298435
Reference	SIMON 4400160-035
Piece type	Electrical mechanisms
Series	Simon 44 AQUA
Colour	Grey

Información legal

Fabricante	SIMON
Dirección	Calle Diputación, 390-392, 08013 Barcelona, ES
Email	[email protected]
Teléfono	+34 934192500
Referencia	SIMON 4400160-035
EAN	8421053298435

Downloads

Product sheet Store PDF Download
