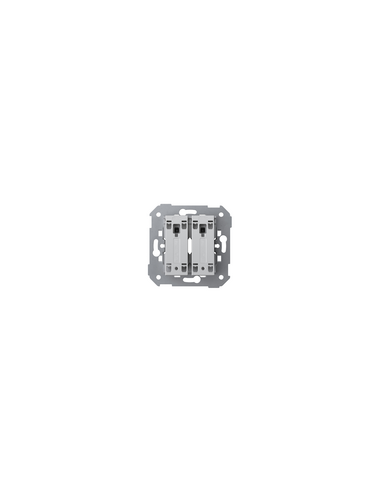

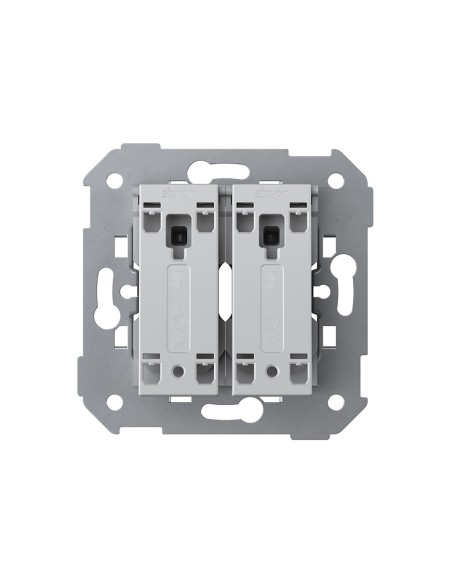

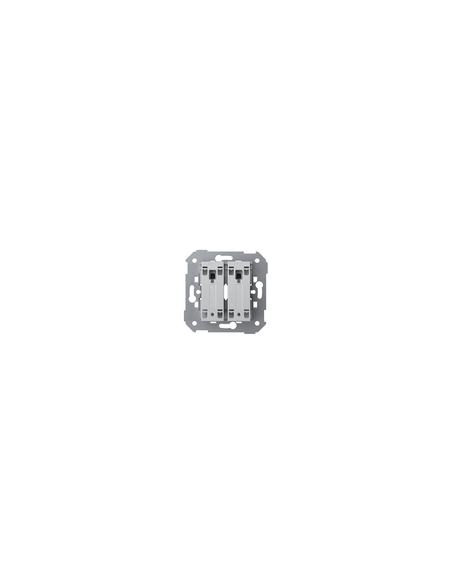

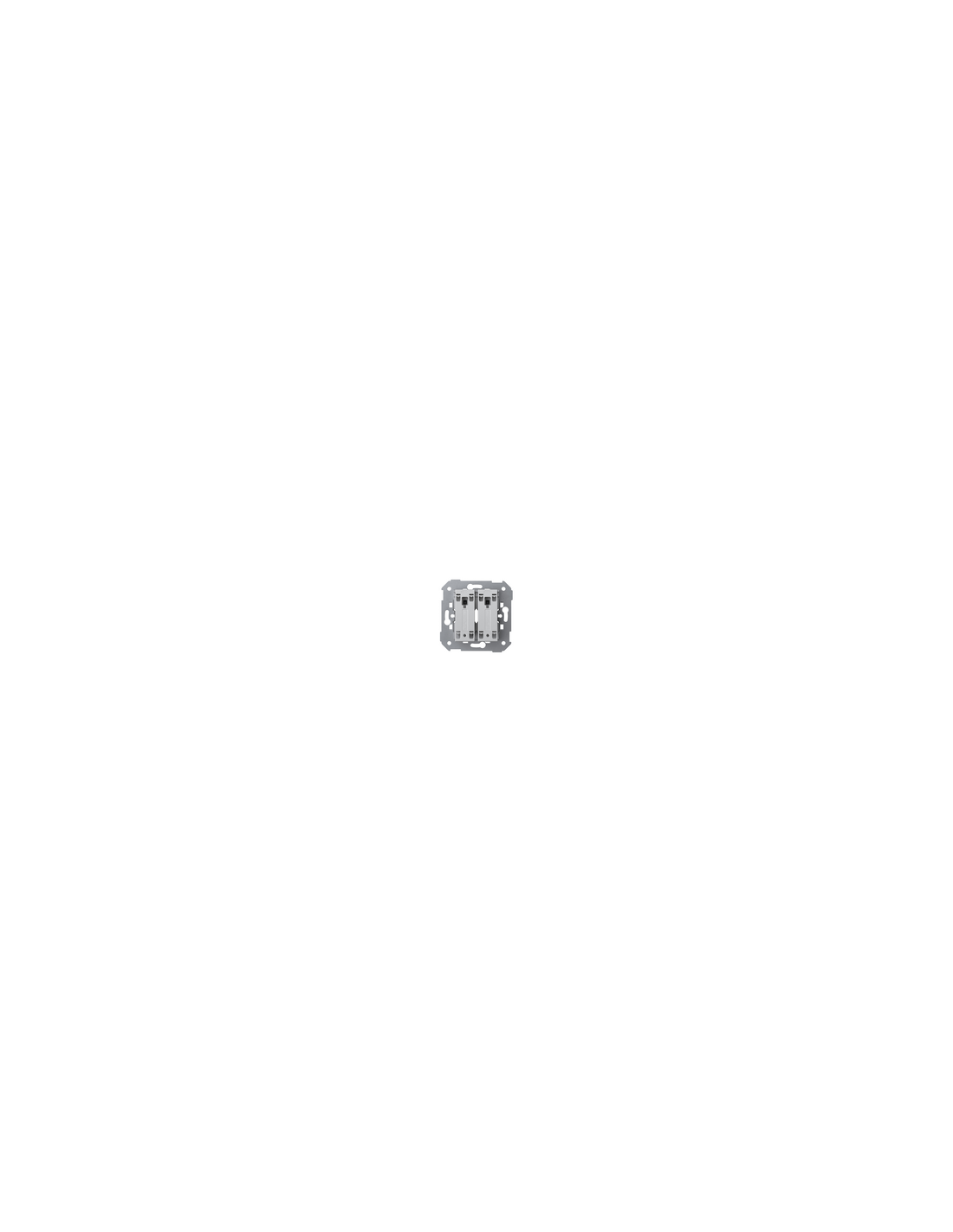

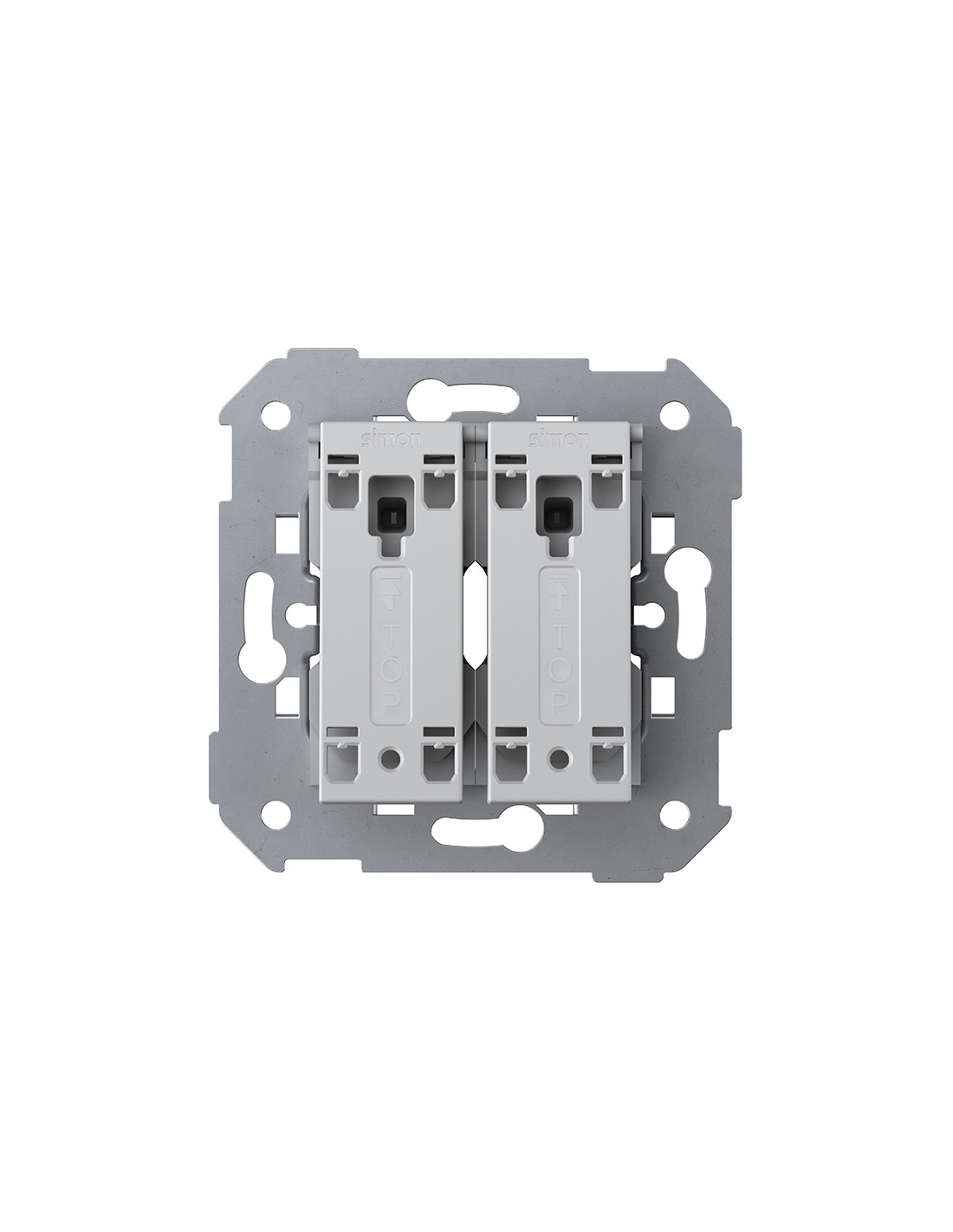

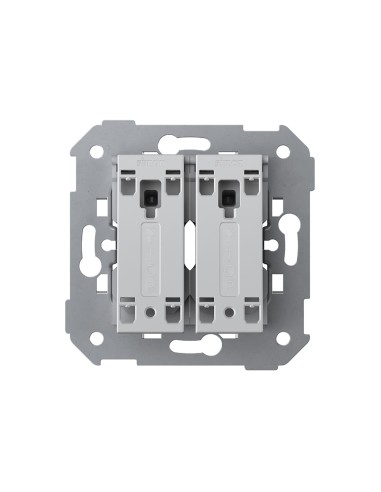

Double Switch with Pulsating Indicator Simon 360 10A

The Double Switch with Pulsating Indicator from the Simon 360 series is an electrical mechanism designed for circuit control and signaling, integrating a built-in lighting function. Its construction combines metallic and plastic materials, ensuring robustness and durability within European electrical safety standards.

Technical Specifications

• Series: Simon 360
• Nominal Current: 10 AX
• Nominal Voltage: 250 V~
• Protection IP: IP20
• Material: Metal and Plastic

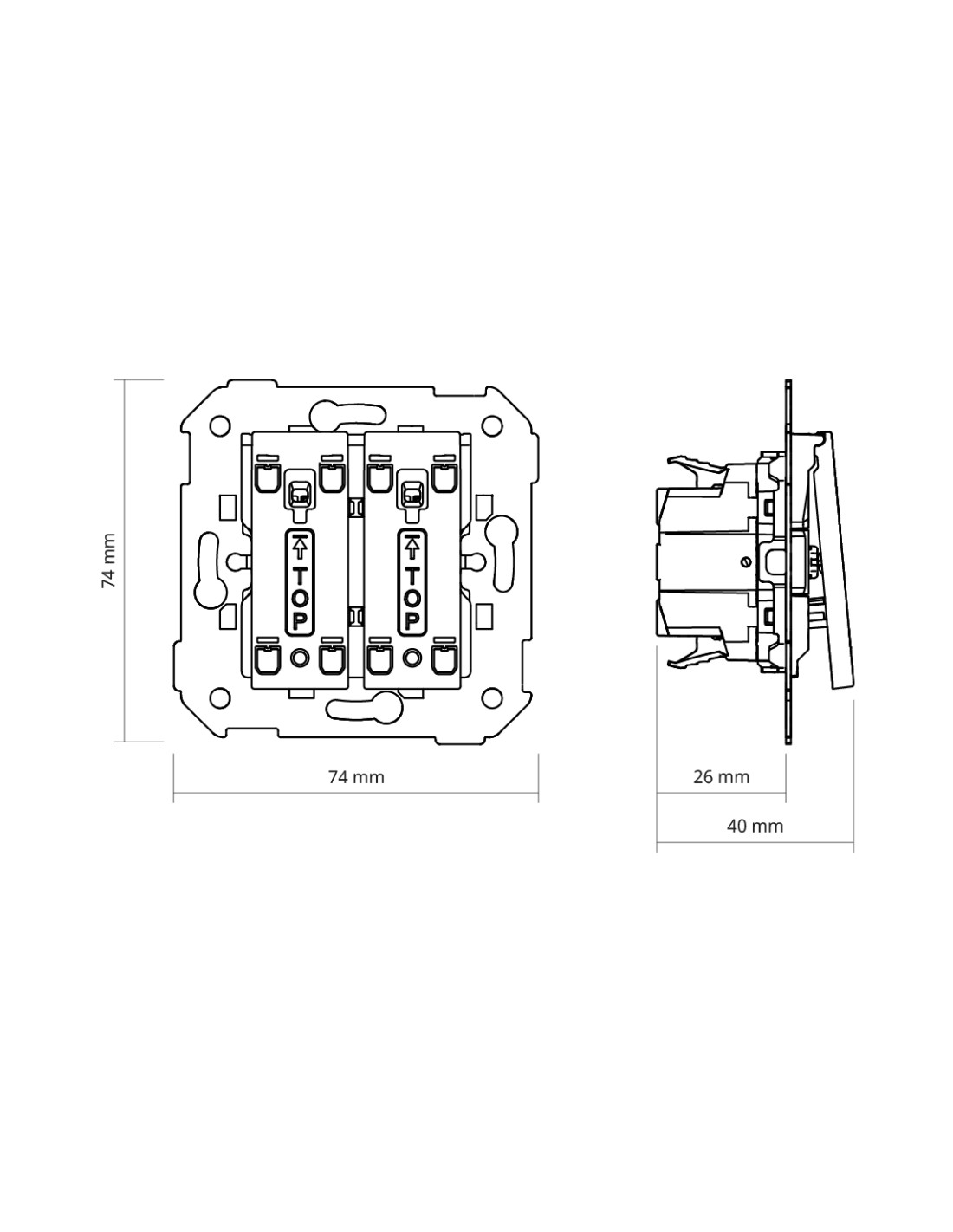

• Total Dimensions: 74 x 74 x 40 mm
• Admissible Cable Section: 1.5 - 2.5 mm²
• Recommended Cable Stripping: 15 mm
• Electrical Contacts: 6
• Operating Frequency: 50 - 60 Hz
• Working Temperature: 5 to 45 ºC
• Manufacturer Warranty: 3 years
• Applicable Regulations: EN 60669-1, RoHS, LVD

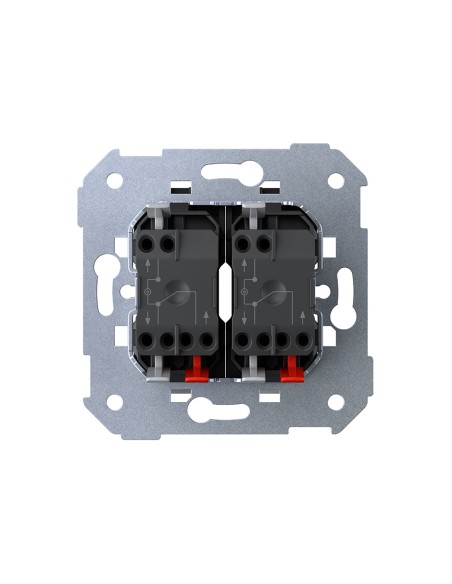

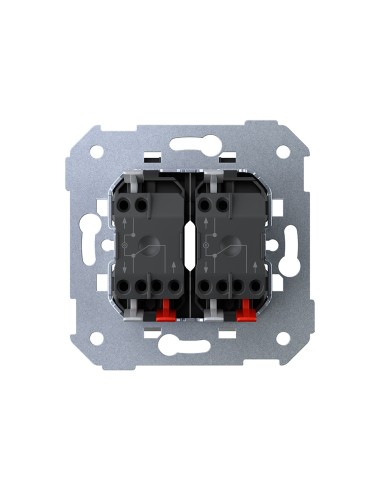

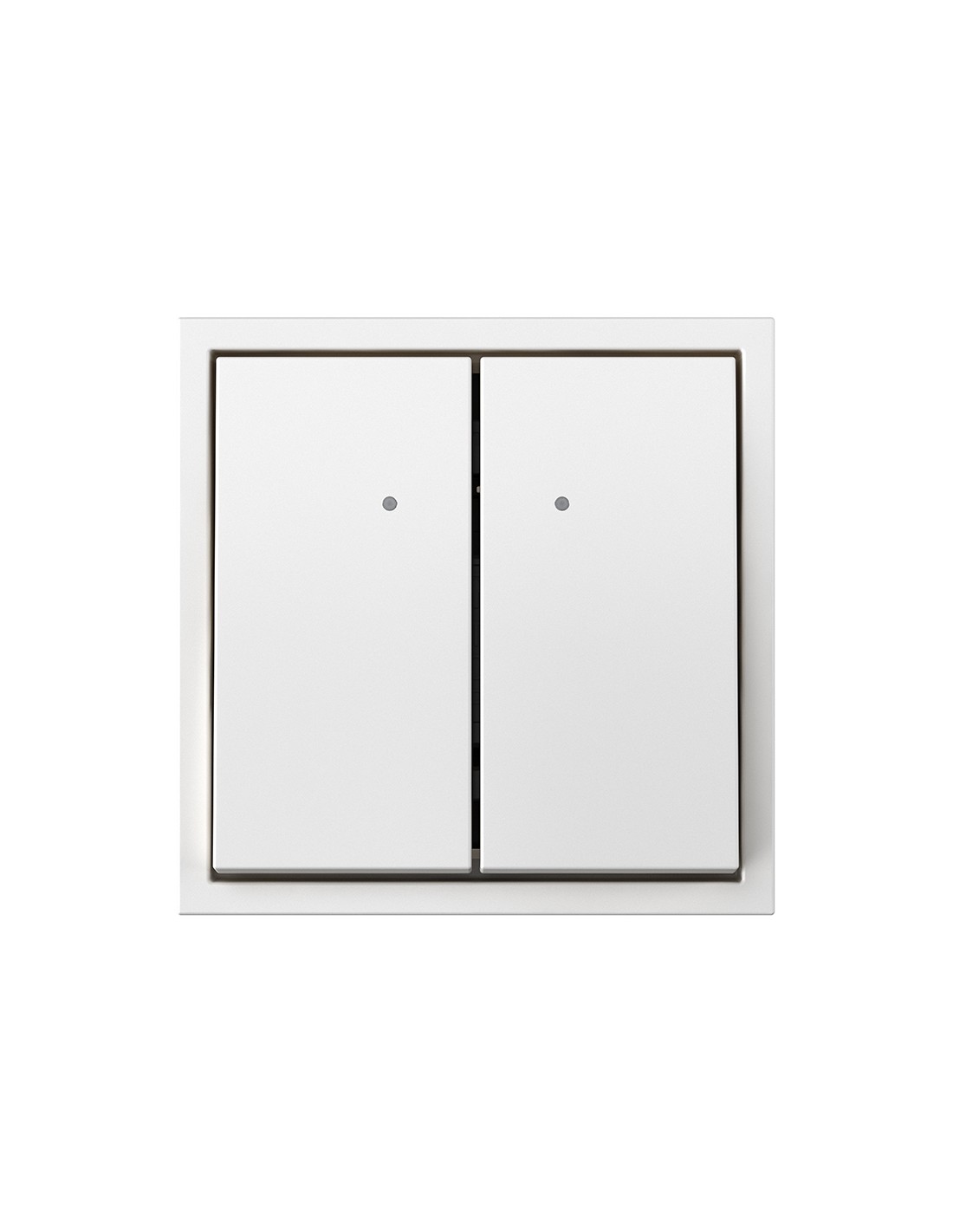

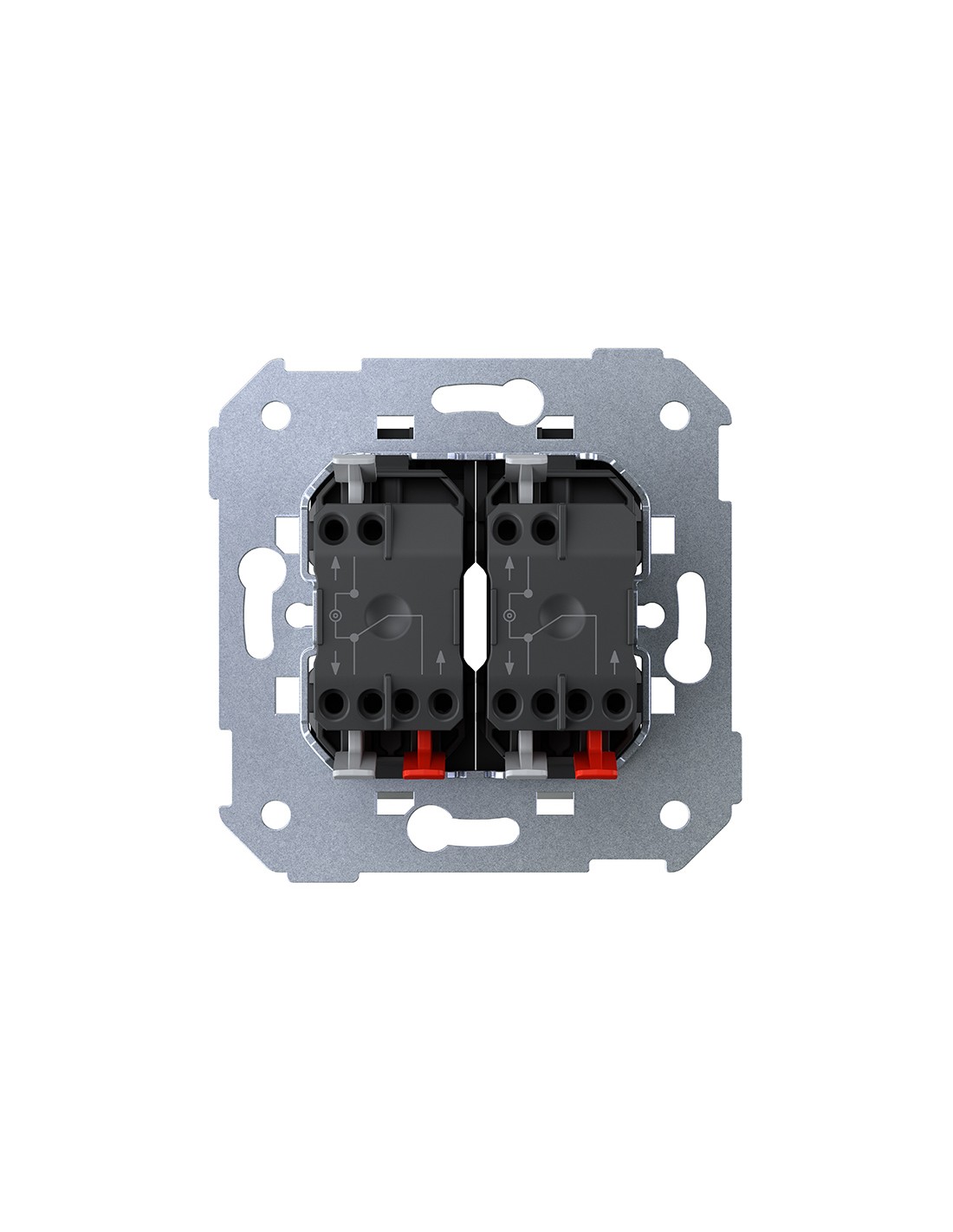

The quick connection system facilitates a secure and agile cable connection, while the pulsating mechanism ensures perfect visual alignment of the keys in any configuration. Its universal design allows adaptation to both surface and recessed installations, offering an aesthetically coordinated integration with 360 series frames.

Mounting is flexible, allowing horizontal and vertical orientations without functional restrictions. Thanks to its integrated signaling and standard performance, this device is suitable for routine lighting applications where dual control with clear and uniform visual indication is required.
