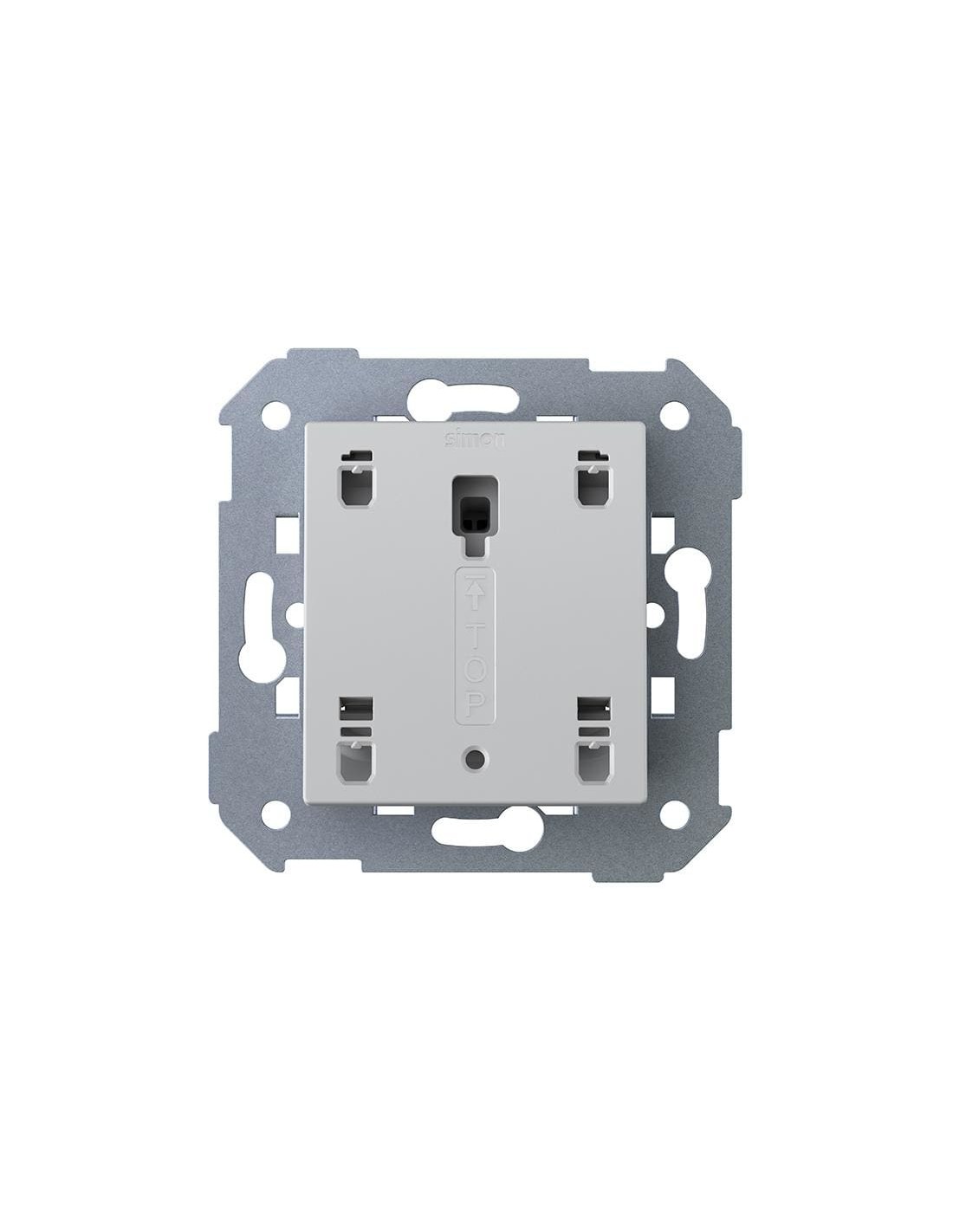

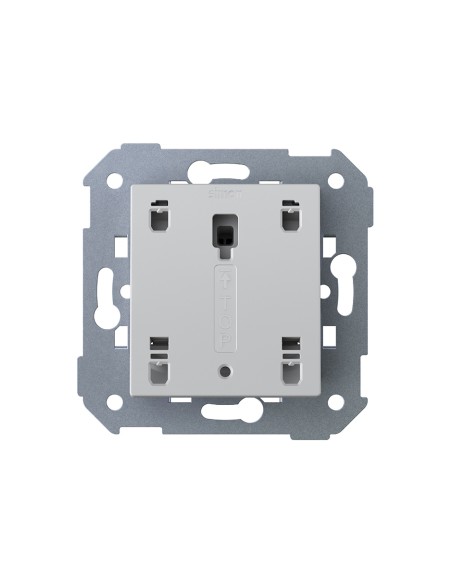

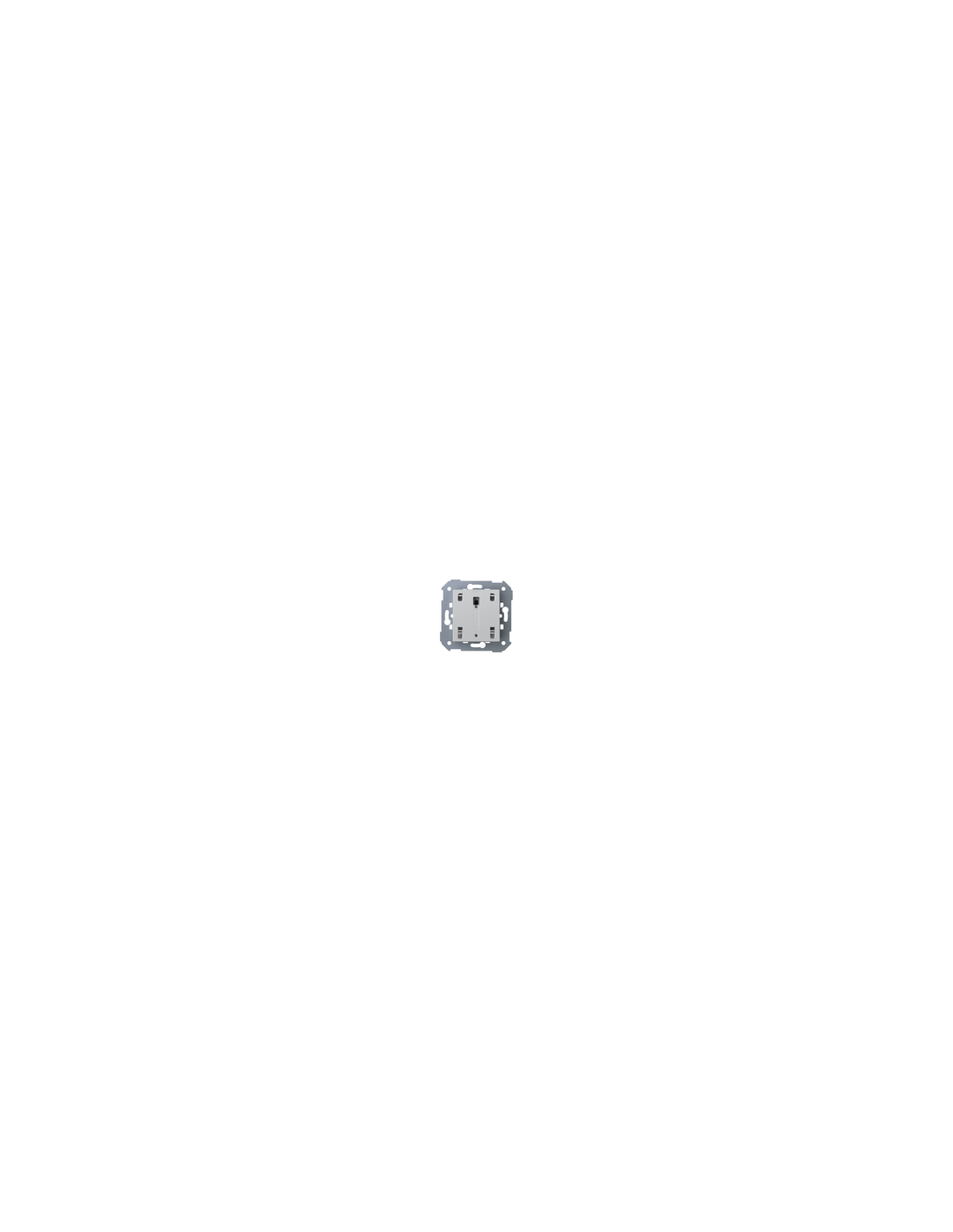

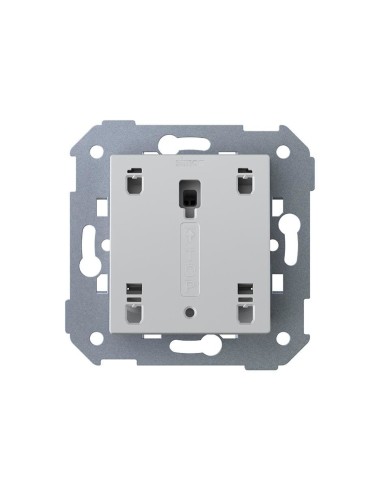

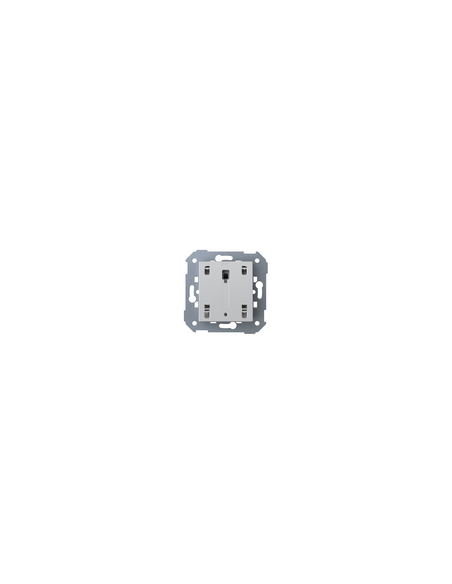

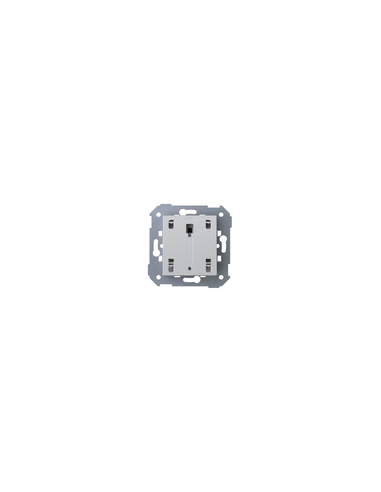

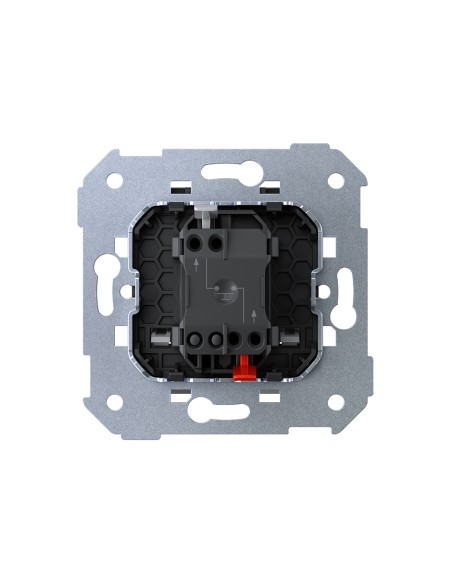

Simon 360 Pulsating Push Button 10A 250V with Quick Termination

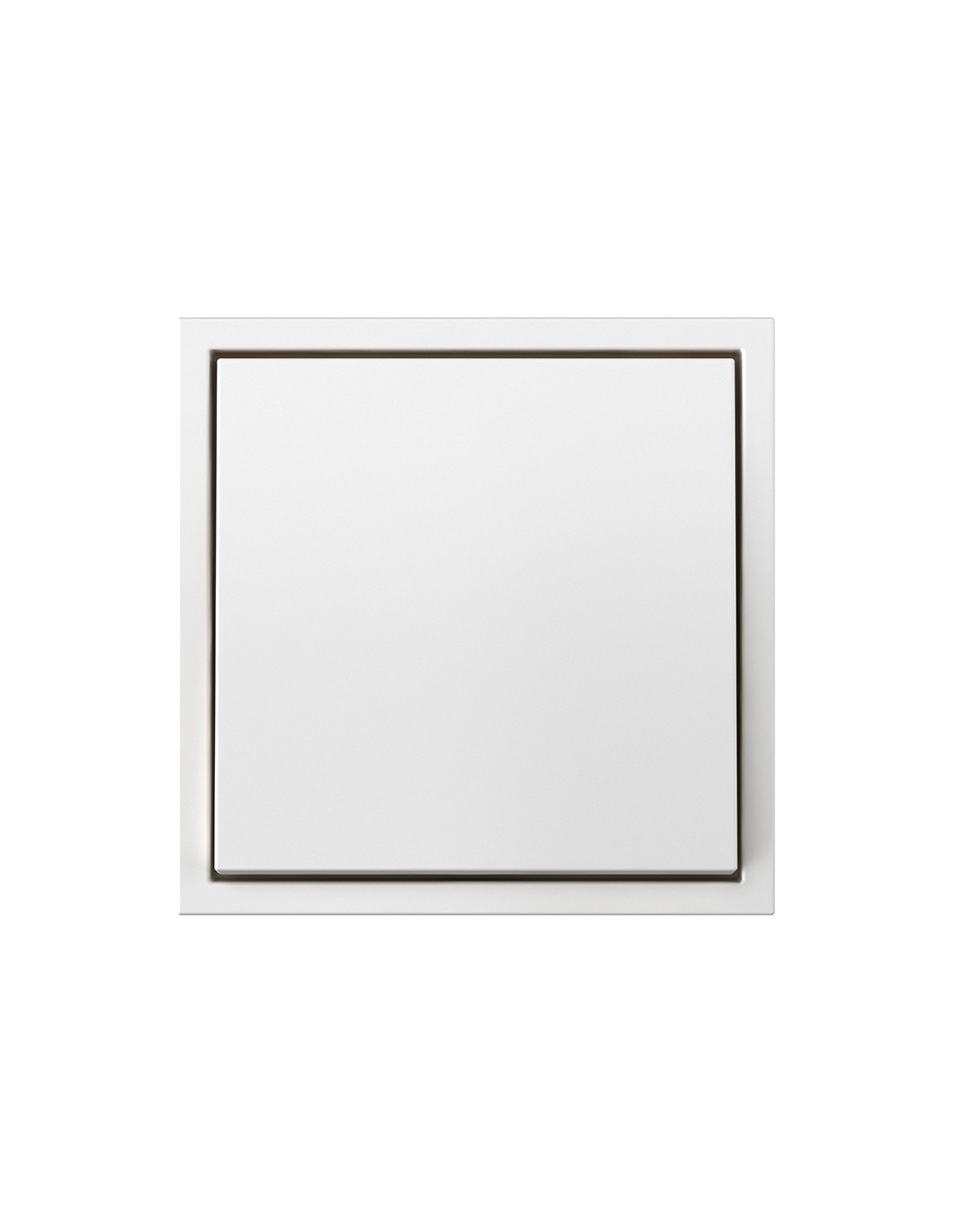

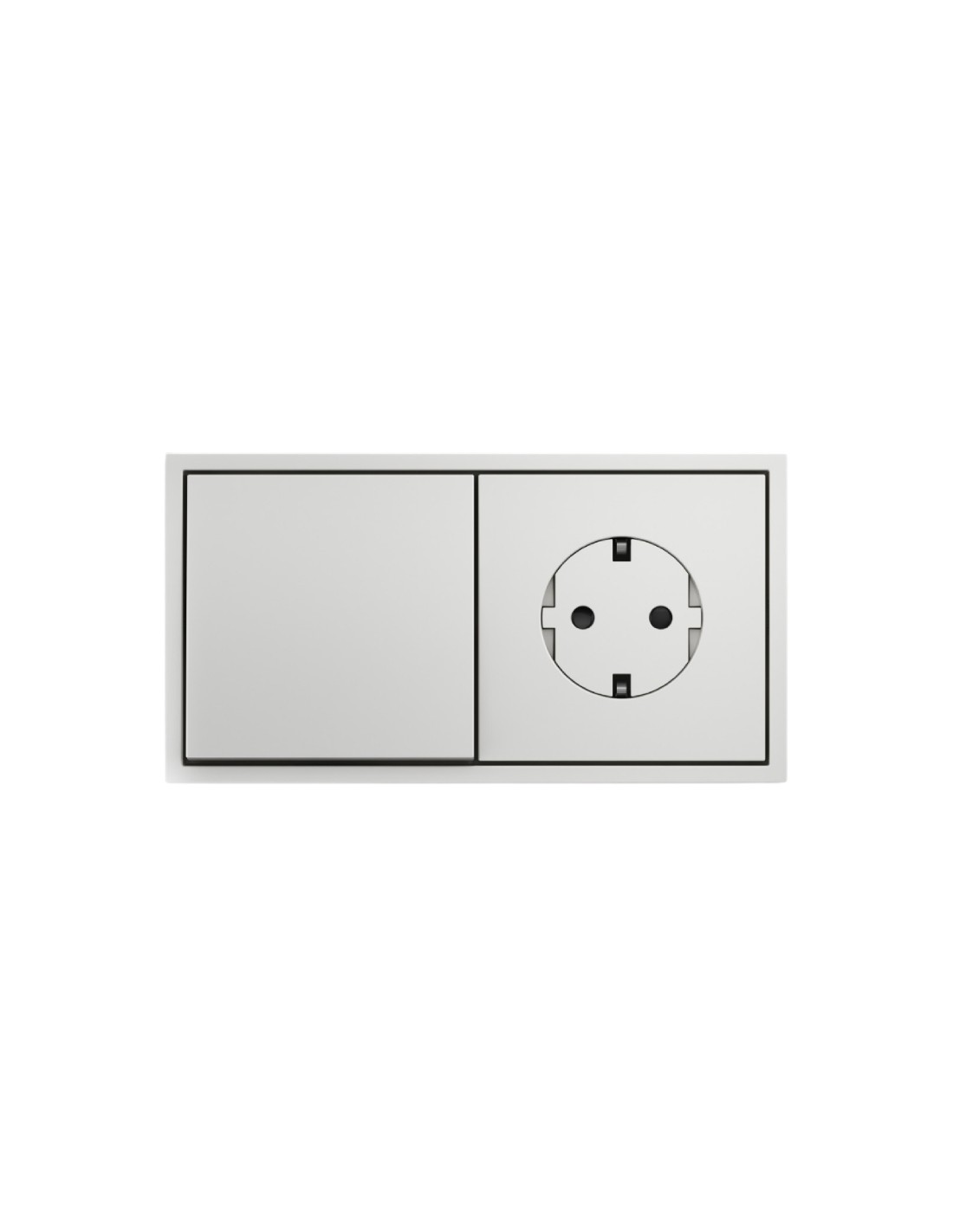

The Simon 360 series pulsating push button is an electrical mechanism designed for control and operation in residential and tertiary installations, offering uniform aesthetic integration thanks to its compatibility with the frames of this range.

Technical Specifications

• Series: Simon 360
• Current Rating: 10 A
• Nominal Voltage: 250 V~
• Protection: IP20
• Material: Metal and Plastic

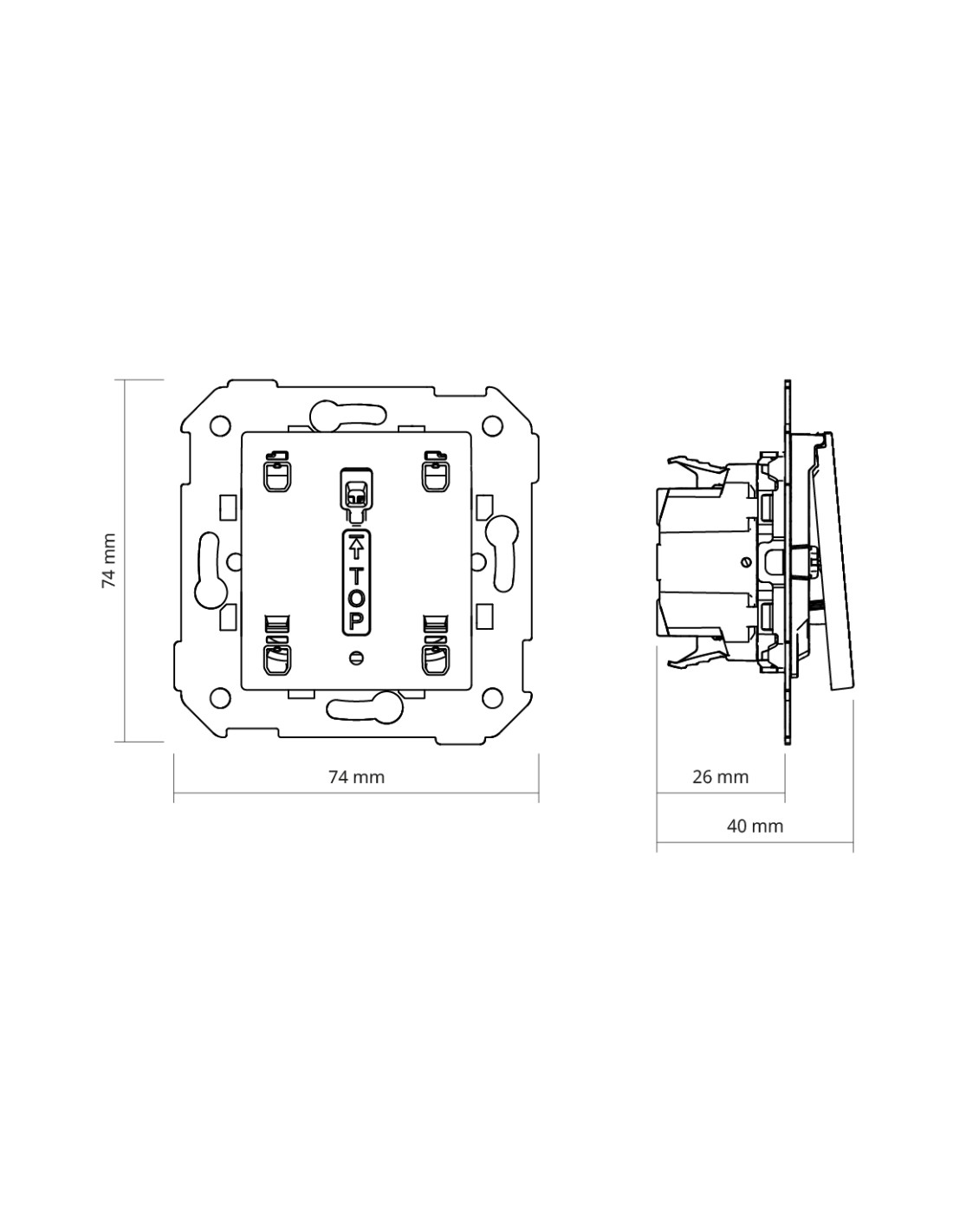

• Dimensions: 74 x 74 x 40 mm
• Cable Section: 1.5 - 2.5 mm²
• Cable Stripping Length: 15 mm
• Contacts: 2
• Elements: 1 element
• Frequency: 50 - 60 Hz
• Operating Temperature: 5 - 45 ºC
• Orientations: Horizontal and Vertical
• Mounting: Universal (surface and recessed)
• Crimps: Simon 27
• Warranty: 3 years
• Regulations: Dir. 2014/35/UE LVD, Dir. 2011/65/UE RoHS, EN 60669-1:2018, EN IEC 63000:2018

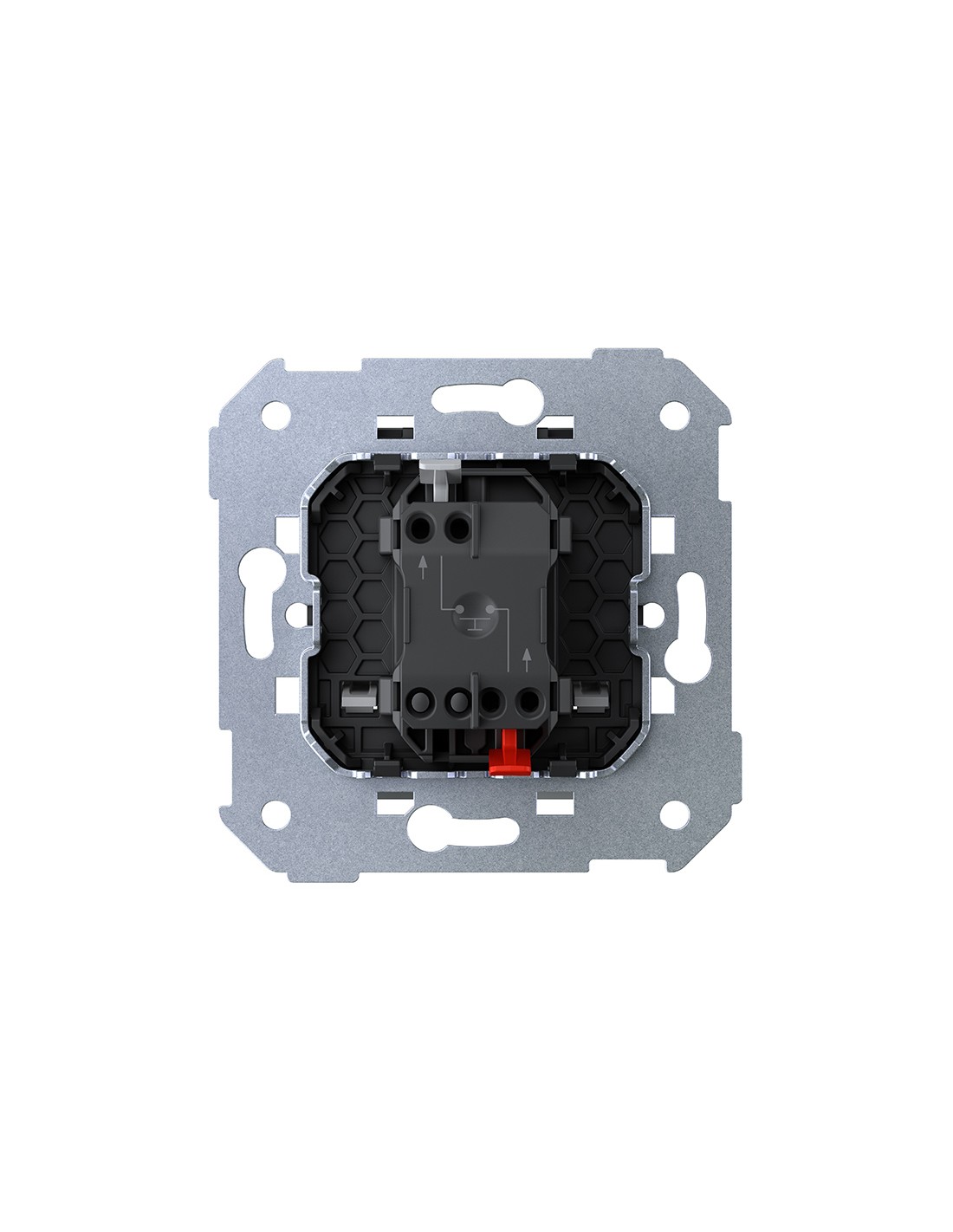

• Quick termination included

Its pulsating mechanism ensures perfect alignment of keys in any configuration, providing a premium user experience with balanced touch and sound. Connection via the quick termination system optimizes agility and safety during installation.
