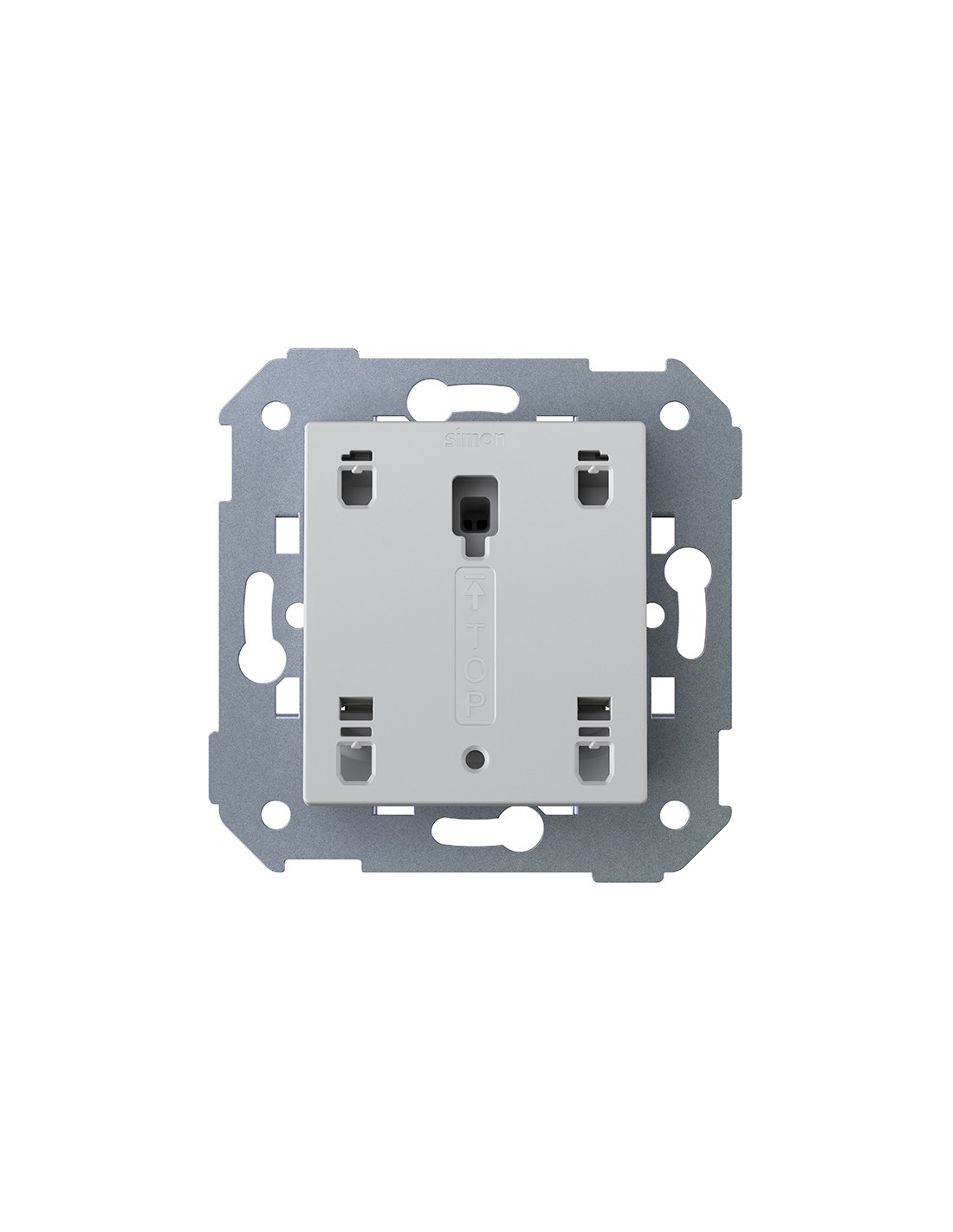

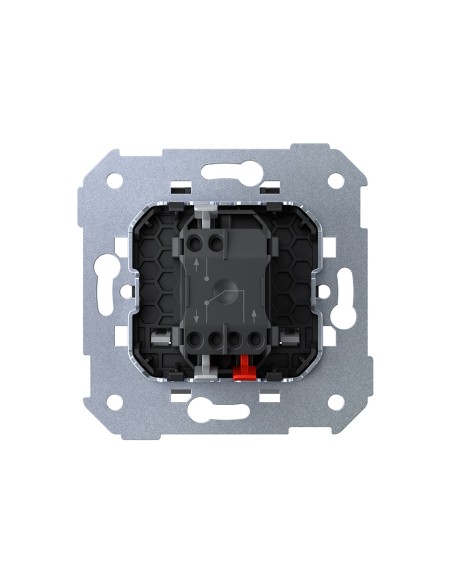

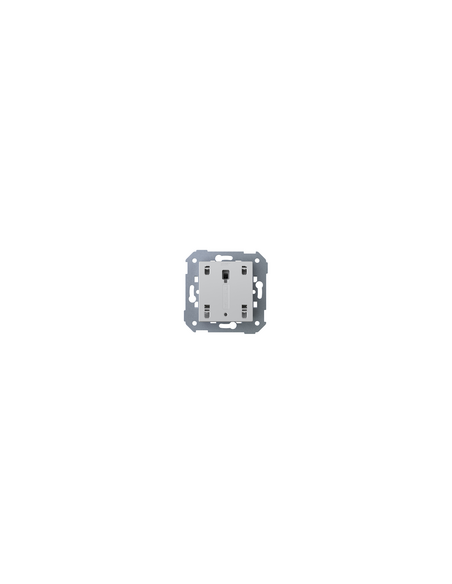

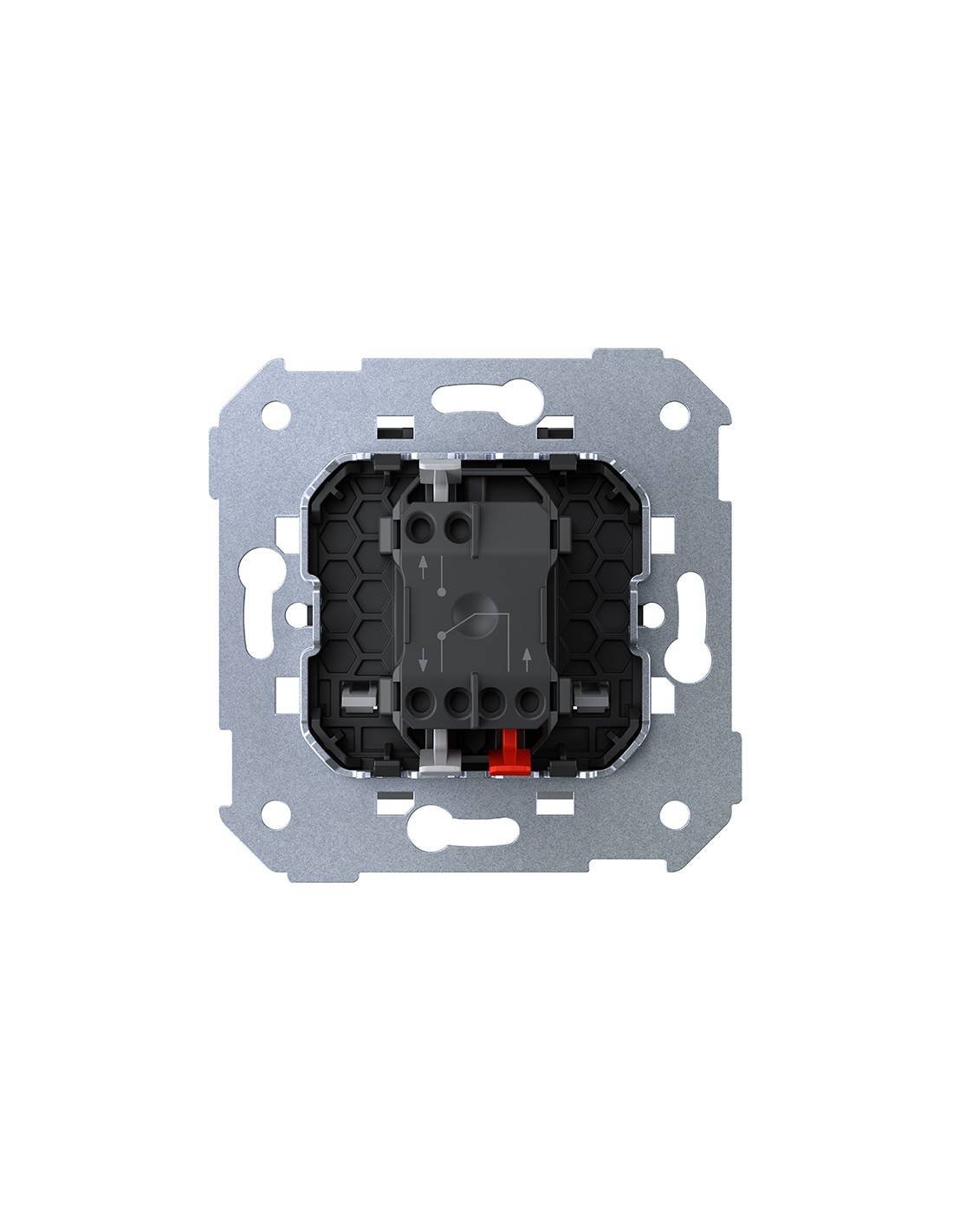

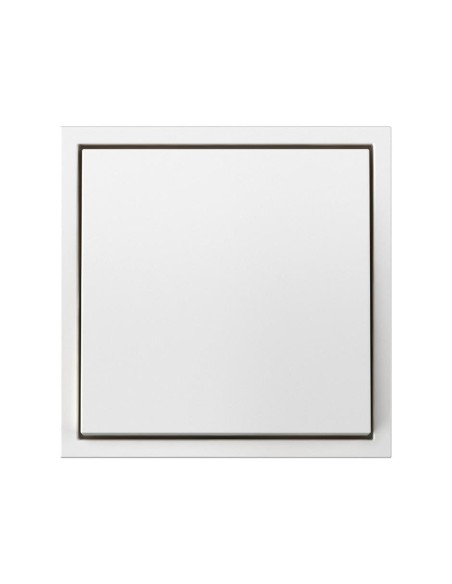

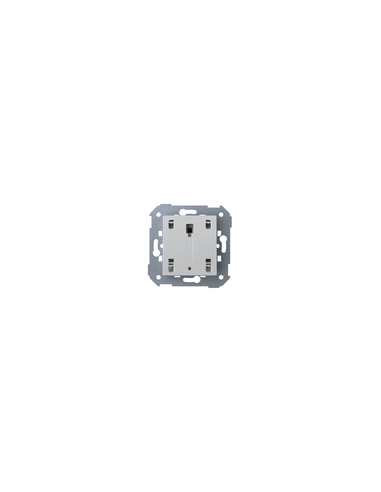

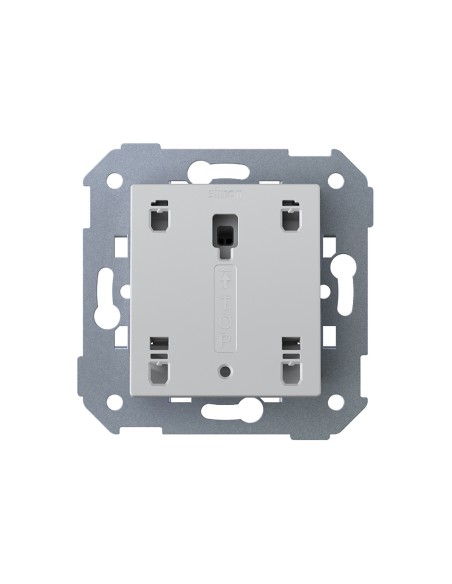

Simon 360 Pulsating Switch 10AX 250V with Quick Stripping

The Simon 360 series pulsating switch is an electrical component designed for circuit control and operation, offering a clean and uniform aesthetic thanks to its mechanism that keeps keys aligned in any configuration.

Technical Specifications

• Series: Simon 360
• Current Rating: 10 AX
• Nominal Voltage: 250 V~
• Protection: IP20
• Material: Metal and Plastic
• Type: Push Button

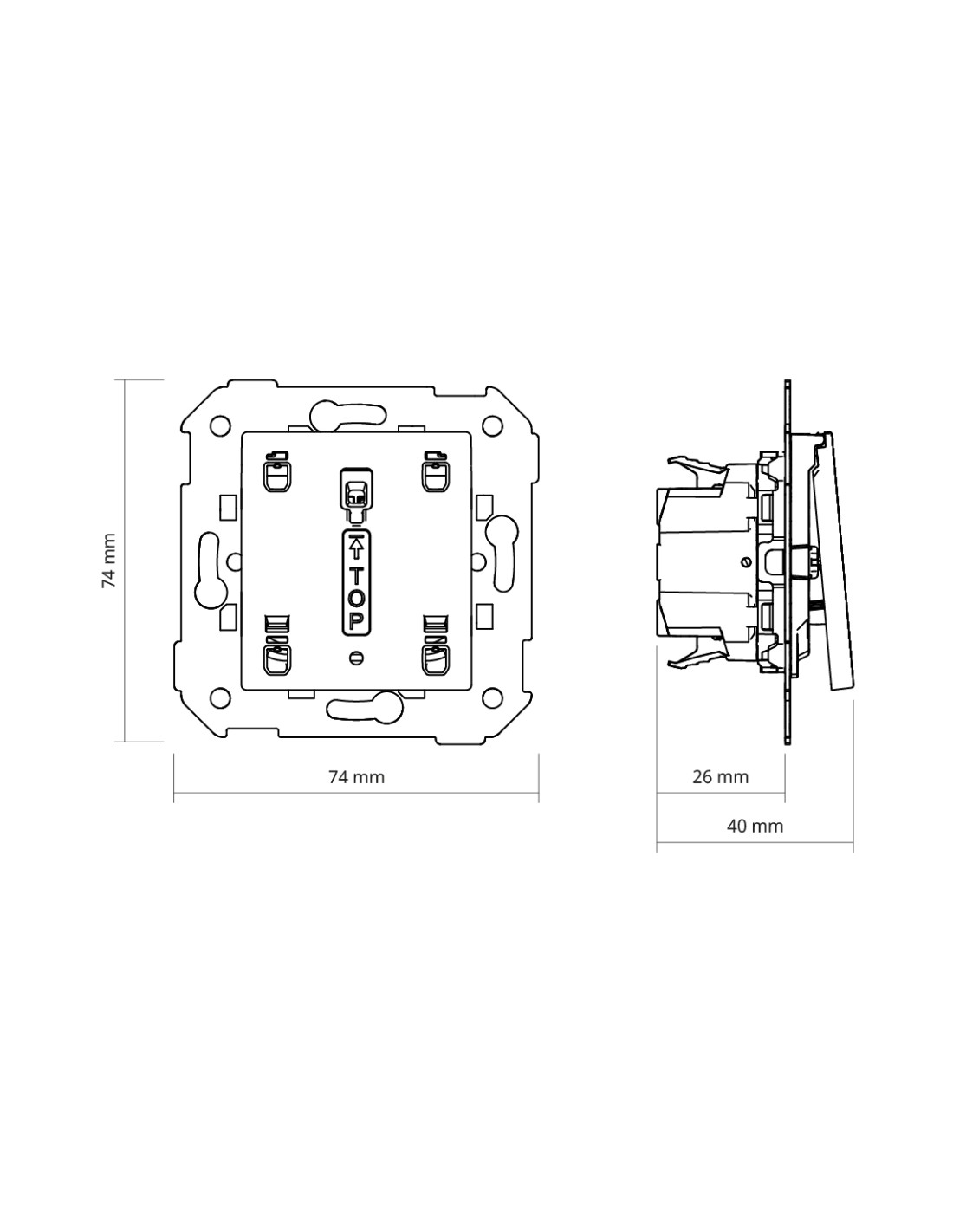

• Dimensions: 74 x 74 x 40 mm
• Cable Section: 1.5 - 2.5 mm²
• Cable Stripping Length: 15 mm
• Contacts: 3
• Elements: 1 element
• Operating Temperature: 5 - 45 ºC
• Frequency: 50 - 60 Hz
• Warranty: 3 years
• Regulations: EN 60669-1:2018, LVD and RoHS Directives
• Compatibility: Simon 360 Frames
• Clips: Simon 27

Its quick stripping system allows for faster and safer installation with conductors up to 2.5 mm². Manufactured with metal components and halogen-free thermoplastic insulation, it ensures safety and regulatory compliance.

It is suitable for surface or recessed installation, offering versatility in universal mounting horizontally or vertically inside boxes with a minimum depth of 40 mm.
