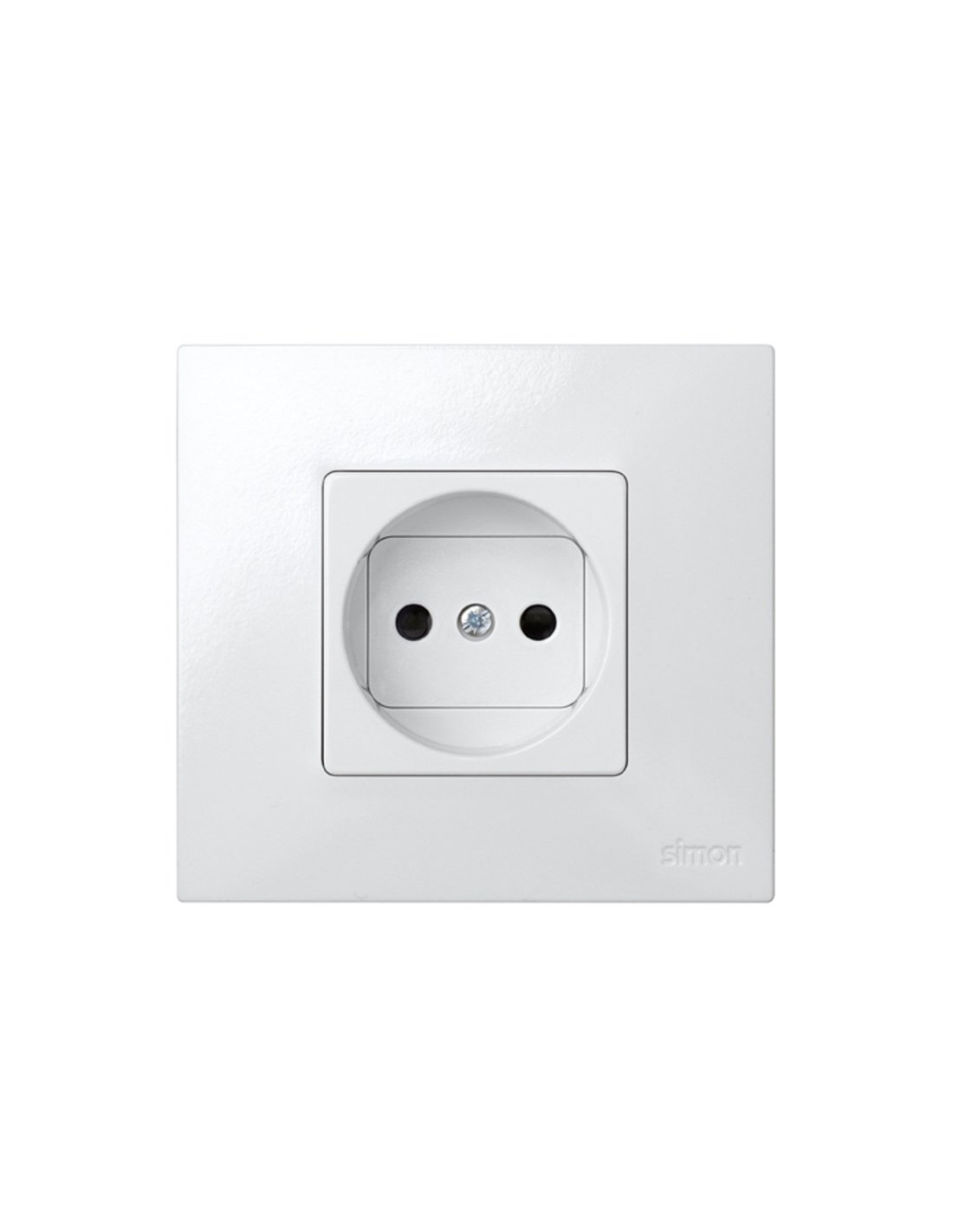

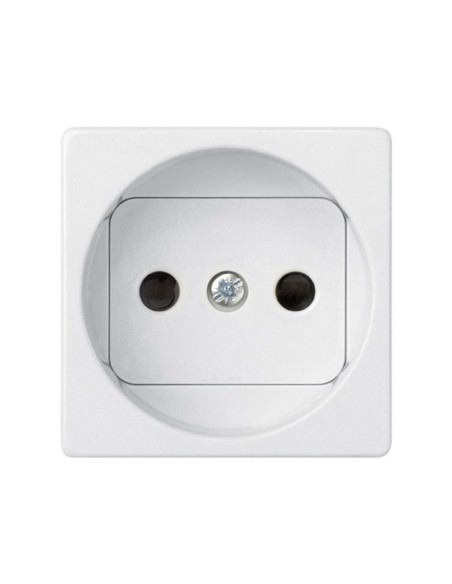

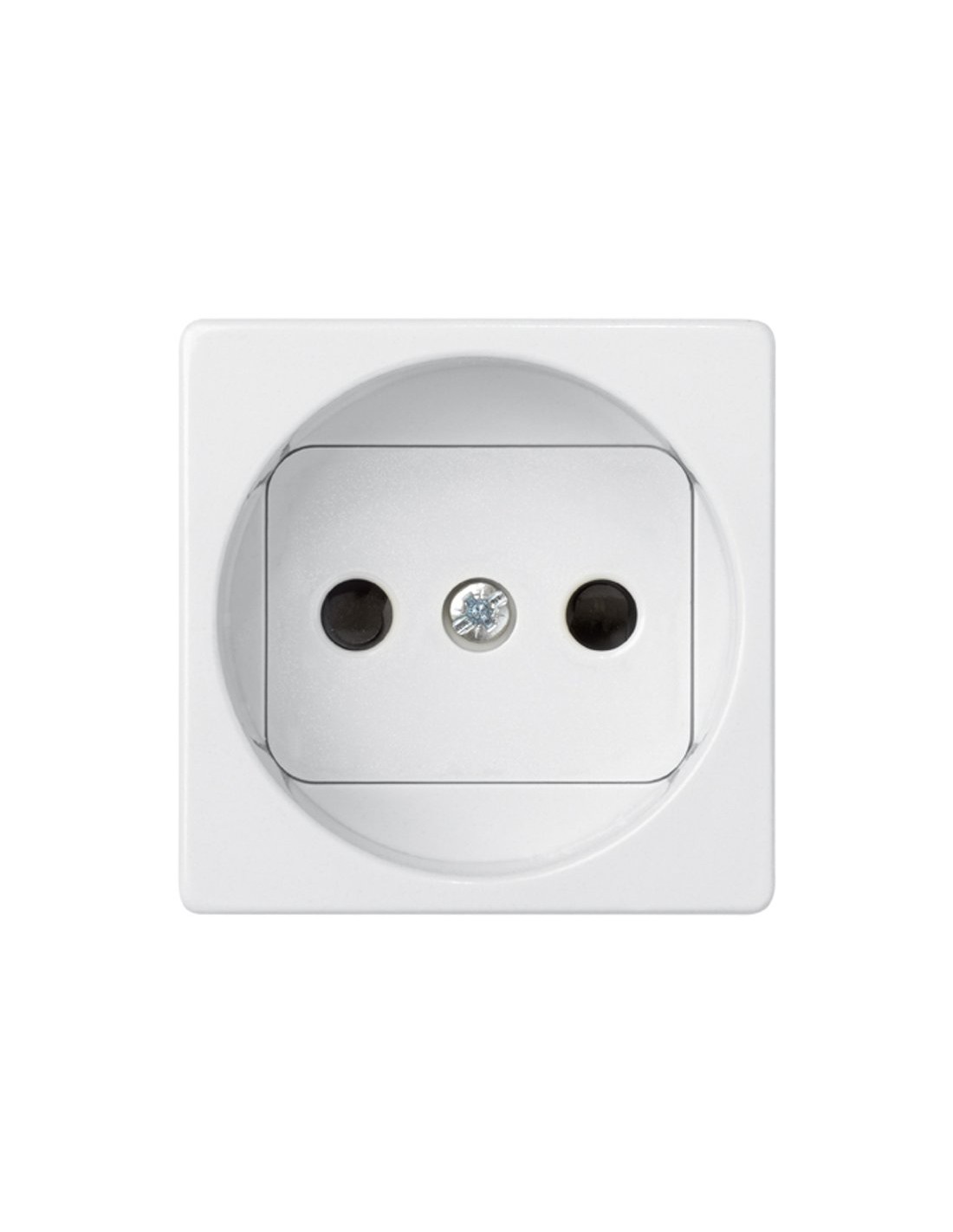

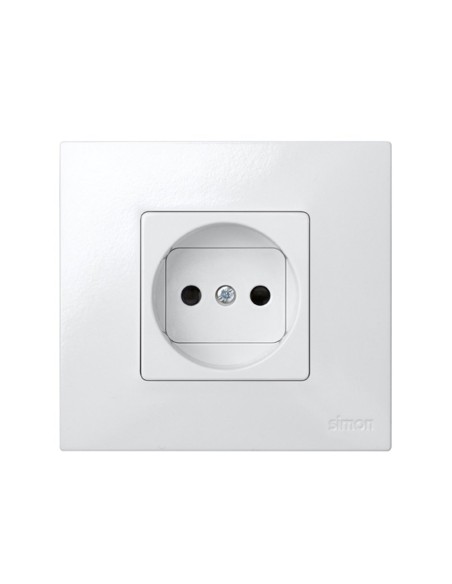

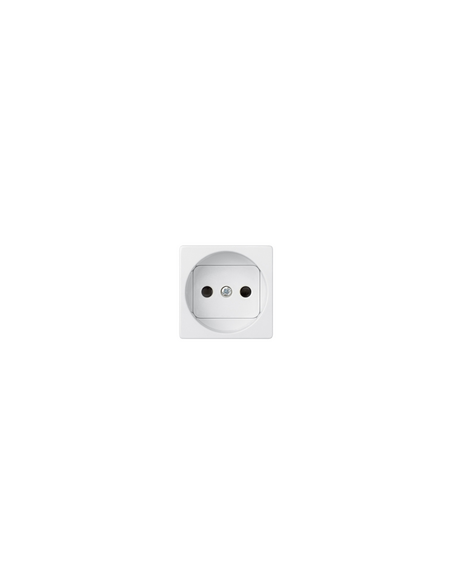

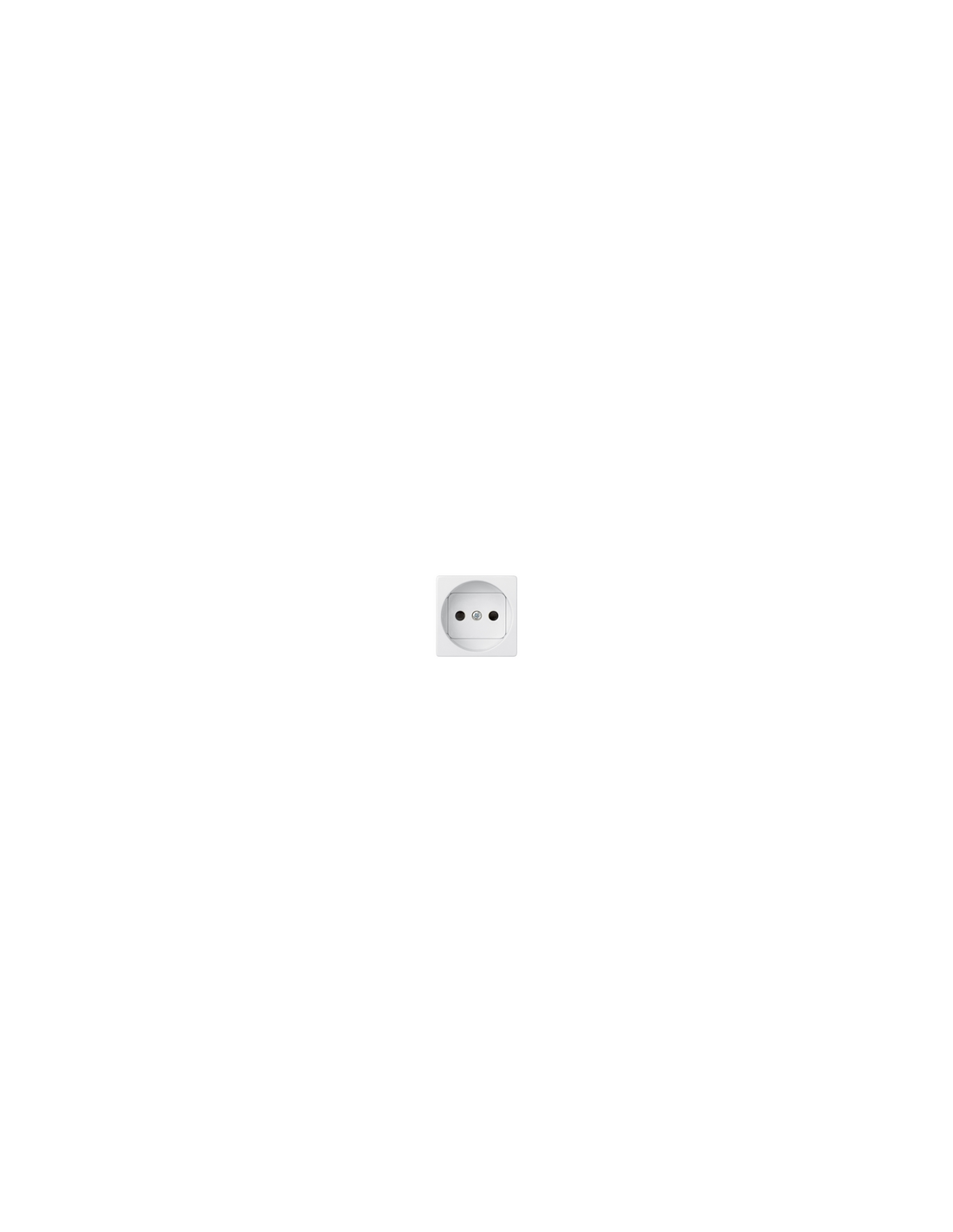

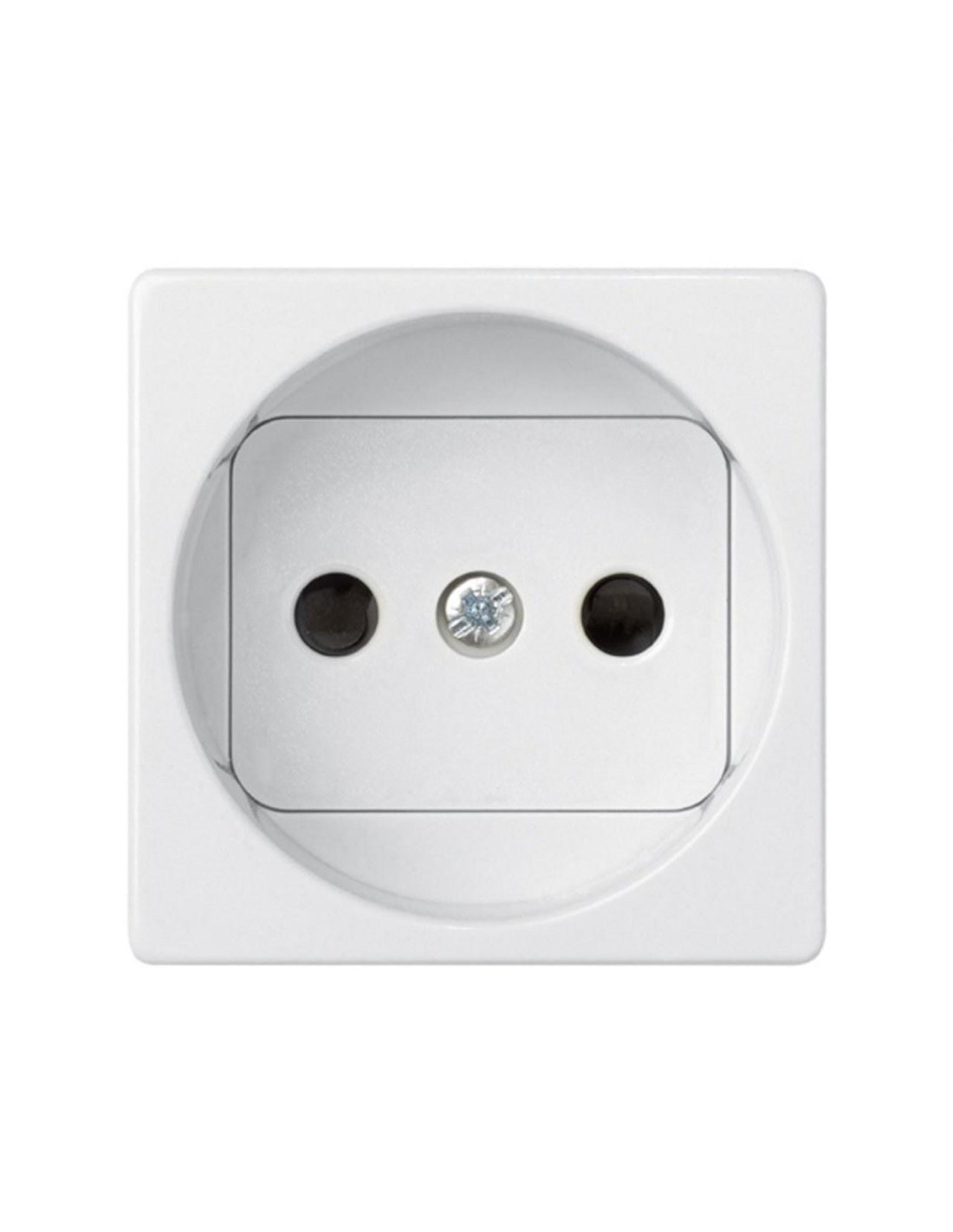

Simon 27 Play Bipolar Socket Base 16A 250V with Safety Device

The Simon 27 Play bipolar socket base is an electrical connection element designed to integrate into modular systems, offering a safe and aesthetic solution with a glossy white finish.

Technical Specifications

• Series: Simon 27 Play
• Nominal Current: 16 A
• Nominal Voltage: 250 V~
• Format: Bipolar with 2 round active pins
• Protection Rating: IP20
• Connection Type: Screw terminal (screw connection)
• Admitted cable cross-section: 2.5 mm²
• Cable stripping included: 15 mm
• Operating Temperature: between -25 and 50 °C
• Material: Metal components with halogen-free thermoplastic insulation
• Finish: Glossy white
• Number of modules: 2
• Standards: IEC 60884-1 Ed 3.2, EN 50581:2012 and RoHS

This device includes covers with a child protection function for greater safety in the home or residential environments.

The mounting is universal and compatible with various frames from the Simon 27 range, allowing flexible installation either recessed into plaster or on surface.
