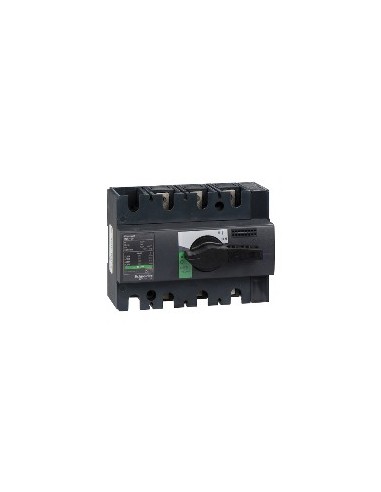

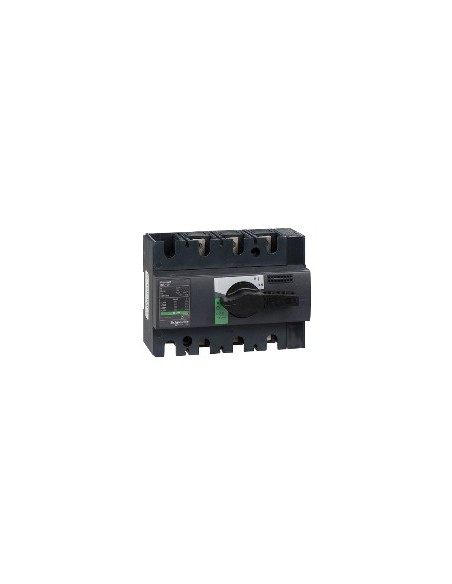

3P Isolating Switch Interpact INS100

3P isolating switch from the ComPact range, designed for safe disconnection of electrical circuits in industrial and commercial installations. Compatible with AC and DC networks, featuring rotary control and fixed DIN rail mounting. Its compact design allows integration into enclosures measuring 260 mm x 160 mm x 55 mm.

Technical Features

• Number of poles: 3P
• Network type: AC, DC
• Frequency: 50/60 Hz
• Rated operating current: AC-22A, state 1 100 A AC 50/60 Hz 220/240 V, AC-22A, state 1 100 A AC 50/60 Hz 380/415 V, AC-22A, state 1 100 A AC 50/60 Hz 440/480 V, AC-22A, state 1 100 A AC 50/60 Hz 500 V, AC-22A, state 1 100 A AC 50/60 Hz 660/690 V, AC-23A, state 1 100 A AC 50/60 Hz 220/240 V, AC-23A, state 1 100 A AC 50/60 Hz 380/415 V, AC-23A, state 1 100 A AC 50/60 Hz 440/480 V, AC-23A, state 1 100 A AC 50/60 Hz 500 V, AC-23A, state 1 63 A AC 50/60 Hz 660/690 V, DC-22A, state 1 100 A DC 125 V 2 poles in series, DC-23A, state 1 100 A DC 125 V 2 poles in series
• Rated insulation voltage: 750 V AC 50/60 Hz
• Surge voltage withstand: 8 kV
• Conventional thermal current: 100 A at 60 °C
• Rated short-circuit breaking capacity: 154 kA with upstream circuit breaker 690 V AC 50/60 Hz 20 kA, isolating switch only 690 V AC 50/60 Hz
• Rated operating voltage: 125 V DC, 690 V AC 50/60 Hz
• Breaking capability: Yes
• Contact position indicator: Yes
• Visible breaking: No
• Pollution degree: 3
• Control type: Rotary
• Handle color: Black
• Mounting type: Fixed
• Mounting support: DIN rail plate
• Top connection: Front
• Bottom connection: Front
• Maximum power: AC-23, state 1 22 kW at 220/240 V AC 50/60 Hz, AC-23, state 1 45 kW at 380/415 V AC 50/60 Hz, AC-23, state 1 55 kW at 440 V AC 50/60 Hz, AC-23, state 1 55 kW at 500/525 V AC 50/60 Hz, AC-23, state 1 55 kW at 660/690 V AC 50/60 Hz
• Rated service: Continuous
• Intermittent service class: Class 120 - 60 %
• Permissible short-time current: 0.01 kA 30 s electrical durability, 1.23 kA 20 s electrical durability, 3.175 kA 3 s electrical durability, 5.5 kA 1 s electrical durability
• Mechanical durability: 15000 cycles
• Electrical durability: AC-22A, state 1 1500 cycles 220/240 V AC 50/60 Hz, AC-22A, state 1 1500 cycles 380/415 V AC 50/60 Hz, AC-22A, state 1 1500 cycles 440 V AC 50/60 Hz, AC-22A, state 1 1500 cycles 500 V AC 50/60 Hz, AC-23A, state 1 1500 cycles 220/240 V AC 50/60 Hz, AC-23A, state 1 1500 cycles 380/415 V AC 50/60 Hz, AC-23A, state 1 1500 cycles 440 V AC 50/60 Hz, AC-23A, state 1 1500 cycles 500 V AC 50/60 Hz, DC-22A, state 1 1500 cycles 250 V DC 2 poles in series, DC-23A, state 1 1500 cycles 250 V DC 2 poles in series, AC-22A, state 1 1500 cycles 690 V AC 50/60 Hz, AC-23A, state 1 1500 cycles 690 V AC 50/60 Hz
• Connection pitch: 30 mm
• Height: 100 mm
• Width: 135 mm
• Depth: 62.5 mm
• Product weight: 0.8 kg
• Compatibility code: INS100
• Standards: Instantaneous and demand values En > 40 A
• Product certifications: CCC KEMA-KEUR
• Protection degree IP: IP40 according to Activate/Deactivate Ig
• Protection degree IK: IK07 according to H
• Operating ambient temperature: -25…70 °C
• Storage ambient temperature: -50…85 °C
• Sustainable offering status: Green Premium product
• Compliant with REACh without SVHC: Yes
• EU RoHS Directive: Compliant
• Free of toxic heavy metals: Yes
• Mercury-free: Yes
• RoHS exemption information: Yes
• China RoHS regulation: X
• WEEE: In the European Union market, the product must be disposed of according to a specific waste collection system and never end up in a regular trash container
