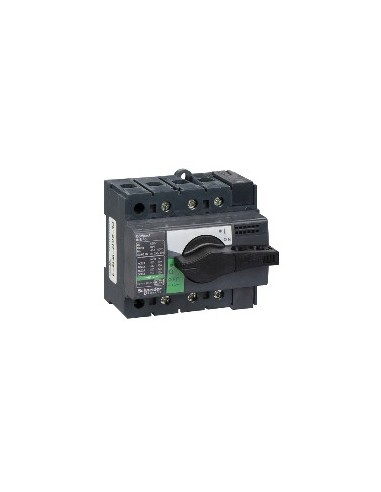

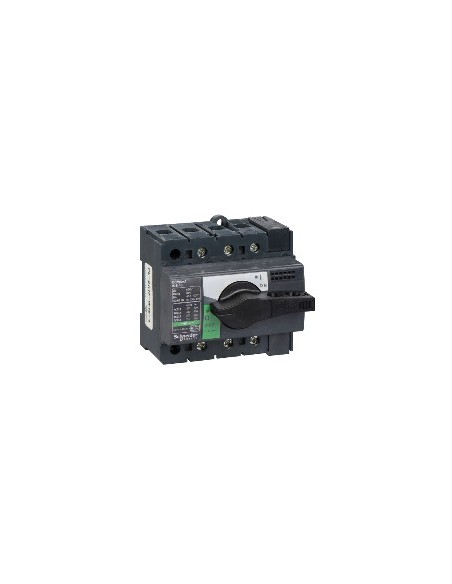

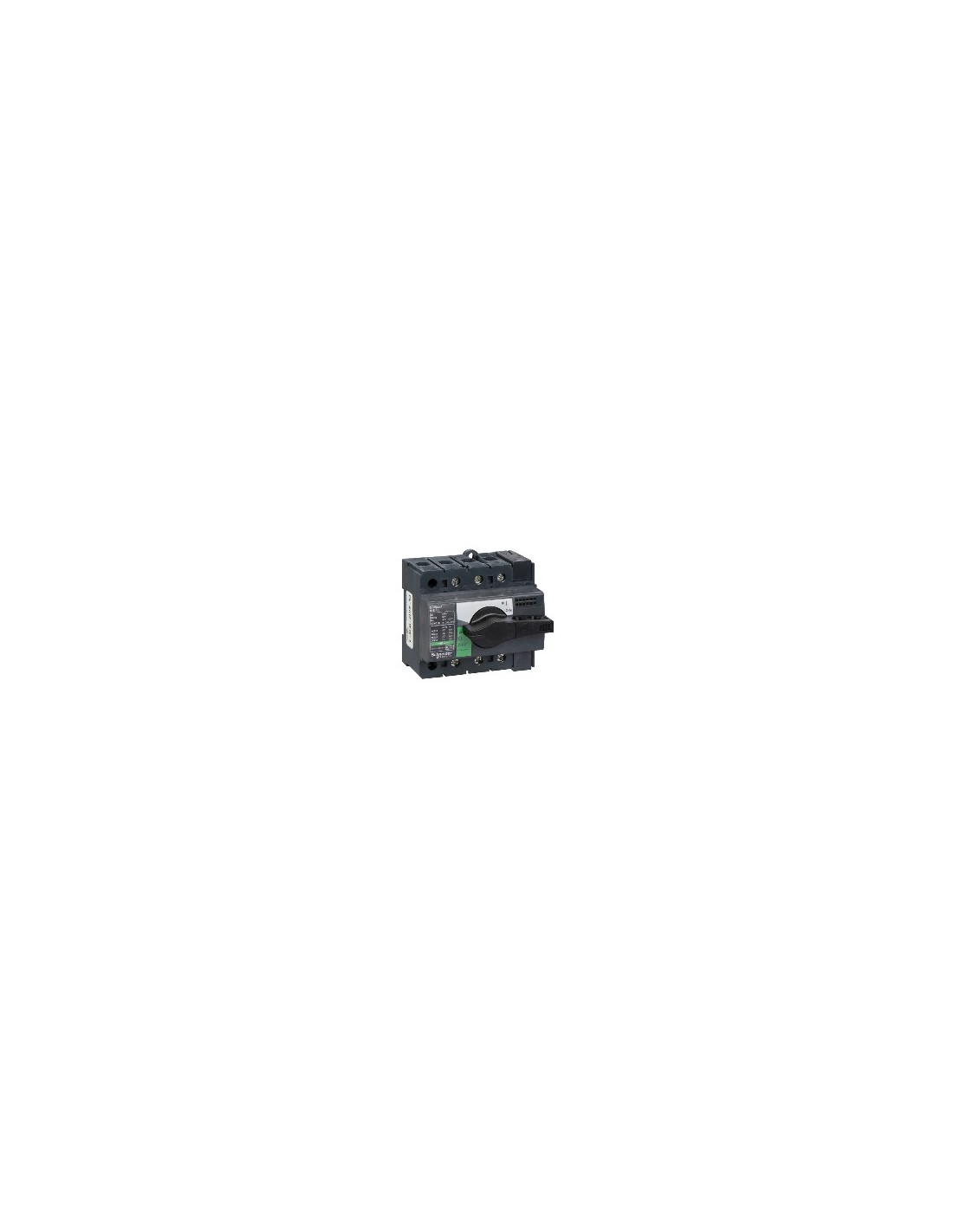

Interpact INS40 3P Isolating Switch

3P isolating switch from the ComPact INS40 range, designed for the safe disconnection of electrical circuits in industrial and commercial installations. Fixed mounting on a DIN rail allows direct integration into electrical panels. Equipped with a rotary handle and black handle for clear and controlled operation.

Technical specifications

• Number of poles: 3P
• Network type: AC DC
• Network frequency: 50/60 Hz
• Rated operating current: AC-22A, state 1 40 A AC 50/60 Hz 220/240 V, 380/415 V, 440/480 V, 500 V; AC-23A, state 1 32 A or 40 A depending on voltage
• Rated insulation voltage: 690 V AC 50/60 Hz
• Voltage surge withstand: 8 kV
• Conventional thermal current: 40 A at 60 °C
• Rated short-circuit breaking capacity: 15 kA for isolating switch only at 500 V AC 50/60 Hz; 75 kA with upstream circuit breaker
• Rated operating voltage: 125 V DC, 500 V AC 50/60 Hz
• Breaking capability: Yes
• Position indicator: Yes
• Visible breaking: No
• Contamination degree: 3
• Control type: Rotary handle
• Handle color: Black
• Mounting type: Fixed
• Mounting support: DIN rail Plate
• Top connection: Front
• Bottom connection: Front part
• Cable cross-section: 1.5…50 mm²
• Maximum power: AC-23, state 1 11 kW at 220/240 V, 18.5 kW at 500/525 V, 20 kW at 380/415 V, 22 kW at 440 V
• Rated service: Continuous
• Intermittent service class: Class 120 - 60 %
• Cabinet dimensions: 190 mm x 115 mm x 55 mm
• Permissible short-time current: 0.067 kA (20 s), 1.73 kA (3 s), 3 kA (1 s), 5.5 kA (30 s)
• Mechanical durability: 20000 cycles
• Electrical durability: AC-22A and AC-23A, state 1 1500 cycles at different voltages; DC-22A and DC-23A, state 1 1500 cycles at 250 V DC 2 poles in series
• Connection pitch: 18 mm
• Height: 85 mm
• Width: 90 mm
• Depth: 62.5 mm
• Product weight: 0.5 kg
• Compatibility code: INS40
• Standards: EN > 40 A Instantaneous and demand values
• Product certifications: KEMA-KEUR, CCC
• Protection degree IP: IP40 according to Activate/Deactivate Ig
• Protection degree IK: IK07 according to H
• Operating ambient temperature: -25…70 °C
• Storage ambient temperature: -50…85 °C
• Sustainable offering status: Green Premium product
• Compliant with REACh without SVHC: Yes
• EU RoHS directive: Compliant
• Free of toxic heavy metals: Yes
• Mercury-free: Yes
• RoHS exemptions information: Yes
• China RoHS regulation: X
• WEEE: In the European Union market, the product must be disposed of according to a specific waste collection system and must never end up in a regular trash container.
