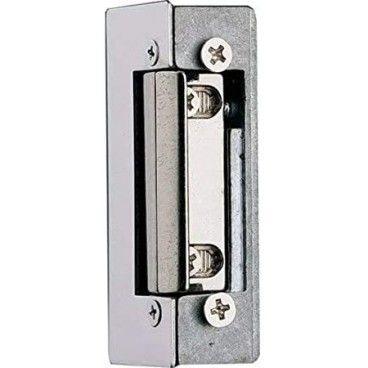

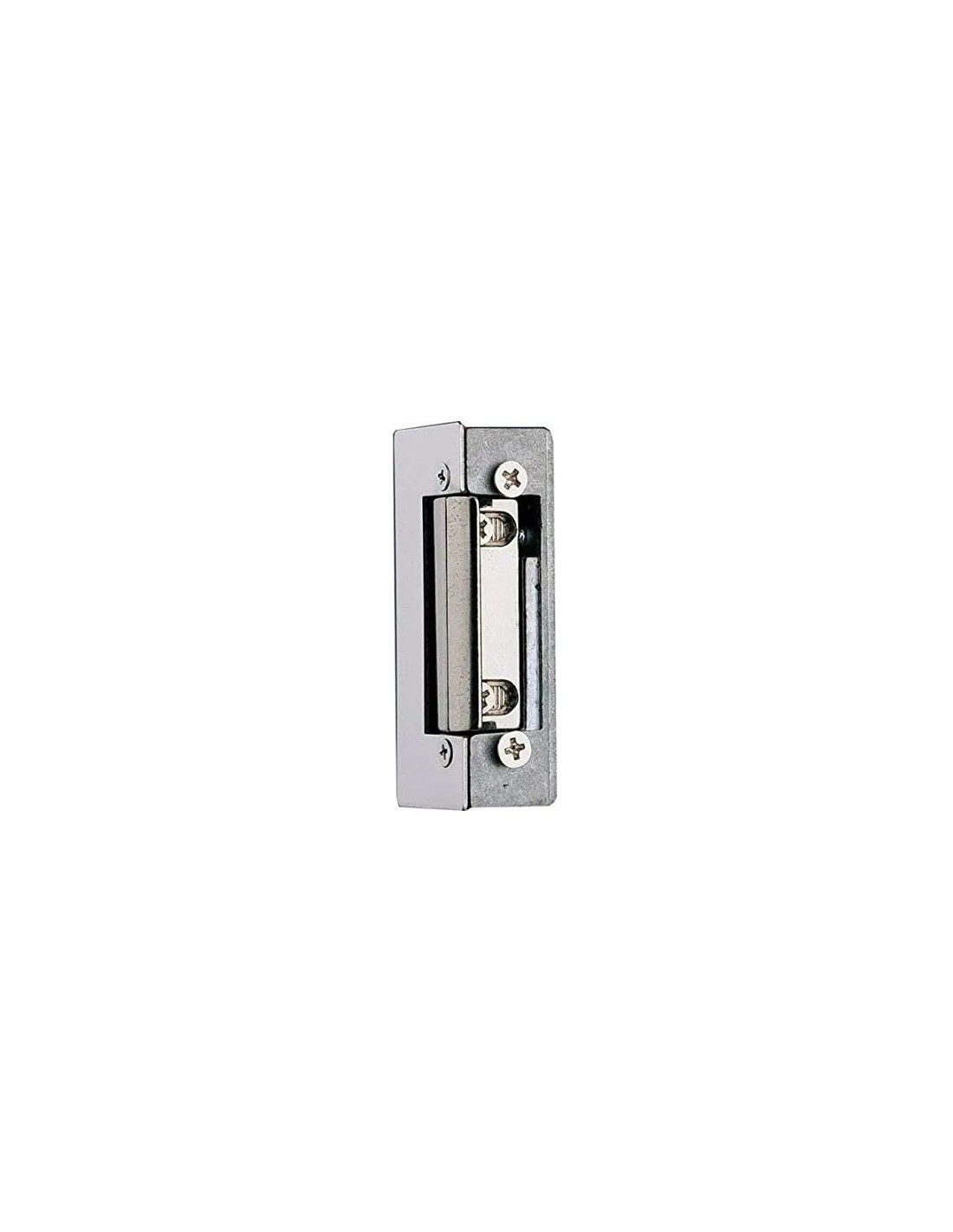

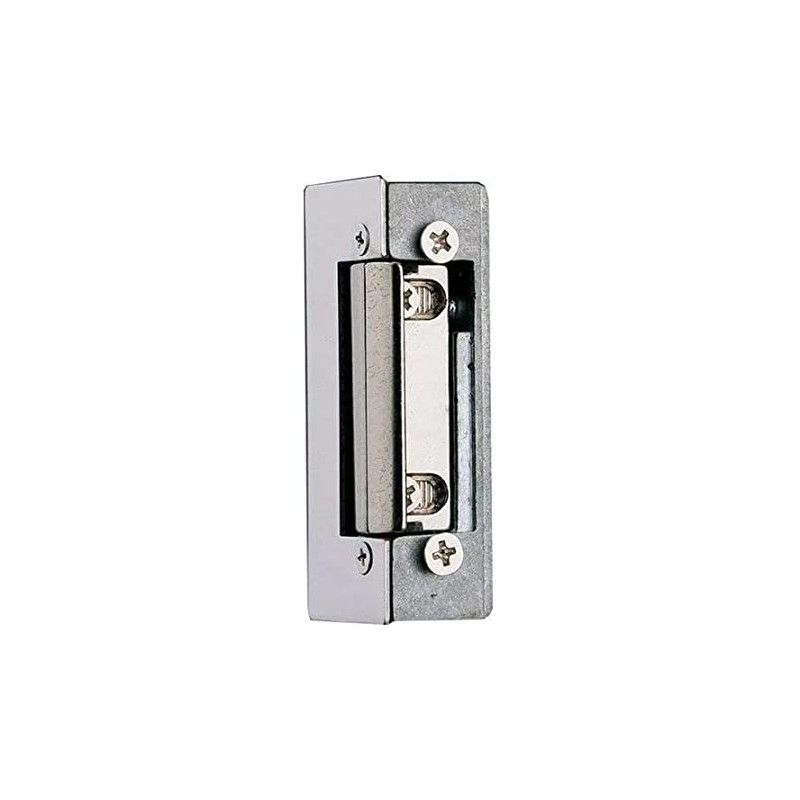

Lock release 540Ab-S MAX 12Vca FERMAX 1821

MOD.450
UNIVERSAL electric mechanism model MOD.450, whose dimensions are:
-75 (V) mmx21 (H) mm
Recessed in wooden or metal frames. Its small size allows you to change hands without having to enlarge the hole where the lock release is housed.
Includes:

The electrical MECHANISM is a device that is installed in the frame of the door to control its opening from a remote place by means of an electrical device. In an electronic door entry system, it is possible to activate the mechanism of the entrance to the building and allow access to the visitor from the telephone or monitor of the house by pressing the 'key' button on the door opener. A lock release is composed of an electrical mechanism and an armature or cover depending on whether it is flush-mounted or surface-mounted.

Reversible (DIN Right or DIN Left).
It allows opening both to right and left.
Symmetrical.
Allows to change hands while maintaining the symmetry of the body.

DIN REGULATIONS
DIN REGULATIONS establishes the opening direction of the door and designates the type of door opener installed.
Looking at the door from the side where the hinges are visible:
-If the hinges are to the observer's left, it is a DIN Left door opener.
- If the hinges are to the right of the observer, it is a DIN Right lock release.

There are several types of lock release mechanisms, it depends on the TYPE OF OPERATION that is needed.
TYPE N-524_INVERTED TO 24Vdc:
• N-524 (Inverted operation and activation at 24 Vdc): the lock release is automatically unlocked the moment it is It stops supplying 24 Vdc.

MAX ADJUSTABLE LATCH:
The lock release includes an adjustable latch, allowing an exact adjustment between the latch and the latch of the lock, with a margin of 4mm. Allows the door leaf not to press the lock release latch.
TECHNICAL SPECIFICATIONS
Consumption:
N, A 12Vac: 980mA
N-412 12Vdc: 400mA.
N-512 12Vdc: 200mA.

Weight: 0.1821 kg

Measures of the packed product: 3.4x16.3x2.7 cm

EAN 13 : 8424299679006
