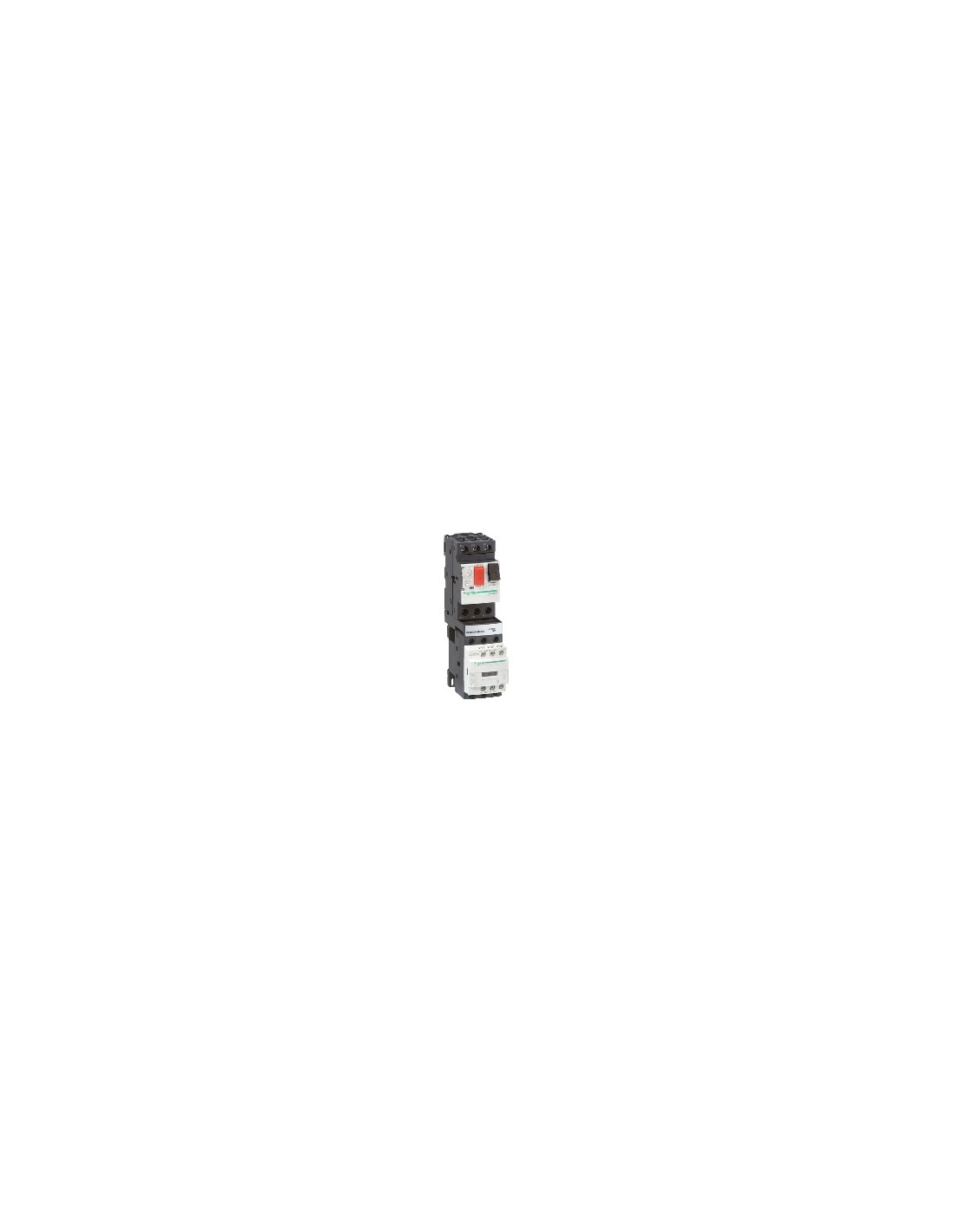

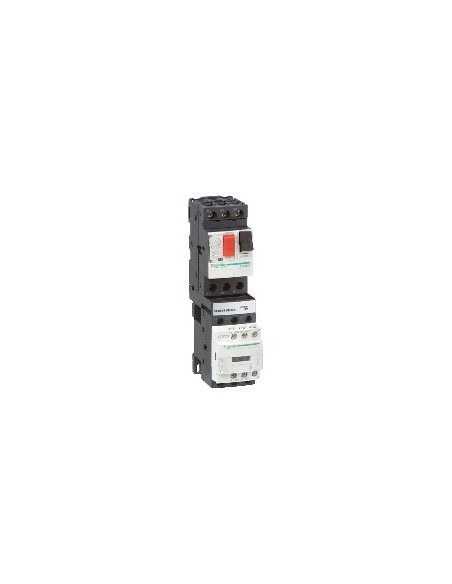

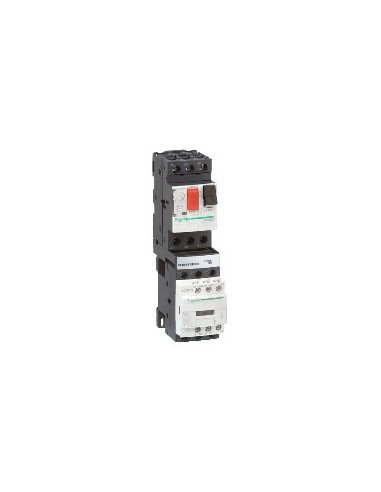

Motor starter 3P 24 VDC 2.5-4 A

GV2DM motor starter with 3 poles and coordination type 1, designed for the unidirectional start of electric motors in industrial applications. Integrated into the TeSys D range, it combines a GV2ME motor circuit breaker, a 3-pole contactor and a GV2AF3 combination block, providing protection and control in a single device.

Technical characteristics

• Number of poles: 3P
• Type of engine start: No investment
• Type of coordination: Type 1
• Category of employment: AC-3
• Engine power: 1.5 kW at 440 V AC 50/60 Hz, 1.5 kW at 500 V AC 50/60 Hz, 1.1 kW at 400/415 V AC 50/60 Hz, 1.5 kW at 400/415 V AC 50/60 Hz, 2.5 kW at 500 V AC 50/60 Hz
• Control circuit voltage: 24 V DC
• Magnetic shot intensity: 51 A
• Range of thermal protection settings: 2,5...4 A
• Assigned cutting power: Iq 50 kA at 400/415 V, Iq 50 kA at 440 V, Iq 50 kA at 500 V ( Accord to IEC 60947-4-1)
• Weight: 0.596 kg
• Height: 176.4 mm
• Width: 45 mm
• Depth: 99.6 mm
• Compatibility code: GV2DM
• Sustainable supply status: Product Green Premium
• REACh Regulation: Do not contain SVHC
• EU RoHS Directive: As per
• Contains mercury: No
• RoHS exemptions: Yes
• RoHS China: Product outside of RoHS China
• WEEE: To be discarded according to specific EU collection system
