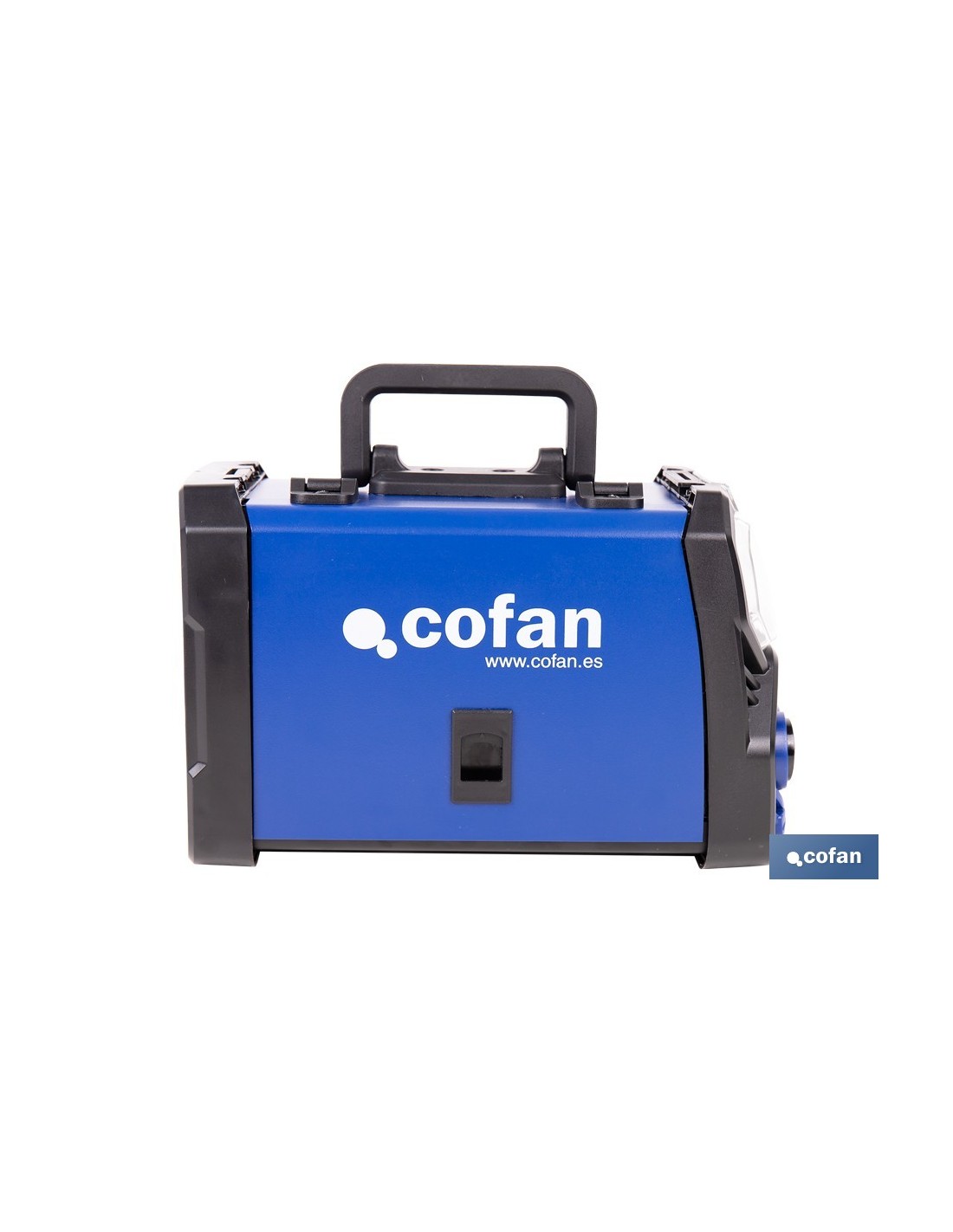

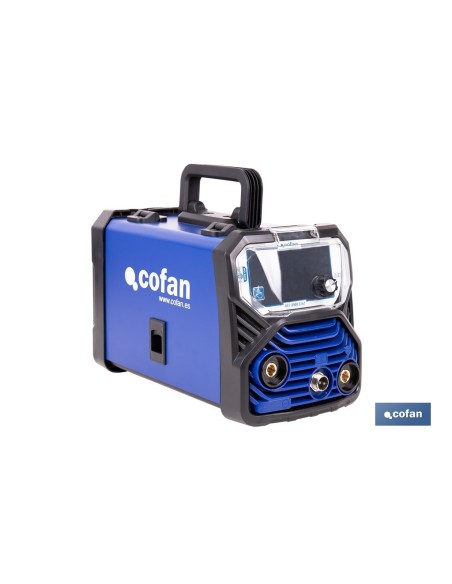

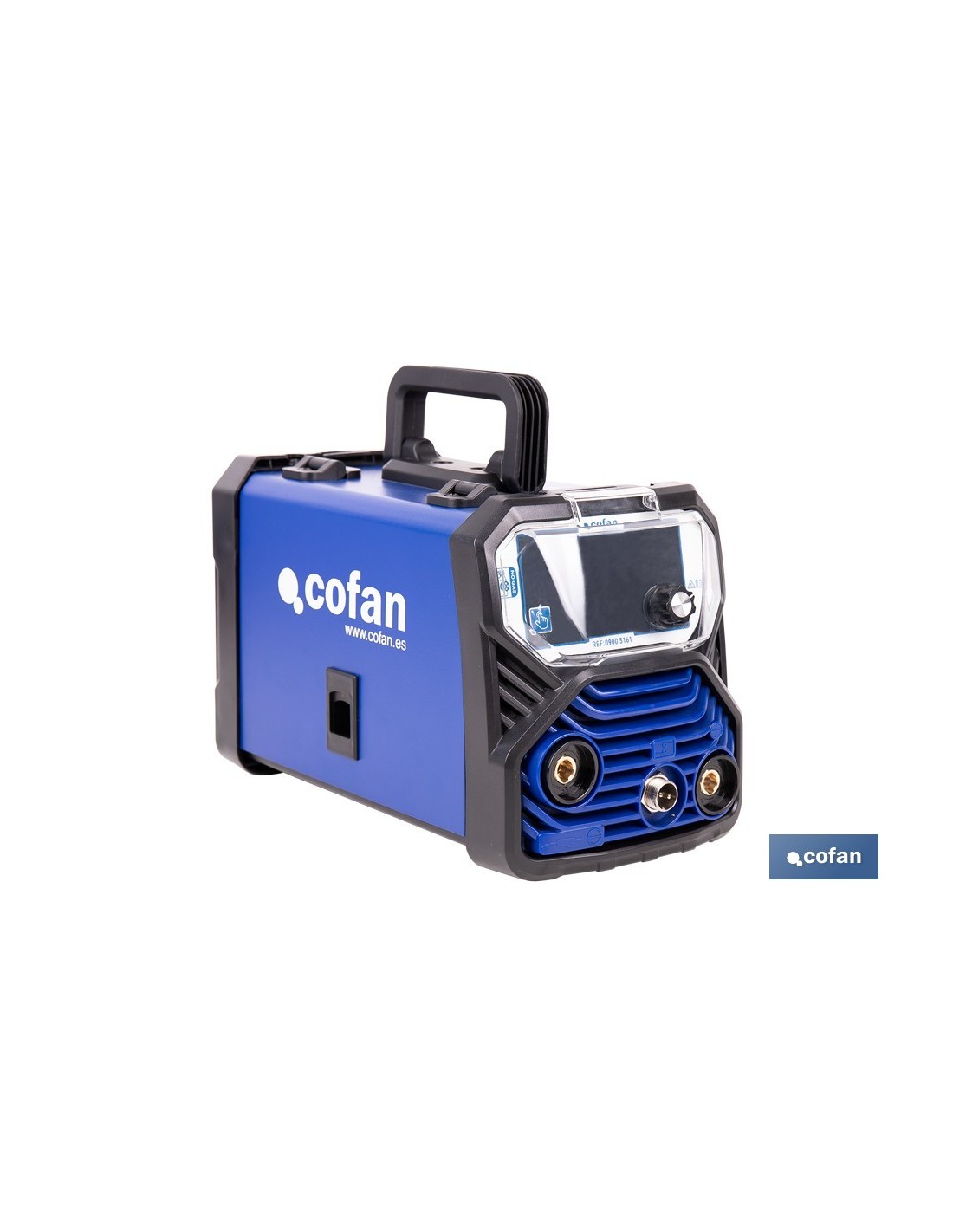

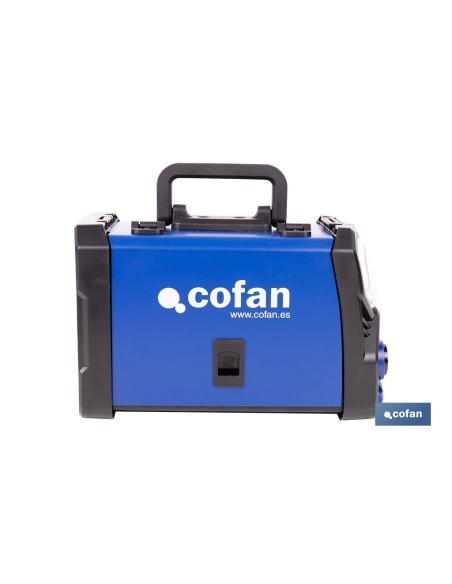

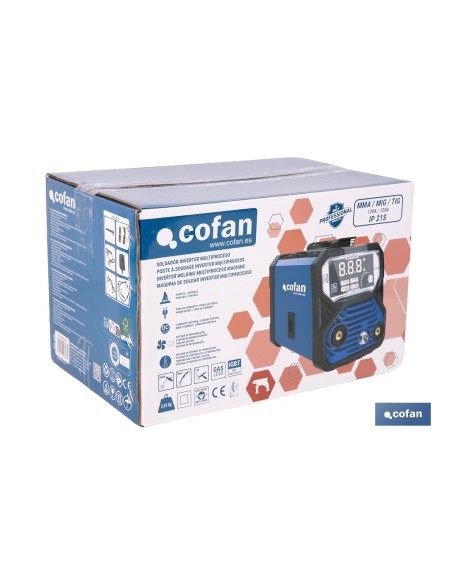

Inverter multiprocess welder 120 A

120 A inverter multiprocess welder designed for professional and domestic use, compatible with three processes: MMA, MIG, and TIG. Thanks to its inverter technology, it provides a stable arc, high energy efficiency, and lower electrical consumption compared to conventional transformer equipment. It allows welding with MMA electrodes up to 3.25 mm, self-shielded MIG wire from 0.8 to 1 mm (in coils up to 1 kg), and external TIG, requiring a separate gas cylinder and regulator (TIG torch not included).

Technical specifications

• Maximum current: 120 A
• Processes: MMA, MIG, TIG
• Maximum MMA electrode diameter: 3.25 mm
• MIG wire range: 0.8 - 1 mm
• Weight: 5.45 kg
• Dimensions: 296 × 160 × 197 mm
• Height: 23.00 cm
• Width: 24.00 cm
• Depth: 36.00 cm
• Ground clamp: 1.2 m × 10 mm²
• Electrode holder: 1.5 m × 10 mm²
• Overheat protection indicator: yes

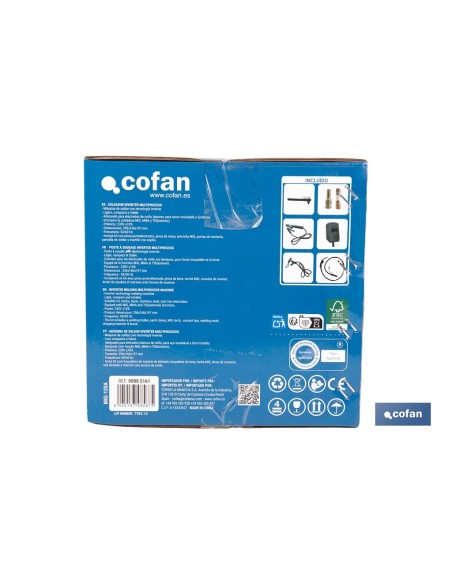

The equipment includes an accessory kit with welding mask, metal brush, 2 m welding gun, 1.0 mm nozzle, and connection rod. Its lightweight and compact design facilitates transport in workshops, construction sites, agricultural operations, or elevated work.
