• New
Triac Dimmable LED Power Supply 150W 24V DC
Triac Dimmable LED Power Supply 150W 24V DC
Triac Dimmable LED Power Supply 150W 24V DC
LED Power Supply 150W 24Vdc Triac
LED Power Supply 150W 24Vdc Triac
LED Power Supply 150W 24Vdc Triac
Triac Dimmable LED Power Supply 150W 24V DC
Triac Dimmable LED Power Supply 150W 24V DC
Triac Dimmable LED Power Supply 150W 24V DC
LED Power Supply 150W 24Vdc Triac
LED Power Supply 150W 24Vdc Triac
LED Power Supply 150W 24Vdc Triac

LED Power Supply 150W 24Vdc Triac

Available In stock 46 Items Brand LEDME Reference LEDME LM2107
€70.51
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía
  • Power (W) 150 W
  • Protection IP20
  • Adjustable Yes

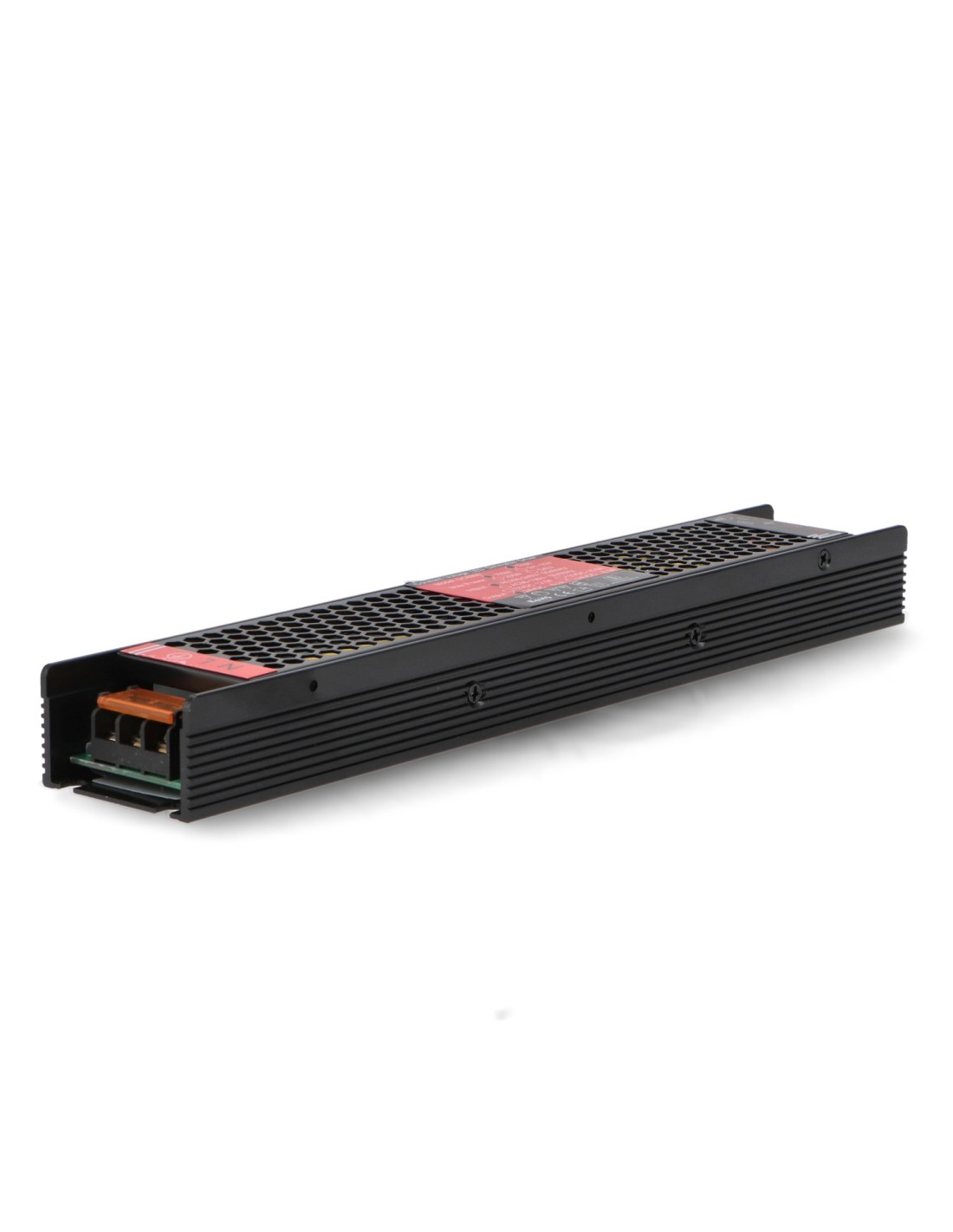

LED dimmable power supply per triac, 150 W, output 24 V DC. Power supply 200-240 V AC, power factor 0.9. Electrical insulation class I, IP20 protection. It works in temperature ranges from -20 °C to +65 °C. Includes protection against overload and short circuit. Made of aluminum for efficient thermal dissipation.

Description

Triac dimmable power supply for led with 24V DC output and maximum power of 150W, designed for LED lighting applications. Compatible with 200-240V AC input voltages, it features a 0.9 power factor and is built with aluminium material for better thermal dissipation. Its electrical insulation class is I and offers protection against overload and short circuit. It works in a temperature range from -20°C to +65°C, with IP20 protection.

Technical characteristics

  • Maximum power: 150W
  • Power supply: 200-240V AC
  • Output: 24V DC
  • Regulatory: Triac
  • Power Factor: 0.9
  • Working temperature: -20°C ~ +65°C
  • Protection: IP20
  • Class Electrical insulation: I
  • Overload Protection: Yes
  • Short circuit protection: Yes
  • Overheating protection: No
  • Material: Aluminium

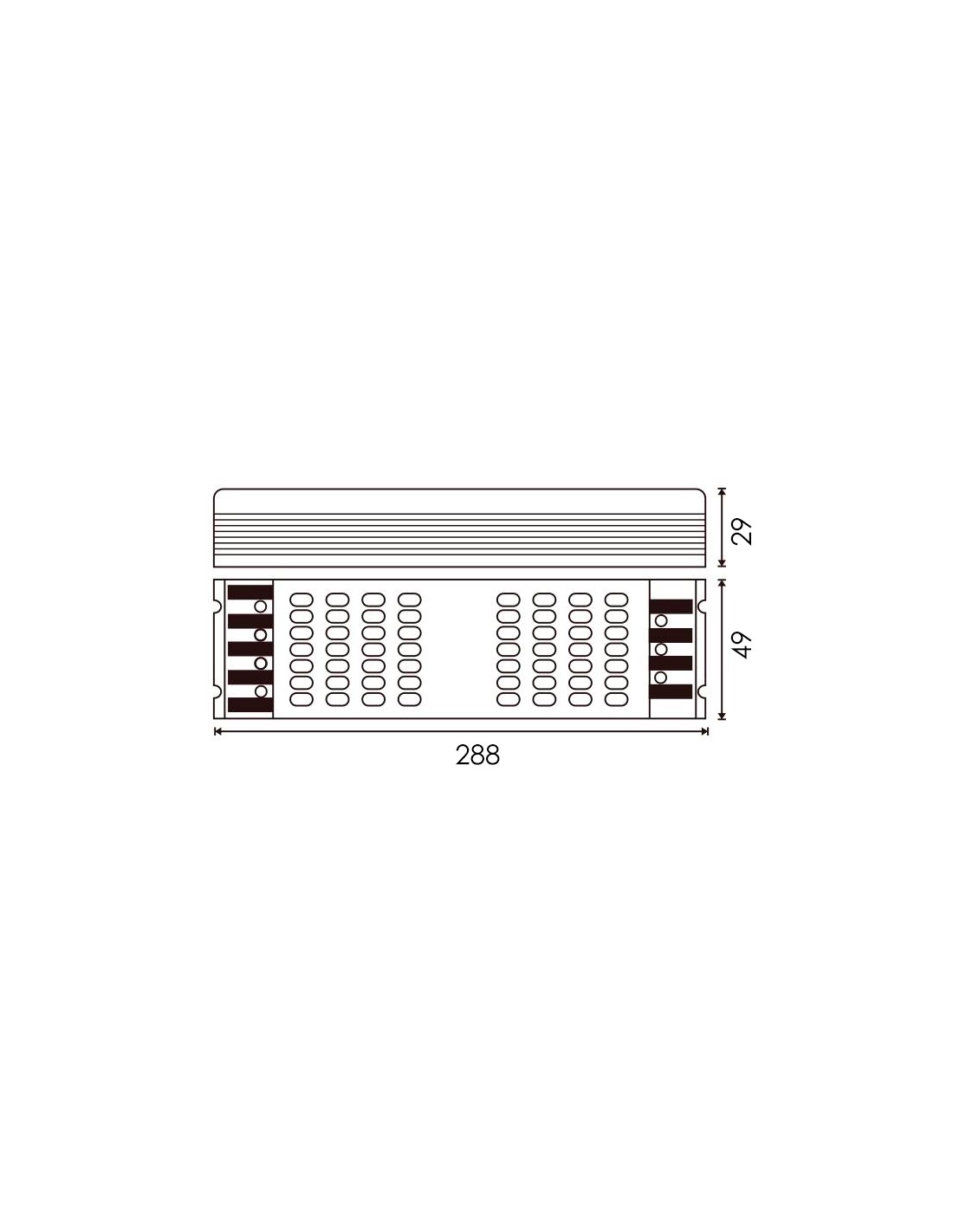

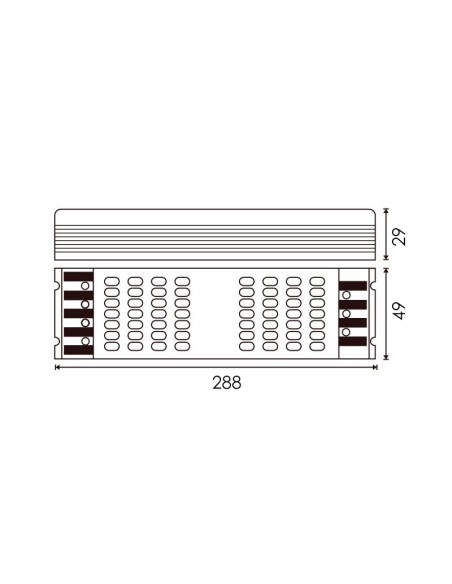

  • Dimension: 288 x 49 x 29 mm
  • Guarantee: 3 years

Product Details

Dimensiones

High 29 mm
Width 49 mm
Long 288 mm

Eléctrico

Nominal voltage (V) 24 V

Iluminación

Power (W) 150 W
Adjustable Yes

Protección

Protection IP20

Otras

Appliance class Class I
Manufacturer Ledme
Reference LEDME LM2107
Material Aluminio

Información legal

Fabricante LEDME
Dirección Calle Gutenberg 12, CP 28906 Getafe, Madrid, ES
Email [email protected]
Teléfono +34 911220698
Referencia LEDME LM2107
46 Items
