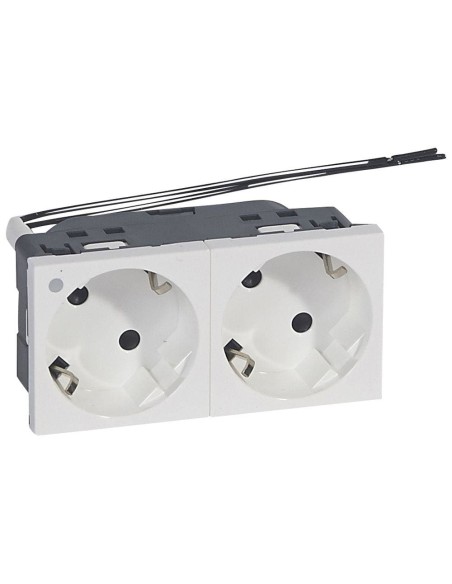

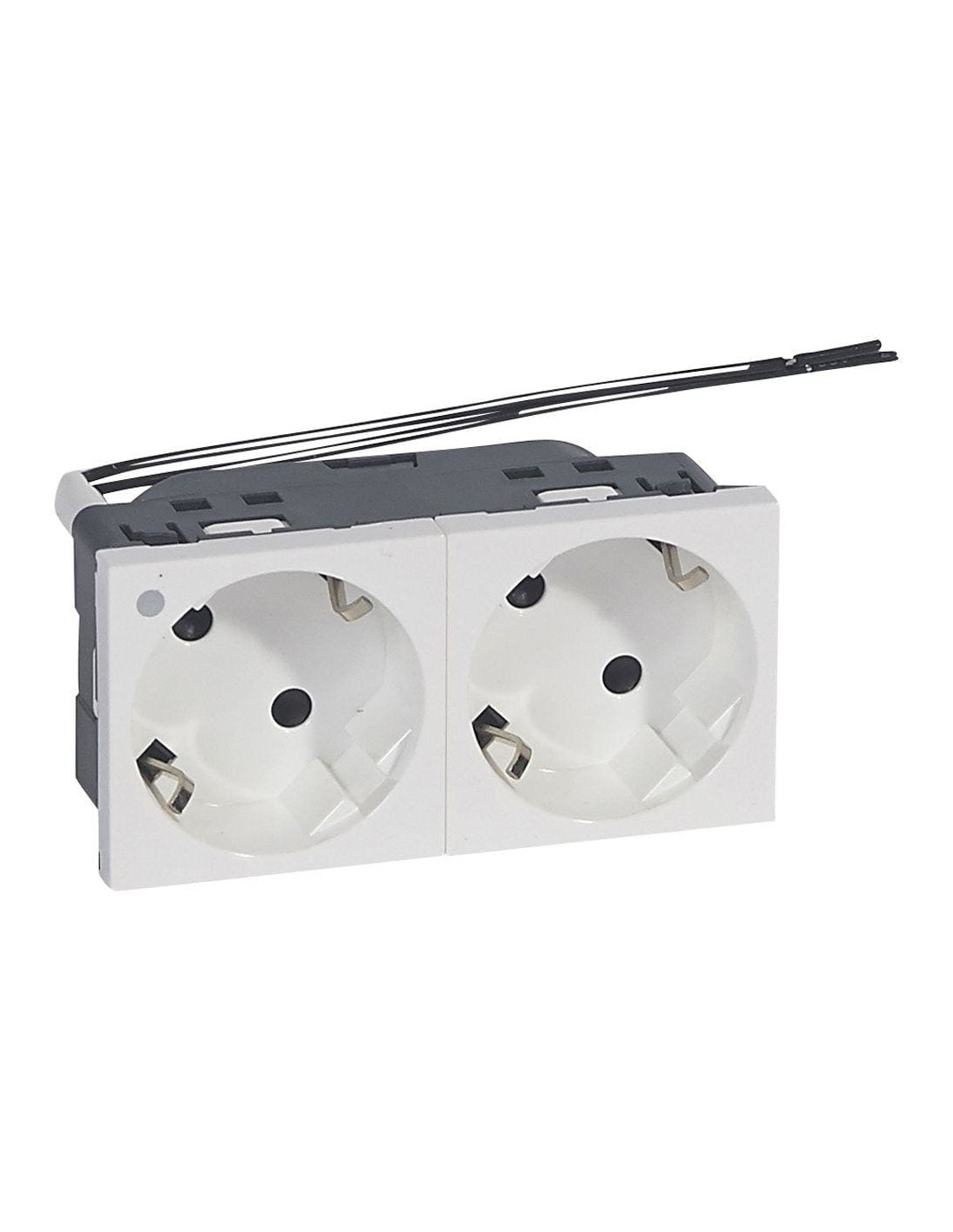

Mosaic Multiple Socket Base 2x2P+T 4 Modules White

Mosaic Multiple Power Base, designed to offer a 2-take power supply solution in a compact 4-module format. This device, white (RAL 9003) and glossy finish, incorporates an automatic bottling system that facilitates installation and a light indicator to verify the state of the network. Its 45 degree angle design optimizes the space and ergonomics of use.

Technical characteristics

• Model: EEC socket 7/3 (type F)
• Nominal current: 16 A
• Nominal voltage: 250 V
• Frequency: 50...60 Hz
• Number of exit sockets: 2
• Number of modules: 4
• Protection for children: Yes
• With signal lamp: Yes
• Connection type: Plug Clamp
• Material: Thermoplastic halogen-free plastic
• Degree of protection: IP40
• Impact resistance: IK07
• Dimensions: 90 mm (width) x 45 mm (high) x 40 mm (depth)
• Assembly: Module housing holder, fastening

The inclusion of child protection and IP40 certification ensure safe use in home or office environments. The halogen-free material and IK07 impact resistance provide durability and safety against mechanical shocks. The derivative connection allows flexible integration into existing installations.
