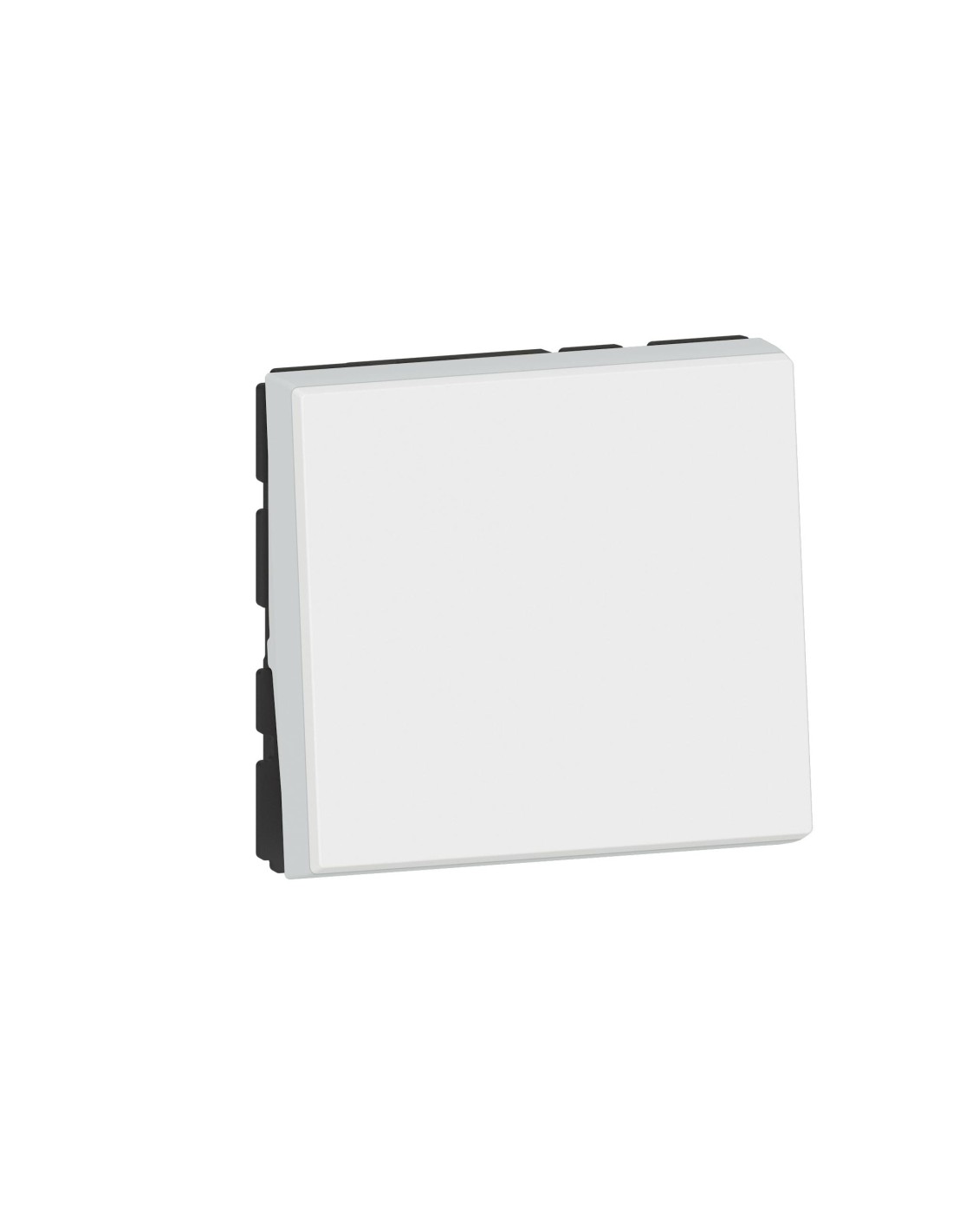

Mosaic EasyLed Push Button 2 Modules 6A 250V White
Mosaic EasyLed Push Button 2 Modules 6A 250V White

Mosaic EasyLed Push Button 2 Modules 6A 250V White

Available In stock 27 Items Reference LEGRAND 278040L
€12.95
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía

Single swing pusher for recessed mounting, occupying 2 modules in the Mosaic EasyLed system. Operates at 250 V with 6 A assigned current and a normally open contact. Made of bright white thermoplastic, halogen free, with IP31 protection and IK04 impact resistance.

Description

2-module Mosaic EasyLed pushbutton, designed for recessed installation systems. This one-pole device operates by swing and is made of halogen-free thermoplastic, offering a bright white surface (RAL 9003).

Technical characteristics

  • Model: Single pushbutton with 1 oscillator.
  • 1 contact normally open; 0 contacts normally closed or reversed.
  • Rated voltage: 250 V; Rated current: 6 A.
  • Connection by plug clamp.
  • Embedded cast mounting with locking lock in position.
  • Protection degree IP31 and impact resistance IK04.
  • Dimensions: 45 mm wide, 45 mm high and 36.3 mm deep.
  • Minimum installation box depth: 40 mm.
  • Material: Thermoplastic plastic, halogen free.

This push-button is integrated into installation interruption programs, allowing control of electrical circuits with a clean and functional interface. Its modular design of 2 modules facilitates the combination with other elements of the same series, optimizing the space in the installation box.

Product Details

Dimensiones

Measures 45 mm x 45 mm x 36,3 mm
Long 45 mm
Depth 36,3 mm

Eléctrico

Nominal voltage (V) 250 V
Rated voltage 250
Rated current (A) 6

Otras

EAN 3414971574397
Manufacturer LEGRAND
Halogen-free Yes
# Elements 2 elementos
Reference LEGRAND 278040L
Material Termoplástico

Información legal

Fabricante LEGRAND
Dirección C/ Hierro 56 –, 28850 Torrejón de Ardoz (Madrid), ES
Email [email protected]
Teléfono +34 916561812
Referencia LEGRAND 278040L
EAN 3414971574397
