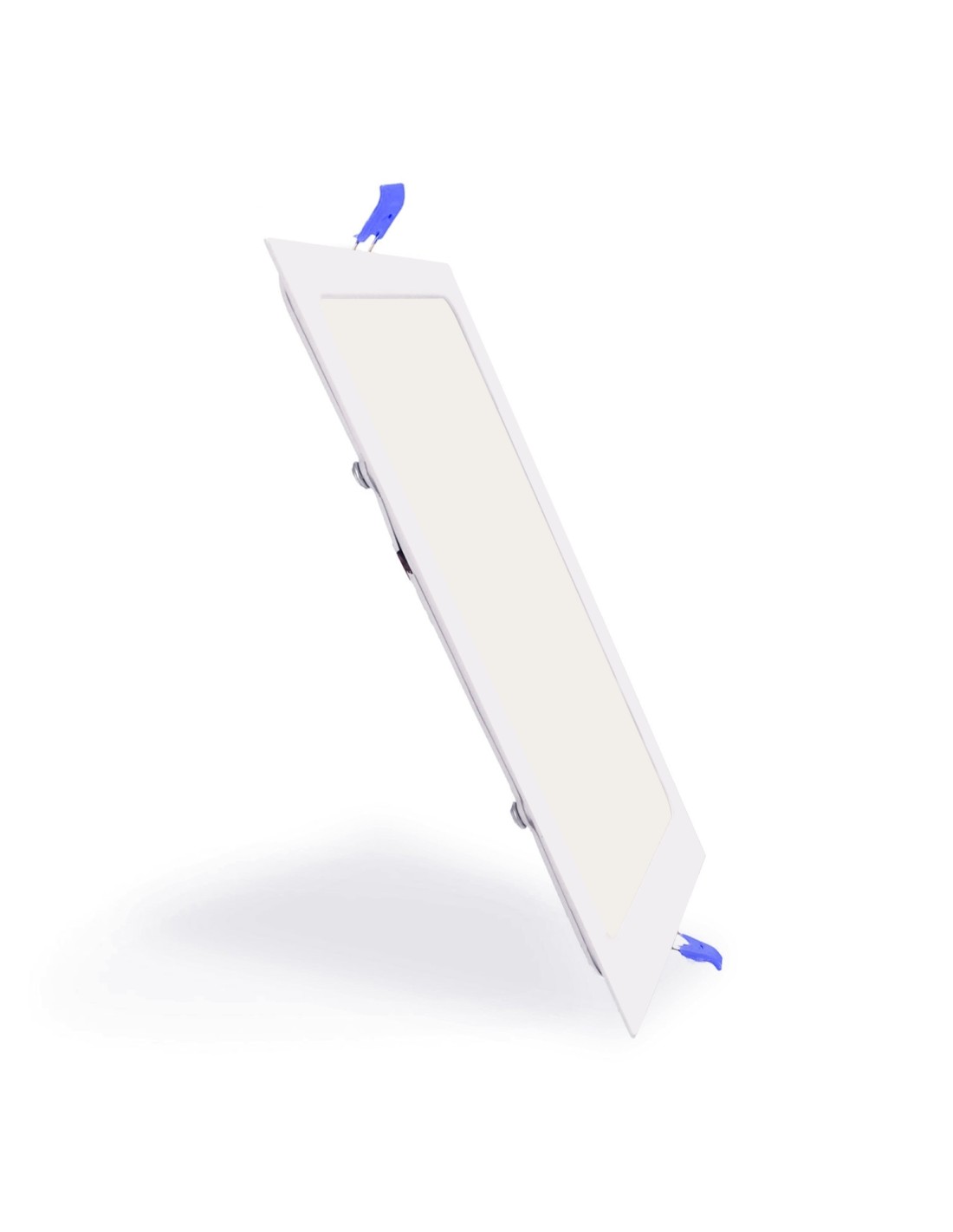

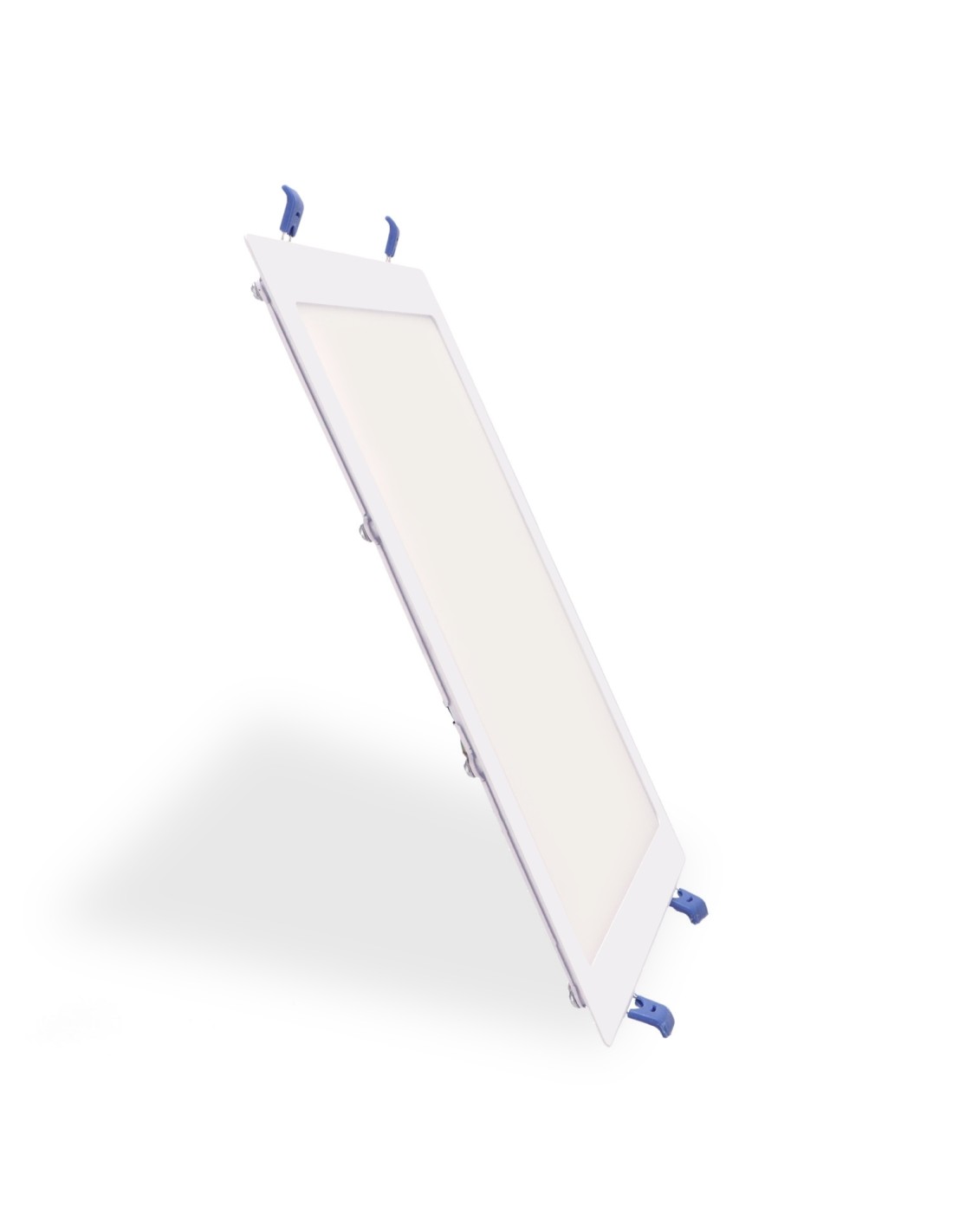

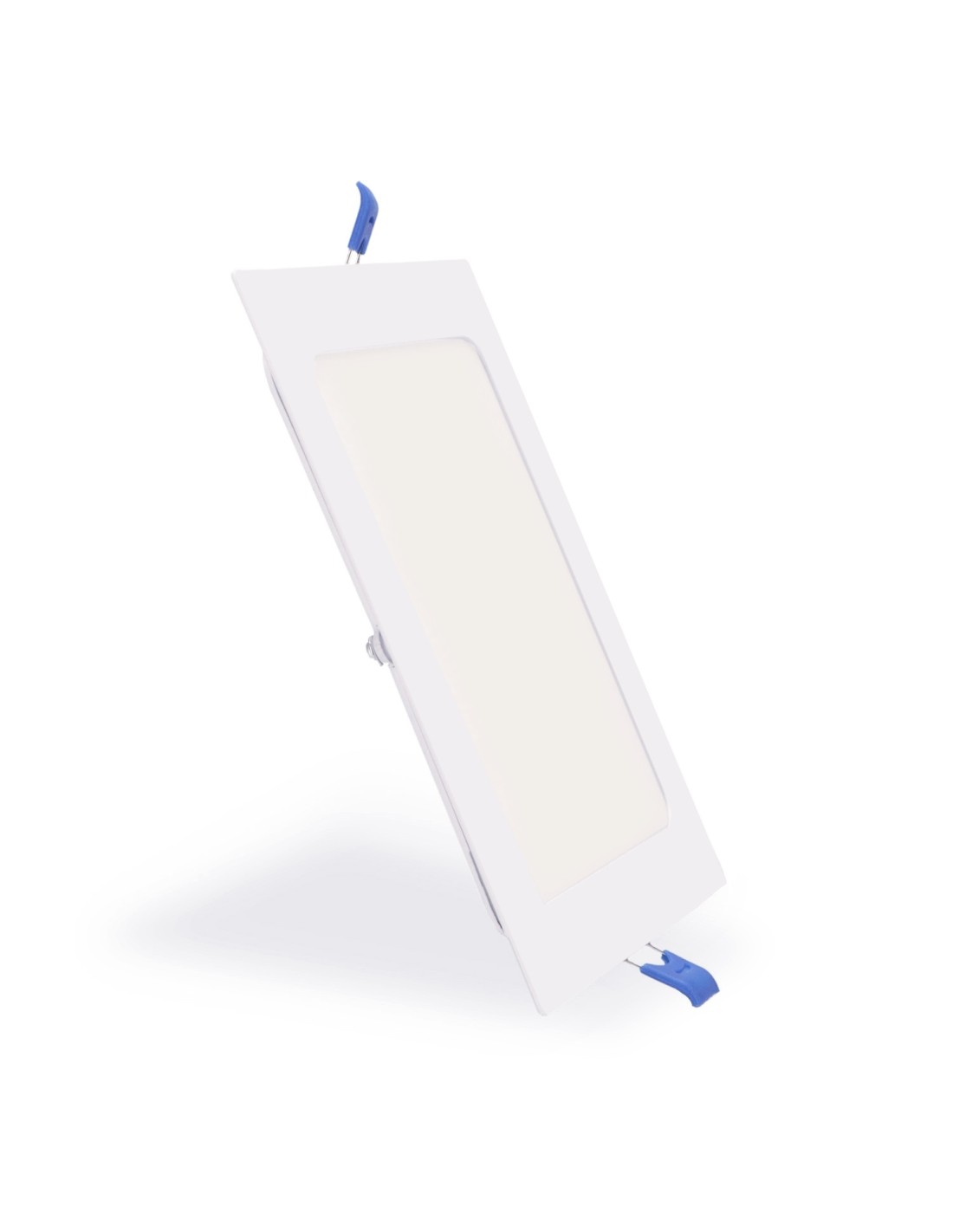

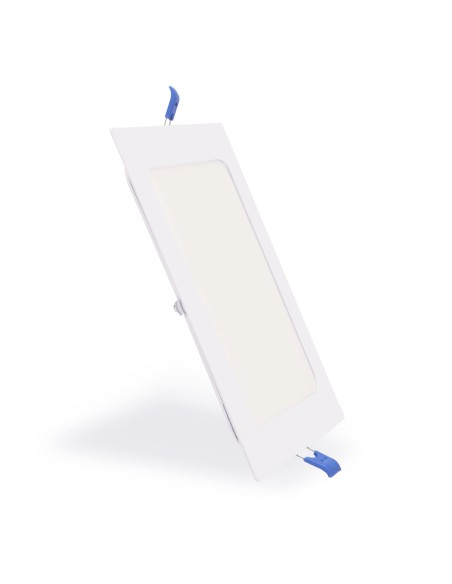

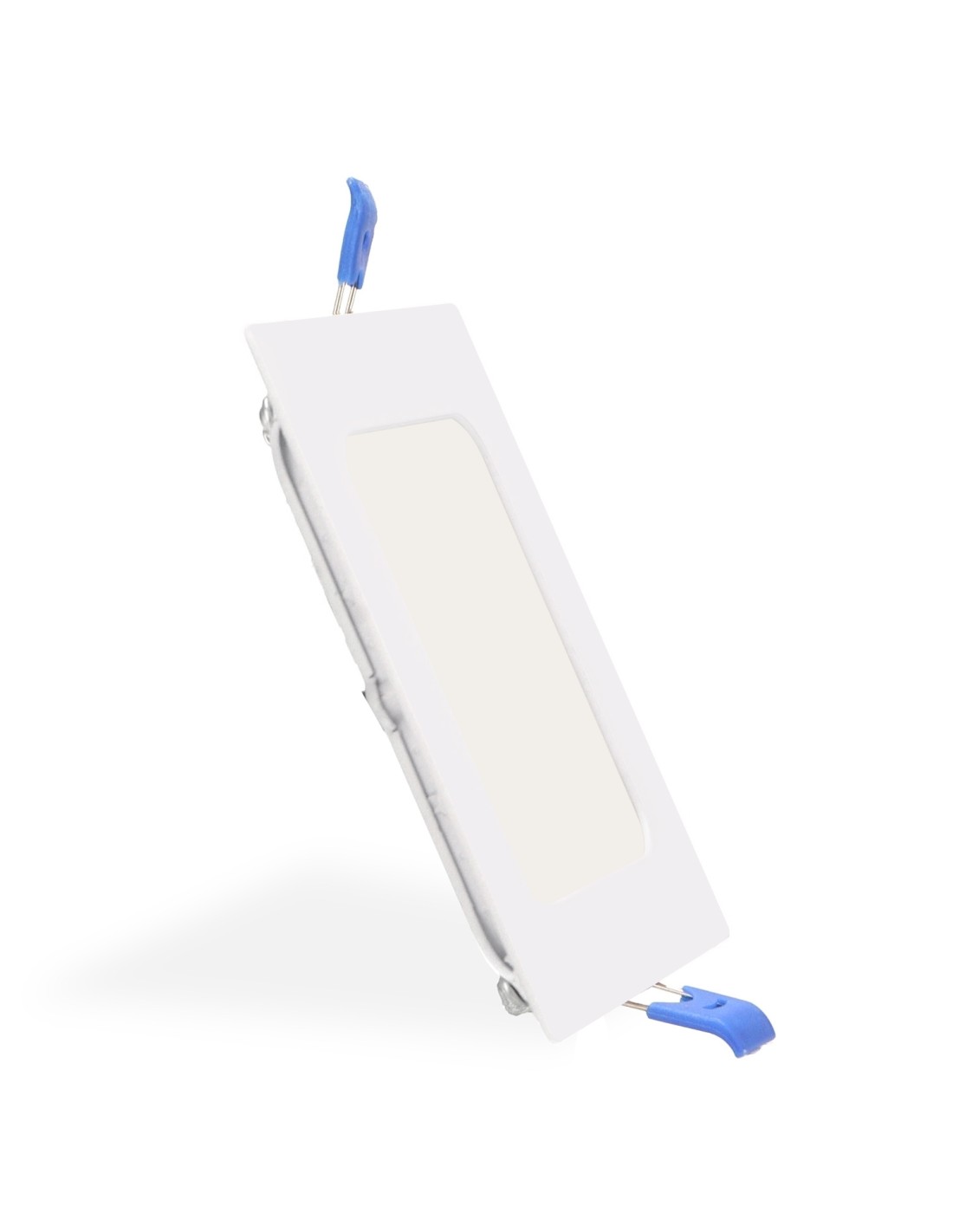

M LEDME Slim Series Square LED Panel 25W 4500K

M LEDME Slim Series Square LED Panel 25W 4500K

M LEDME Slim Series Square LED Panel 25W 4500K

M LEDME Slim Series Square LED Panel 25W 4500K

M LEDME Slim Series Square LED Panel 25W 4500K

M LEDME Slim Series Square LED Panel 25W 4500K

M LEDME Slim Series Square LED Panel 25W 4500K

M LEDME Slim Series Square LED Panel 25W 4500K

M LEDME Slim Series Square LED Panel 25W 4500K

M LEDME Slim Series Square LED Panel 25W 4500K

M LEDME Slim Series Square LED Panel 25W 4500K

M LEDME Slim Series Square LED Panel 25W 4500K

M LEDME Slim Series Square LED Panel 25W 4500K

M LEDME Slim Series Square LED Panel 25W 4500K

M LEDME Slim Series Square LED Panel 25W 4500K

M LEDME Slim Series Square LED Panel 25W 4500K

M LEDME Slim Series Square LED Panel 25W 4500K

Available In stock 481 Items Brand LEDME Reference LEDME LM5233

€10.97

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Power (W) 25 W
Lumens (lm) 2500 lm
Protection IP20
Type of lamp LED SMD 2835

The Slim square LED panel of the M LEDME 25W series integrates SMD 2835 fonts with a luminance of 2500 lumens and light efficiency of 100 lm/W. Its aluminium housing effectively dissipates heat in an operating thermal range of -20°C to +45°C, offering a 120° viewing angle and a certified 30000-hour service life under voltage of 170-265V AC.

Description

M LEDME's Slim Series Square Led Panel is an efficient lighting device designed to deliver a compact and durable light solution. Its aluminium construction ensures adequate thermal dissipation, ensuring stable operation within the working temperature range from -20°C to +45°C.

Technical characteristics

Watts: 25 w
Light Source: Smd 2835
Lightness: 2500
Efficiency Lm: 100
Working temperature: -20°C ~ +45°C
Angle: 120°
Useful Life: 30000
Protection: IP20
Ik: 5
Class Electrical insulation: II
Power supply: 170-265v ac
Dimension: 300X300X10H mm
Cut dimension: 285X285 mm
Material: Aluminium
Cri: 80
Guarantee: 3
Color Temperature: 3000K ⁇ 4000K ⁇ 6000K

With a light efficiency of 100 and a chromatic reproduction index of 80, this panel provides a clear and uniform light thanks to its 120 degree emission angle.

Product Details

Dimensiones

Measures	300x300x10 mm

Eficiencia

Estimated life (h)	30000

Eléctrico

Nominal voltage (V)	170-265 V

Iluminación

Power (W)	25 W
Lumens (lm)	2500 lm
Type of lamp	LED SMD 2835
Cri (Ra)	80
Opening angle	120°

Protección

Protection	IP20

Otras

Appliance class	Class II
EAN	8435579752333
Manufacturer	Ledme
Reference	LEDME LM5233
Material	Aluminio

Información legal

Fabricante	LEDME
Dirección	Calle Gutenberg 12, CP 28906 Getafe, Madrid, ES
Email	[email protected]
Teléfono	+34 911220698
Referencia	LEDME LM5233
EAN	8435579752333

In stock 481 Items
