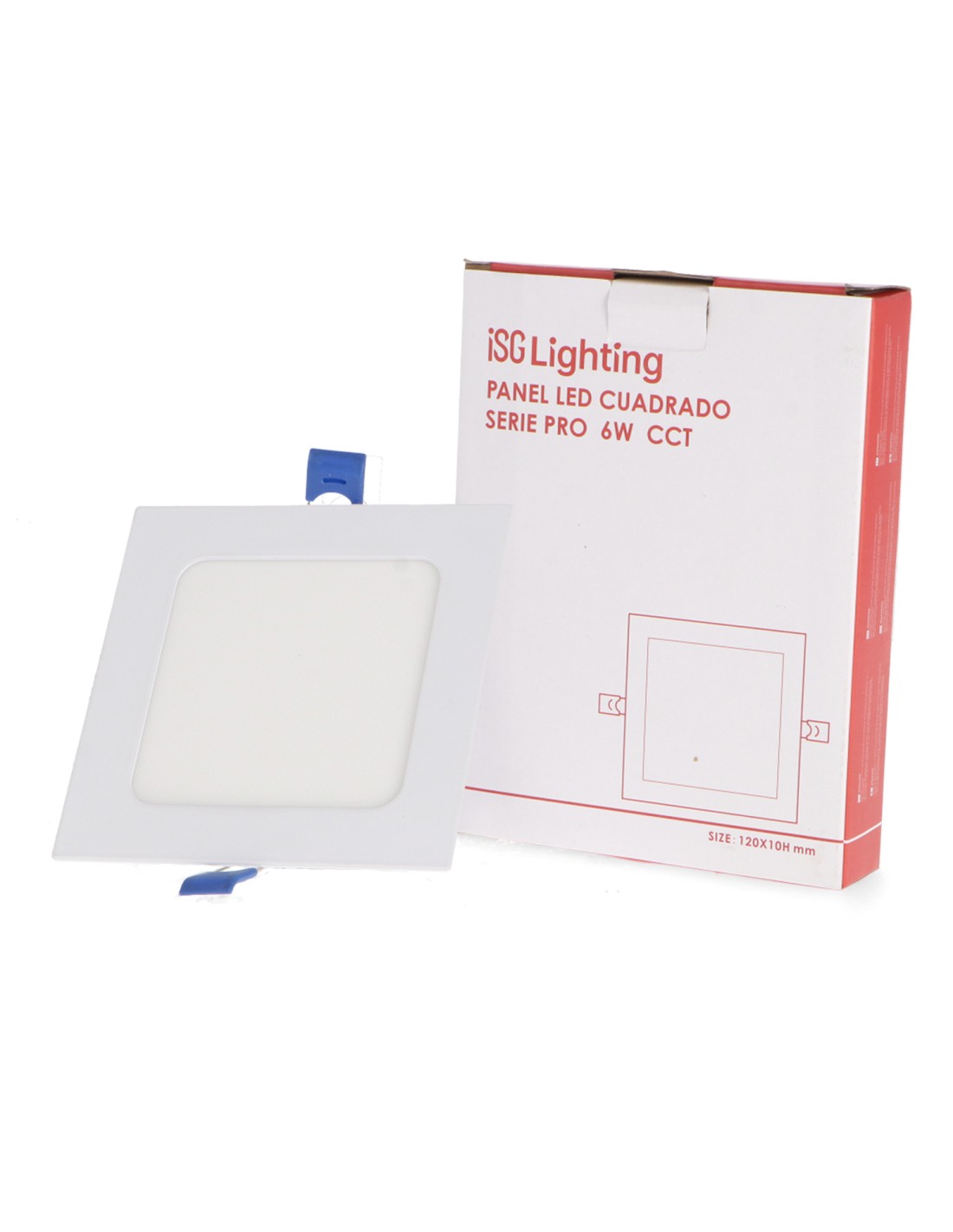

ISG Lighting Series Pro Square LED Panel 6W CCT Recessed

The iSG Lighting Series Square Led Panel is an energy-efficient recessable lighting system, designed to deliver uniform and controllable light with CST technology. Its aluminium construction guarantees durability and adequate thermal dissipation within its operating range.

Technical characteristics

• Trademark: iSG Lighting
• Power: 6 W
• Light source: Ledvance
• Lightness: 600 lm
• Efficiency: 100 lm/W
• Working temperature: -20°C ~ +45°C
• Beam angle: 120°
• Lifetime: 30,000 hours
• Protection: IP20, IK5
• Insulation class: II
• Overvoltage protection: 4 kV
• Power supply: 170-265 V AC

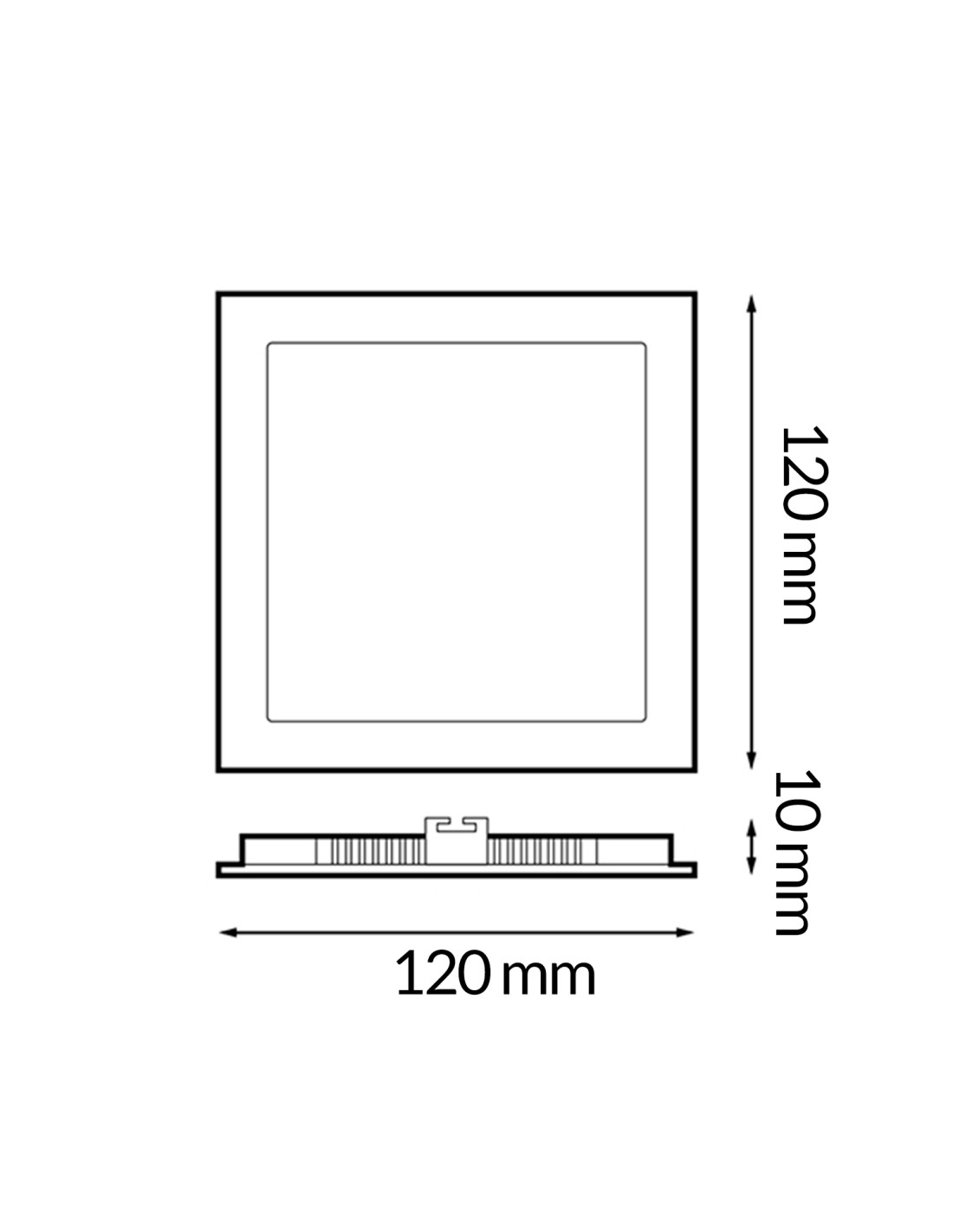

• Dimensions: 120x120x10 mm (cut: 105x105 mm)
• Material: Aluminium
• Driver: Lifud
• CRI: 80

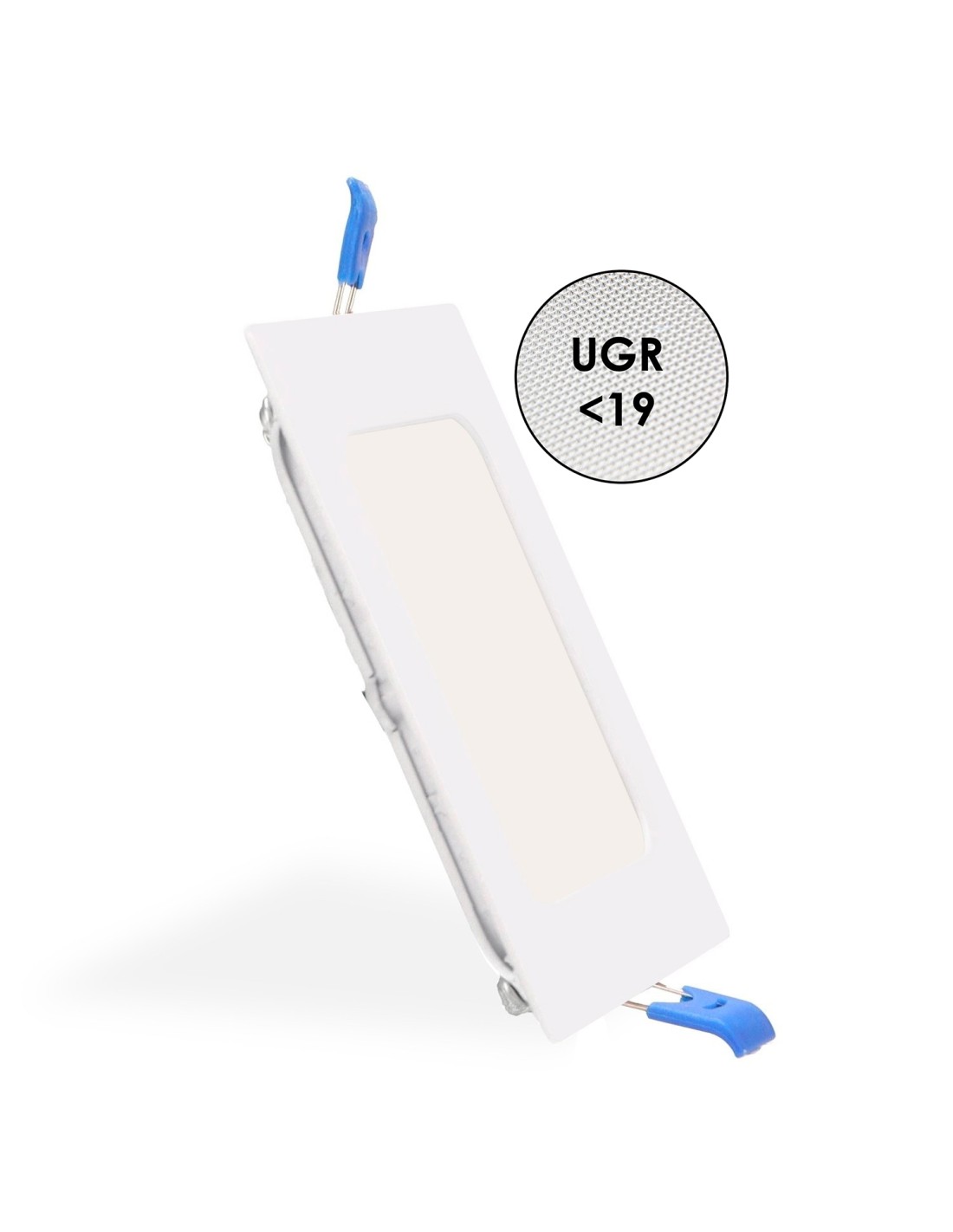

• UGR: <19
• Color temperature: 3 CST
• Regulatory: Optional
• Guarantee: 5 years

Thanks to its low UGR index and high efficiency, this panel provides a comfortable visual environment without excessive glares, maintaining the integrity of the color thanks to its chromatic reproduction index. The regulation option allows the light intensity to be adapted to the specific needs of the space.

The installation is recessable, requiring a precise cut on the board according to its dimensions indicated for a perfect aesthetic integration into flat ceilings.
