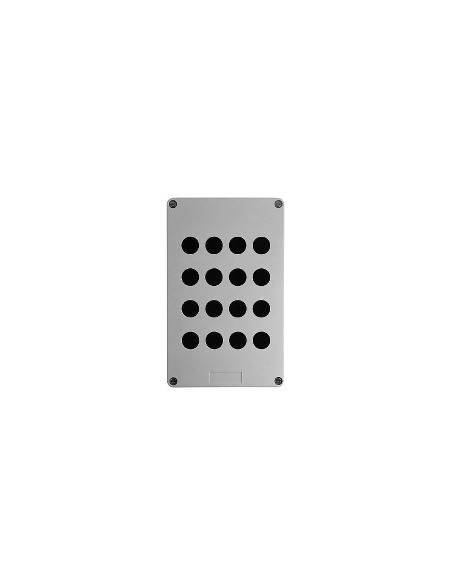

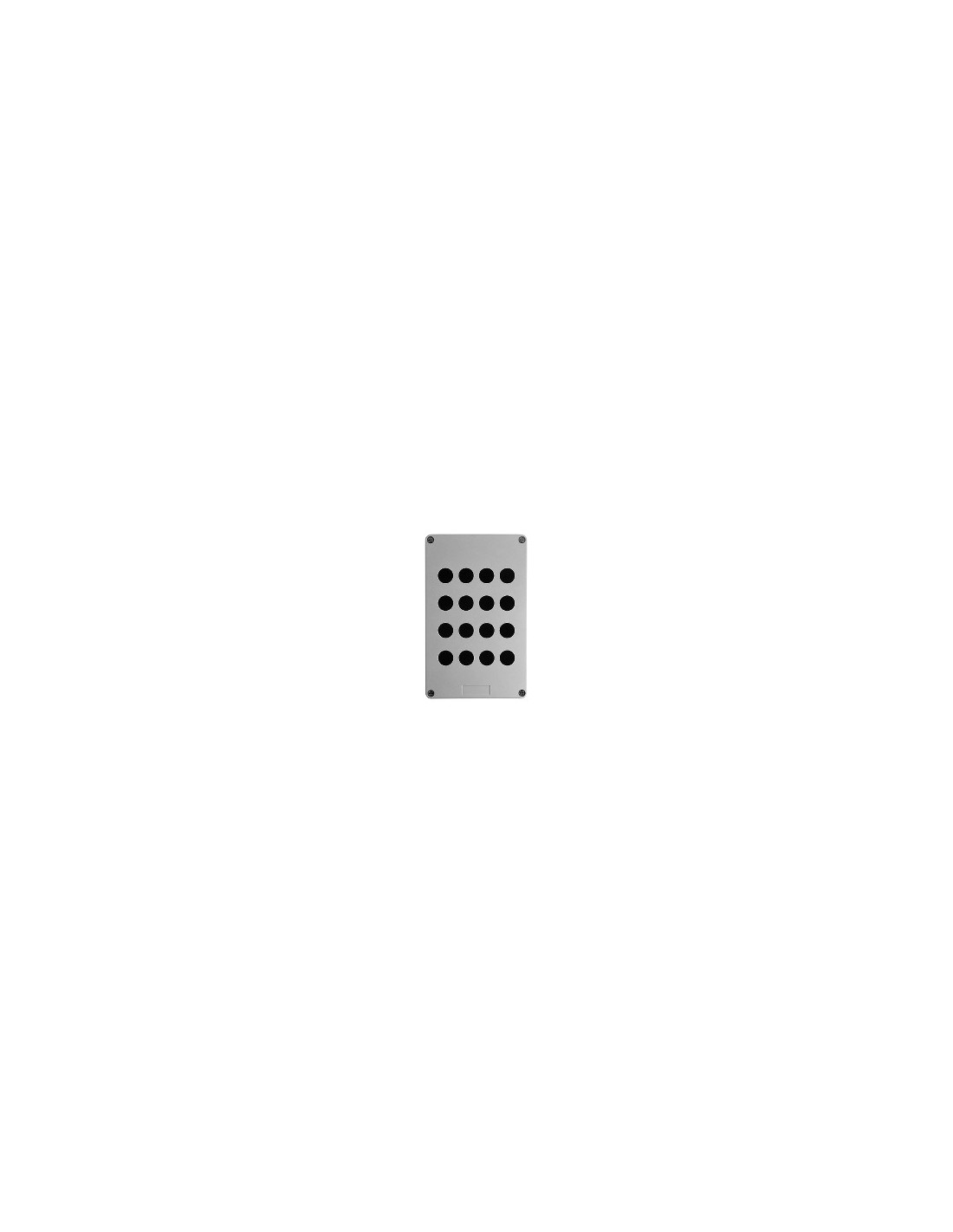

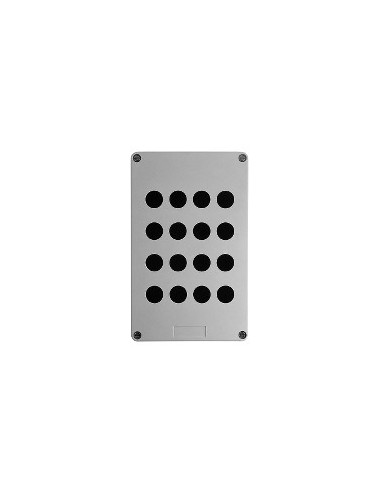

Empty control station 16 holes 4 rows

Empty control station of the Harmony XAP range, designed to accommodate 22 mm diameter signaling and control units. It has 16 holes distributed in 4 columns, ideal for demanding industrial installations. Made of glass-reinforced polyester, it offers high mechanical and chemical resistance.

Technical characteristics

• Number of drills: 16 switches
• Number of vertical rows: 4
• Front plate dimensions: 151 x 241 mm
• usable depth: 83 mm
• Material: Polyester reinforced with glass
• Color of the base of the envelope: Grey
• Cover colour: Grey
• Cable input: Not drilled
• Assembly of the device: Tasting
• Degree of IP protection: IP65 according to IEC 60529 JIS C8201-1 according to NF C 20-010 IP69K
• Resistance to chemicals: High resistance to acids, solvents, bases, diesel, mineral salts, oils, fats, gasoline and sea water
• Resistance to flames: M3 according to CSTB, VO according to UL 94
• Fire resistance: 850 °C according to NF C 20-455, 960 °C according to IEC 92
• Overvoltage category: Class II according to IEC 60536, Class II according to NF C 20-030
• Storage ambient temperature: -40...70 °C
• Operating ambient temperature: -40...70 °C
• Product weight: 0.82 kg
• Compatibility code: XAPA
• Protection treatment: TH TC
• Sustainable supply status: Product Green Premium
• According to REACh without SVCC: Yes
• EU RoHS Directive: Proactive (out-of-scope) compliance
• Without toxic heavy metals: Yes
• No mercury: Yes
• RoHS China Regulations: X
• Information on RoHS exemptions: Yes
