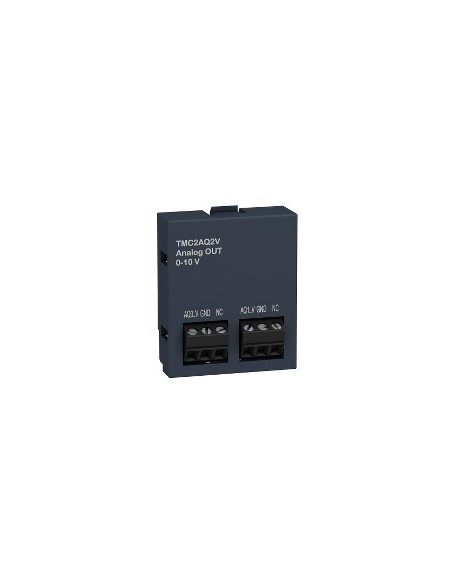

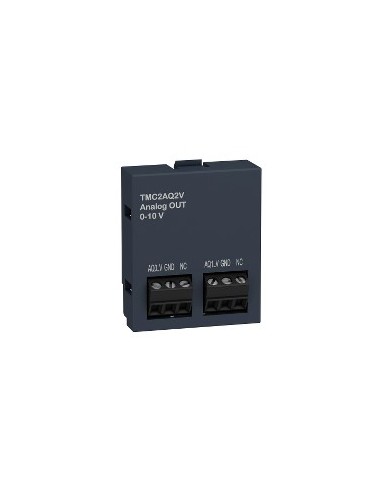

Analog Output Module 2 Channels 0-10 V

Analog output module for Modicon M221C systems, designed to generate two analog voltage signals in the 0...10 V range. Ideal for integration into industrial control systems requiring precision in process signal output.

Technical Specifications

• Number of analog outputs: 2
• Analog output type: Voltage, state 1 0...10 V
• Resolution: 12 bits
• Output clip: 2.44 mV per 0...10 V voltage
• Load type: Resistive
• Minimum load impedance: >= 2 kOhm
• Conversion time: 20 ms
• Stabilization time: 40 ms
• Absolute accuracy error: +/- 1 % of full scale +/- 0.3 % full scale at 25 °C
• Temperature drift: +/- 0.02 %FS/°C
• Repeatability accuracy: +/- 0.4 %FS
• Linearity: +/- 0.01 %FS
• Crosstalk: <= 1 LSB
• Cable type: Shielded twisted pair
• Conductor cross-section: 3 1.5 mm²
• Terminals: 2 screw terminals with clamping capacity: 3.81 mm field for outputs
• Maximum cable distance between devices: <30 m for output
• Isolation: No isolation between analog output and internal logic
• Height: 41 mm
• Depth: 15 mm
• Width: 35 mm
• Weight: 0.015 kg
• Immunity to microshorts: 10 ms
• Sustainable offering status: Green Premium product
• REACH Regulation: Contains SVHC above threshold
• EU RoHS Directive: Proactive compliance (outside RoHS EU regulatory scope)
• Free of toxic heavy metals: Yes
• Mercury-free: Yes
• RoHS exemptions: Yes
• China RoHS Regulation: X
• PVC-free: Yes
