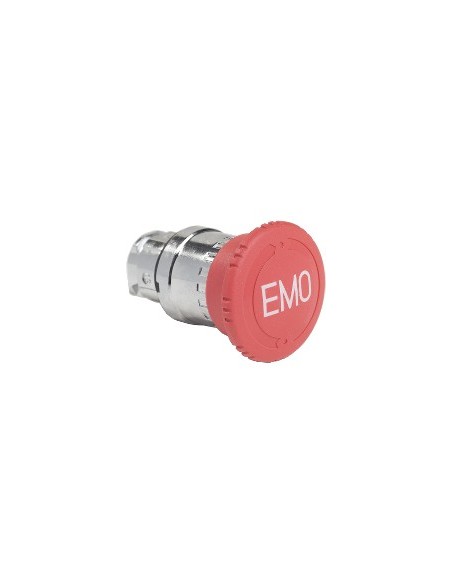

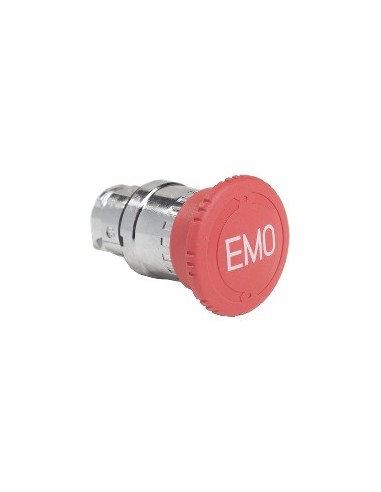

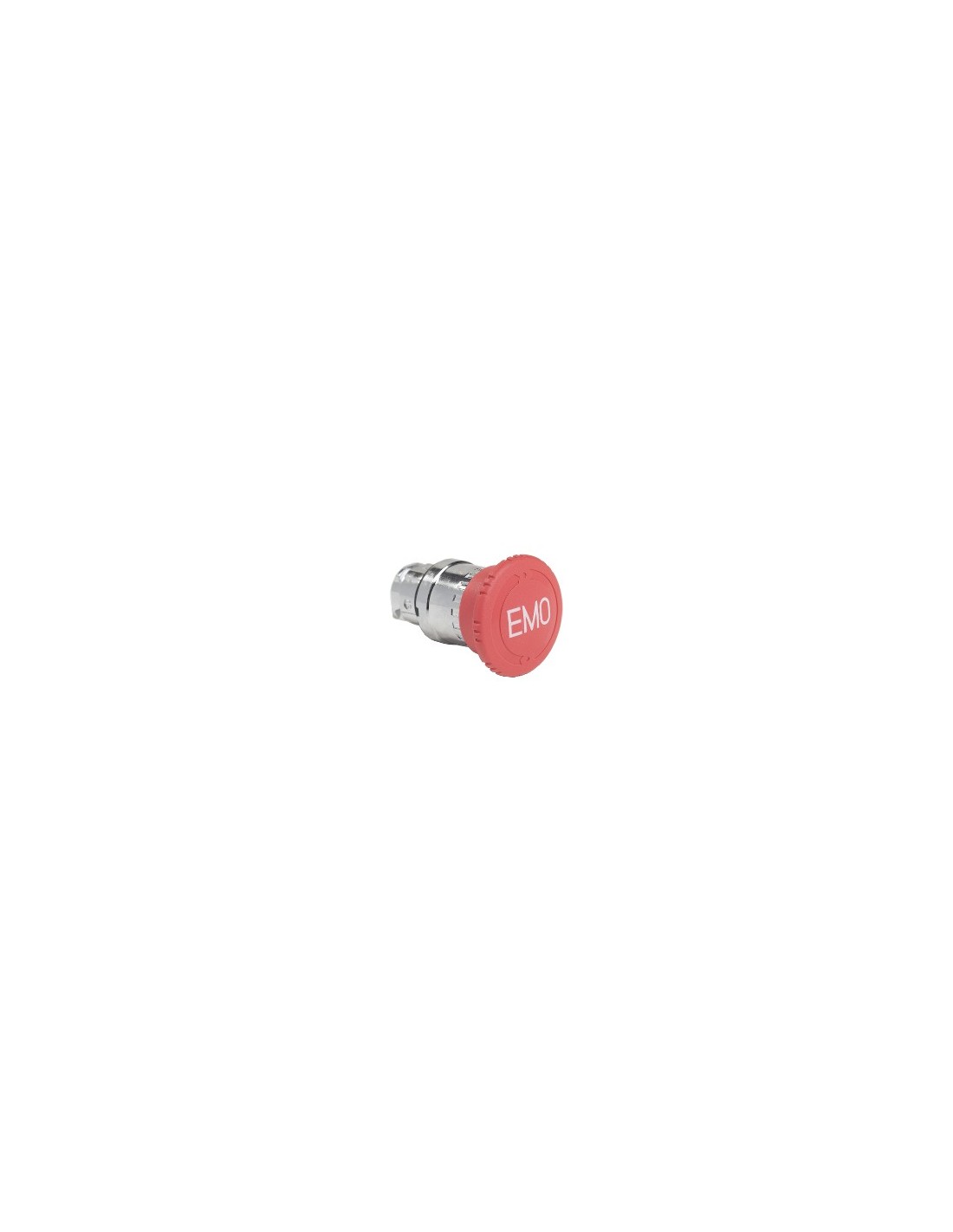

22 mm Emergency Stop Button, Red, with Mechanical Locking

Mechanical locking emergency stop button with trigger type operation, designed for demanding industrial applications. Made of silver chrome-plated metal, it features a 40 mm red mushroom head marked with «EMO» for clear identification in critical situations. Operation is based on a push impulse that activates the closure of safety circuits, requiring a twist to unlock after activation.

Technical Features

• Mounting diameter: 22 mm
• Indicator head shape: Circular
• Operator profile: Red mushroom ø 40 mm, EN
• Operator type: Trigger action with mechanical locking
• Reset: Twist to unlock
• Overall height: 40 mm
• Overall depth: 57 mm
• Overall width: 40 mm
• Product weight: 0.073 kg
• Mechanical durability: 300000 cycles
• Protection degree IP: IP66 according to JIS C8201-1 IP69K
• Protection degree NEMA: NEMA 13, NEMA 4X, NEMA 4, NEMA 12
• Protection degree IK: IK06 according to IEC 50102
• Vibration resistance: 5 gn (f = 2…500 Hz) according to IEC 60068-2-6
• Shock resistance: 30 gn (duration 18 ms) and 50 gn (duration 11 ms) according to IEC 60068-2-27
• Operating ambient temperature: -40…70 °C
• Storage ambient temperature: -40…70 °C
• Electrical shock protection class: Class I according to IEC 61140
• Electrical composition code: C7 for C8 for C11 for C15 for C10 for <4 contacts individual and double blocks in front mounting
• Compatibility code: ZB4
• Protection treatment: TH
• Standards: JIS C8201-5-1, CSA C22.2 No 14, EN/IEC 60947-5-1, GB 14048.5, UL 508, EN/IEC 60947-1, IEC 60364-5-53, EN/IEC 60947-5-4, EN/IEC 60204-1, EN/IEC 60947-5-5, EN/ISO 13850, JIS C8201-1
• Product certifications: DNV, BV, GL, CSA, UL registered, LROS (Lloyds Register of Shipping)
• Sustainable offering status: Green Premium product
• Compliant with REACh without SVHC: Yes
• EU RoHS Directive: Proactive compliance (outside the scope of EU RoHS regulation)
• Free of toxic heavy metals: Yes
• Mercury-free: Yes
• RoHS exemption information: Yes
• China RoHS regulation: X
