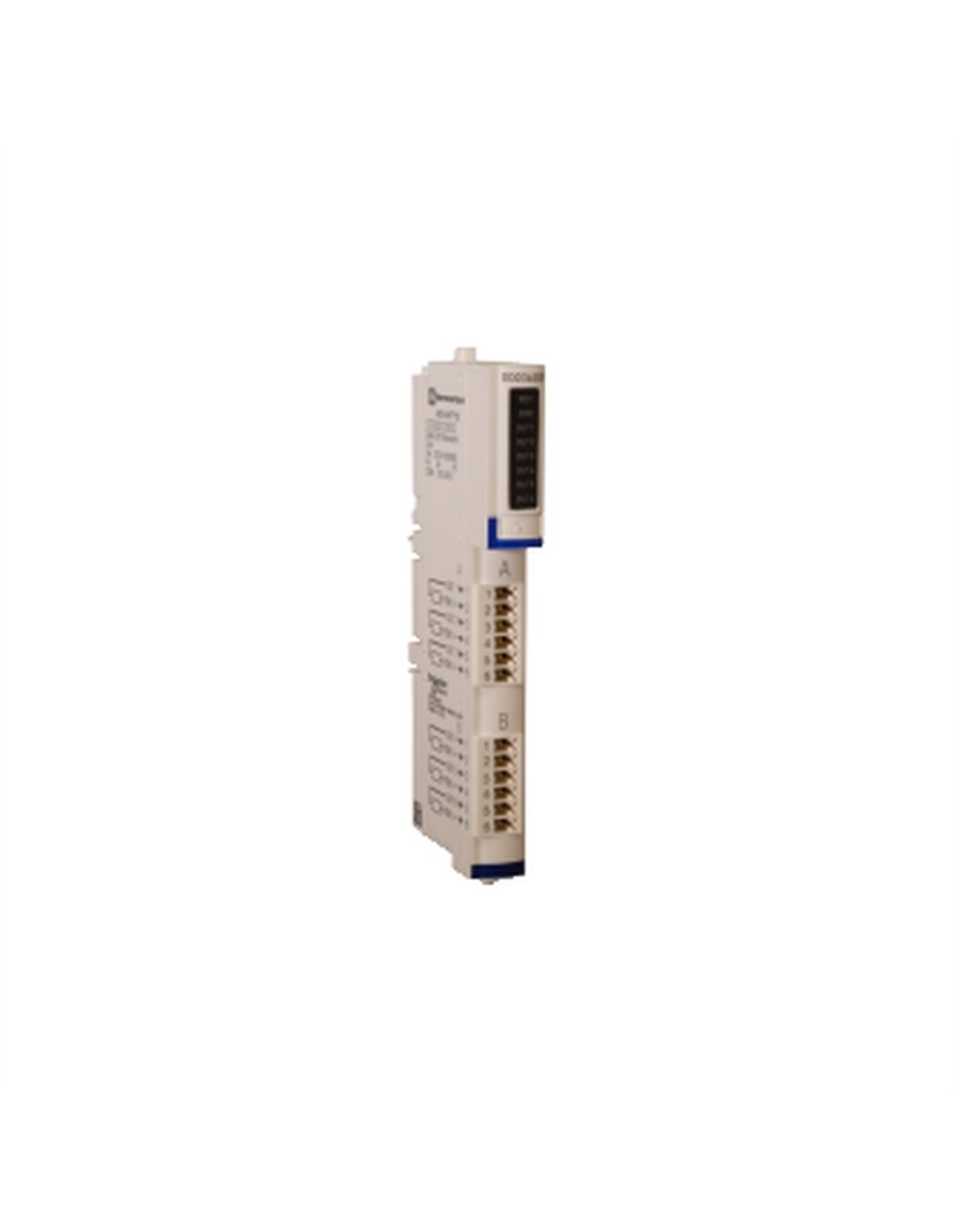

STB Digital Output Kit 6 Solid State Outputs 24V DC, IP20 Protection.

The STB,Std,06 SD TRT,24VDC 0.5A Kit_STBXTS is a distributed I/O solution from the Modicon STB range, designed for industrial applications requiring precise and reliable control. This standard digital output kit includes an STBXBA1000 base and an STBDDO3600 module, providing a total of six solid-state digital outputs with a 24VDC output voltage. Its modular design allows for easy integration into existing systems, ensuring optimal performance under various operating conditions.

The kit is equipped with spring-clamp and screw-type connectors, facilitating the connection and disconnection of devices. With discrete output logic that can be positive or negative, this module offers flexibility in its implementation.

• Number of digital outputs: 6
• Output type: Solid state
• Output voltage: 24 V DC
• Response time: 715 µs off-to-on, 955 µs on-to-off
• Protection: IP20, integrated fuse, short circuit protection
• Operating temperature: 0…60 °C
• Relative humidity: 95% at 60 °C non-condensing
• Standards: IEC 61131-2, CSA, UL, NF
• Weight: 0.114 kg
• Dimensions: 13.9 mm (height) x 70 mm (depth) x 128.3 mm (width)
