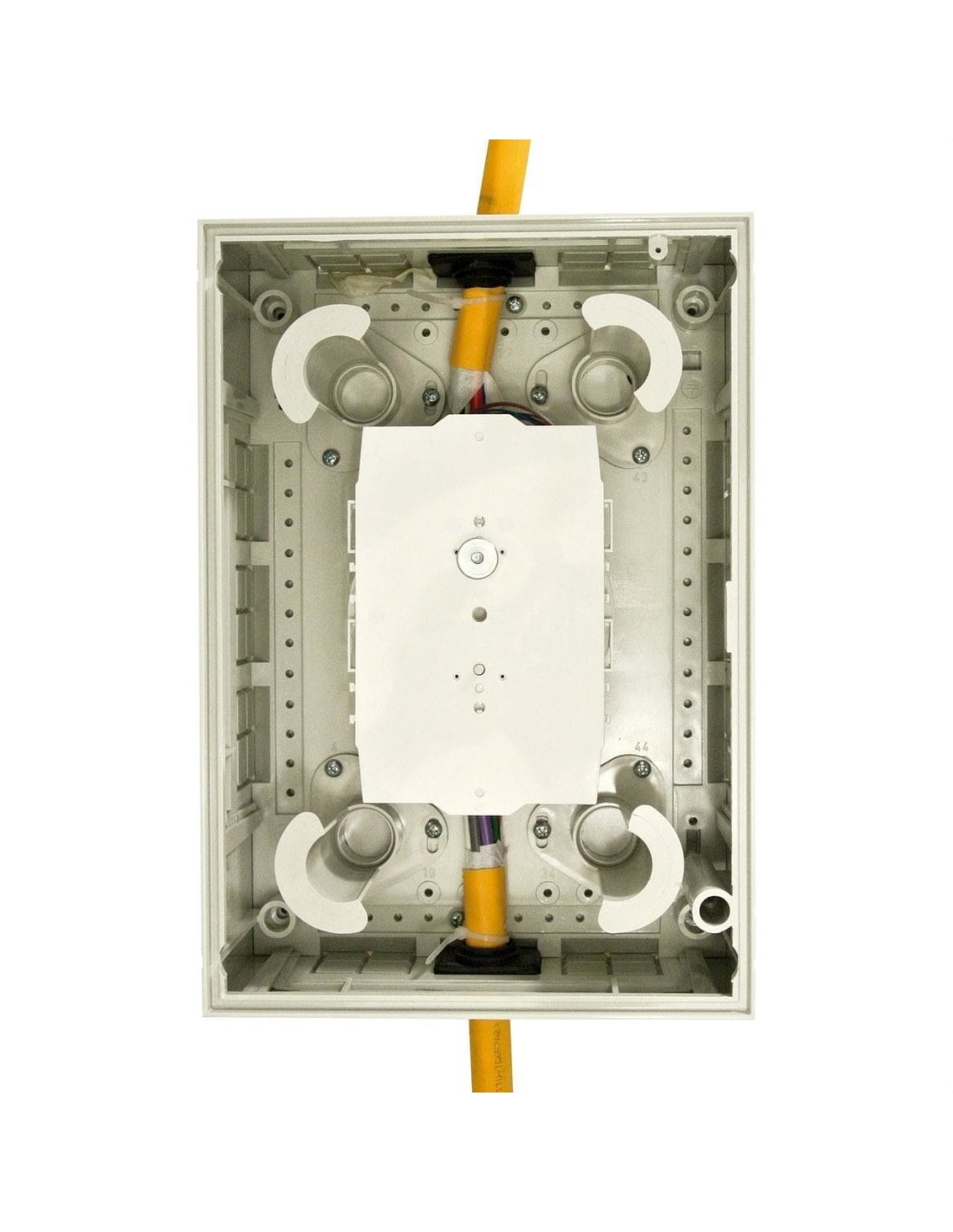

Basic Interior Secondary Fiber Optic Register 48-F

The 48-F Basic Internal Fibre Optic Secondary Log is an essential passage and derivation element for FTTH networks, designed to act as a central node within the buildings. Its main function is to manage the input, output and distribution of fiber optic hoses, allowing efficient cabling organization within inhabited or technical spaces.

Technical characteristics

• Capacity to receive up to 48 simultaneous mergers over its 4 integrated trays.
• Body built in high strength ABS to ensure durability and structural safety.
• Compact dimensions: 208mm wide, 291mm high and 110mm deep.
• Degree of IP30 protection against dust and large solid objects.
• Impact resistance IK10 to withstand moderate shocks without damage.
• Incorporates door with security lock to avoid unauthorized external manipulations.
• 8 configurable raisin-fiber rubbers for flexible inputs or outputs as needed.
• 8 dedicated supports for the orderly stowage of mergers carried out.
• Completely removable system that facilitates the segregation and location of each fiber individually.

This record optimizes the installation process by offering great ease of work thanks to its multitude of integrated fiber anchors and guides. The security of the asset is a priority, since the door with lock prevents improper access, protecting valuable optical fibers stored inside against external manipulations.

The installation is carried out by means of the attachment elements included for direct wall anchoring, ensuring a robust and level attachment.
