Altius Lift cam system for pivotless lift doors

The Altius Lift housing system for lifting doors has been designed to provide an advanced solution in kitchen and home furniture. Thanks to its hinge-free mechanism, this system allows a smooth and controlled movement, ideal for spaces where ergonomics and aesthetics are key.

Technical characteristics

• A hingeless compass system with soft closure and toolless disassembly thanks to clipping.

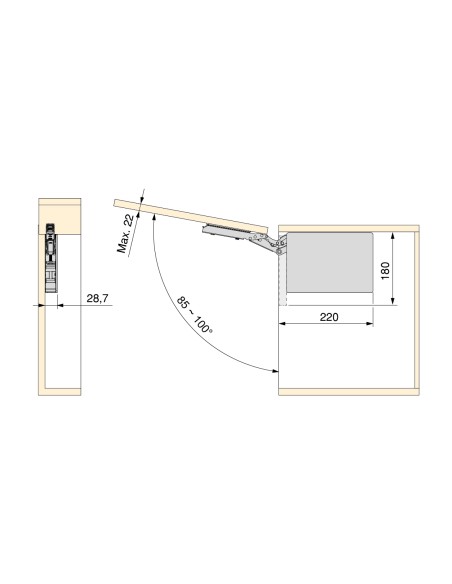

• Adjustable opening angle between 85° and 100° to optimize the interior space.
• Compatible with doors from 250 to 800 mm high and panels from 16 to 22 mm thick.
• Medium (M) model for required forces between 1100 and 2900 N.
• Includes three-dimensional adjustment of the door position with precision of ±2 mm.
• Regulations available for mechanism strength, soft closure, opening angle and position.
• Made of steel and plastic with grey anthracite finish.
• It is supplied as a complete set with hooks, caps, screws, auxiliary supports and tools.

The product allows quick dismantling of the door without tools, which facilitates both initial installation and future interventions or changes. The selection of the appropriate model is made by consulting the tables according to the specific dimensions of the door and the weight calculated using the formula F = H x (Door weight + 2 × Sniper weight), ensuring a safe and efficient operation in each application.
