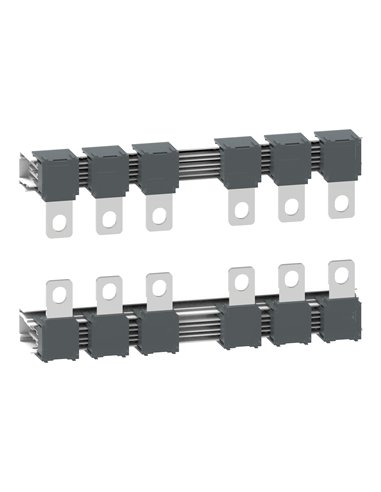

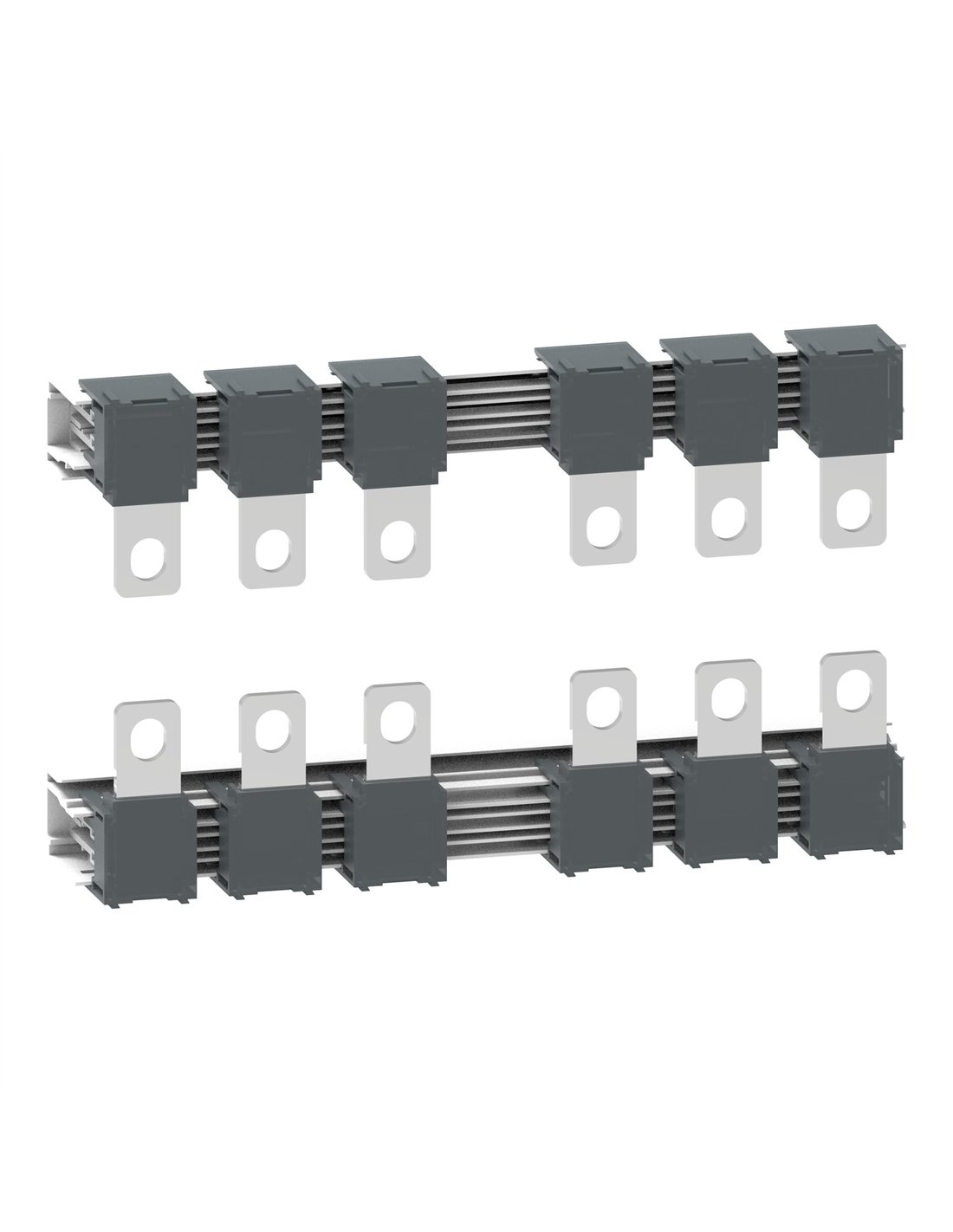

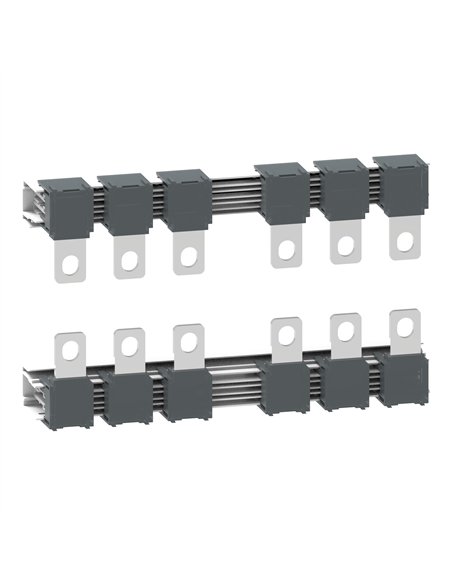

TeSys 3-pole reversing bar kit, 45 mm high, compact modular design

The 3-pole reversing bar kit for TeSys G115-225 is designed to optimize selection and inventory, reducing the number of references required. Its modular and compact design facilitates maintenance and minimizes the space required during installation.

• Range: TeSys
• Device Abbreviated Name: LA9G
• Product Type: Connection Set
• Electrical Circuit Type: Inverter
• Quantity per Set: 1
• Number of Poles: 3P
• Compatibility: LC1G115...500, LC1G205...475
• Range Compatibility: TeSys island
• Dimensions: 45 mm (height) x 62.1 mm (width) x 232.6 mm (depth)
• Weight: 1.0 kg
• Standards: EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, GB/T 14048.4
• Certifications: ABS, BV, CB, CCC, CCS, CUL, CE, DNV-GL, EAC, KC, LROS (Lloyds Register of Shipping), RCM, RINA, RMROS
• Operating altitude: 3000 m without declassification, 5000 m with declassification
