ACTI9 COMB BUSBAR FOR CIRCUIT BREAKER WI

ACTI9 COMB BUSBAR FOR CIRCUIT BREAKER WI

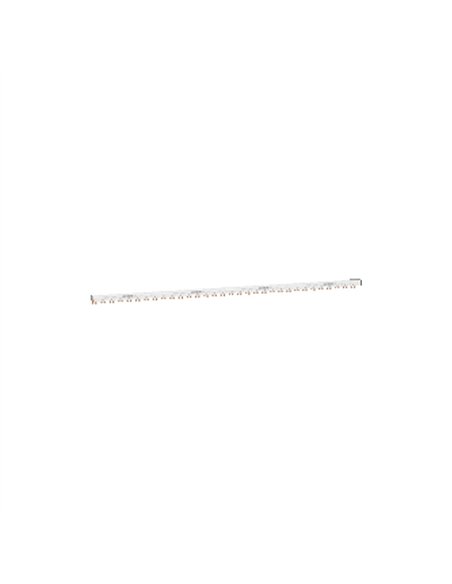

ACTI9 80 A connection comb, 48 modules, horizontal mounting, IP20, 1 1P + N

Reference IMPO A9XPA648

Available

€74.77

VAT included

The Acti9 busbar is a key component for electrical circuits, designed to facilitate a safe and efficient connection between circuit breakers. Its robust construction and insulated design ensure optimal performance in demanding environments, complying with international safety and quality standards.

In stock 10 Items

Subscribe To When In Stock

You have successfully subscribed to this product

Description

The Acti9 connection comb is an essential component for electrical installation, designed to provide an efficient and safe connection between circuit breakers. Its robust construction and advanced technical features guarantee optimal performance in various electrical applications.

Range: Acti9
Product type: Connection comb
Pole configuration: 1 1P + N
Total number of modules: 48 (18 mm each)
Rated operating current: 80 A at 40 °C
Rated operating voltage: 230 V AC Phase/N
Rated insulation voltage: 400 V AC according to IEC 61439-1
Peak voltage withstand: 4 kV
Mounting type: Horizontal
Dimensions: Height 29 mm, Width 862 mm, Depth 26 mm
Weight: 365 g
Protection rating: IP20 with end pieces and tooth covers
Standards: EN/IEC 60439-1
Fire resistance: 960 °C (30 s) according to IEC 60695-2-1

Product Details

EAN: 3606489443641
Reference: IMPO A9XPA648

In stock 10 Items
