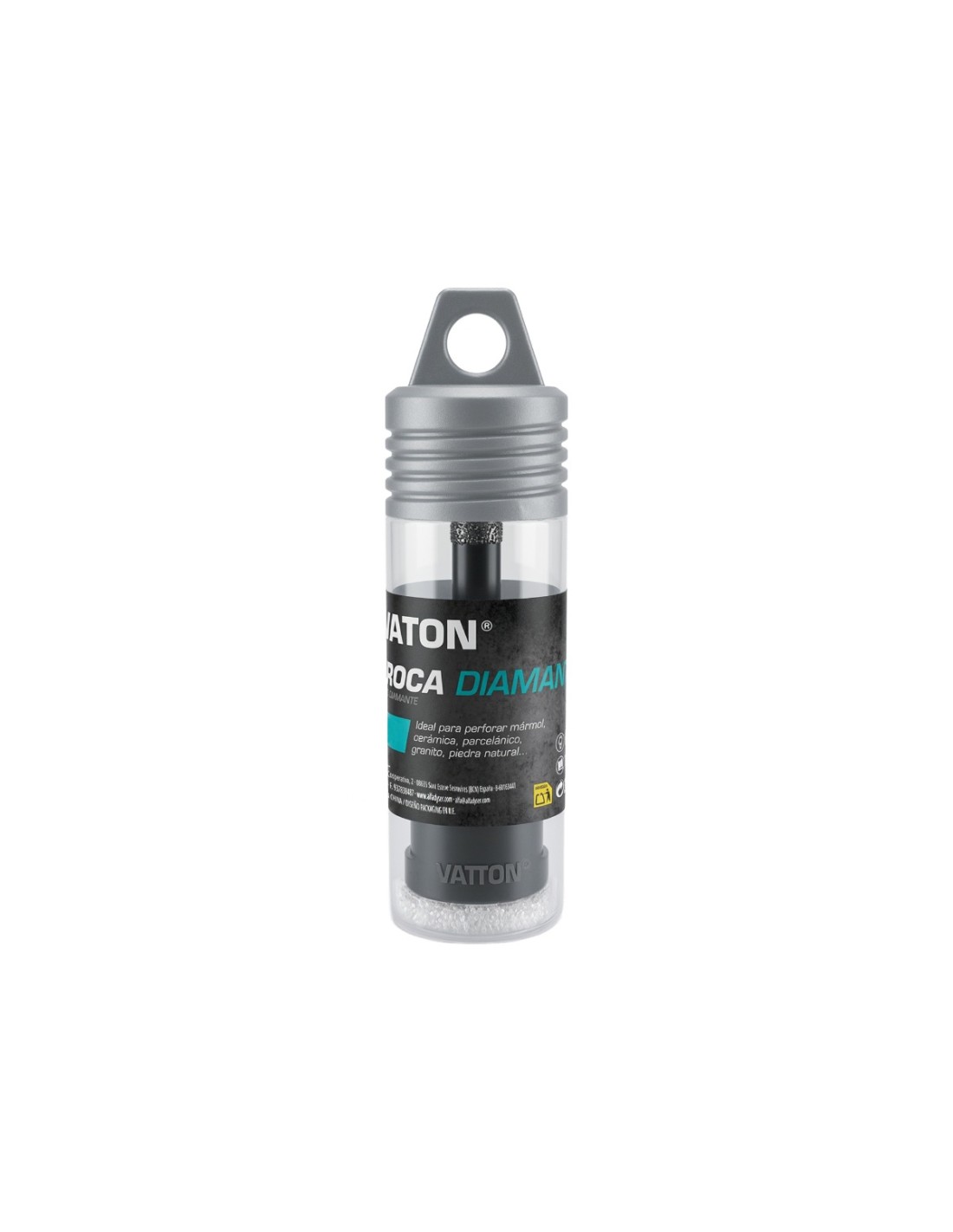

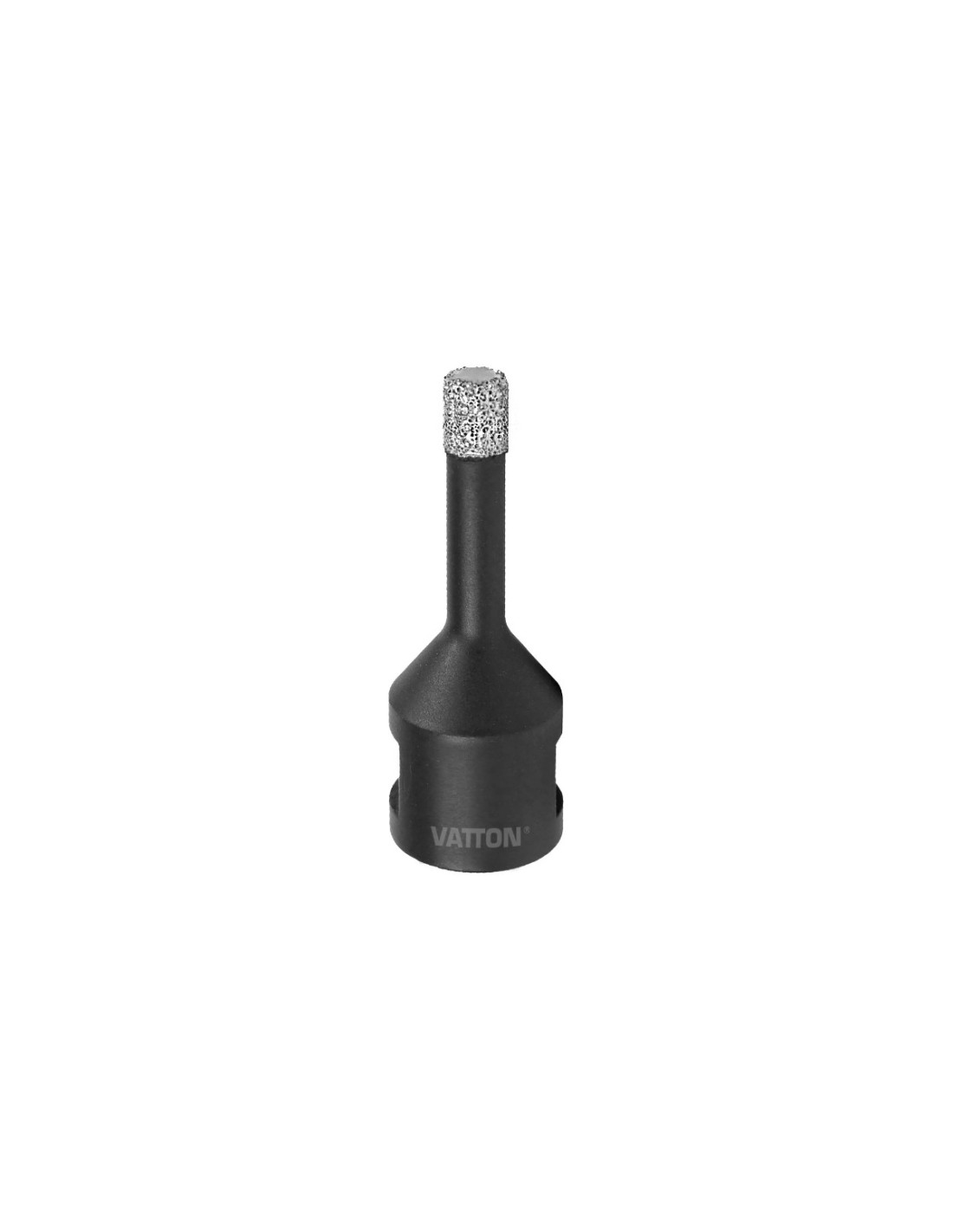

Vatton M14 10 mm Diamond Drill Bit

The 10×63 mm Vatton M14 diamond drill is a specialized tool designed to drill hard materials such as marble, ceramic, porcelain, granite and natural stone. Its diamond tip ensures optimum performance in precision work.

Technical characteristics

• Cutting power: high hardness for dense materials
• Dimensions: 10 mm diameter by 63 mm length
• Thread: M14, compatible with standard angular grinders
• Recommended speed: 8,000–12,000 RPM according to material
• Body material: reinforced metal for stability and durability
• Working method: dry drilling, optimising thermal dissipation

This tool facilitates the installation of accessories, plumbing works, electricity and reforms without the need for external refrigerants. Its robust construction ensures a long service life even in demanding environments.

For use, select the appropriate speed according to the material to be drilled and maintain a constant pressure during the advance. There is no need to apply water or lubricants when working dry, simplifying the operating process.
