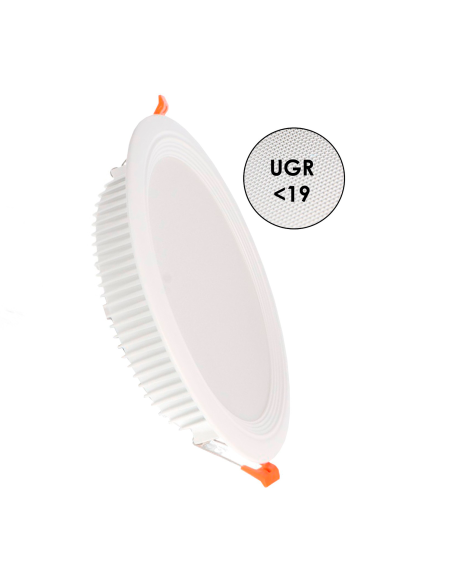

Recessed LED Downlight 22W CCT iSG Lighting

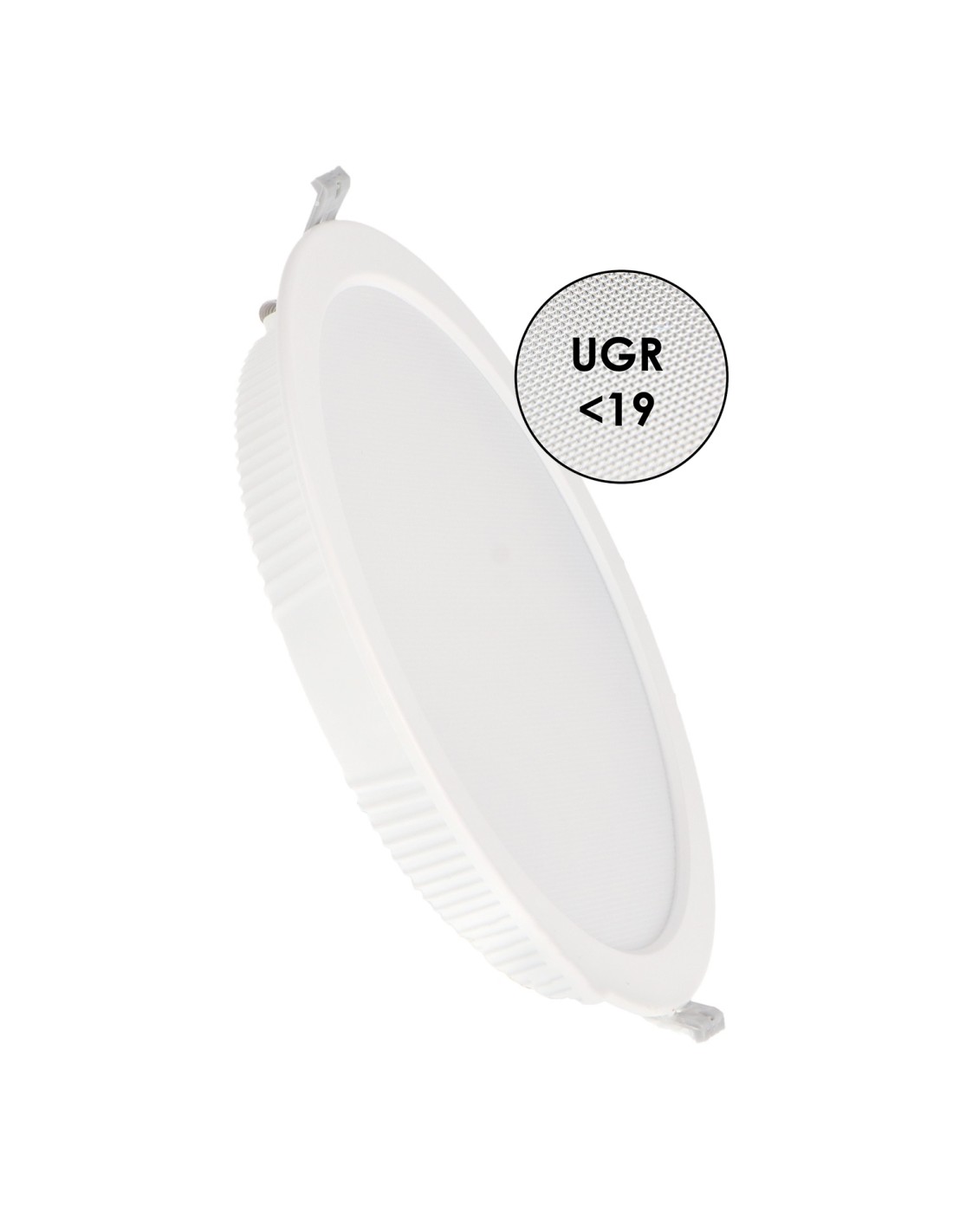

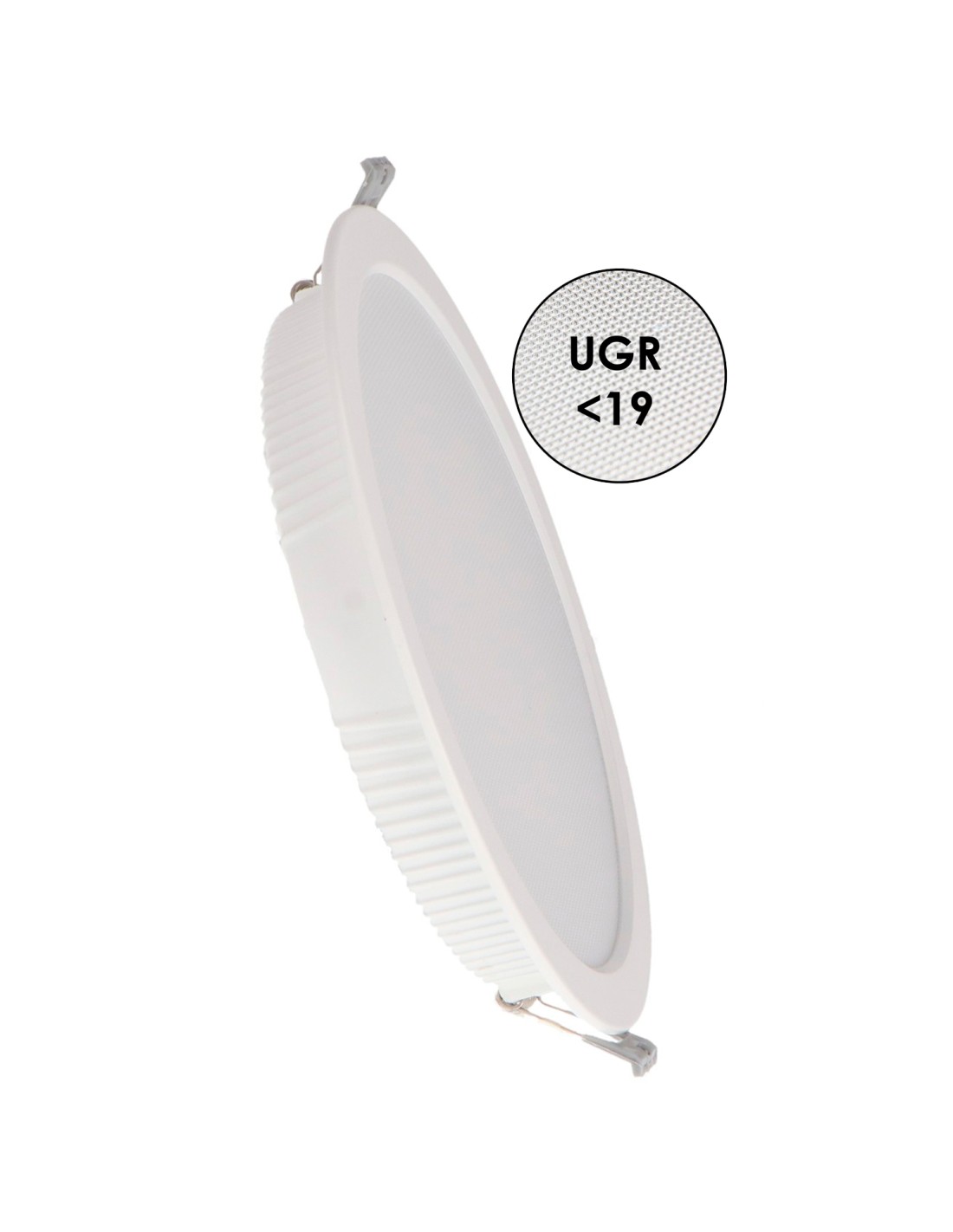

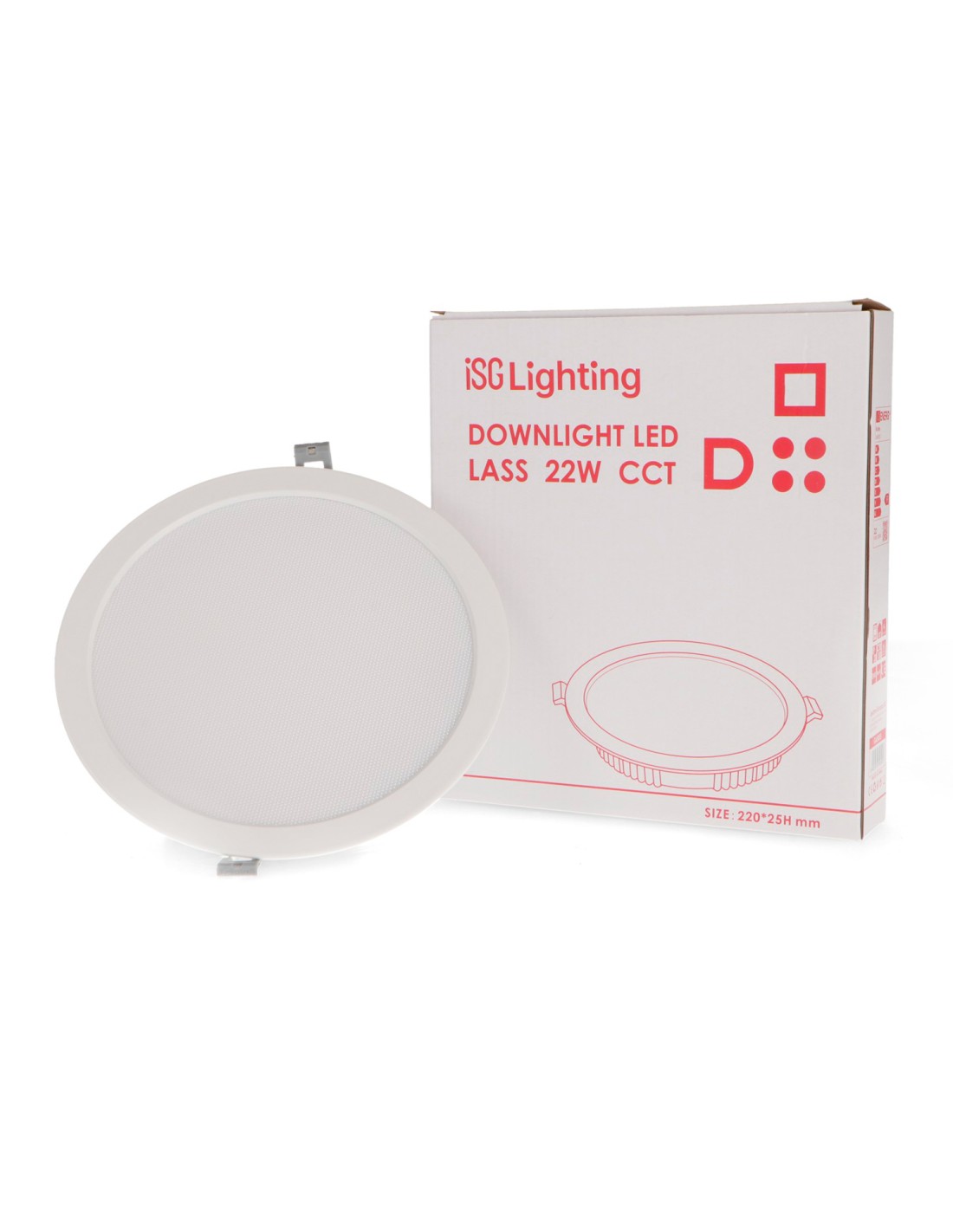

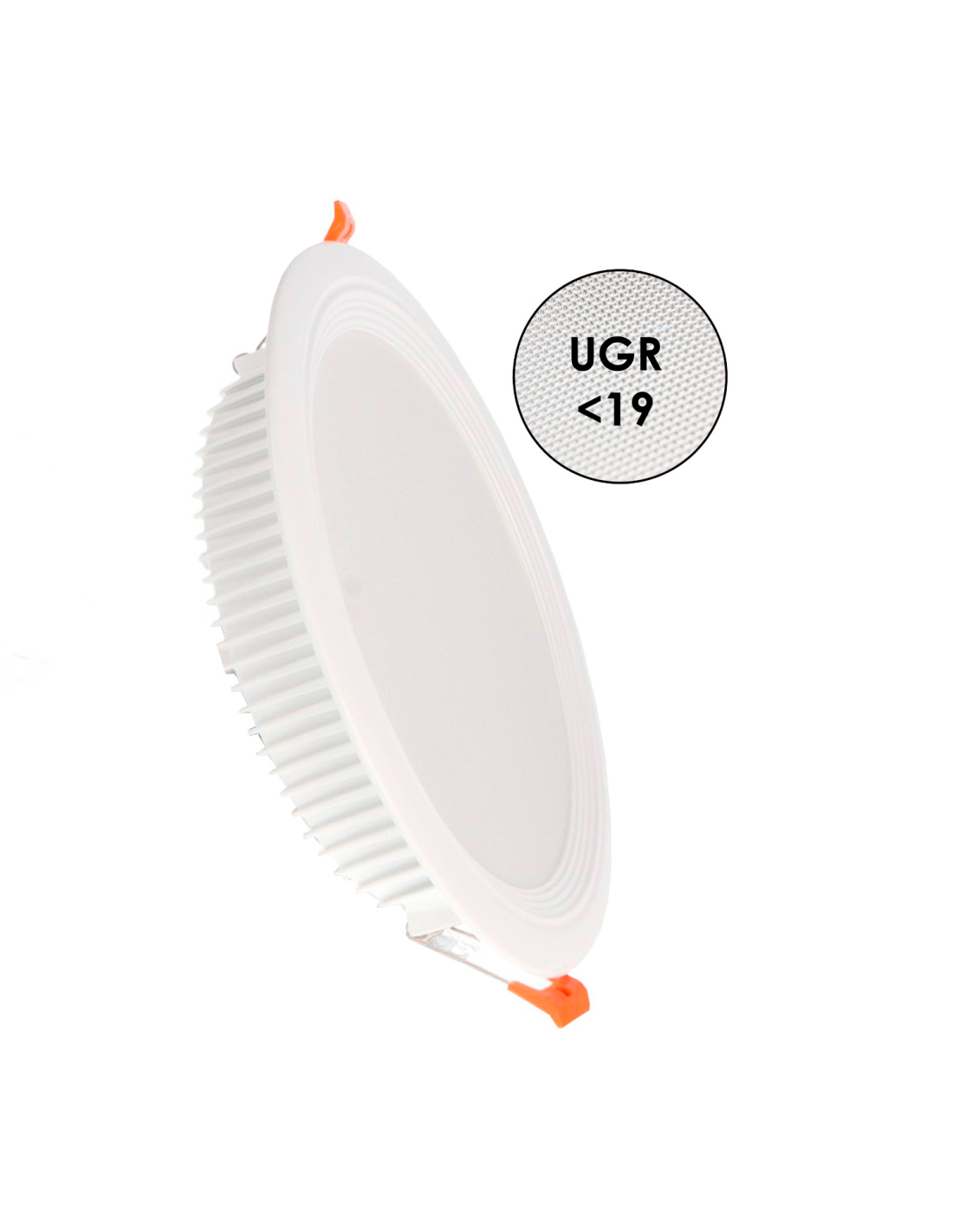

The iSG Lighting's Downlight Led Pro Lass 22W CCT is an recessable lighting equipment designed to deliver energy efficiency and superior optical performance in indoor spaces. Its aluminium construction ensures adequate thermal dissipation, while its Lifud driver ensures a stable and blink-free operation.

Technical characteristics

• Watts: 22 w
• Light Source: Sanan
• Luminosity: 2460 lm
• Efficiency Lm: 111
• Working temperature: -20°C ~ +45°C
• Angle: 120°
• Useful Life: 40000 h
• Protection: IP20
• Ik: 8
• Class Electrical insulation: II
• Overvoltage protection: 4 Kv
• Power supply: 220-240v ac

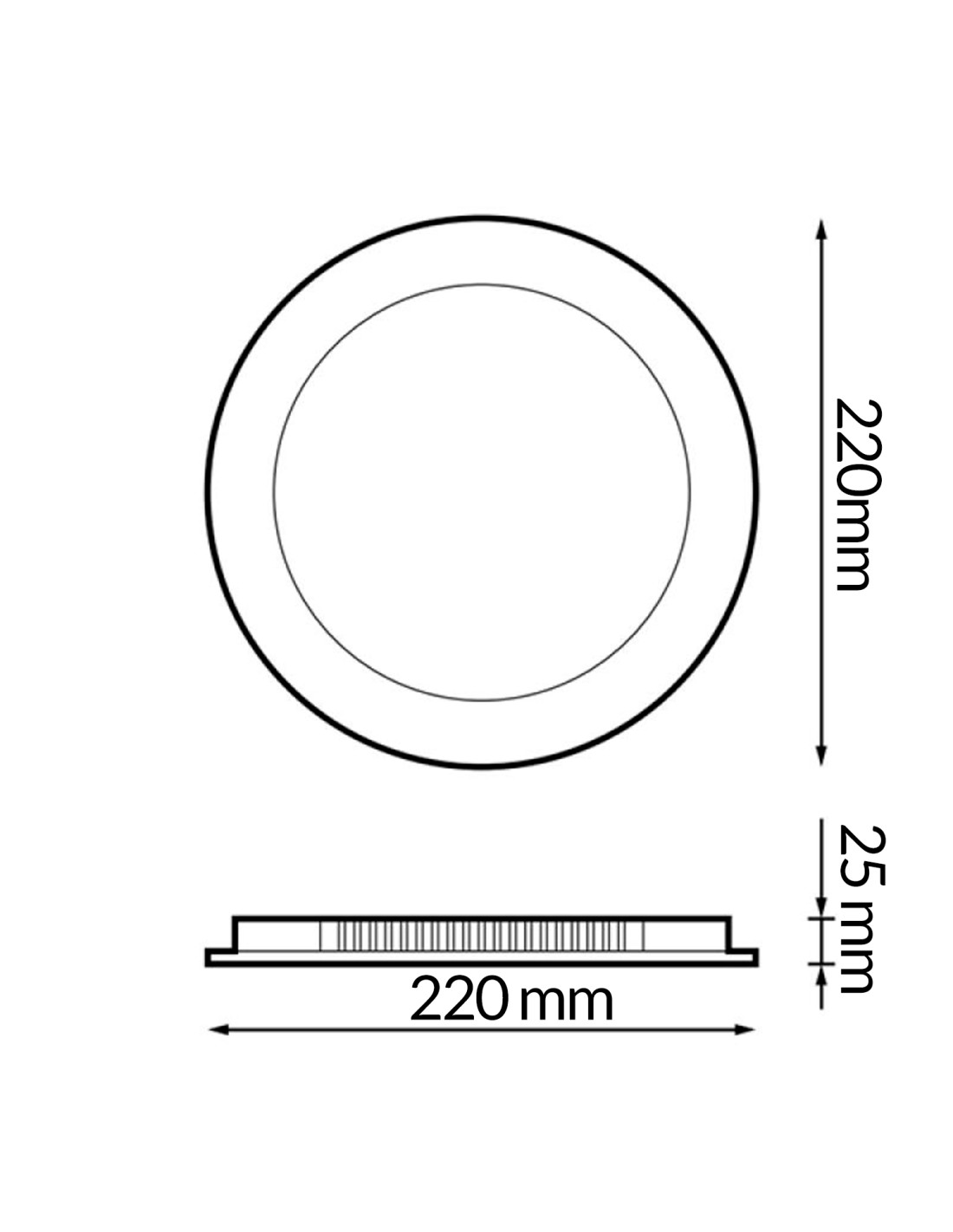

• Dimension: 220X25H mm
• Cut dimension: 200 mm
• Material: Aluminium
• Driver: Lifud
• Cri: 80
• Ugr: <19
• Power Factor: 0.6
• Flicker Free: Yes
• Regulatory: Optional
• Guarantee: 5 years
• Color Temperature: 3CCT

With a 2460 lumen luminance and a 120° wide beam angle, this device provides even, glare-free (UGR <19) illumination, ideal for applications requiring precise light control. Its high light efficiency and long service life reduce maintenance costs over time.

The installation is recessable, requiring a cut of 200 mm on the partition. The equipment has integral protections against overloads and short circuits, in addition to being free of blinking effects (Flicker Free), which contributes to the visual comfort of the user.
