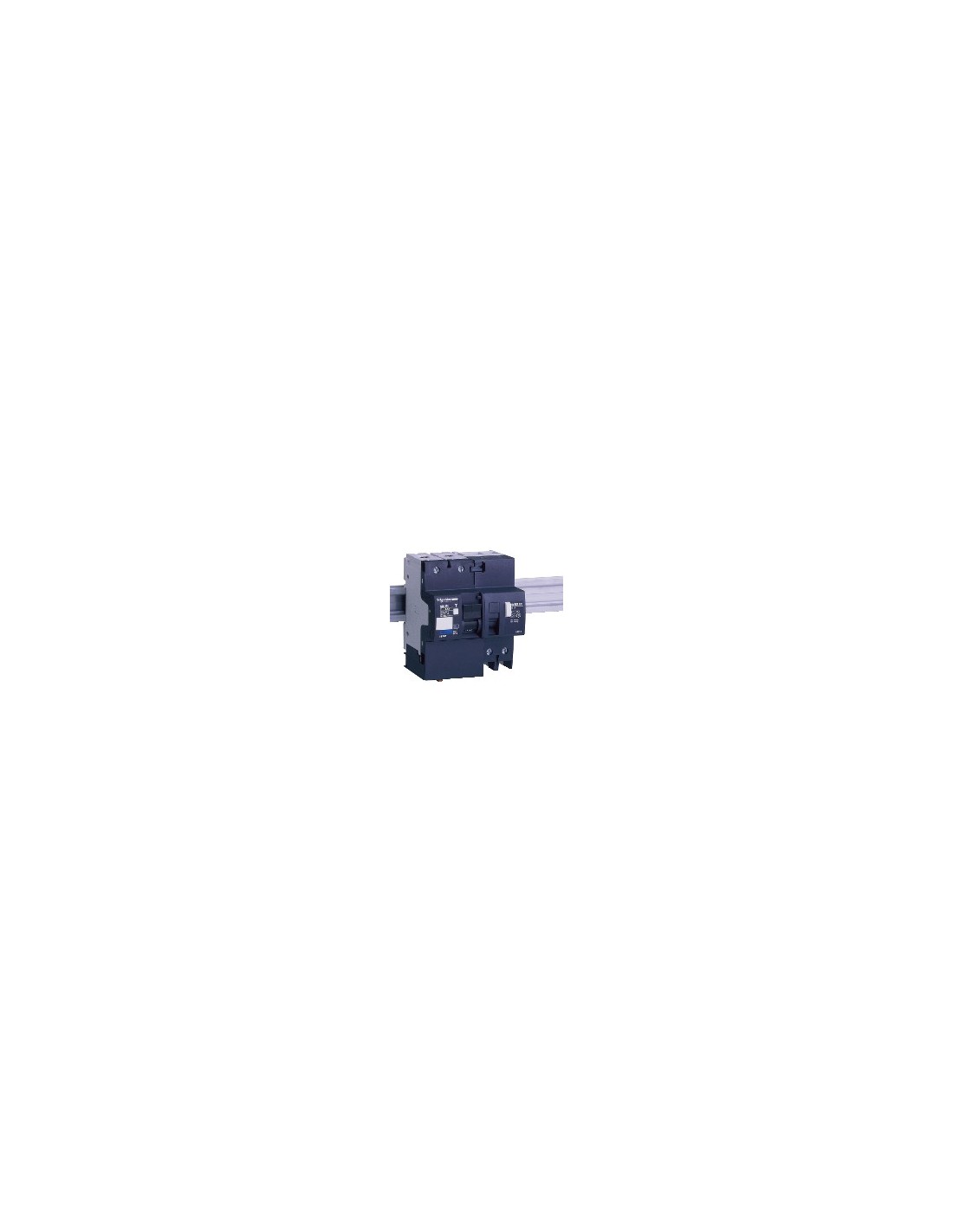

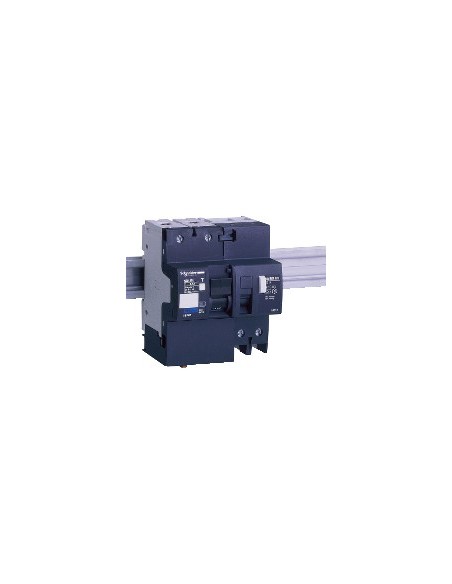

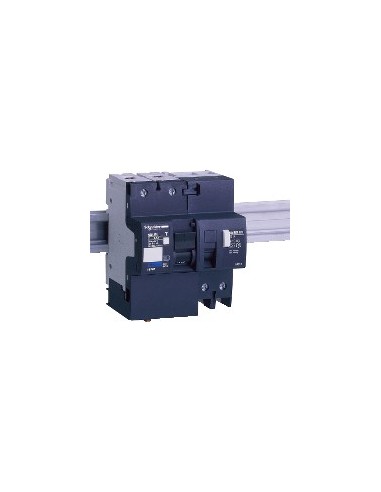

NG125 2P 63A 30mA Residual Current Device

NG125 2P residual current device with rated current 63 A and earth leakage sensitivity of 30 mA, designed to protect electrical installations in small businesses. Operates on AC 50/60 Hz networks with nominal operating voltage of 230...415 V AC 50/60 Hz, offering instantaneous tripping independent of voltage.

Technical features

• Number of poles: 2P
• Rated current [In]: 63 A
• Network type: AC
• Earth leakage sensitivity: 30 mA
• Protection delay: Instantaneous
• System location: Output
• Network frequency: 50/60 Hz
• Nominal operating voltage [Ue]: 230...415 V AC 50/60 Hz
• Tripping technology: Voltage-independent
• Nominal insulation voltage [Ui]: 690 V AC 50/60 Hz in accordance with EN> 50 A
• Impulse voltage withstand [Uimp]: 8 kV in accordance with EN> 50 A
• Mounting support: Symmetrical 35 mm DIN rail
• Connection to MCB: Via screws
• Spacing: 9 mm
• Height: 118 mm
• Width: 99 mm
• Depth: 81 mm
• Product weight: 0.25 kg
• Electrical durability: 10000 cycles in accordance with EN> 50 A
• Connections - terminals: Tunnel-type terminals 1…35 mm² flexible, 1.5…50 mm² rigid
• Cable stripping length: 20 mm
• Tightening torque: 3.5 N·m
• Product compatibility: Terminal
• Standards: EN> 50 A
• Protection degree IP: IP40 in accordance with EN> 50 A
• Contamination degree: 3 in accordance with EN> 50 A
• Electromagnetic compatibility: Impulse resistance 8/20 µs, 3000 A in accordance with EN> 50 A
• Tropicalization: 2 in accordance with IEC 60068-1
• Relative humidity: 95 % at 55 °C
• Maximum operating altitude: 2000 m
• Sustainable offering status: Green Premium product
• REACH Regulation: Reference does not contain SVHC
• EU RoHS Directive: Compliant
• Mercury-free: Yes
• RoHS exemption information: Yes
• China RoHS regulation: Product outside the scope of China RoHS. Substance information declaration
• WEEE: In the European Union market, the product must be disposed of according to a specific waste collection system and must never end up in a general waste bin
