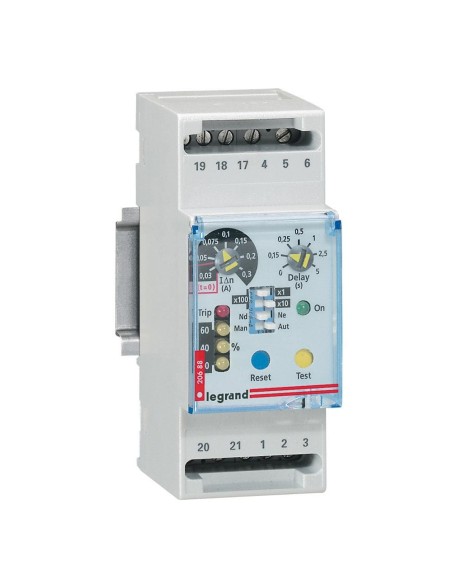

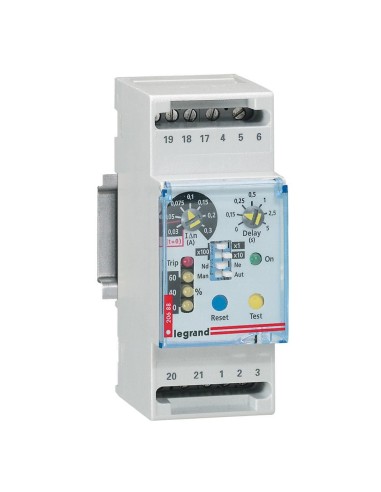

Adjustable three-phase differential relay 30-30000 mA

Adjustable three-phase differential relay 30-30000 mA

Adjustable three-phase differential relay 30-30000 mA

Available In stock 33 Items

Reference LEGRAND 026088

€237.79

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

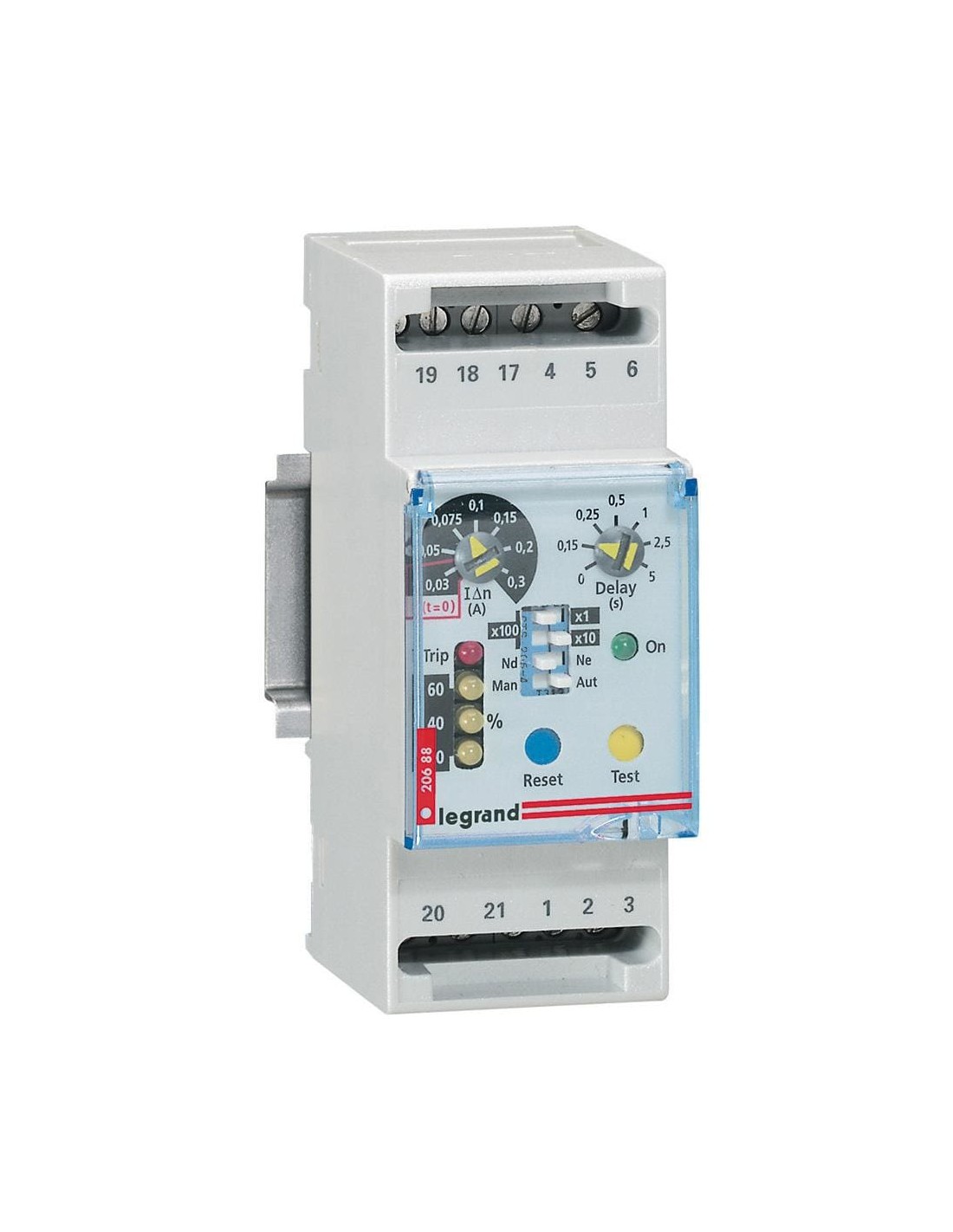

2-module adjustable differential relay for DIN profile mounting, designed for three-phase systems. It detects leakage currents with response range from 30 to 30000 mA and fixed activation delay of 5 seconds. Operates with AC power voltage from 195.5 to 253 V and nominal frequency between 47 and 63 Hz.

Description

2-module adjustable differential relay designed for mounting on DIN profile. Its main function is to detect leakage currents in three-phase power systems, offering adjustable protection by threaded connection.

Technical characteristics

Power voltage AC: 195.5...253 V to 50/60 Hz.
Rated operating frequency: 47...63 Hz.
Differential intensity response range: 30...30000 mA.
Adjustable activation delay: 5 s.
Includes 1 investment contact and 0 NA/NC contacts.
Differential intensity indication and error recording.
Dimensions: 35 mm wide, 89 mm high and 65.6 mm deep.

This device allows you to set the trigger threshold and delay time to suit the specific needs of the three-phase electrical installation. The presence of an investment contact facilitates integration into external control or signalling schemes.

Product Details

Dimensiones

Long	35 mm
Depth	65.6 mm

Otras

Frequency	50/60 Hz
EAN	3245060260880
Manufacturer	LEGRAND
Reference	LEGRAND 026088

Información legal

Fabricante	LEGRAND
Dirección	C/ Hierro 56 –, 28850 Torrejón de Ardoz (Madrid), ES
Email	[email protected]
Teléfono	+34 916561812
Referencia	LEGRAND 026088
EAN	3245060260880

Advertencias de seguridad

No

In stock 33 Items

Downloads

Product sheet Store PDF Download

Reviews (0)

No reviews
