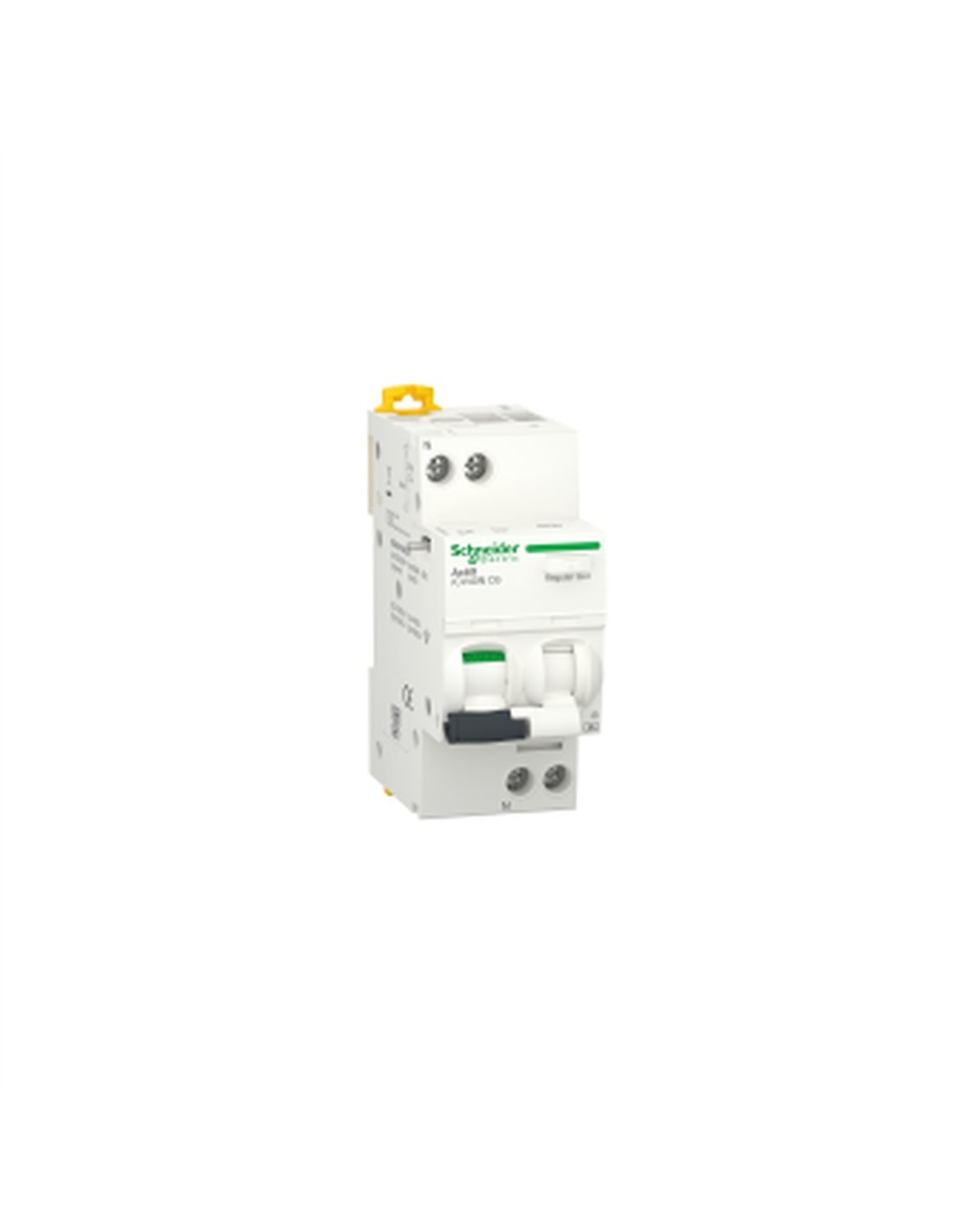

ACTI 9 iCV40N 1PN C 40A 30mA ASI RCBO

ACTI 9 iCV40N 1PN C 40A 30mA ASI RCBO

ACTI 9 40A 30mA 1 pole type C differential switch ASI RCBO

Available In stock 10 Items

Reference IMPO A9DF3640

€160.17

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

The ACTI 9 iCV40N 1PN C 40A 30mA ASI RCBO is an electrical protection device that combines a residual current device (RCD) and a circuit breaker. Designed to ensure safety in electrical installations, it offers protection against overloads and short circuits.

Description

The ACTI 9 iCV40N 1PN C 40A 30mA ASI RCBO is an electrical protection device designed to ensure safety in residential and industrial electrical installations. This combination residual current device (RCBO) offers effective protection against overloads and short circuits, as well as earth leakage detection, making it a comprehensive solution for electrical circuit protection. Its compact design allows for easy installation in electrical panels, optimizing space and facilitating maintenance. Furthermore, it features a quick disconnect system that ensures an immediate response to any anomaly in the electrical system.

Device Type: RCBO (Combined Residual Current Circuit Breaker)
Rated Current: 40A
Leakage Current: 30mA
Poles: 1PN (single-phase)
Tripping Curve: C
Overload and Short-Circuit Protection
Automatic Disconnection Function
Compliant Design for Space Optimization
Easy Installation in Electrical Panels
Complies with Electrical Safety Regulations

Product Details

Eléctrico

Rated current (A)	40

Otras

Sensitivity	30 mA
Curve	C
EAN	3606489444433
No. of poles	1P+N
Reference	SCHNEIDER A9DF3640

Información legal

Fabricante	Schneider Electric España, S.A.
Dirección	Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona, ES
Email	[email protected]
Teléfono	+34 930289900
Referencia	IMPO A9DF3640
EAN	3606489444433

In stock 10 Items

Downloads

Product sheet Store PDF Download

Reviews (0)

No reviews
