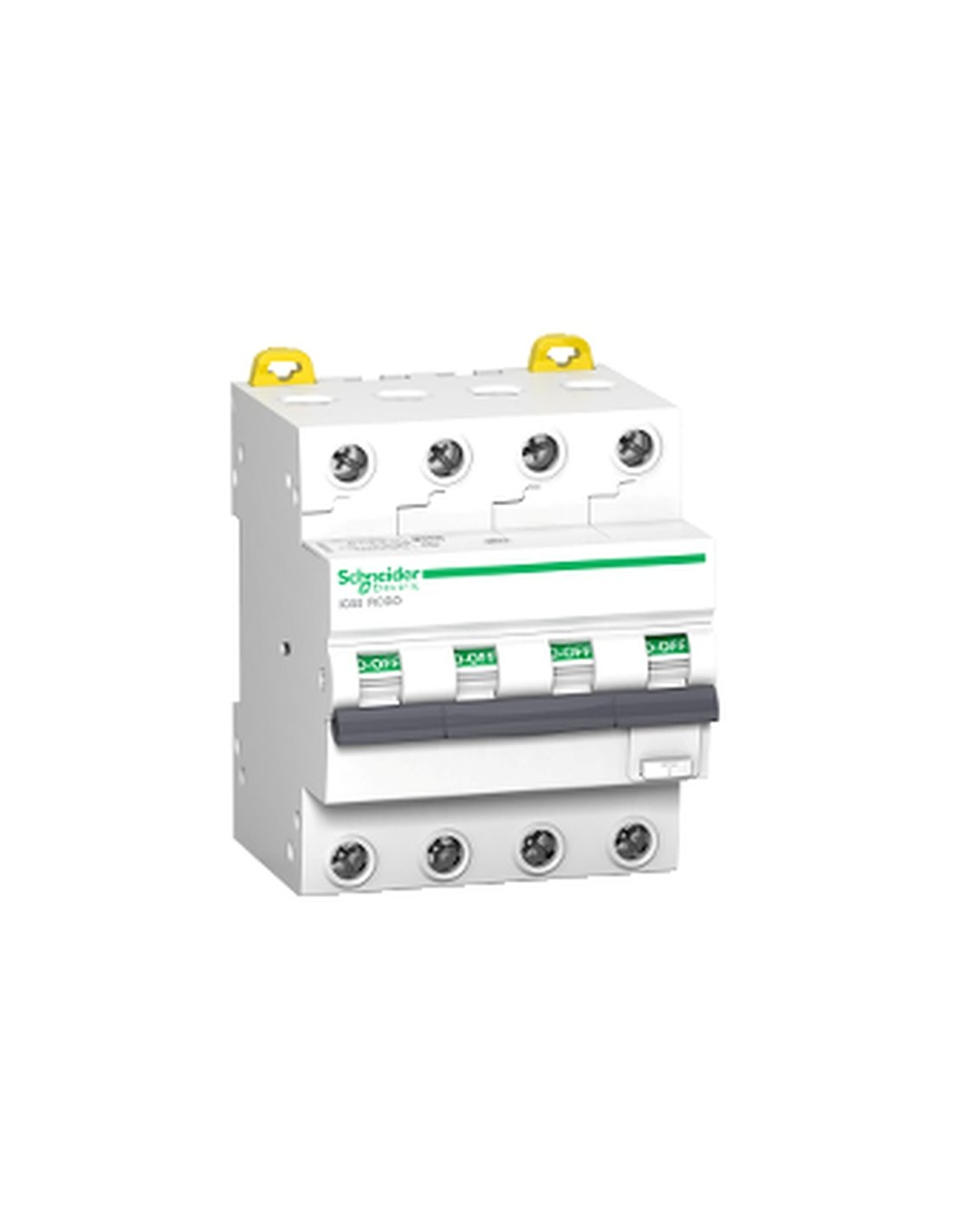

iC60 4P RCBO 10A 300mA AC

iC60 4P RCBO 10A 300mA AC

SCHNEIDER iC60 differential switch 10A 300mA 4 poles AC type.

Reference IMPO A9D55410

Available

€241.64

VAT included

The iC60 4P RCBO 10A 300mA AC is an electrical protection device that combines a circuit breaker and a residual current device (RCD). Designed to ensure safety in electrical installations, it offers protection against overloads, short circuits, and current leakage.

In stock 10 Items

Subscribe To When In Stock

You have successfully subscribed to this product

Description

The iC60 4P RCBO 10A 300mA AC is an electrical protection device designed to ensure safety in electrical installations. This residual current device (RCD), combined with a circuit breaker, offers a comprehensive solution for protection against overloads, short circuits, and leakage currents. Its compact design allows for easy integration into electrical panels, while its advanced technology ensures reliable and efficient operation. This model is ideal for residential and industrial applications, providing a quick response to hazardous situations and contributing to the prevention of electrical accidents.

Type: RCBO (Residual Current Circuit Breaker with Overload Protection)
Poles: 4P (Four Poles)
Rated Current: 10A
Leakage Current: 300mA AC
Rated Voltage: 230/400V AC
Tripping Curve: C
Dimensions: 18 mm per pole
Installation: DIN rail mounting
Standards: Complies with IEC 61009 and UNE standards 20460
Operating temperature: -25°C to +60°C

Product Details

Rated current (A): 10 A
Sensitivity: 300 mA
Curve: C
EAN: 3606481157751
No. of poles: 4P
Reference: SCHNEIDER A9D55410
GPSR Safety warning: No
GPSR Manufacturer information: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer: [email protected]

In stock 10 Items

Reviews (0)

No reviews
