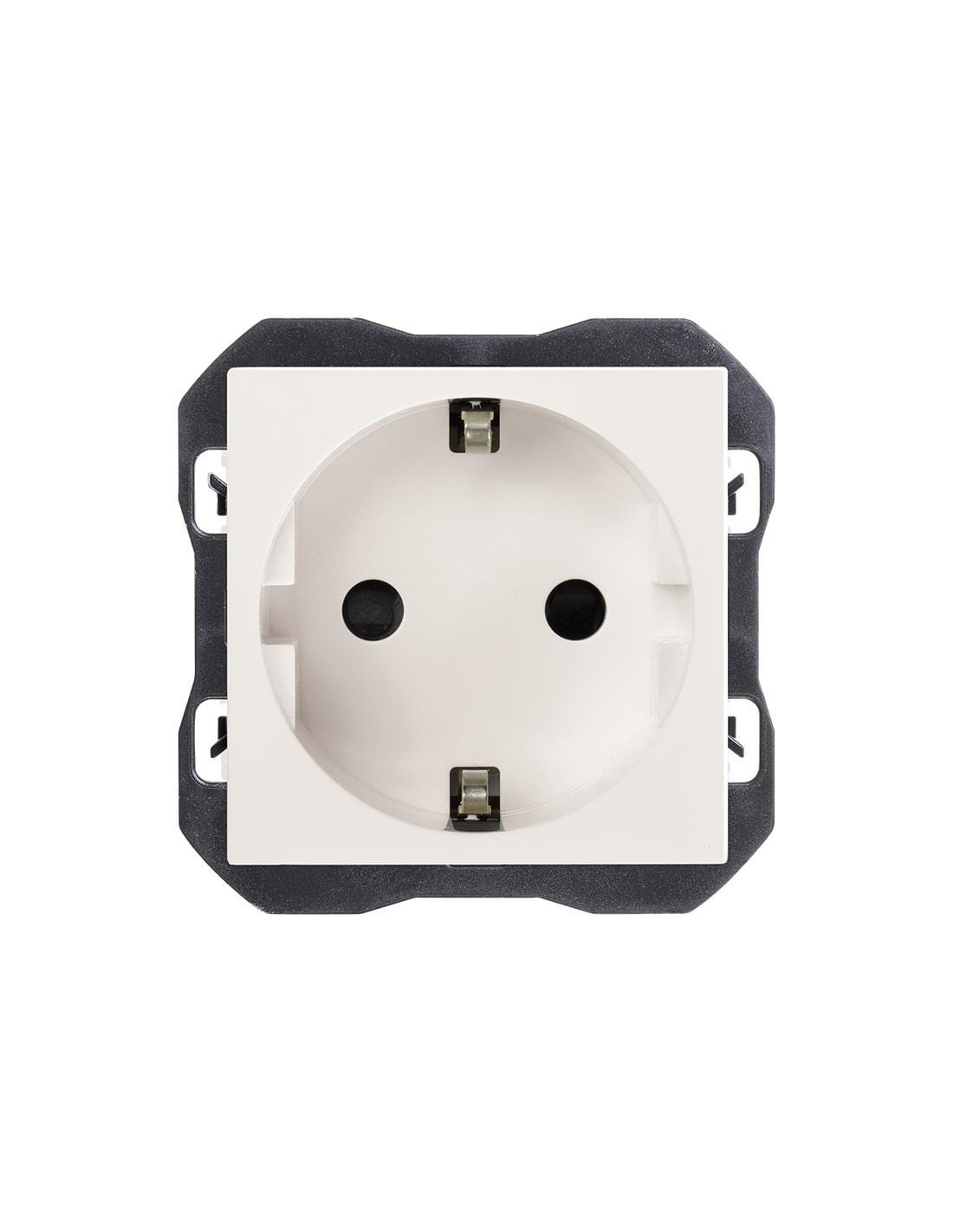

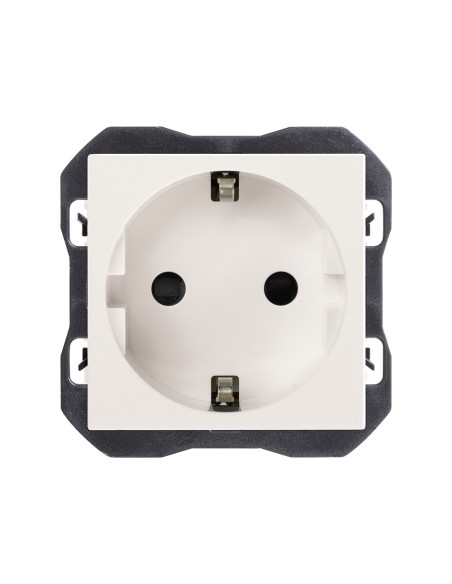

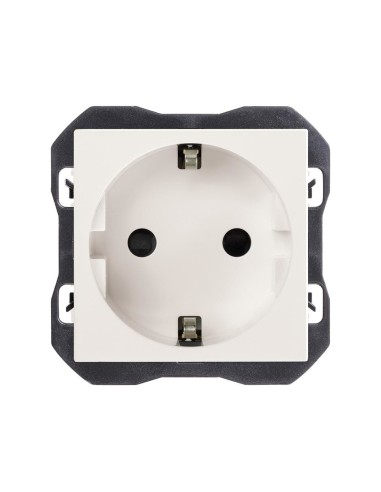

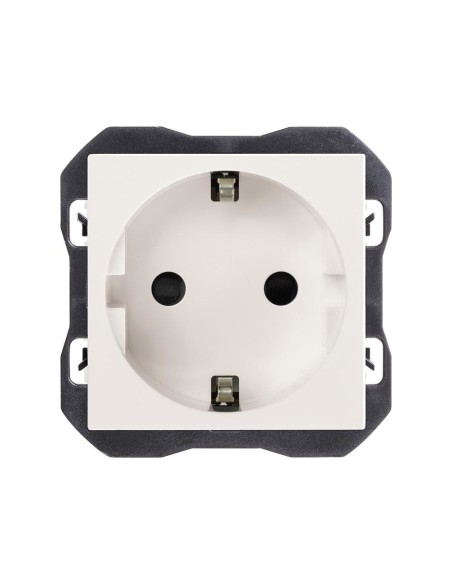

The SIMON 270 plug base is a recessed socket of the EEC model 7/3 (Schuko type), designed for wall electrical installations with traditional aesthetic finish.
Technical characteristics
- Series: 270 - Subseries S270 Traditional Icon White Aesthetics
- Model: EEC socket 7/3 (type F)
- Connection: Screwed terminal (screw)
- Protection contact: Landing clips
- Number of active sideburns: 2 round
- Number of exit outlets: 1
- Material: Plastic with matte surface
- Nominal current: 16 A
- Nominal voltage: 250 V
- Frequency: 50...60 Hz
- Degree of protection: IP20
- Method of assembly: Embedded in cast
Its screw connection system ensures a firm and secure connection, minimizing risks of accidental disconnection during normal use.
