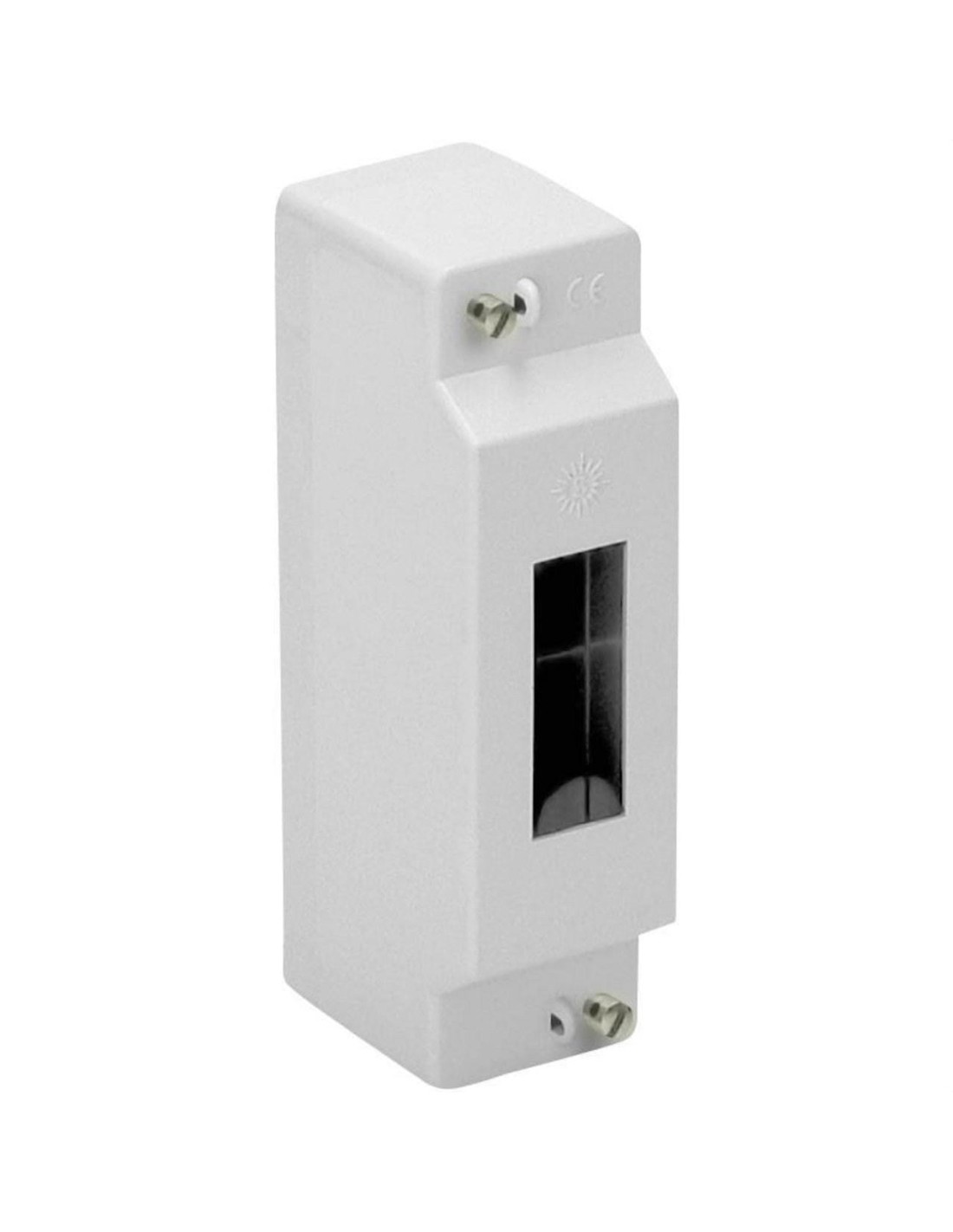

The Box for distribution up to 2 elements is a surface device designed for the organization and protection of domestic electrical installations. Made of halogen-free thermoplastic, this box complies with UNE EN 62208 and UNE 201003 regulations, ensuring its safety inside residential or similar enclosures. Its robust construction allows housing up to four control and protection elements (CPI), facilitating orderly access to the internal components without compromising the aesthetics of the environment.
Technical characteristics
- Dimensions: 40x140x58 mm (Width x Height x Depth).
- Working current: 40 A or 63 A.
- Degree of protection IP40 against solid and liquid objects.
- Impact resistance IK07.
- Material: Halogen-free thermoplastic.
- Fire resistance: Incandescent thread at 650oC.
- Includes DIN rail for standard mounting.
- Reversible frame and beautifying door.
- Capacity for sealed accommodation and covers.
This distribution system offers significant advantages in terms of safety and durability. Certified fire resistance ensures that the box maintains its structural integrity against high temperatures, protecting the cables and devices housed inside. In addition, the degree of protection IP40 and IK07 ensures that electrical components are safe against dust, accidental splashes and moderate shocks, which is essential in environments with frequent human traffic.
The installation is simple by surface mounting on plaster or solid walls. It is attached directly to the surface using the intended edges, without the need for additional fixing plate.
