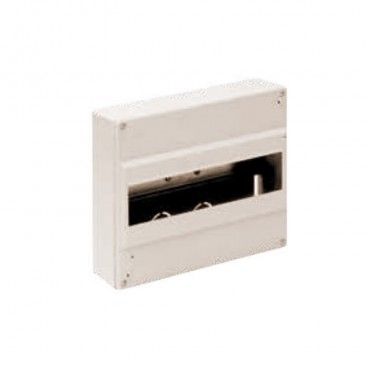

Electrical panel 12 classic surface elements IVORY SOLERA 694

Reference SOLERA 694

Available

€14.77

VAT included

Switchboard 12 elements Surface Mount

White

In stock 23 Items

Email address

Description

Cuadro eléctrico 12 elementos de superficie clásica BLANCO SOLERA 694

Hasta 40 A

Características generales:

Entrada trasera troquelada
Cerradura con llave metálica opcional
Libre de halógenos

Información técnica

Conforme a la Directiva 2014/35/UE.
Conforme a la Directiva 2011/65/UE (RoHS).
Cumple normativa UNE-EN 62208 y UNE 201003.
Conforme a REBT.
Tensión 230/400V y corriente 63A.
Grado de protección IP40, IK07.
Hilo incandescente 650 ºC.
Material termoplástico, libre de halógenos.
Cajas previstas para instalación en interior, recinto doméstico.

Product Details

Rated current (A): Hasta 40A
Colour: Marfil
EAN: 8423220006942
Manufacturer: Solera
Material: Termoplásico
Measures: 240x192x68 mm
Protection: IP20
Reference: SOLERA 694
Type of installation: Surface
GPSR Safety warning: No
GPSR Manufacturer information: SOLERA / Spain / Carrer de Pere IV, 454, 08020 Barcelona, España / [email protected] / +34 933069490
GPSR EU responsible person: SOLERA / Spain / Carrer de Pere IV, 454, 08020 Barcelona, España / [email protected] / +34 933069490
GPSR e-mail manufacturer: [email protected]

In stock 23 Items
