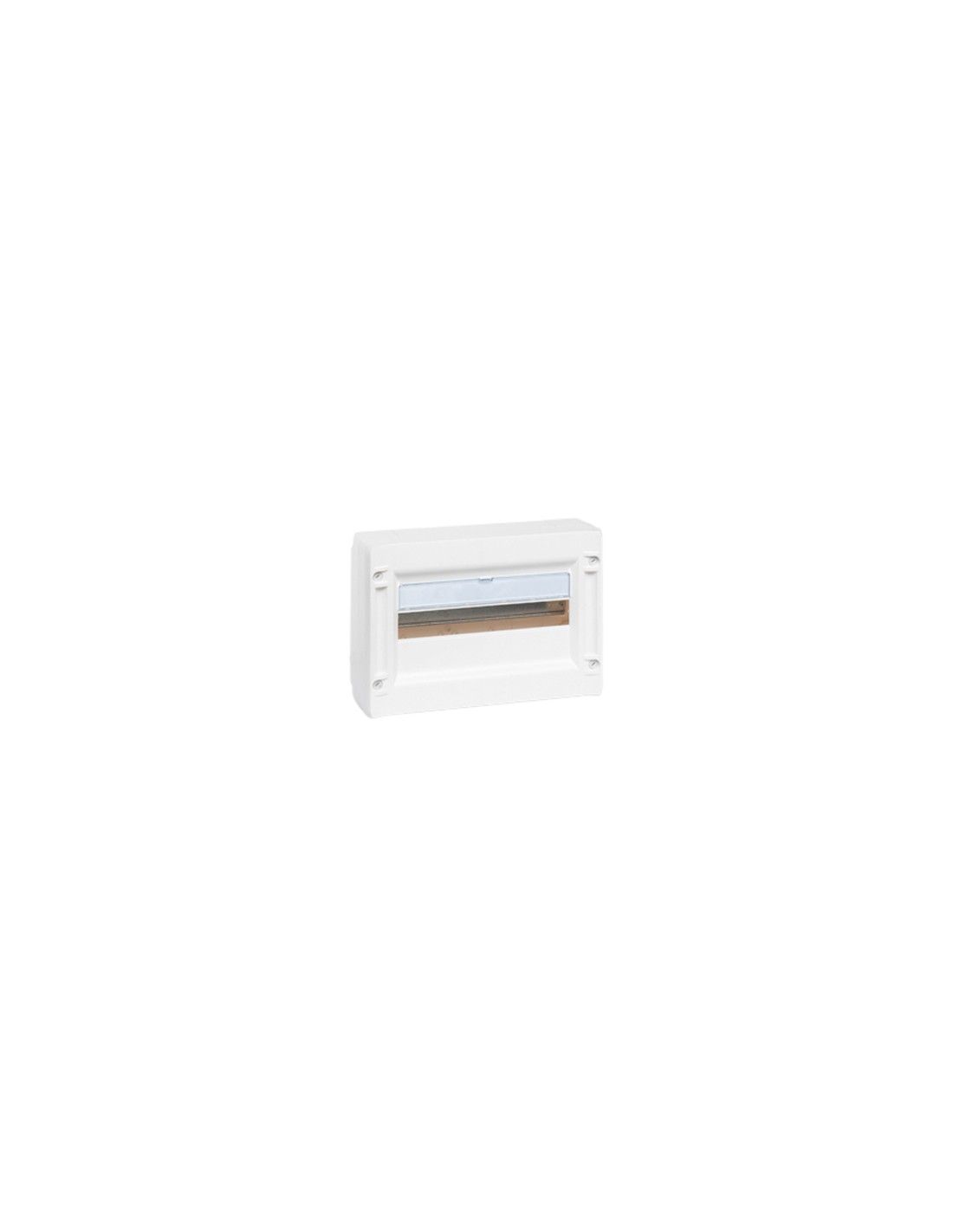

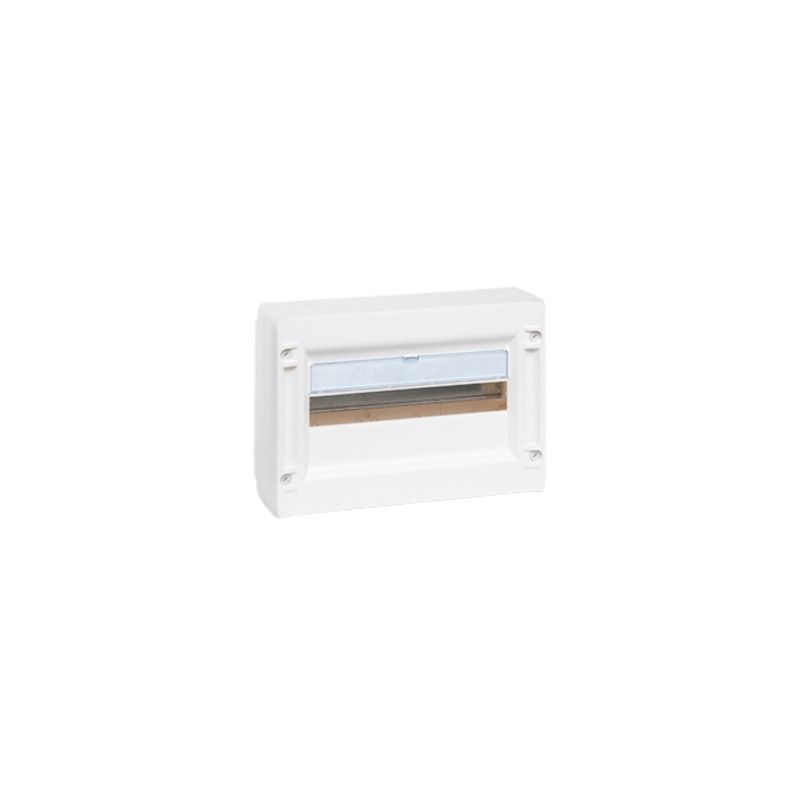

Surface electrical panel xl³125 1 row of 18 LEGRAND 401666 modules

Modular surface box xl³125 1 row of 18 modules

Modular boxes of 18 modules
Capacity 18 modules per row
White RAL 9003
Fully reversible boxes (door box chassis)
Supplied with:
removable and pivoting chassis equipped with 2-position DIN profiles (for modular or DPX³160 mechanisms). The profiles can be disassembled individually without tools.
cable entries (upper and lower) detachable without tools
individually removable 1/4 turn closing plates
adhesive labels to identify the circuits and terminals of ground
Distance between profiles: 150 mm.
Can be equipped with perforated mounting plates and blind cover plates for mounting non-modular products (from 2 rows)
Supplied without door Number of rows: 1 Number of modules: 18 Height: 300 mm

XL³125
modular surface boxes from 18 to 70 modules
IP 40
IK 09 with door
IP 40
IK 08 without door
Class II
Self-extinguishing: incandescent wire resistance 750ºC
Conform to IEC 60439-3 and IEC 60670-24 standards
