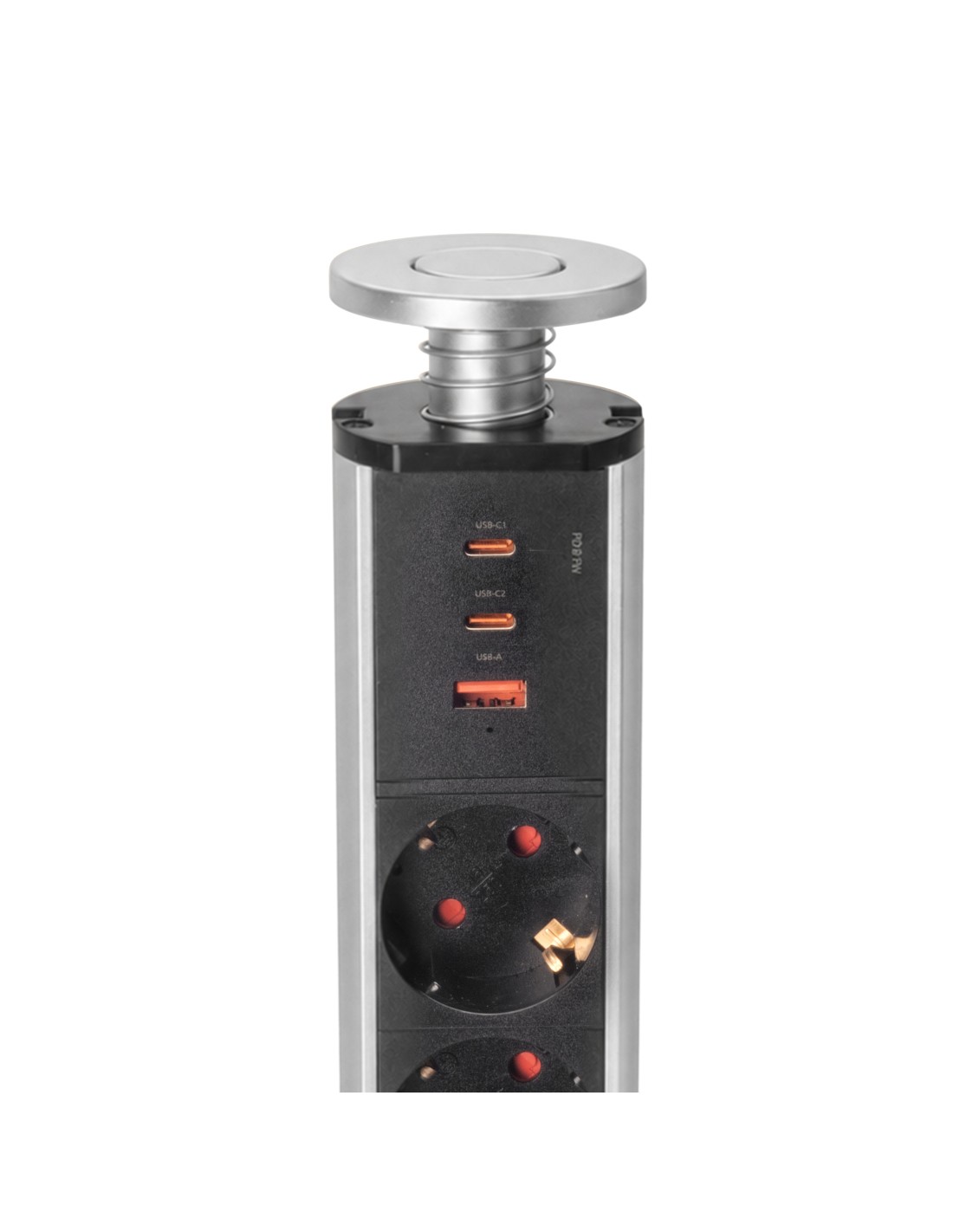

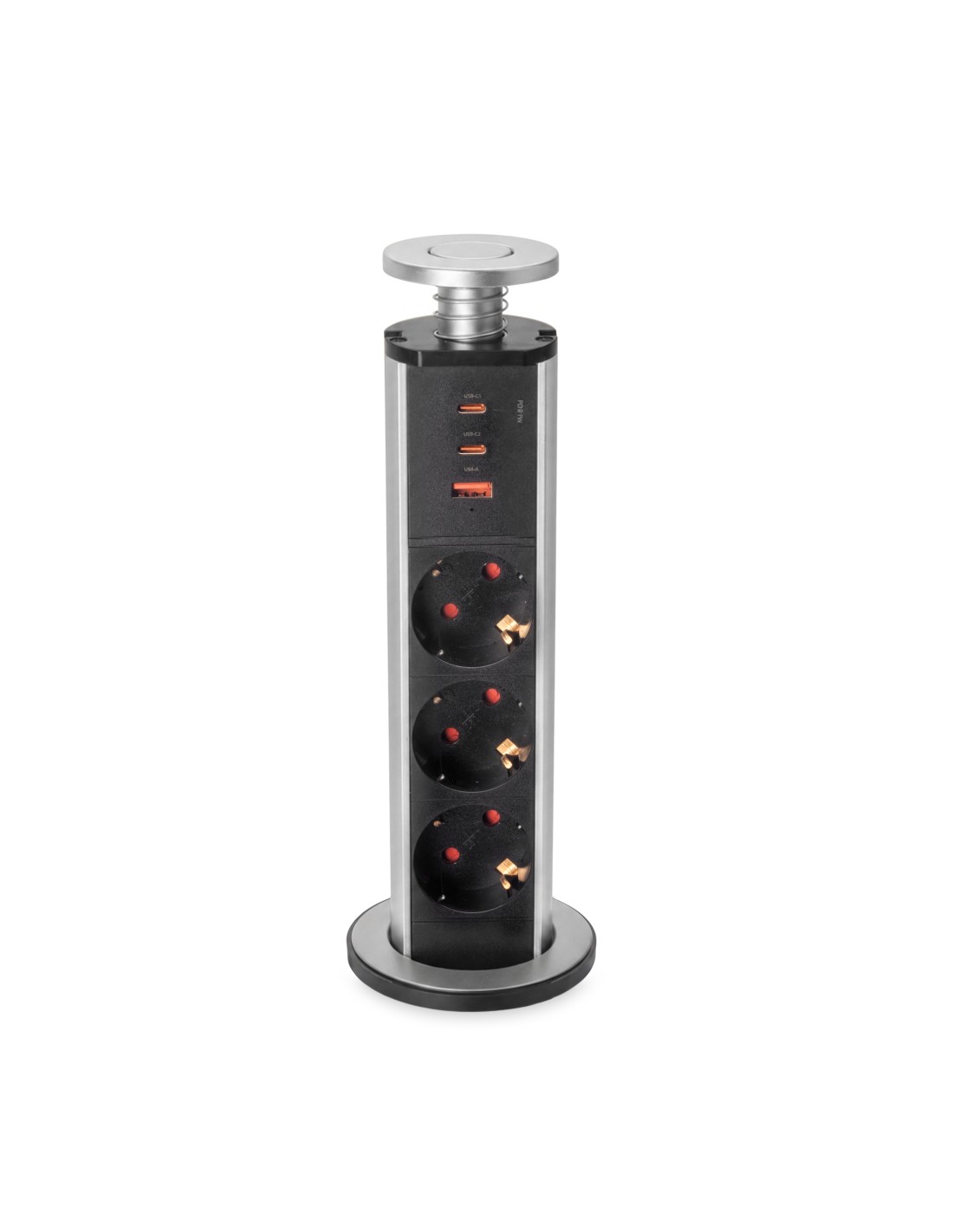

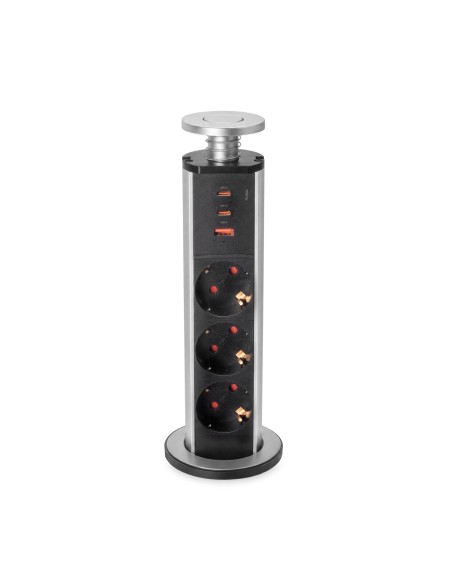

Removable Multi-socket Vertikal, 3 Schuko sockets and 3 USB ports, Grey painted aluminium

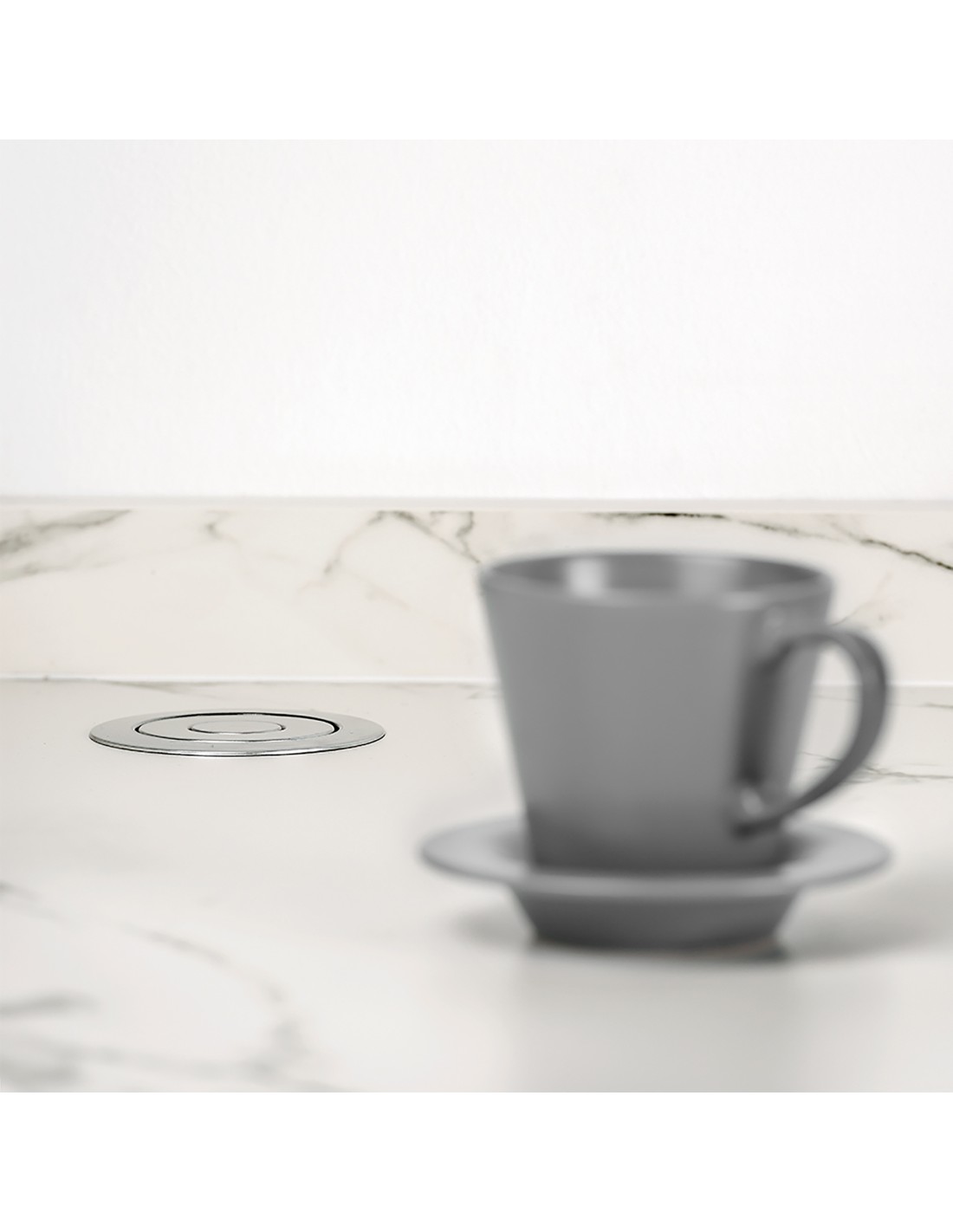

The multi-plug connector or lifting socket tower is designed to provide functionality and comfort in the day to day, integrating discreetly into kitchen, office and home furniture. Its retractable design allows you to hide it when it is not used and remove it easily manually when accessible electrical connections are needed.

Technical characteristics

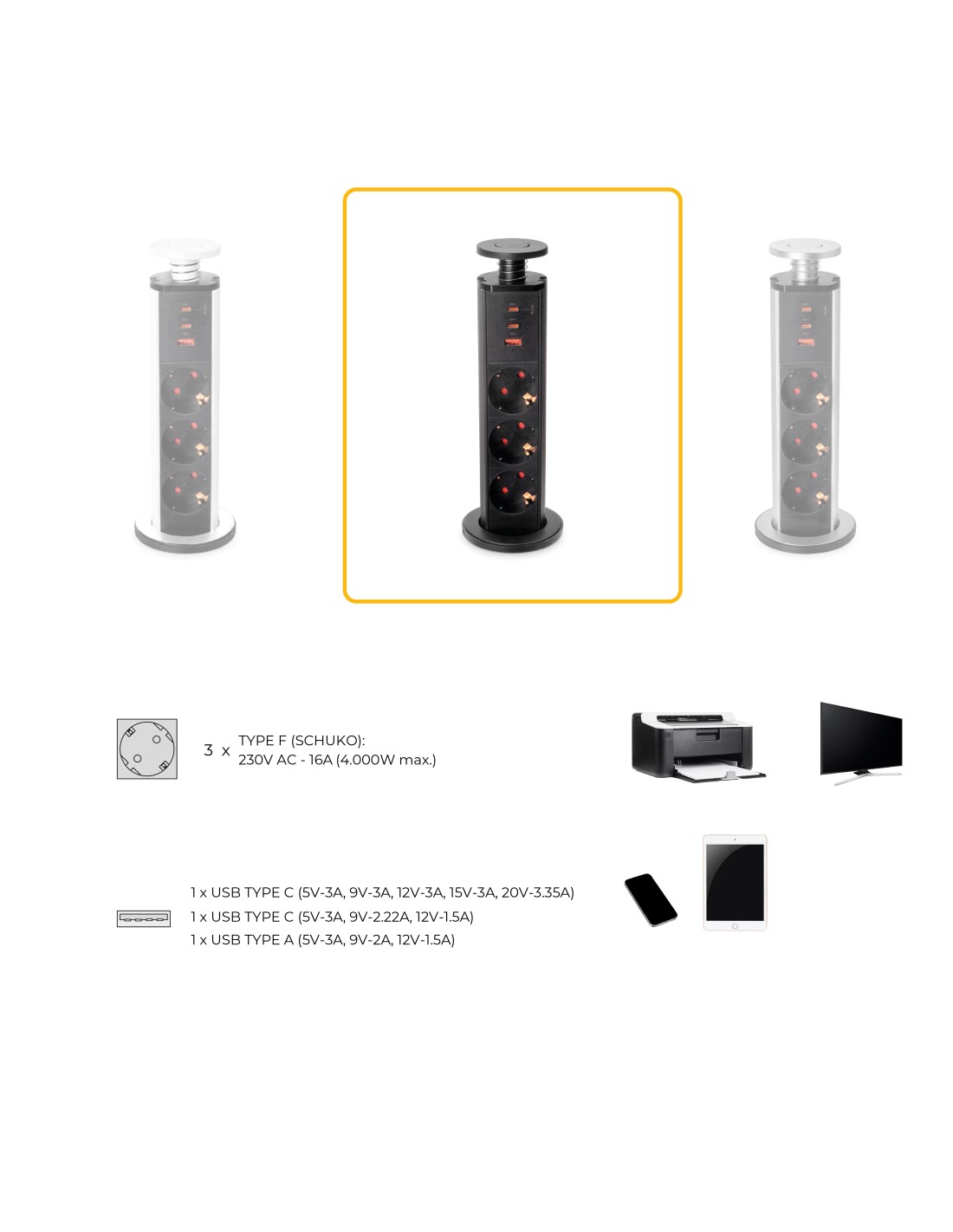

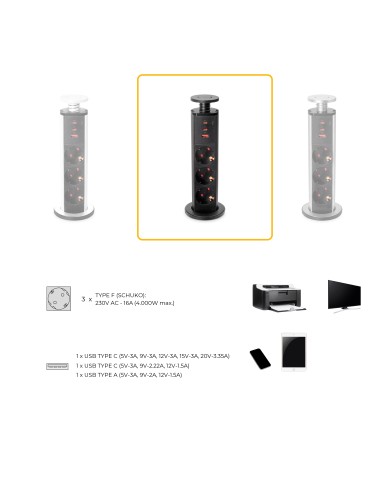

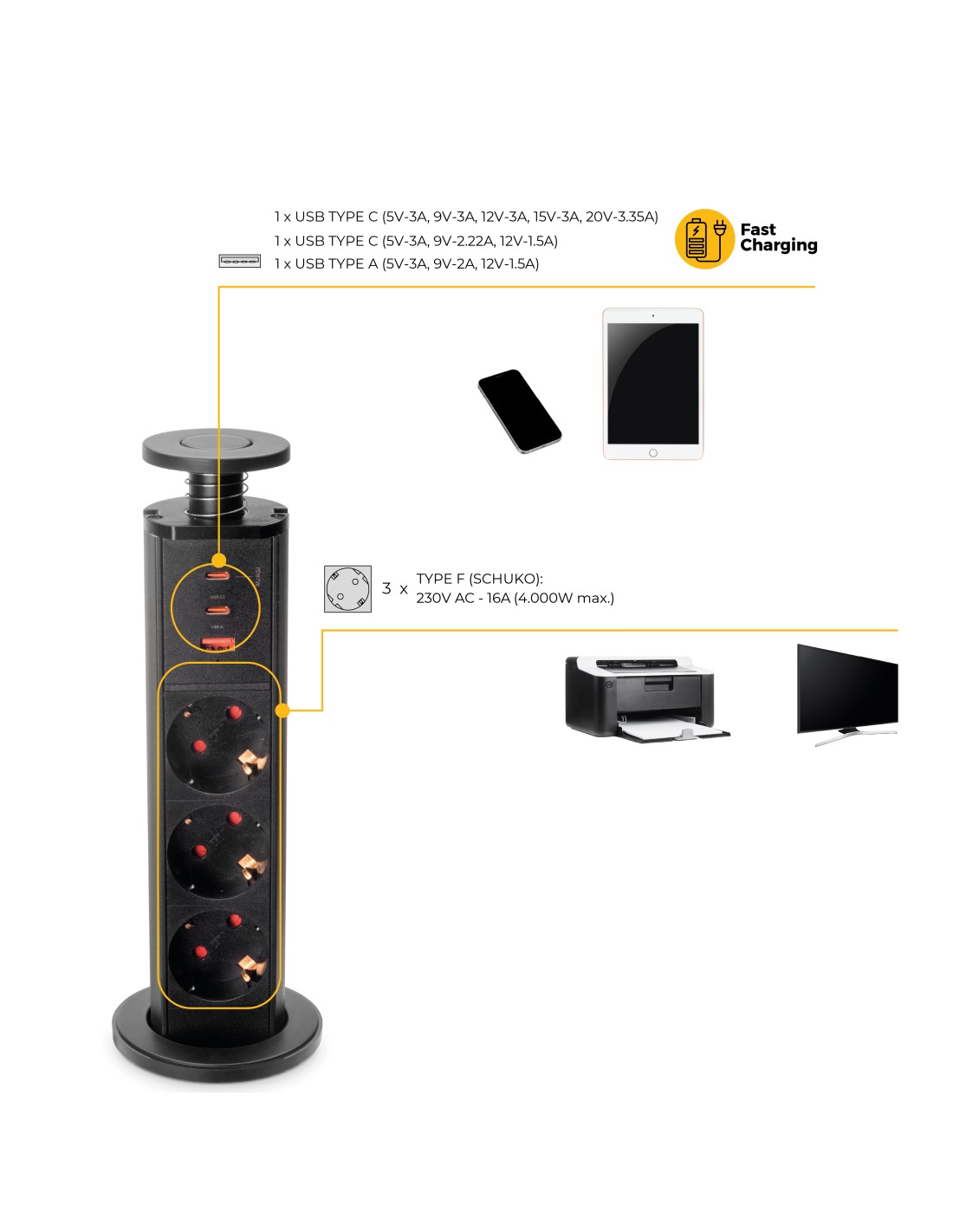

• 3 Schuko plugs with maximum permissible power up to 4000W – 16A.
• 1 USB type A connector and 2 USB type C connectors with fast charging function.
• Application range USB A: 5V-3A, 9V-2A, 12V-1.5A.
• Application range USB C1: 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-3.35A.
• Application range USB C2: 5V-3A, 9V-2.22A, 12V-1.67A.

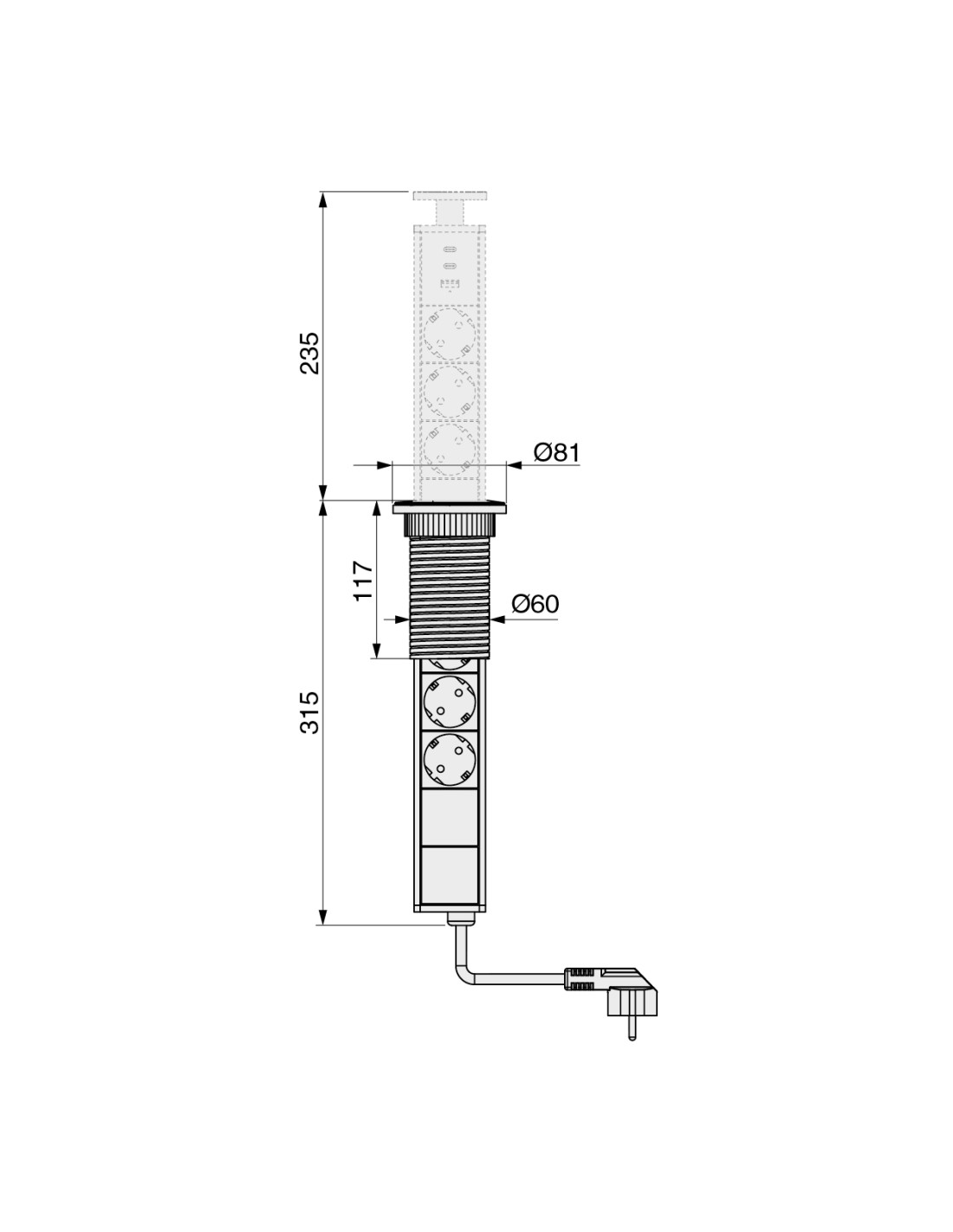

• Product dimensions: Height 31.5 mm, Width 8.1 mm, Length 8.1 mm.

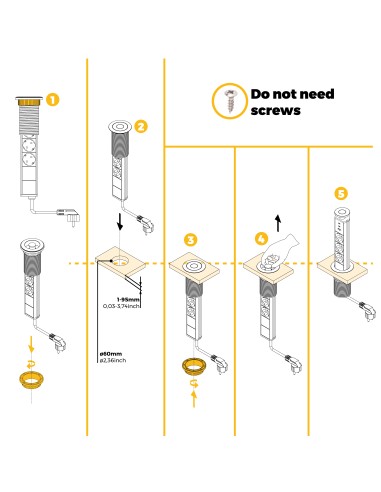

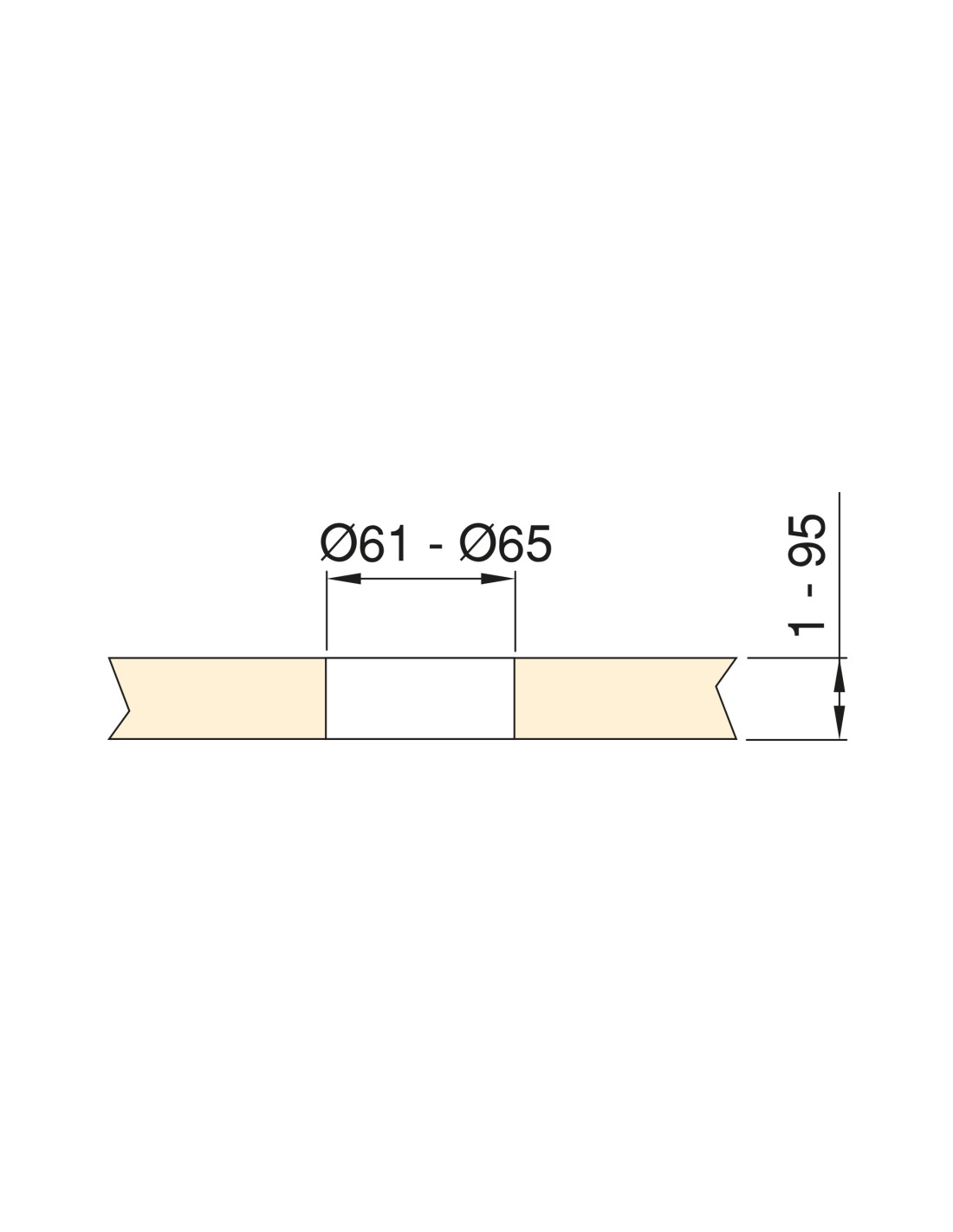

• Installation machining required: D. 60 mm.
• Assembly on surfaces with thickness between 1 and 95 mm.
• Manual nut fixing without the need for tools.
• LED ignition indicator.

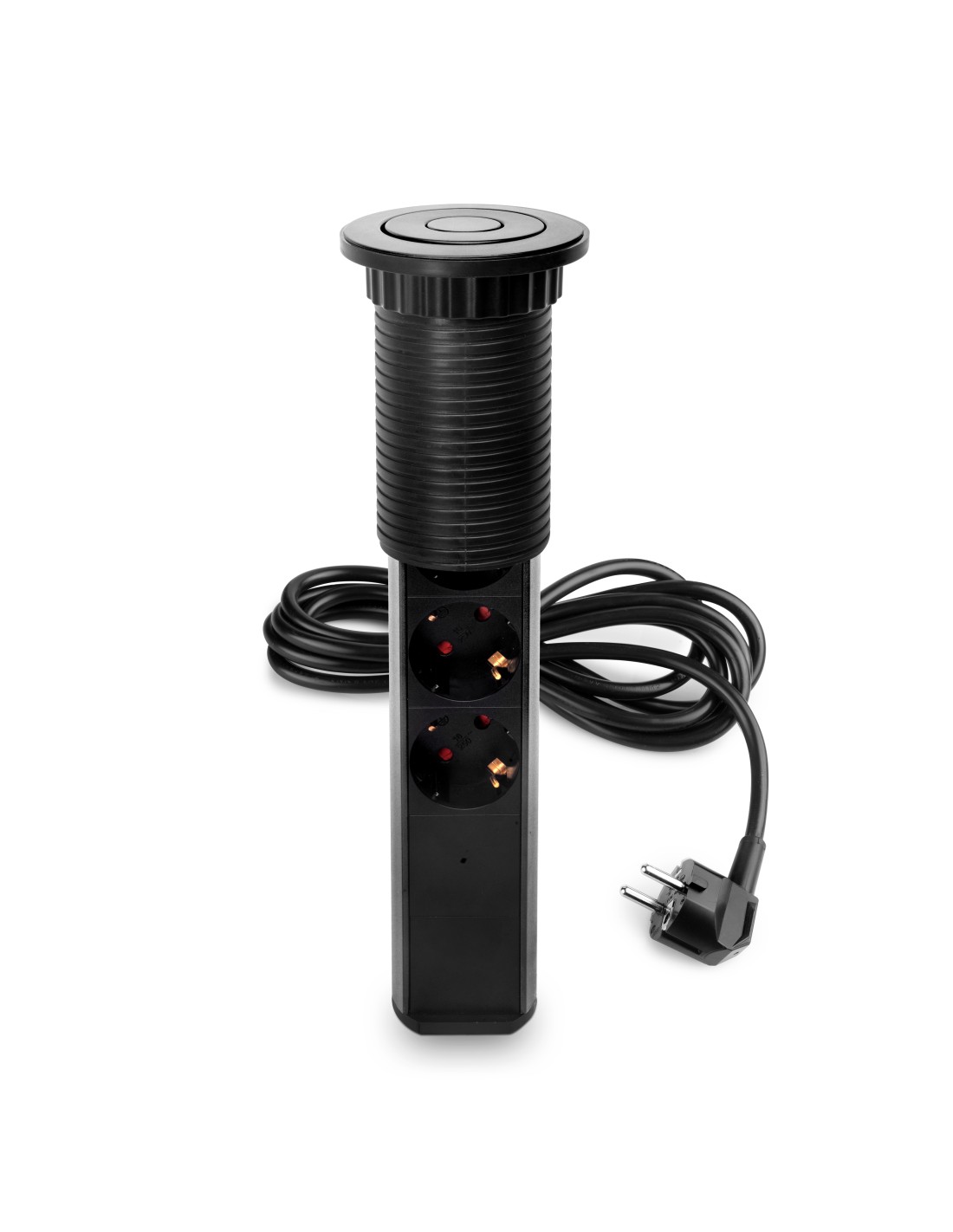

• 1.8 m power cable with 230V AC 50Hz plug.
• Material: Plastic with aluminum painted finish.

Thanks to its versatility and charging capacity, this device offers a practical solution to connect different electrical and electronic devices in domestic or professional environments, ensuring orderly access to energy.

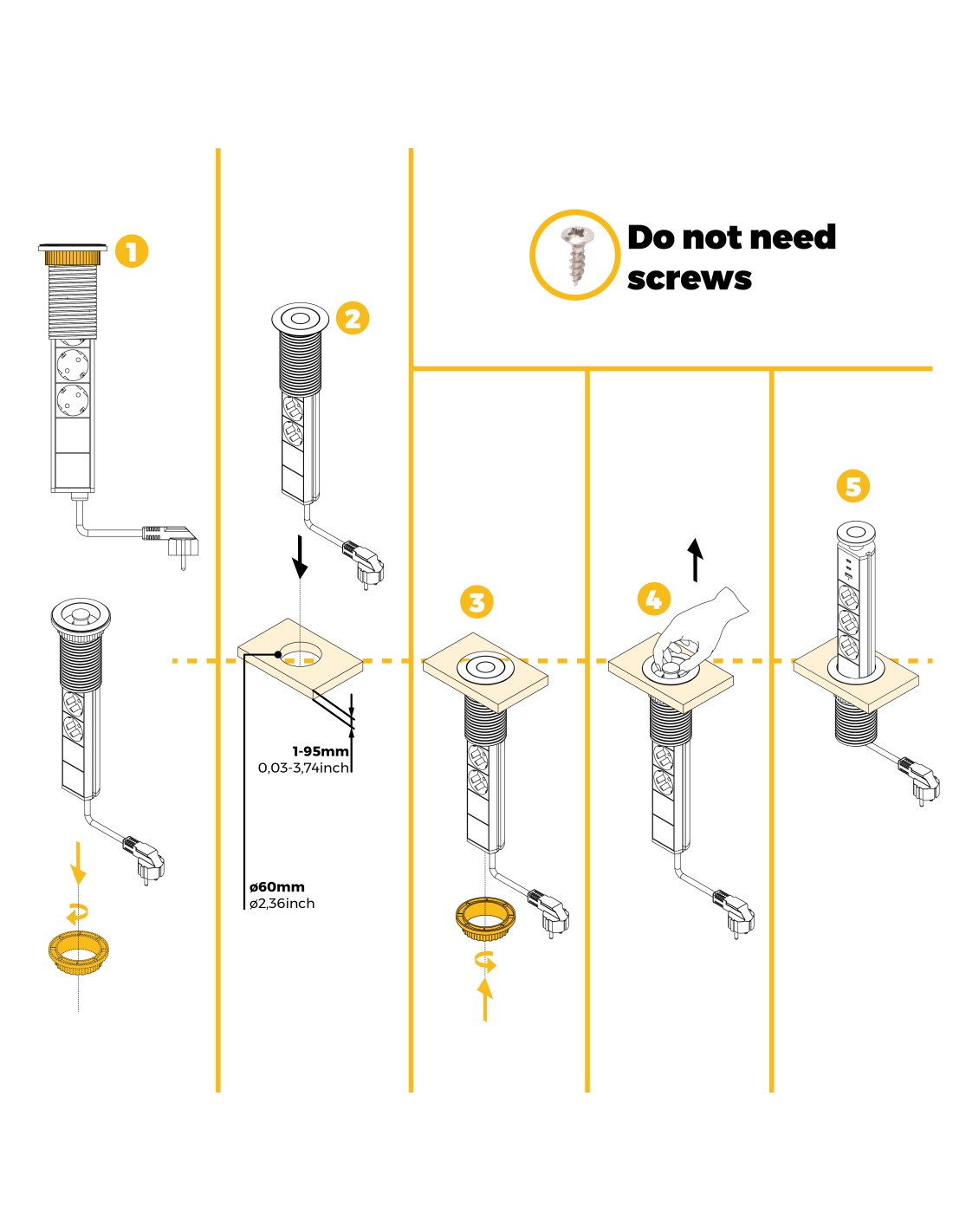

The installation is quick and simple, adapting perfectly to desks or surfaces already equipped with cableways, which makes it easier to integrate into high or low furniture without requiring additional tools to fix it.
