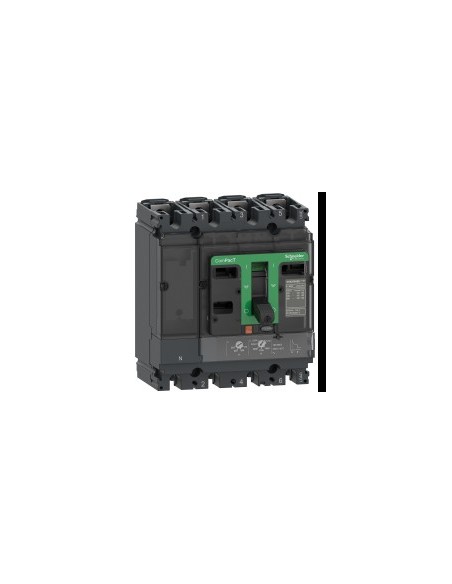

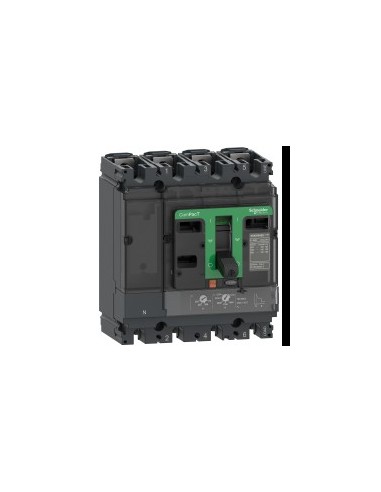

ComPacT NSX100N 4P4R 40A Automatic Circuit Breaker

ComPacT NSX100N 4P4R automatic circuit breaker from the new generation range, designed to protect electrical circuits in industrial and commercial installations. Its 4-pole configuration with protection on all conductors (4R) and left-side neutral position makes it suitable for three-phase applications with neutral. Designed for currents above 0.1 A, it offers high breaking capacity under overload and short-circuit conditions.

Technical Features

• Number of poles: 4P
• Protected poles description: 4R
• Neutral position: Left
• Rated current [In]: 40 A at 40 °C
• Rated operating voltage [Ue]: 690 V AC 50/60 Hz
• Network type: AC
• Supply frequency: 50/60 Hz
• Breaking capacity: Yes, according to Icu
• Usage category: A
• Breaking capacity Icu: 90 kA at 220/240 V AC, 50 kA at 380/415 V AC, 50 kA at 440 V AC, 36 kA at 500 V AC, 35 kA at 525 V AC, 10 kA at 660/690 V AC
• Service breaking capacity [Ics]: 90 kA at 220/240 V AC, 50 kA at 380/415 V AC, 50 kA at 440 V AC, 36 kA at 500 V AC, 35 kA at 525 V AC, 10 kA at 660/690 V AC
• Control unit: TM-D
• Tripping unit technology: Thermal-magnetic
• Protection functions: LIG
• Control type: Handle
• Mounting type: Fixed
• Rated insulation voltage [Ui]: 800 V AC 50/60 Hz
• Surge voltage withstand [Uimp]: 8 kV
• Mechanical durability: 50000 cycles
• Electrical durability: 50000 cycles at 440 V In/2, 30000 cycles at 440 V In, 20000 cycles at 690 V In/2, 10000 cycles at 690 V In
• Power dissipated per pole: 5.47 W
• Mounting support: Rear plate
• Mounting position: Horizontal and vertical (plano por la parte posterior)
• Top connection: Front
• Bottom connection: Front part
• Connection pitch: 35 mm
• Overload protection: Thermal
• Short-circuit protection: Magnetic
• Tripping unit rating: 40 A at 40 °C
• Long-time detection setting Ir: Adjustable, range 0.7...1 x In
• Long-time delay: Fixed, 120…400 s at 1.5 x In, 15 s at 6 x Ir
• Neutral protection setting: 1 x Ir (cable type: 4R)
• Instantaneous detection Ii: Fixed, range 500 A
• Earth leakage protection: No
• Number of slots: 5
• Dimensions: 140 mm (width) x 161 mm (height) x 86 mm (depth)
• Weight: 2.4 kg
• Compatibility code: NSX100
• Standards: HB2
• Certifications: CCC generator Marina
• Overvoltage category: Category II
• Electric shock protection class: Class II
• Contamination degree: 3
• Protection rating IP: IP40 (IEC 60529)
• Impact protection rating IK: IK07 (IEC 62262)
• Operating ambient temperature: -25…70 °C
• Storage ambient temperature: -50…85 °C
• Relative humidity: 0…95 %
• Maximum operating altitude: 0...2000 m (no derating), 2000...5000 m (with restrictions)
• Sustainable offering status: Green Premium product
• REACH Regulation: Contains SVHC above threshold
• EU RoHS Directive: Compliant
• Mercury-free: Yes
• RoHS exemptions: Yes
• China RoHS Regulation: Product outside China RoHS scope. Substance information declaration
• PVC-free: Yes
